Complete 7-Pin Towing Socket Wiring Diagram and Installation Guide

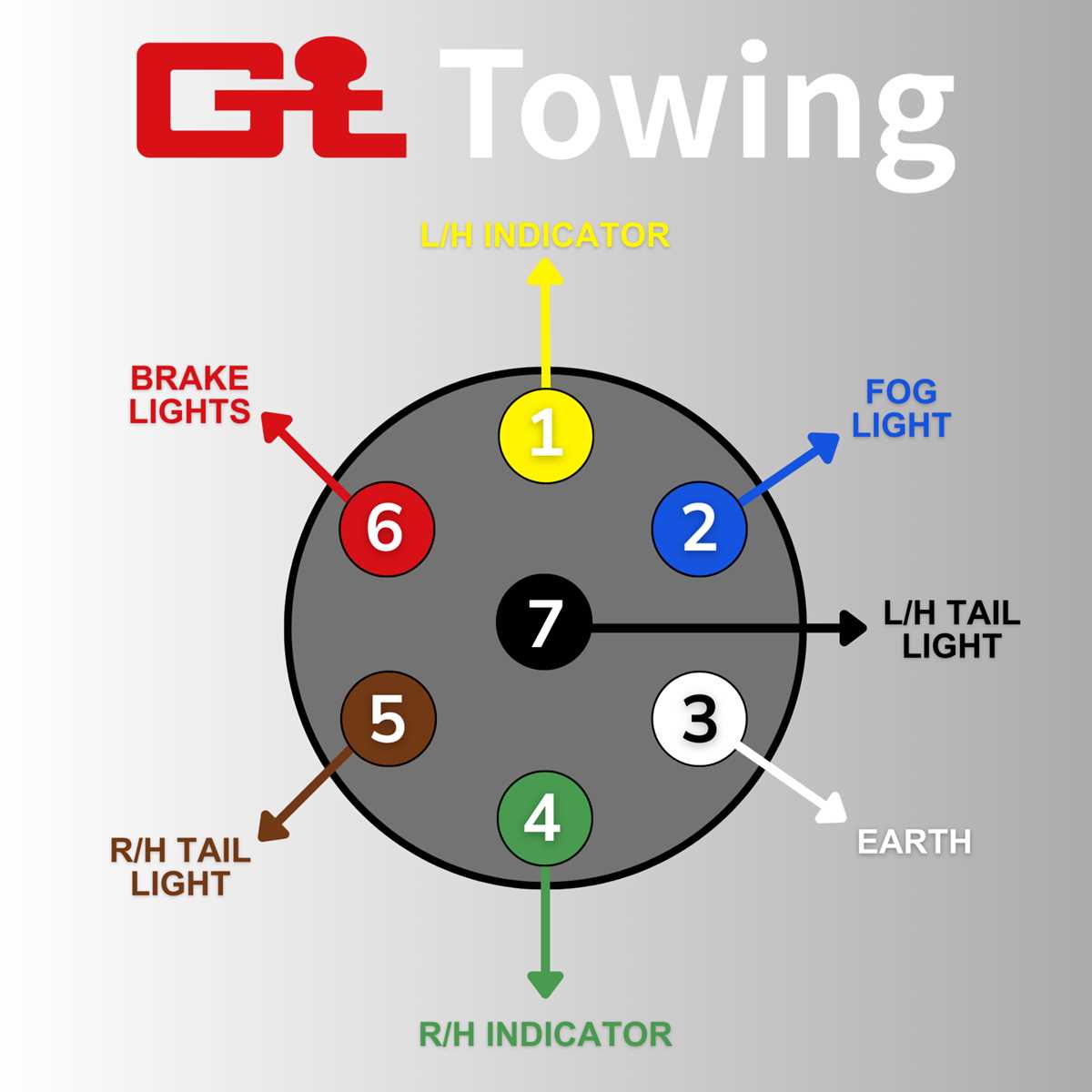

Start with terminal assignments. The standard configuration for a 7-way connector follows this sequence: terminal 1 (yellow) handles left turn/brake signal, terminal 2 (blue) controls electric brakes or auxiliary power, terminal 3 (white) grounds the circuit, terminal 4 (green) manages right turn/brake function, terminal 5 (brown) powers running lights, terminal 6 (red) activates brake lights, and terminal 7 (black) supplies constant 12V power. Verify compatibility with your vehicle’s harness–most modern trucks and SUVs align with this layout, but older models may require adapters.
Use color-coded wiring kits to simplify installation. Pre-assembled harnesses reduce errors; however, manually crimping connectors ensures a secure fit. Strip 6–8mm of insulation from each wire, twist strands tightly, and insert into the terminal before crimping with a ratcheting crimper. Avoid solder-only joints–they loosen under vibration. For heavy-duty trailers, upgrade to double-contact terminals or add dielectric grease to prevent corrosion at connection points.
Test circuits sequentially. Use a multimeter set to DC voltage: probe terminal 3 (ground) and each live terminal. Turn signals should read ~12V when activated, running lights ~6–8V due to PWM dimming. Brake lights typically spike to 12V during engagement. If readings fluctuate, inspect fuse blocks–trailer circuits often share fuses with vehicle lighting. Replace any blown fuses with identical amperage ratings (usually 15–20A).
For reverse light functionality (if equipped), connect to terminal 2 via a relay to prevent backfeeding. Some vehicles integrate this into the factory harness, while aftermarket setups may require tapping into the reverse light wire (pink or purple, depending on make). Always confirm wire gauge: 16 AWG suffices for lighting, but 12 AWG is mandatory for brake controllers or winches to handle current draw without voltage drop.
Connecting Your Vehicle’s 7-Way Trailer Plug Correctly
Use color-coded wires strictly following ISO 1724 standards: yellow (L, left turn/brake), green (R, right turn/brake), brown (TL, tail lamps), white (31, ground), blue (54g, reverse lights), black (30, +12V auxiliary), and red (58L, license plate). Strip 12mm of insulation, crimp with 6.3mm spade terminals, then secure each connection with heat-shrink tubing to prevent corrosion–especially critical for the ground wire, which must attach directly to the chassis without paint or sealant interference. Test continuity with a multimeter before final assembly; resistance above 0.5 ohms on any circuit indicates a faulty connection.
Common Mistakes to Avoid
| Error | Impact | Fix |
|---|---|---|
| Swapping yellow/green wires | Signals flash opposite sides | Verify against towing vehicle’s blinker pattern |
| Weak ground (white wire) | Intermittent trailer lights or flickering | Clean chassis attachment point; use star washer |
| Skipping auxiliary (black wire) | Electric brakes/power outlets fail | Connect to ignition-switched 12V source |
| Improper seal on plug housing | Moisture ingress shorts circuits | Apply dielectric grease to terminals; snap housing halves firmly |
Sequence installation starting with ground (white) and tail lamps (brown)–these form the base layer for all other functions. Route cables through a protective conduit if exposed to road debris, securing every 30cm with nylon ties rather than electrical tape, which degrades under UV exposure. For European towing systems, confirm compatibility with 58R (trailer right tail lamp) circuitry if your vehicle lacks split lamp functions.
Selecting the Optimal 7-Contact Vehicle Connector
Match the connector type to your trailer’s electrical load–standard 12V systems demand at least a 21W capacity for tail lights, a 4W reserve for license plate illumination, and a separate 21W circuit for brake signals. Heavy-duty variants like LED trailers halve this power consumption, allowing smaller wire gauges (minimum 1.5mm² for signal circuits, 2.5mm² for brakes and running lights). Verify compatibility with your vehicle’s OEM harness; aftermarket units often include relays that prevent voltage drop over extended cables, particularly critical for trailers exceeding 7 meters.
Prioritize connectors with gold-plated brass contacts–these resist corrosion three times longer than tin-plated alternatives in high-salinity environments, a common issue in coastal regions. Look for IP67-rated models with silicone-sealed boots; dust and moisture ingress cause 80% of connector failures within two years. For vehicles frequently submerged (e.g., boat trailers), specify units with submerged-pin protection, typically found in marine-grade components.

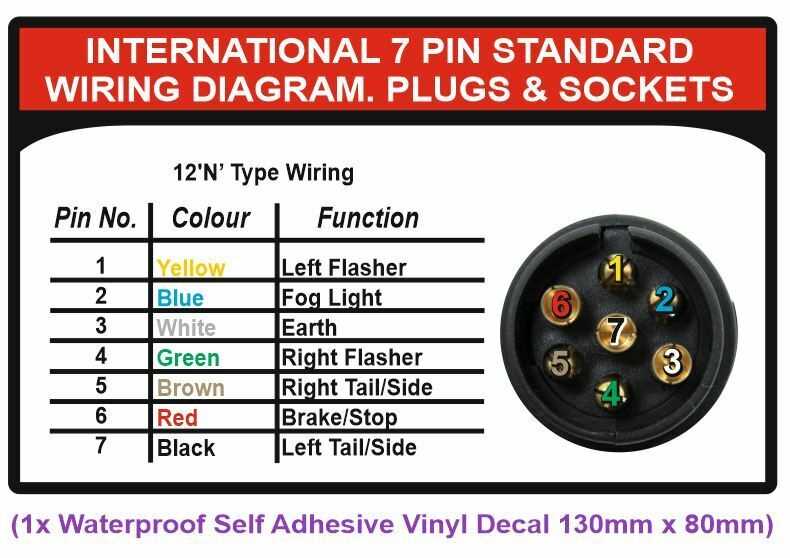

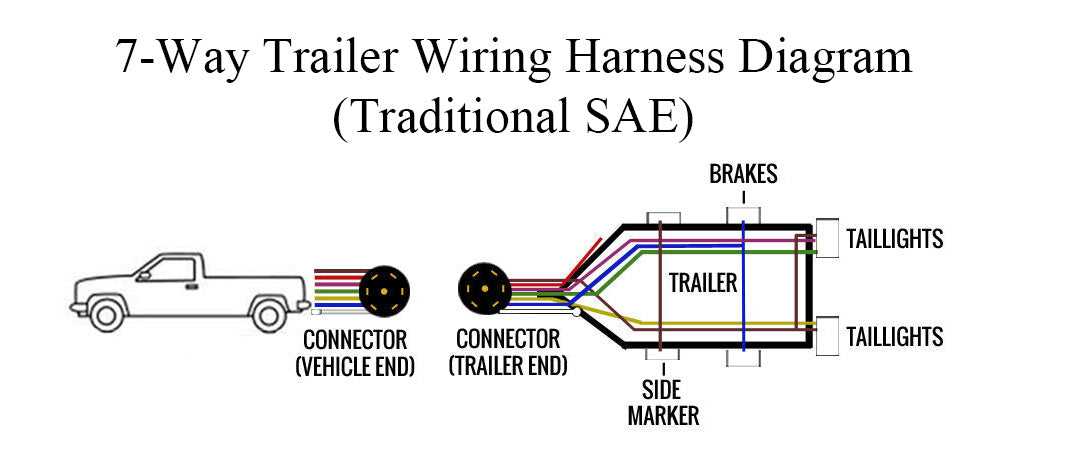

European (ISO 1724) and North American (SAE J560) standards differ in pin configuration–UK-spec units use pin 2 for reverse lights, while US models repurpose it for auxiliary power. Always cross-check your trailer’s plug layout; mismatches void safety systems like ABS and trailer stability control. For off-road applications, opt for connectors with bent pins, which reduce stress fractures during articulation under load.
Installing a 7-Contact Trailer Connector: A Practical Walkthrough
Begin by isolating the vehicle’s electrical feed–disconnect the battery’s negative terminal to prevent shorts. Locate the harness behind the rear bumper; most manufacturers route it near the factory tow point. Strip 10mm of insulation from each cable, exposing the copper strands. Use crimp connectors sized for 16-18 AWG wire–soldering is optional but adds durability for off-road use.
Color-Coding and Connection Order
- White: Earth to the chassis (bare bolt or designated ground point).
- Brown: Running lights–link to the rear lamp cluster’s side marker circuit.
- Yellow: Left turn/brake signal (combine if vehicle uses shared filament).
- Green: Right turn/brake signal (same logic as yellow).
- Blue: Reverse lamps–tap into the backup light switch or dedicated relay.
- Black: 12V auxiliary power (fused at 10A for trailer winches).
- Red: Electric brakes (requires a brake controller; 25A fuse mandatory).
Match the trailer’s plug schema precisely–mixing circuits risks bulb burnout or controller damage. Test continuity with a multimeter before securing connections.
Secure cables with adhesive-lined heat shrink tubing to seal crimps; avoid electrical tape–it degrades under UV exposure. Route wires away from sharp edges and moving parts, using loom or split tubing where needed. For vehicles with factory prep, plug the harness into the existing port instead of splicing; adapter pigtails are available for mismatched systems.
Verify all functions with a test trailer or LED circuit checker:
- Turn signals (flash left/right)
- Brake lights (press pedal)
- Reverse lights (shift into gear)
- Running lights (activate headlights)
- Auxiliary power (connect a 12V load)
- Brake controller (if equipped, simulate trailer sway).
Proceed only after confirming zero voltage leaks or cross-talk between channels.
Standardized Wire Colors and Their Specific Roles in Vehicle Connectors
Always verify the connection adapter before proceeding–yellow (left turn signal/brake) must carry 12V when activated, measured at 20–25 amps under typical load. Failure to maintain this specification risks signal distortion or circuit overload, especially in LED-equipped trailers. If resistance exceeds 0.5 ohms, replace the conductor immediately; oxidized terminals are a common culprit. Brown (tail/running lights) should never exceed 5A during normal operation–consistent overdraw indicates a short in the trailer’s lighting assembly.
Green (right turn/brake) shares an identical voltage profile with its counterpart but remains isolated–cross-connection between these circuits triggers erratic braking indicators and violates ISO 1724 standards. White (ground) is non-negotiable; it must attach directly to the vehicle’s chassis frame using a minimum 10-gauge conductor, stripped and crimped with a copper ring terminal. Corrosion-resistant grease on this joint prevents voltage drop under wet conditions, a leading cause of intermittent lighting failures. Avoid relying on factory ground points if they exhibit rust or paint overspray–re-drill and tap a clean surface.
Blue (reverse lights or auxiliary power) demands confirmation against trailer requirements–some models repurpose this circuit for electric brakes instead. Voltage here should mirror the vehicle’s backup lamps, typically 12V on activation, but never assume; test with a multimeter first. Black (battery charge line) must sustain 10–20A continuous draw–undersized wire here causes overheating and potential fire risk. Secure this line with a 20A fuse within 7 inches of the battery terminal, per SAE J560 guidelines, and route it away from sharp edges or moving components.
Red (alternator output or electric brake control) splits its role depending on trailer type–travel trailers often use it for charging, while RVs prioritize brake actuation. For electric brakes, pulse-width modulation (PWM) signals range from 3–12V; deviations outside this window suggest controller malfunction or poor ground integrity. Never splice this wire–use a dedicated 7-way connector with silver-plated contacts to ensure minimal resistance (
Gray (auxiliary/spare) remains manufacturer-specific–some European models assign it for cabin power, while others leave it unused. Standard practice dictates capping it with a weatherproof butt splice if not utilized, preventing moisture ingress that can migrate into adjacent circuits. Always label this conductor with heat-shrink tubing marked “SPARE” to avoid accidental repurposing. During installation, bundle all cables using split-loom tubing and secure them every 12 inches with UV-resistant zip ties–loose wiring invites vibration damage and chafing against the vehicle’s undercarriage.
