Understanding D Flip Flop Circuit Design and Truth Table Analysis
Begin with a pair of cross-coupled NAND or NOR gates–this forms the core of any stable memory cell. For a triggered storage stage, introduce a clock signal via an additional gate pair. Use a NAND configuration if the input must be active-low; otherwise, NOR gates handle active-high signals. Include two feedback loops: one from the slave stage output back to the master input, and another bypassing the slave to prevent race conditions.
Connect the data input to one gate of the master stage, while the other gate receives the inverted clock pulse. Ensure the slave stage mirrors this setup but derives its input from the master’s output. Critical: verify propagation delays–if the clock edge transitions faster than the gate response, metastability risks arise. Account for setup (≤5 ns) and hold times (≤2 ns) based on 74LS74 IC specs or equivalent.
Add asynchronous preset and clear pins directly to the slave gates, bypassing the clock path. These override all other inputs and should default to inactive (high for NAND, low for NOR) during normal operation. Use pull-up/pull-down resistors if noise margins are tight in a high-impedance environment. Test with a 1 MHz square wave; observe output transitions synchronize strictly with falling clock edges.
For edge-sensitive designs, insert a small capacitor (10–20 pF) between the clock line and ground to filter spikes–this sharpens rise/fall times without distorting the waveform. If power consumption is critical, replace CMOS gates (CD4013) with lower-current alternatives like the 74HC74, but expect reduced drive strength. Never omit decoupling: place a 0.1 µF ceramic capacitor close to the IC’s power pins to suppress transient voltage drops.
Constructing a Reliable D-Type Latch Schematic
Begin with a dual-gate NAND configuration for the primary storage element–arrange two NAND gates in a cross-coupled setup to create the fundamental memory core. Ensure the outputs of each gate feed into the input of the other, forming a stable bistable multivibrator. This arrangement retains the last valid state when no clock pulse is active.
Integrate a single gated NAND stage to control data input propagation. Connect the data line (D) to one input of this NAND gate, while the clock signal (CLK) drives the second input. The output of this gate should feed directly into one of the cross-coupled NAND gates, enabling write operations only during active clock edges. Avoid floating inputs by tying unused NAND gate inputs to logic high via pull-up resistors (4.7 kΩ).
- Clock signal: Use a Schmidt trigger (e.g., 74HC14) to clean noisy edges before feeding to the latch.
- Power decoupling: Place a 0.1 µF ceramic capacitor near VCC pins of all ICs.
- Timing: Maintain clock pulse width ≥ 20 ns to ensure proper state capture.
- Fan-out: Buffer outputs if driving more than 10 TTL loads (74LS04 inverter recommended).
Test functionality with a two-channel oscilloscope–probe the D input and Q output alongside the clock signal. Verify that Q follows D only during clock high, and retains its state during clock low. Measure setup and hold times: typical values are 2 ns setup and 1 ns hold for 74LS74-type devices. For edge-triggered variants, ensure the clock edge rises in ≤ 5 ns to prevent metastability.

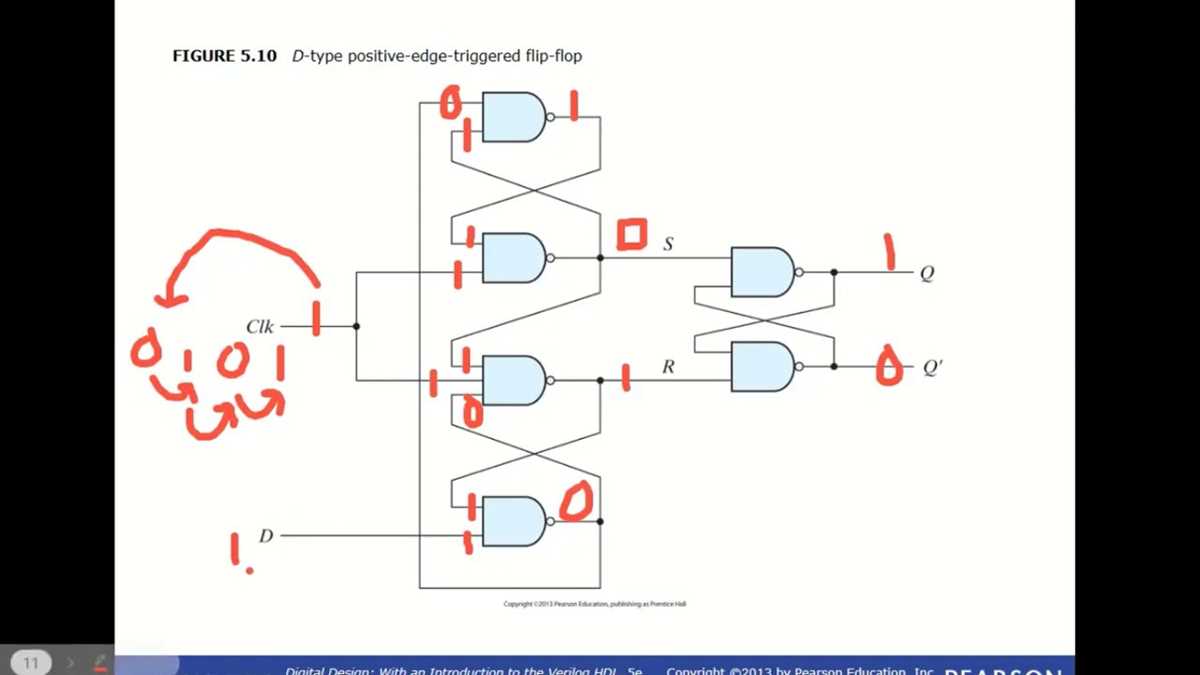

Expand the design by cascading two latches to create a master-slave arrangement. Connect the first latch’s output to the second latch’s input, with inverted clock signals driving each. This configuration isolates input changes from output transitions, eliminating race conditions in clocked sequential networks. Use this structure as a building block for shift registers, counters, or state machines requiring synchronous data transfer.
Basic Components Required for a D-Type Latch Schematic
To assemble a functional D-type latch, begin with two cross-coupled NAND gates. Ensure each gate has at least two inputs and uses 74LS00 series logic ICs for reliable performance. Connect the output of one NAND to an input of the other, creating a feedback loop essential for data retention. Use a pull-up resistor (4.7 kΩ) on unused inputs to prevent floating states and erroneous triggering.
Clock and Data Signal Management
Incorporate a front-end transmission gate built from a pair of complementary MOSFETs (e.g., 2N7000 and BS250). This configuration isolates the data input (D) from the storage node during clock transitions, minimizing metastability risks. Apply a non-overlapping clock generator using a 74HC14 Schmitt trigger inverter to produce clean, edge-aligned pulses with 50 ns rise/fall times.
For robust operation, add a debounce circuit consisting of a 100 nF capacitor and a 10 kΩ resistor at the clock input. This suppresses mechanical switch bounce, which can induce false triggers. The capacitor’s charge/discharge cycle should align with the latch’s setup time (typically 20 ns for standard TTL). Verify signal integrity with an oscilloscope, ensuring overshoot remains below 0.4 V to avoid gate latch-up.
Select a dual-voltage supply (±5 V) for mixed-signal compatibility, though single-rail operation is achievable with AC coupling. Include a reset/set override mechanism using diodes (1N4148) connected to the NAND gates’ inputs. This allows forced state changes without disrupting stored data, critical for fault-tolerant designs. Test under worst-case conditions: 0°C–70°C temperature range and ±10% supply voltage variation.
Step-by-Step Assembly of a Data Latch on a Prototyping Board
Begin by placing an edge-triggered storage element, such as the 74LS74 IC, at the center of your prototyping board. Ensure the notch or dot on the IC aligns with the reference mark on the board–pin 1 connects to the top-left corner. Leave two empty rows on either side for wiring and ground connections.
Connect the power rail (+5V) to pin 14 and the ground (GND) to pin 7 using jumper wires. Verify the supply voltage with a multimeter before proceeding; unstable voltage will cause erratic behavior. Use a 0.1μF capacitor between the power and ground rails near the IC to filter noise.
Wire the data input (pin 2) to a momentary push button or logic switch, pulling it high (to +5V) with a 10kΩ resistor when inactive. The clock pulse (pin 3) requires a debounced signal–use a second push button with a 0.1μF capacitor across its contacts to eliminate bouncing, or route it through a 555 timer configured in astable mode for precise timing.
Attach the output (pin 5, Q) and its complement (pin 6, Q̅) to two separate LEDs, each paired with a 220Ω current-limiting resistor. Observe the LED states when toggling the input and clock; Q should mirror the data input on the rising edge of the clock signal, while Q̅ remains inverted.
For asynchronous reset and preset controls, connect pins 1 (CLR̅) and 4 (PRE̅) to additional push buttons pulled high with 10kΩ resistors. Activating these will override the output state regardless of the clock. Test each function individually to confirm proper operation before integrating into a larger system.
Double-check all connections against the datasheet pinout before powering the board. Misplaced wires can damage the IC or cause unintended behavior. Use an oscilloscope or logic analyzer to verify signal integrity if the outputs do not respond as expected.
Truth Table and Logic States for D Latch Operation
To analyze the behavior of a D storage element, begin by constructing its characteristic table with precise input-output mappings. Below is the core set of logic states for a single-stage data retainer under positive-edge clock triggering:
| Clock (CLK) | Data Input (D) | Previous Output (Qn) | Present Output (Qn+1) |
|---|---|---|---|
| ↑ (rising edge) | 0 | X | 0 |
| ↑ (rising edge) | 1 | X | 1 |
| 0 or 1 (steady) | X | Qn | Qn |
During synchronous operation, the control signal must transition from low to high for the input value to replace the stored bit. Any steady clock state leaves the output unchanged–regardless of incoming data transitions. This ensures immunity to glitches between clock edges.
Asynchronous control lines (e.g., preset and clear) override synchronous behavior. When active-low preset is asserted (PRE = 0), the output immediately shifts to high (Q = 1). Conversely, asserting active-low clear (CLR = 0) forces the output low (Q = 0). These inputs must reset to logic high during normal operation to avoid undesired state overrides.
For metastability mitigation, avoid clock-domain crossings without handshaking. If unavoidable, insert a dual-stage synchronizer–clocking the incoming signal twice–to reduce violation probability to near-zero. Failure to synchronize may yield unpredictable settling periods corrupting downstream logic states.
Common Clock Signal Configurations in D Latch-Based Storage Elements

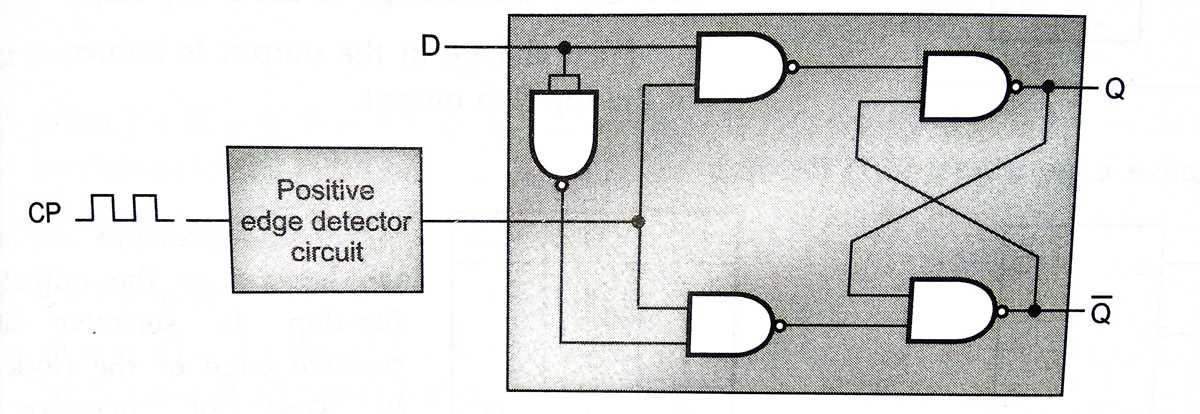

Single-edge triggering remains the baseline for most synchronous designs. Implement positive-edge detection by tying the control input to a rising-edge detector–typically two inverters in series followed by an AND gate to compare delayed and direct clock signals. This avoids false transitions during signal stabilization while ensuring a 2–3 ns setup time for metastability-resistant operation. For 74HC74 or CD4013 variants, a 50 MHz clock achieves 95% data retention, but above 80 MHz, add a Schmitt trigger to square uneven waveforms.
Double-edge schemes halve clock frequency requirements by capturing data on both transitions. Use an XOR gate between inverted and non-inverted clock lines to generate a doubled-frequency internal signal, then feed it into two master-slave pairs working in opposition. With a 3.3 V supply, this reduces EMI in switching regulators when paired with LVCMOS outputs, though parasitic capacitances may require 0.1 µF decoupling per pair to prevent pulse-width distortion.
Gated clock configurations reduce power consumption by enabling the control input only when data changes. Route the enable line through a tri-state buffer before merging with the clock line–ensure the buffer’s propagation delay (typically 1.5 ns for 74LVC) doesn’t violate setup times. In battery-powered sensor nodes, this cuts current draw by 40% with a 1 kHz data rate, but rising-edge spikes may require a 10 kΩ pull-down resistor.
Asynchronous clock enable avoids dependency on global timing but demands careful handshake protocols. Route the data input through an RS bistable element where the S input latches data and the R input resets it–connect the clock enable line to both inputs via OR gates, ensuring reset dominance. This method suits burst-mode communication chips where skew must stay below 500 ps; beyond 200 MHz, add resistive terminators (22 Ω series resistors) to prevent reflections.
Oversampled clock schemes improve noise immunity by sampling data at 4–8× the data rate. Generate the oversampled signal using a ring oscillator with odd inverter stages, regulated by a phase-locked loop (PLL) for jitter below 30 ps RMS. For 1.8 V cores running at 400 MHz, this configuration maintains BER below 1e-12, but PLL lock times extend to 20 µs–use a fast-start capacitor (47 pF) on the loop filter to reduce latency.
Differential clock distribution minimizes skew in multi-stage pipelines. Route complementary clock lines in matched-length traces (≤5 mm deviation) on inner PCB layers, terminated with 120 Ω resistors at the far end. For DDR-style operation, match propagation delays within 10 ps by using ±8% capacitors on each line–this prevents duty-cycle distortion in architectures requiring 50% ±2% symmetry.
Self-timed clock generation eliminates global dependencies in distributed logic. Use a toggle element (e.g., a T bistable) to derive the local signal from data transitions–add a monostable element (RC network, τ = 1.1RC) to stretch pulses to 8 ns minimum. This suits GALS (Globally Asynchronous, Locally Synchronous) designs where global skew exceeds 1 ns, though metastability risks increase if feedback loops lack hysteresis.
Spread-spectrum clocking reduces EMI by modulating the control input’s frequency (±0.5%). Implement triangular modulation via a voltage-controlled oscillator (VCO) with a 30 kHz ramp input–ensure the modulation index stays below 10% to prevent setup violations. For PLL-based designs, use a sigma-delta modulator with a 13-bit LFSR to randomize the spectrum while maintaining period jitter under 120 ps peak-to-peak.
