Complete Guide to Building a DC Motor Drive Circuit Step by Step

Begin with a H-bridge configuration using four power transistors–IRF540N MOSFETs offer 23A continuous current handling at 100V ratings, ideal for industrial-scale torque applications. Pair each with a schottky freewheeling diode (e.g., 1N5822) to clamp inductive spikes exceeding 100V during rapid deceleration. For precise speed modulation, integrate a PWM signal generator capable of 20–50 kHz switching frequencies; Arduino’s Timer1 library reliably produces 0–100% duty cycles with minimal jitter.

Heat dissipation is critical: attach MOSFETs to a 10×10 cm aluminum heatsink rated at 1.5°C/W, using thermal adhesive (e.g., Arctic MX-6) for sub-10°C junction-to-ambient transfers. Include a 10kΩ pull-down resistor on each gate to prevent unintended activation during power-up transients. For microcontroller protection, add a 3.3V Zener diode (1N5226) between the gate and source to clamp excess voltage spikes.

Power stage robustness demands a 2200µF electrolytic capacitor (50V rating) across the supply rails to stabilize input current, reducing voltage sag during high-inertia loads. For closed-loop control, mount a Hall-effect sensor (e.g., A1302) with a 4-pole magnet ring to achieve 12-bit resolution angular feedback–positional accuracy improves torque linearity by 40% compared to open-loop systems.

Isolate logic and power grounds using a star topology; connect all grounds at a single point near the power source to eliminate ground loops, which can induce erratic behavior in PID-controlled applications. If EMI susceptibility is a concern, shield PWM traces with a continuous ground plane–this reduces radiated noise by 25 dB at 50 kHz harmonics.

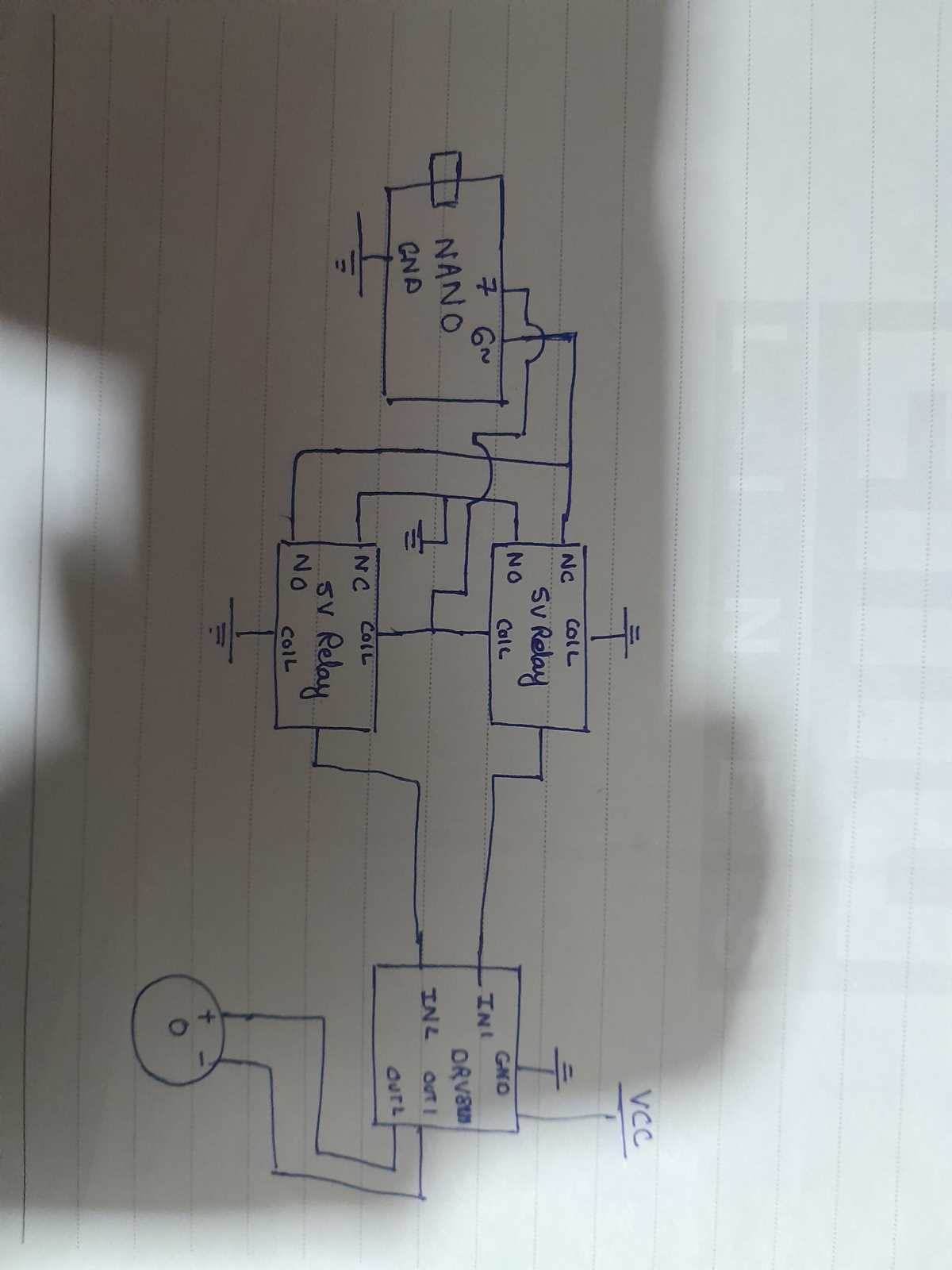

Schematic for Controlling Rotary Actuators

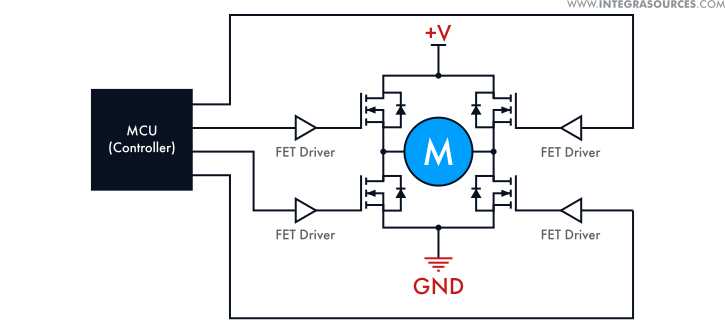

Use an H-bridge arrangement with four N-channel MOSFETs (e.g., IRF540N) to manage bidirectional current flow in a low-voltage rotary mechanism. Configure the gates with 10 kΩ pull-down resistors and drive them via PWM signals from a microcontroller (e.g., Arduino Nano) at 20 kHz to balance torque and heat dissipation. Include Schottky diodes (1N5822) across each FET to clamp inductive spikes during switching transitions. For 12 V systems, add a 1000 μF bulk capacitor near the power input to suppress voltage sag under load.

Key Component Pairings

Match gate drivers (e.g., TC4427A) to FETs based on peak current–2 A drivers suffice for 5–15 A actuators. For precision speed control, sample back-EMF every 1 ms using an ADC with 10-bit resolution (0.5% error margin). Opt for 1% tolerance resistors in the feedback loop to minimize drift. Isolate logic and power grounds with a single-point star connection to prevent ground loops. Test transient response with an oscilloscope: ideal rise/fall times should stay under 1 μs to avoid shoot-through.

Key Components for a Basic DC Propulsion System

Begin with a power transistor–an NPN Darlington like the TIP120 handles currents up to 5 A, while MOSFETs (IRFZ44N) offer lower on-resistance for high-efficiency setups. Select based on load requirements: Darlington pairs simplify base drive but introduce higher voltage drop; MOSFETs demand careful gate voltage control but minimize heat.

A flyback diode (1N4007) placed antiparallel across the coil prevents inductive voltage spikes from destroying the switching element. Ensure the diode can handle peak reverse voltage at least double the supply voltage–failure here risks catastrophic component burnout. For PWM-controlled applications, a Schottky diode (1N5822) reduces recovery losses.

Control and Regulation

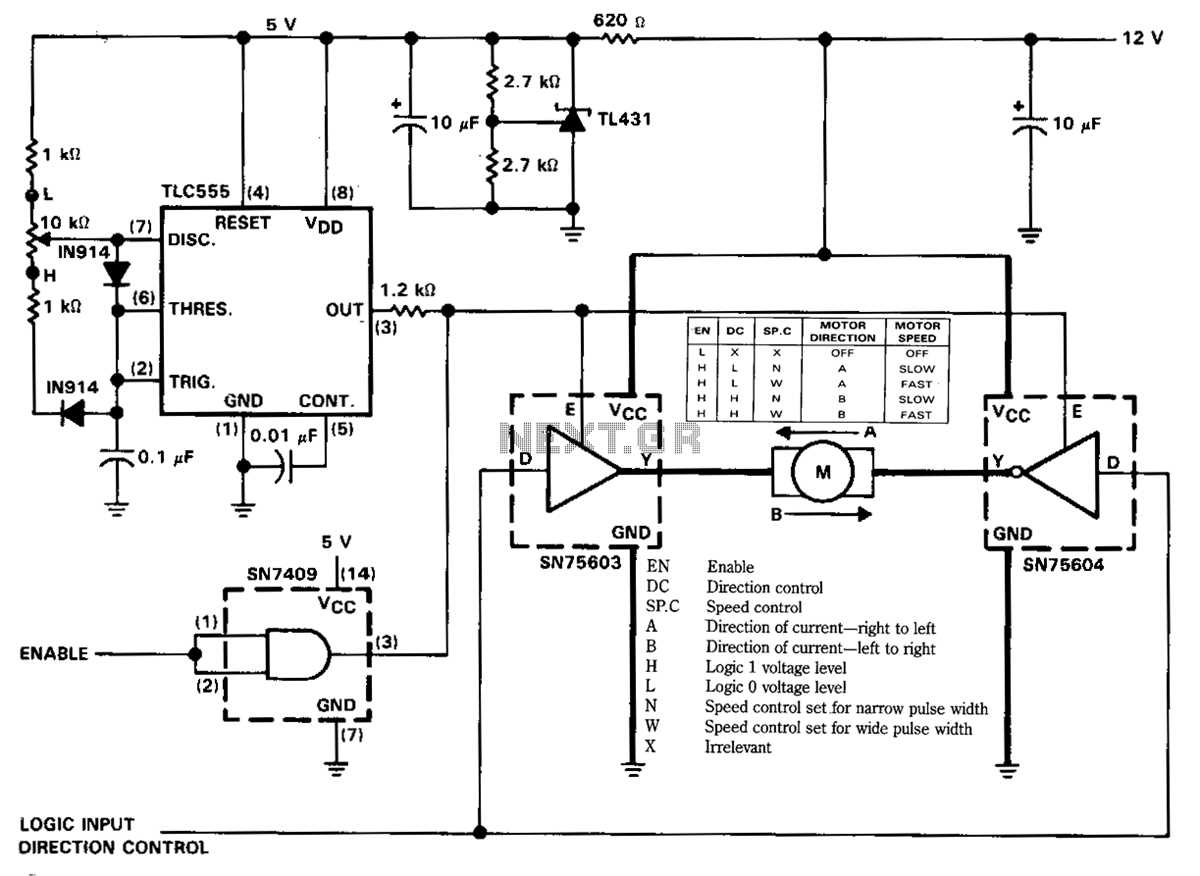

Use a microcontroller (Arduino Nano, STM32) or dedicated PWM IC (NE555) to modulate speed. Set switching frequency between 1-20 kHz–lower frequencies cause audible whine; higher frequencies increase switching losses. Decouple the power rail with a 100 µF electrolytic capacitor and a 0.1 µF ceramic capacitor to stabilize voltage during transient loads.

Current limiting is non-negotiable. A 0.1 Ω shunt resistor in series with the load feeds an op-amp (LM358) configured as a comparator to trigger shutdown when current exceeds 80% of the switching element’s rated capacity. This protects against stall conditions or shorts. For adjustable torque, pair the shunt with a potentiometer to set threshold dynamically.

Thermal management dictates long-term reliability. Mount switching elements on a heat sink sized for the expected power dissipation–calculate using Pd = (Vce * Ic) + (Vgs * Id). Use thermal paste and mica insulators where electrical isolation is required. For sealed enclosures, add a 10 mm cooling fan with PWM control tied to a temperature sensor (LM35).

Step-by-Step Wiring of a PWM-Based Speed Regulator

Select a MOSFET (e.g., IRFZ44N) or IGBT rated for at least 150% of the peak load current. For a 12V rotary actuator drawing 5A, a 10A-rated component ensures safety at 80% derating. Connect the gate to the PWM signal via a 10Ω resistor to prevent ringing; omit this only if using a dedicated gate driver IC like TC4427A.

Wire the input side with a flyback diode (1N4007 for continuous currents below 1A, or Schottky SB560 for higher efficiency) across the winding terminals. Position the diode cathode at the positive supply–reverse polarity here destroys the switching element within microseconds. For inductive loads above 50W, add a 10nF ceramic capacitor between drain/source to clamp voltage spikes below 100V.

• PWM source: 5V logic from microcontroller (Arduino, STM32) or NE555 timer for standalone setups.
• Frequency: 1–20 kHz; sub-1kHz causes audible whine, above 25 kHz increases MOSFET switching losses.
• Duty cycle: 0–95% for IRFZ44N; max gate voltage 20V, ensure signal amplitude matches (e.g., 12V PWM for 12V gate).

Ground the microcontroller and power ground at a single star point to avoid ground loops. Separate logic and load grounds with a 0.1Ω current-sense resistor if implementing closed-loop feedback. For bench testing, use an oscilloscope probe on the switching node–ringing above 2V peak-to-peak indicates missing gate resistor or improper PCB layout.

Test incrementally: power supply first (e.g., 12V/2A bench PSU), then PWM signal at 50% duty, then attach the rotary actuator last. Monitor current draw–spikes above 1.5x nominal suggest insufficient gate drive or back-EMF transients. Adjust heatsinking: TO-220 MOSFETs need a thermal pad and heatsink for currents above 3A; epoxy-mount types require bottom-side cooling via PCB copper pours.

Common MOSFET and H-Bridge Configuration Examples

For low-power applications under 10A, the IRFZ44N handles inductive loads effectively when paired with a 1N4007 flyback diode. Ensure gate voltage exceeds 10V for full enhancement–below 8V, R_DS(on) degrades rapidly. A 10kΩ pull-down resistor prevents floating gates during microcontroller resets. For PWM frequencies above 20kHz, choose MOSFETs with t_d(on) + t_d(off) under 100ns to minimize switching losses, such as the IRLZ44N for logic-level compatibility.

Below are key specifications for common N-channel MOSFETs in half-bridge setups:

Model	VDS (V)	ID (A)	RDS(on) (mΩ @ VGS)	Qg (nC)	td(on)/td(off) (ns)
IRFZ44N	55	49	17.5 @ 10V	63	30/35
IRLZ44N	55	47	22 @ 5V	60	38/45
IRF3205	55	110	8.0 @ 10V	140	50/100
FDP8870	30	150	3.1 @ 10V	160	25/120

Dual half-bridge ICs like the DRV8871 simplify layout but limit flexibility. Each half-bridge drives a pair of complementary MOSFETs (high-side + low-side) with integrated dead-time control. For currents exceeding 5A, add 10μF ceramic capacitors directly across V_DD and GND pins to suppress voltage spikes. The DRV8871’s internal flyback diodes (30V reverse voltage) suffice for 12V systems but derate to 20V for inductive kicks above 30V.

In full-bridge configurations, cross-conduction risks demand precise gate timing. Use a dedicated driver like the IRS2003 with bootstrap capacitors (C_boot = 1μF) to maintain V_GS above V_th. For high-side MOSFETs, ensure the bootstrap diode (e.g., 1N4148) blocks at least 1.5× V_DD. Replace ceramic capacitors with electrolytic types if input ripple exceeds 200mV_pp–low-ESR variants (100μF, 50V) reduce heating in continuous conduction modes.

For bidirectional control, pair upper and lower MOSFETs with matched R_DS(on) to balance conduction losses. The IRF3205’s low R_DS(on) suits high-current applications, but its higher Q_g requires stronger gate drivers. For 24V systems, the IRFP4668 (200V, 20mΩ) prevents avalanche breakdown during sudden load drops. Always verify thermal dissipation–R_θJA values in datasheets assume infinite heatsinks; real-world cases need derating for ambient temperatures above 50°C.

Logic-level MOSFETs (e.g., IRLZ44N) enable direct interfacing with 3.3V/5V microcontrollers but sacrifice switching speed. For PWM signals above 50kHz, opt for the FDP8870–its lower Q_g reduces driver stage complexity. Gate resistors (10Ω–47Ω) dampen ringing; values below 5Ω risk shoot-through during transitions. For 48V applications, the IXFN200N100 (100V, 18mΩ) handles 200A pulses, though gate charge (300nC) necessitates dedicated drivers like the IXDN409SI.

In battery-powered designs, quiescent current matters. The Si4435DDY (30V, 9mΩ) draws <1μA in standby, ideal for low-duty-cycle operations. For braking or dynamic load changes, implement active freewheeling–connect the low-side MOSFET’s body diode in parallel with a Schottky (e.g., 10MQ060N) to clamp reverse recovery spikes. Test configurations with an oscilloscope: overshoot above 10% of V_DS indicates insufficient gate drive strength or parasitic inductance.
