Automotive Door Mechanism Schematic Guide for Window Regulator and Latch Components
Start by examining the interconnection points between the glass lift motor, guide tracks, and locking pawl in modern car designs. The most reliable configurations use a dual-cable pulley arrangement–one for upward movement, another for controlled descent–paired with a spring-loaded clutch to prevent sudden drops. Manufacturers like Bosch and Dorman prioritize reinforced nylon rollers over metal alternatives to reduce noise and wear, a detail often overlooked in aftermarket replacements.
Trace the electrical circuit from the central body control module to the actuator to diagnose intermittent failures. A common oversight: corrosion at the door hinge junction box, where power and signal wires transition from the chassis. Use a multimeter to verify 4.8–5.2V at the regulator connector during operation–voltages outside this range indicate wiring fatigue or module degradation.

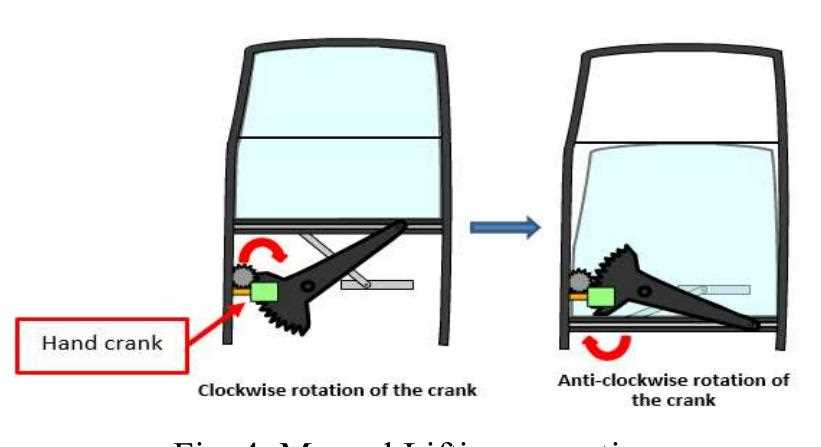

For manual mechanisms, focus on the gear sector and pinion engagement. Many OEM designs include a friction washer between the gear teeth to dampen vibration; failure of this component leads to grinding noises under load. When servicing, lubricate the teeth with synthetic PTFE grease rather than petroleum-based products to avoid residue buildup that attracts dust.
Inspect the safety catch linkage for proper alignment with the internal release lever. Misalignment–often caused by bent stamped steel tracks–prevents the latch from fully engaging, compromising security. Test by applying 15–20 lbs of force to the handle while monitoring the pawl’s movement; deviations greater than 2mm necessitate track realignment or replacement.
Prioritize the door harness strain relief during assembly. Twisted pairs (positive/ground) should exit the conduit at a 45-degree angle to reduce stress on solder joints. Secure with PVC-coated stainless steel zip ties, spaced no more than 6 inches apart–plastic-only ties degrade under UV exposure and thermal cycling.
Understanding Vehicle Side Panel Mechanism Blueprints: Key Locking Component Layouts
Start by locating the motor assembly near the middle of the frame–this powers the vertical movement track. Most modern designs integrate a 12V DC unit with a worm gear, reducing noise while maintaining torque. Check for a three-wire harness: power, ground, and feedback signal. A worn motor often causes intermittent function; test resistance across terminals (should read 2-5 ohms). If values exceed 10 ohms, replace the unit immediately.

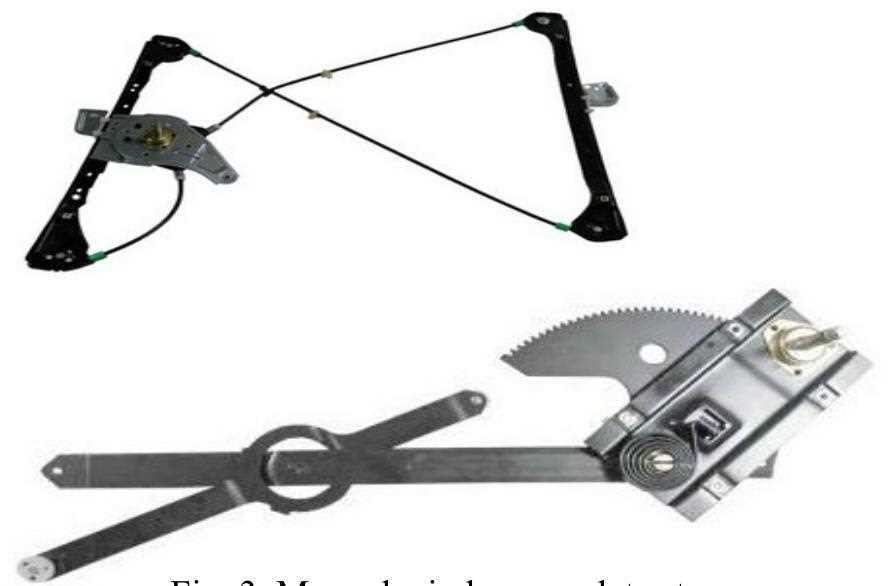

Examine the scissor arms–typically stamped steel with nylon rollers at pivot points. Align them with the guide rail before securing bolts to prevent binding. Misalignment leads to premature wear on the cable drum, which should rotate smoothly without slack. Tension adjustments are critical: a loose cable causes drop-down while overtightening strains the motor. Use a torque wrench (8-12 Nm) for mounting bolts.
The locking pawl engages with the segmented gear plate to hold position. Most failures occur here due to shear stress–inspect for cracked teeth or elongated holes. Apply lithium-based grease sparingly; excess attracts debris. If the pawl disengages unexpectedly, check the spring-loaded actuator behind it–broken springs require full assembly replacement.
Trace the wiring from the motor to the switch cluster through the harness conduit. Pinched wires create shorts; probe connections with a multimeter for continuity. Passenger-side panels often include a second microswitch for obstacle detection–verify its 0V/12V toggle during operation. Faulty switches register as stuck windows or security faults in the BCM.
Common Pitfalls in Mechanism Servicing
Never reuse rivets when removing the inner lining; they deform and compromise structural integrity. Use OEM-spec replacements (often 4mm diameter) to maintain alignment tolerances. During reassembly, torque the glass support bracket to 5-7 Nm–over-tightening cracks the glass. If the panel rattles, check the foam sealant strips along the guide rail; uneven compression causes misalignment.
For aftermarket repairs, match component specifications exactly. A 3mm error in scissor arm length disrupts the travel arc. Post-installation, cycle the glass ten times to seat components, then recheck bolt tightness. Abnormal noises indicate incorrect seating–disassemble and inspect immediately. Water ingress from worn seals accelerates corrosion on the guide rail; apply dielectric grease to exposed metal.
The balance spring inside the cable housing offsets gravitational forces. If the glass drops suddenly, the spring may have snapped. Access requires disassembling the drum cover–note its orientation before removal. Replacement springs must match torque ratings (usually 0.5-1 Nm). Test operation without enclosing panels first to confirm smooth travel before final reassembly.
Critical Elements and Notation in Power Glass Mechanism Lock Circuit Layouts
Start by identifying the motor actuator in the layout–marked with a M symbol or a filled rectangle with two diagonal lines. This component controls vertical movement via a reversible DC drive, typically shown connected to a power feed (thick line) and ground reference (dashed or dotted line). Verify its fuse rating (commonly 20–30A) upstream, often labeled F1 or F2 near the junction box node. If the layout lacks a dedicated fuse symbol, trace the motor’s positive lead back to the main harness–interruption here causes unilateral operation failure.
- Switch assembly: Look for a momentary contact notation (two overlapping circles) or a rocker switch icon (arched rectangle). These inputs toggle between UP, DOWN, and NEUTRAL states, sending signals to the control module. Pin configurations usually follow a 3-wire (ground, up, down) or 5-wire (including express-down and comfort features) scheme–match the wire colors (e.g., YEL/BLK for down command) to the harness connector.
- Relay unit: Represented by a coil-and-contacts symbol (rectangle with diagonal line), relays protect the circuit from high-current spikes. Locate the 85/86 coil terminals (switch input) and 30/87 output contacts. If absent, check for an integrated solid-state switch (triangle with a bar) inside the door control module–these often replace mechanical relays in newer designs.
- Position sensor: Hall-effect or potentiometer types appear as a variable resistor (arrow through a zigzag) or 3-pin hall sensor (circle with internal triangle). These report glass position to the ECU. Wiring typically includes a 5V reference (RED/WHT), signal return (GRY/YEL), and ground (BLK/WHT). Verify continuity here first if auto-reverse or anti-pinch features malfunction.
Trace every wire gauge in the layout–18–20 AWG for signal lines, 14–16 AWG for power. Thin wires (VIO/WHT) often denote CAN bus communication between the lock actuator and body control module. Cross-reference these with a pinout table if available; mismatched colors or gauge jumps usually indicate splice points or harness damage. For locking mechanisms, note the solenoid symbol (coil with parallel lines) connected via GRN/RED (lock) and GRN/BLK (unlock) leads. Abrupt voltage drops here cause slow or partial latch engagement–test with a milliamp clamp on startup.
Fault Isolation via Symbol Interpretation
When troubleshooting, isolate components by their functional groups in the layout:
- Power path: Battery → fuse → relay → motor → ground. Voltage should drop
- Signal path: Switch → control module → motor/actuator. Measure resistance at switch terminals (
- Feedback path: Sensor → ECU. Voltage divider output should vary 0.5–4.5V during travel.
Use a thermal camera to check for hotspots at relay contacts or crimped wires–excessive heat (>60°C) degrades insulation and causes intermittent faults. For anti-pinch circuits, locate the current sense resistor (hatched rectangle) inline with the motor; sudden amperage spikes (>15A) trigger preventive reversal. If the layout shows a separate thermal cutoff (PTC symbol), expect resets post-cooldown–common in aftermarket regulators.
How to Decode Vehicle Panel Mechanical Blueprints for Moving Glass Components
Locate the power source lines first–these are typically marked in bold red or thick solid traces and terminate at the motor assembly. Verify voltage ratings: passenger-side mechanisms often run on 12V DC, while driver-side variants may use pulsed 5V signals for micro-switch feedback. Trace each line to its fuse box origin, noting any inline resistors or thermal cutoffs that protect against overcurrent surges during stalled operation.
Mapping Mechanical Linkages
Identify scissor-arms by searching for dashed circles or cross-hatched patterns–these denote pivot points where steel cables meet nylon guides. Check the cable routing: front-travel designs use a single loop anchored at the rail’s midpoint, while rear-travel systems employ dual loops tensioned by spring-loaded pulleys. Misalignment at these joints frequently causes binding; measure tension with a 0-5 kg force gauge at the midpoint between upper and lower anchoring posts.
Pinpoint sensor clusters next. Hall-effect chips sit adjacent to the motor housing, wired in pairs (signal return and ground). Test continuity with a multimeter: active signals toggle between 0.5V (open) and 4.8V (closed). Opposite the sensors, locate the quadrature encoder–its slotted disk must align precisely with optical gates to ensure accurate travel limits.
Diagnosing Feedback Loops
Follow the control module traces. CAN bus lines appear as twisted pair cables (yellow/orange) terminating at the junction box under the armrest. Scope these lines: normal traffic shows 2.5V differential pulses at 1 MHz baud. Intermittent failures often stem from corroded connectors–scrub contacts with isopropyl alcohol and apply di-electric grease to prevent recurrence.
Test manual override paths. Pull the interior handle lever while observing voltage at the solenoid terminals–correct operation drops voltage from 12V to 0V within 100 ms. If voltage persists, check the micro-switch lever arm; bent actuators are the primary cause of false-positive engagement signals. Replace switches if plunger travel exceeds 3.5 mm in either direction.
Validate locking sequences last. Activate the primary lock switch and monitor the actuator coil–proper operation draws 800 mA initial spike, tapering to 120 mA holding current. If current exceeds 1.2 A, inspect the armature for seized gears; disassemble using a T25 bit to access nylon pawls. Lubricate internal slides with PTFE spray, ensuring no residue contacts electrical contacts to avoid insulating the circuit.
