How Series Circuit Components Work Step-by-Step Visual Guide
Start with a power source–battery, generator, or DC supply–and route its current through a closed loop. Every resistor, lamp, or switch must align end-to-end without branching. Use thick, straight lines for conductors; keep them parallel and evenly spaced to reduce visual clutter. A single break anywhere interrupts the entire flow, so test each joint with a multimeter before powering on. For clarity, label components sequentially–R1, L1, S1–and mark voltage drops directly above each element.

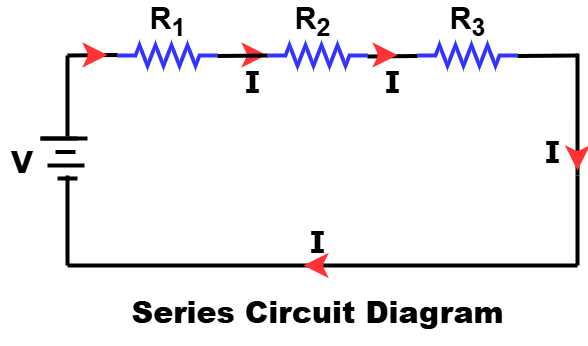

Calculate total resistance by summing individual values: Rtotal = R1 + R2 + R3. Current stays equal throughout, so use Ohm’s law I = V/Rtotal to verify calculations. If wiring multiple bulbs, note luminance fades as resistance increases–this confirms linear arrangement. For power distribution, match component ratings to avoid overheating: P = I2R. Color-code wires–red for positive, black for negative–to prevent reverse polarity.
Use a breadboard for prototyping: insert components vertically in adjacent rows, then bridge gaps with jumper wires. For permanent setups, solder joints or use terminal blocks; shrink tubing insulates connections. If troubleshooting, check continuity first–an open switch or loose wire halts the entire sequence. For real-world applications, fuse the input to protect against overloads. Avoid mixing AC and DC paths unless using a rectifier. Keep the layout vertical or horizontal, never diagonal, to maintain readability.
Visual Representation of Linear Electrical Paths
To sketch a sequential electrical arrangement, start by drawing a straight horizontal line to depict the single conductive route. Place resistive components (e.g., lamps, resistors) in a straight line, ensuring each connects end-to-end without branching. Label every element with precise voltage, current, or resistance values–measurements should satisfy Kirchhoff’s Voltage Law (KVL): the sum of voltage drops equals the source potential. For accuracy, use a multimeter to verify each segment’s voltage drop matches calculated expectations.
Critical Construction Guidelines
- Source placement: Position the power supply (battery, cell) at either end of the path–polarity direction determines current flow.
- Component orientation: Align resistors vertically if space permits; rotated designs risk misinterpretation of continuity.
- Wire depiction: Use solid lines for connections; dashed lines indicate hidden or insulated conductors.
- Ground symbols: Place at the common return point to emphasize zero-voltage reference.
- Fuse integration: Insert a thermal cutoff near the source to prevent overload; specify fuse rating (e.g., 250mA) in the legend.
Failure to maintain uniform current flow–invariant through all connected parts–invalidates functionality. Test continuity with a probe before energizing.
How to Sketch a Linear Electrical Path Visual Guide
Begin by placing a straight horizontal line at the top of your paper or digital workspace–this will serve as your power source bus, typically a battery or cell. Use a ruler to ensure precision; uneven lines can misrepresent component alignment. Label the positive terminal with a “+” and the negative with a “–” symbol, spaced 2–3 cm apart to leave room for additional elements. If using multiple cells, stack them vertically, maintaining consistent spacing to avoid visual clutter.

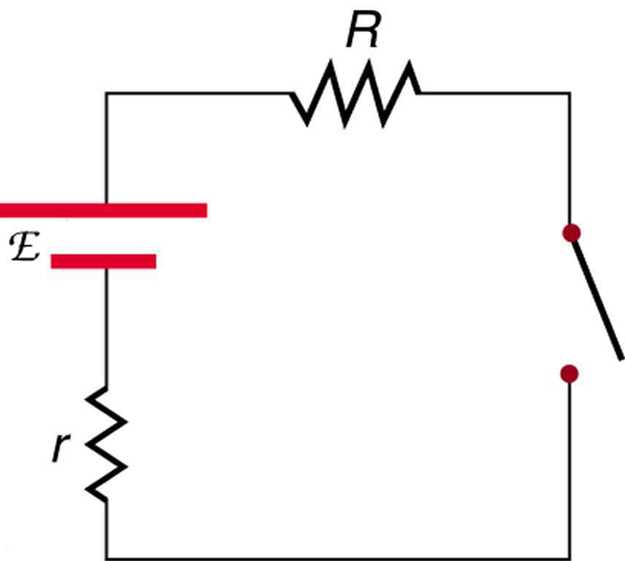

Next, position each load element directly along the main conductive path. Common components include resistors, lamps, or switches–draw them as simple geometric shapes: rectangles for resistors (with zigzag lines inside for fixed values), circles for lamps (with an “X” or filament symbol), and a break in the line for switches (with a diagonal line crossing the gap when open). Keep spacing between components uniform (1–2 cm) to reflect real-world proportionality. For resistors, add numeric values in ohms (e.g., “100Ω”) immediately above or below the symbol to eliminate ambiguity later.
Connect all components end-to-end with single, unbroken lines–these represent wires. Ensure no intersecting paths exist unless intentionally crossing (use a small semicircle over one wire to denote non-connection). Complete the loop by returning the final wire to the negative terminal. Double-check polarity: current flows from the “+” terminal through each element sequentially before returning. Add arrows along the lines to indicate direction if required, using a thin, consistent stroke (3–5 mm long). Erase any construction lines, then darken the final paths with a 0.5 mm pen or bold stroke for clarity.
Critical Elements for Accurate Linear Connection Blueprints
Begin with a power source symbol positioned at the upper-left corner. Use a horizontal line to represent the main conductor path, ensuring all components connect sequentially without branching. Batteries should display voltage values (e.g., 9V, 12V) adjacent to their terminals, while AC sources require frequency notation (e.g., 50Hz). Label polarity clearly–positive terminals above or to the right, negatives opposite–to prevent misinterpretation during assembly.
Resistors demand precise resistance values in ohms (Ω), kilohms (kΩ), or megohms (MΩ), paired with a multiplier prefix if needed (e.g., 470Ω → 470R). Include power ratings (¼W, ½W) as subscripts for high-current paths. For variable resistors, mark the adjustable terminal and range (e.g., 10kΩ, 0-100%). Fixed resistors should align perpendicular to the conductor, avoiding diagonal placements that reduce readability.
Component Identification Standards
| Element Type | Recommended Symbol | Required Annotations |
|---|---|---|
| Capacitor | Parallel lines (polarized: curved side negative) | Capacitance (µF, nF), voltage rating (e.g., 25V), polarity if electrolytic | Inductor | Coiled line (adjust turns for core type) | Inductance (µH, mH), core material (e.g., “ferrite”), current rating |
| Switch | Breaking conductor (toggle: lever; push: button) | Type (SPST, DPDT), current/voltage ratings, default state (NO/NC) |
| Diode | Triangle + line (arrow for LED) | Forward voltage (e.g., 0.7V), peak reverse voltage, LED color if applicable |
Connectors require consistent pin numbering–document each terminal’s function (e.g., “VCC,” “GND,” “SIG”) adjacent to the node. Use dashed lines for optional or secondary paths but restrict solid lines to primary conduction routes. When depicting integrated circuits, substitute internal logic with a rectangle labeled by function (e.g., “555 Timer”) and pinout numbers on the perimeter. Avoid crowding–leave 10mm minimum spacing between dense components to accommodate manual adjustments.
Fuses and protective devices must show breaking capacity (e.g., 250mA, fast-acting) and interrupting rating (e.g., 10kA). Position them immediately after the power source or sensitive loads. For semiconductors like transistors, specify the exact model (e.g., “2N2222”) and include β (hFE) ranges if the design relies on amplification characteristics. Ground symbols should align vertically; star grounding requires a single central node with radial branches to each return path.
End the layout with a load symbol–indicate resistance for lamps, coils for motors, or impedance for speakers. Add a test point marker (e.g., “TP1”) at junctions where voltage/current measurements are critical. For complex paths, use bus lines (thick parallel conductors) to group related signals, labeling each entry and exit point. Rotate symbols only in 90° increments to maintain consistency. Review the final trace for unintended gaps–every component must connect without reliance on implied associations.

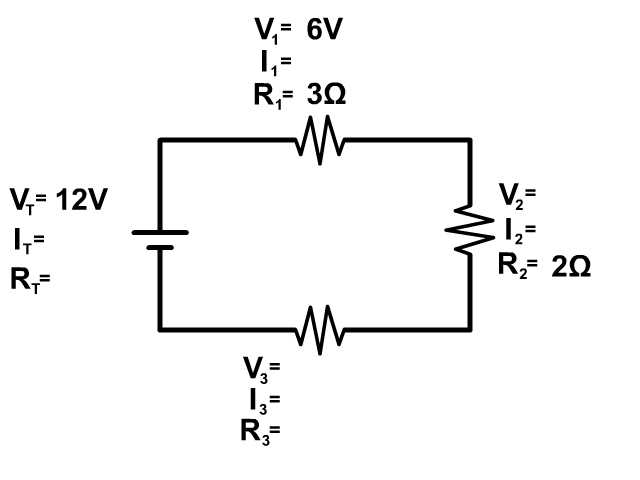

Total Resistance in Linear Electrical Paths: Ohm’s Law Application
Measure each resistor’s value in ohms (Ω) before assembly. Sum their values directly–this aggregated figure represents the path’s total opposition to current. For three resistors at 220Ω, 330Ω, and 470Ω, the calculation is straightforward: 220 + 330 + 470 = 1020Ω. Avoid rounding intermediate steps; precision here determines voltage and current accuracy later.
Key Steps for Accurate Calculation
- List every resistive element–omitting even a single component skews results.
- Double-check each value; common errors stem from misreading color bands or datasheets.
- Contrast the summed value against the supply voltage (Vs) using Vs = I × Rtotal. For a 12V source, expected current I = 12V / 1020Ω ≈ 0.0118A (11.8mA).
- Verify by applying Kirchhoff’s Voltage Law: Vs must equal the sum of voltage drops across each resistor.
Adjustments for non-ideal conditions: account for conductor resistance (typically 0.01Ω/m for 18AWG copper wire) by adding its length-based value to the total. For a 5m wire, add 0.05Ω–negligible in most cases but critical in low-resistance paths. Temperature shifts also alter resistance; use the temperature coefficient of resistance (α) for copper, 0.0039/°C, to recalibrate if ambient exceeds 20°C.

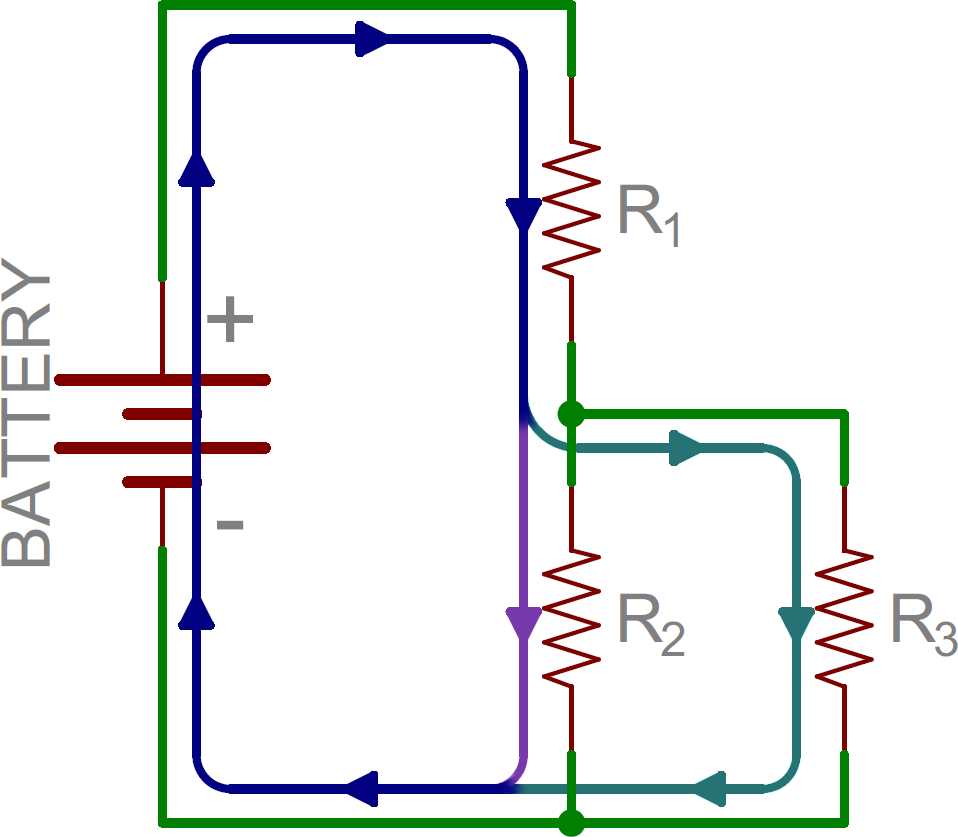

Shortcuts risk errors. Avoid assumptions like “all resistors behave identically under load”–manufacturing tolerances (±5% is standard) can push actual resistance outside nominal specs. Use a multimeter to confirm values before finalizing calculations; this step prevents debug sessions later. If parallel branches exist elsewhere, isolate the linear path first–mixed configurations demand separate treatment per distinct segment.
Common Mistakes When Labeling Voltage Drops in Sequential Paths
Avoid mixing polarity signs–mark all potential differences consistently, either with arrows pointing from positive to negative or exact numerical annotations like V₁ = 3.2V. Incorrect arrows force readers to reverse-engineer intent, leading to errors in troubleshooting or calculations. Include the reference node when annotating; omitting it (e.g., labeling only “V₂” without specifying ground) creates ambiguity, especially in multi-segment setups where voltages stack.
Label only what’s measurable–adding phantom drops (e.g., across switches or short wires) clutters the layout and misleads analysis. Use unique identifiers for each segment, even identical components, to prevent conflation: V_R1-1 and V_R1-2 instead of repeating V_R1. Ensure decimal precision matches measurement tools (two places for 0.1Ω resistors, three for microohm ranges), or risk rounding errors in power dissipation checks.
