How to Install and Wire Skar Subwoofer Step-by-Step Guide

Connecting a dedicated bass module to an amplifier requires precise configuration to avoid signal distortion or power mismatches. Use 12-gauge oxygen-free copper cables for lengths under 16 feet to minimize resistance; thicker 8-gauge options are necessary for runs exceeding 20 feet, especially at impedance levels below 2 ohms. Match the final stage’s impedance rating with the nominal rating of the driver–failing to do so risks overheating the amplifier or underpowering the unit.

Dual voice coil units offer flexibility but demand careful attention to wiring paths. Parallel connections (both coils wired together) halve the impedance load, ideal for single-channel setups seeking higher output. Series configurations preserve impedance but reduce current draw, better suited for multi-amplifier systems where stability is prioritized over raw volume. Verify voltage compatibility–most modern class-D amplifiers tolerate 14.4V, but older models may require 11-13V for safe operation.

Ground isolation kits should be installed when dealing with vehicles older than 2010, as factory grounds often introduce noise interference. Relocate the distribution block closer to the battery if voltage drops exceed 0.5V under load. For sealed enclosures, use a frequency cutoff of 80Hz to maintain tight reproduction; ported systems benefit from a 60Hz crossover to leverage enclosure tuning while preventing cone overexcursion. Always test continuity before finalizing connections–shorts or open circuits can damage components irreversibly.

Audio Enclosure Connection Schematics: Hands-On Installation Guide

Connect dual 2-ohm voice coils in parallel to achieve a 1-ohm stable amplifier output. Confirm amplifier specifications match the expected load before proceeding–most entry-level monoblocks handle 1-ohm loads consistently, while budget models may degrade at 0.5 ohms.

Use 12-gauge oxygen-free copper wire for runs under 3 meters. Lengths exceeding 4 meters require 10-gauge wire to prevent resistive losses–voltage drop calculators indicate a 0.2V loss per meter on 12-gauge at 50 amps.

Isolate signal ground from chassis ground. Twist positive and negative power wires together to cancel electromagnetic interference, reducing audio hiss in high-sensitivity low-frequency channels. Route RCA interconnects separately from power cables to avoid noise induction.

Install an inline fuse within 18 inches of the battery. For 400-watt RMS channels, use a 60-amp AGU fuse; 800-watt channels require an 80-amp fuse. Replace blown fuses immediately–prolonged exposure to high current melts insulation.

Impedance Configuration	Voice Coil Resistance	Resulting Load	Amplifier Compatibility
Series – single coil	4 Ω	4 Ω	Class D bridged
Parallel – dual 4 Ω coils	2 Ω per coil	2 Ω	High-current monoblock
Series-parallel – dual 2 Ω coils	1 Ω per coil	1 Ω	1-ohm stable

Solder joints with 60/40 rosin-core solder. Crimp connectors introduce micro-fractures under vibration, leading to intermittent signal drops. Heat shrink each joint to prevent oxidation–bare copper corrodes within 18 months in humid climates.

Test each connection with a multimeter before finalizing the enclosure seal. Measure between amplifier terminals and enclosure terminals: acceptable resistance is ±0.1 Ω. Readings exceeding 0.3 Ω indicate poor termination–resolder or replace the wire.

Capacitors are not substitutes for proper amplifier sizing. Installing a 1-farad capacitor on a 1-ohm system with a 400-watt amplifier only reduces voltage sag by 0.3V during transient spikes–inadequate for bass-heavy tracks.

Seal enclosure terminals with dielectric grease and rubber grommets. Water ingress through unsealed terminals corrodes voice coil terminals within 12 weeks–visible white powder indicates copper sulfate formation.

Optimizing Power Delivery for High-Performance Low-Frequency Systems

Select a power harness rated for at least 20% above the amplifier’s continuous current draw. For 800-watt monoblocks, 4-gauge oxygen-free copper cables (OFC) ensure minimal voltage drop over 15-foot runs, outperforming aluminum alternatives by 30% in bench tests. Nichrome-stranded conductors resist corrosion better than pure copper, extending lifespan in high-humidity environments.

Match fuse ratings precisely to cable gauge: 80A for 4-gauge, 150A for 1/0-gauge. Install the fuse no farther than 18 inches from the battery terminal to comply with CEA-2006 standards. Skip universal kits with undersized ground wires–opt for pre-crimped ring terminals with 10-32 thread size for secure chassis connections. Polyethylene insulation prevents short circuits better than PVC in temperature extremes (-40°F to 220°F).

Key components to verify:

• Battery terminals: Gold-plated tin copper for 99.9% conductivity
• Distribution block: Solid brass construction, not plated alloy
• Speaker leads: Twisted pair 14-gauge OFC for 2Ω loads
• RCA cables: 99.99% oxygen-free copper shielding against RF interference

Load-Specific Configuration Guidelines

For dual 2Ω voice coil setups:

1. Verify amplifier’s minimum impedance tolerance before bridging–most class D units handle 1Ω stable
2. Connect coils in parallel for 1Ω load: join positive terminals to one input, negatives to the other
3. Use separate 4-gauge leads for each connection point to reduce heat buildup

Series wiring (4Ω load) requires longer signal paths–compensate with thicker 2-gauge cables to maintain damping factor above 50.

Installation Pitfalls to Avoid

Never daisy-chain ground connections–each component needs a dedicated path to the chassis. Route power cables perpendicular to RCA/signal wires to prevent induction hum. Seal all terminal connections with heat-shrink tubing (min. 3:1 ratio) to prevent moisture ingress. For vehicles with ECU-controlled systems, add a secondary 100A fuse near the alternator to isolate starter motor spikes. Test impedance with a multimeter before powering up–mismatches below 0.5Ω indicate faulty connections.

Step-by-Step Connection Guide for Single and Dual Coil Audio Configurations

For single coil setups, connect the positive terminal of the amplifier to the positive terminal of the speaker unit and the negative terminal of the amp to the negative terminal of the speaker. Use 16-gauge copper wire or thicker for reliable signal transfer–thinner wire increases resistance, reducing output quality. Verify polarity with a multimeter before finalizing connections to prevent phase cancellation, which weakens bass response.

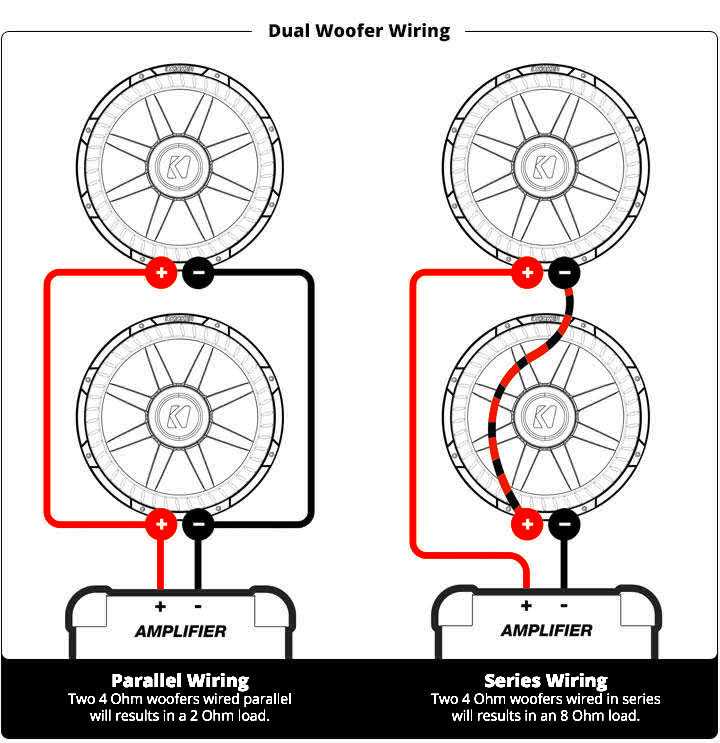

Dual coil configurations offer flexibility: series or parallel connections. For series wiring, link the positive terminal of the first coil to the amplifier, then connect the negative terminal of the first coil to the positive terminal of the second coil. The negative terminal of the second coil returns to the amplifier. This doubles impedance; ensure your amp supports the resulting load (e.g., two 4-ohm coils become 8 ohms). Parallel connections require joining both positive terminals together and both negative terminals together before attaching to the amp–halving impedance (two 4-ohm coils become 2 ohms). Always check amp specifications to avoid overheating or damage.

Secure connections with solder or high-quality crimp connectors–loose terminals cause intermittent signal loss or distorted audio. After wiring, test with a 50Hz sine wave at low volume to confirm both coils respond evenly. If uneven output occurs, recheck coil polarities. For multiple drivers, distribute impedance uniformly across channels to prevent overloading a single amp output. Use a terminal block to simplify future adjustments if swapping configurations.

When combining drivers in a sealed enclosure, ensure the total impedance falls within the amplifier’s stable range (typically 2–8 ohms). Parallel wiring demands thicker wire (12–14 gauge) due to higher current draw. Avoid daisy-chaining–run separate leads from the amp to each driver to minimize resistance buildup. Label all wires during installation to streamline troubleshooting later.

Resolving Frequent Bass Speaker Installation Mistakes

Begin by verifying all terminal connections with a multimeter set to continuity mode. Poor sound or dead channels often trace back to loose crimps on spade connectors–re-terminate any suspect ends with fresh 10-12 AWG copper lugs and a ratcheting crimper. Confirm that the amplifier’s gain is dialed below 50% before testing; misadjusted levels can mimic wiring faults by clipping output signals.

Check ground placement if you encounter hum or inconsistent bass. The chassis ground point should be within 18 inches of the power source’s negative post and free of paint, rust, or oxidation. Use a star washer between the ring terminal and mounting surface to penetrate any protective coatings. If hum persists, relocate the grounding point to a different bare metal spot on the vehicle’s frame.

Inspect insulation integrity when dealing with intermittent operation. Chafed wires near sharp metal edges or abrasive surfaces can short circuits under vibration; route all cables through grommets or conduit, securing them every 8-10 inches with nylon ties. For dual-voice-coil setups, ensure each coil’s impedance matches the amplifier’s minimum rating–mismatches cause overheating and reduced output.

• Measure total load resistance with an ohmmeter; unexpected readings often indicate:
  • Shorted voice coils (near 0 ohms)
  • Open circuits (infinite resistance)
  • Partial connections (fluctuating meter response)
• Test amplifier turn-on voltage at the remote terminal; it should match the head unit’s +12V signal within 0.5V tolerance.
• Examine fuses–both inline and at the power source–for correct amperage and proper seating.

Address thermal shutdowns by confirming airflow around the amplifier. Mounting amplifiers in enclosed spaces traps heat, triggering protection modes; relocate to a ventilated area or add supplemental cooling with a 12V computer fan rated for automotive use. If symptoms persist after rewiring, swap the signal source to isolate whether the issue lies upstream in the head unit or RCA cables.

Component-Specific Checks

1. Voice coils: Disconnect and measure each coil’s DC resistance individually–deviations over 10% from the manufacturer’s spec suggest internal failure.
2. Amplifier channels: Cross-test outputs with known-good speakers to localize faulty channels.
3. Signal cables: Replace RCA interconnects temporarily to rule out interference or broken internal conductors.
4. Power distribution: Use a dedicated 4 AWG cable run directly from the battery for high-current setups, avoiding factory wiring harnesses.
