Step-by-Step Guide to Building Your First Amplifier Circuit at Home

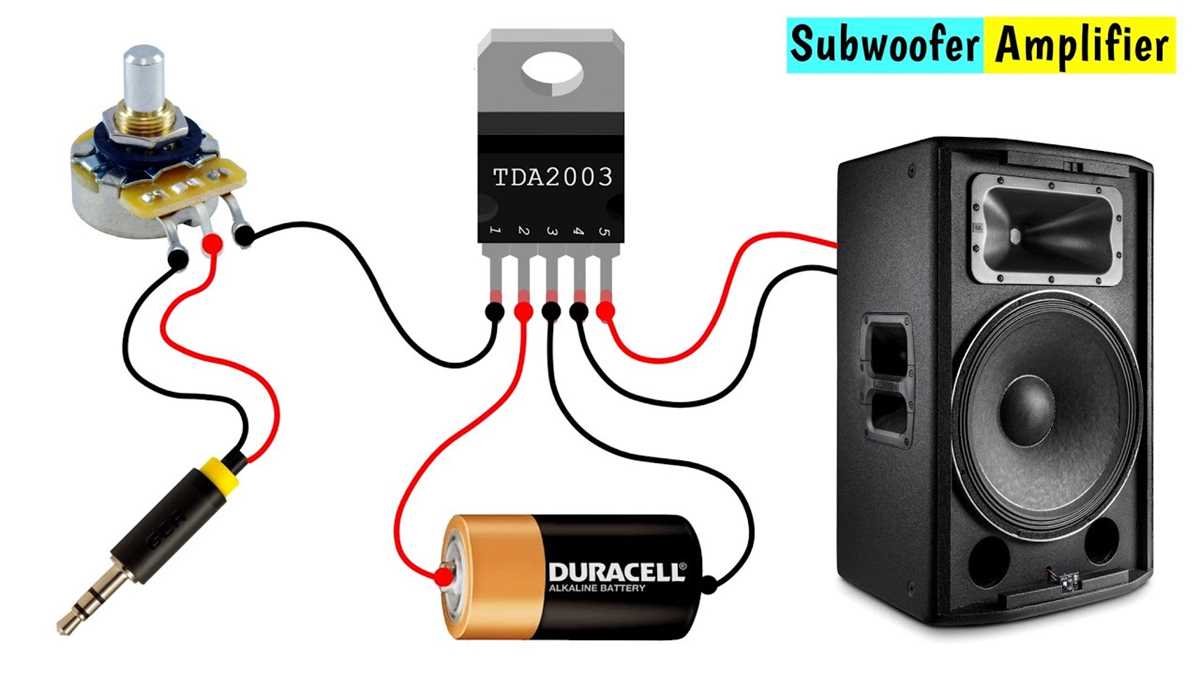

Start with a class-AB linear stage if low distortion and straightforward assembly matter. Use a TDA2030A IC–it handles 18 W RMS into 4 Ω with a single 18 V supply. Connect pins 1 and 4 to a 220 µF electrolytic capacitor for stable biasing; omit this step and crossover distortion rises above 0.5 %. Keep signal traces under 10 cm–longer runs pick up 50/60 Hz mains noise.
For higher output, pair two IRF640 MOSFETs in a push-pull emitter-follower arrangement. Gate resistors of 47 Ω prevent parasitic oscillation; bypass them with 100 nF ceramics directly across the leads. Drive the bases with a BD139/BD140 Darlington pair–collector current of 70 mA ensures clean 100 W peaks into 8 Ω. Include a snubber network of 10 Ω+22 nF between the rails to squelch high-frequency ringing.
Power the front-end from a regulated ±12 V rail. A 7812/7912 pair with 1 A capability feeds op-amps; add 1 µF ceramics at the input and output of each regulator to stop motorboating. Use a TL072 for low-noise preamp duties–its JFET inputs reduce popcorn noise to 12 nV/√Hz. Avoid carbon-film resistors in the feedback loop; 0.1 % metal-film types keep THD below 0.05 %.
Ground layout dictates everything. Tie the star point to the largest smoothing capacitor’s negative terminal–any other arrangement invites hum loops. Keep audio return paths separate from digital or switching currents; route them as parallel tracks no wider than 1 mm to the star. Twist the speaker wires for minimal magnetic coupling; use shielded pairs only if the shield is connected solely at the source end.
Test with a 1 kHz sine wave before fitting the volume control. Measure DC offset at the output; anything above 10 mV indicates a leaky coupling capacitor–replace the 1000 µF electrolytic with a polypropylene film type. Monitor rail currents with a 0.1 Ω shunt; a 70 mV drop at full drive confirms adequate heatsinking–mount the output transistors on a 150 cm² aluminium plate 2 mm thick.

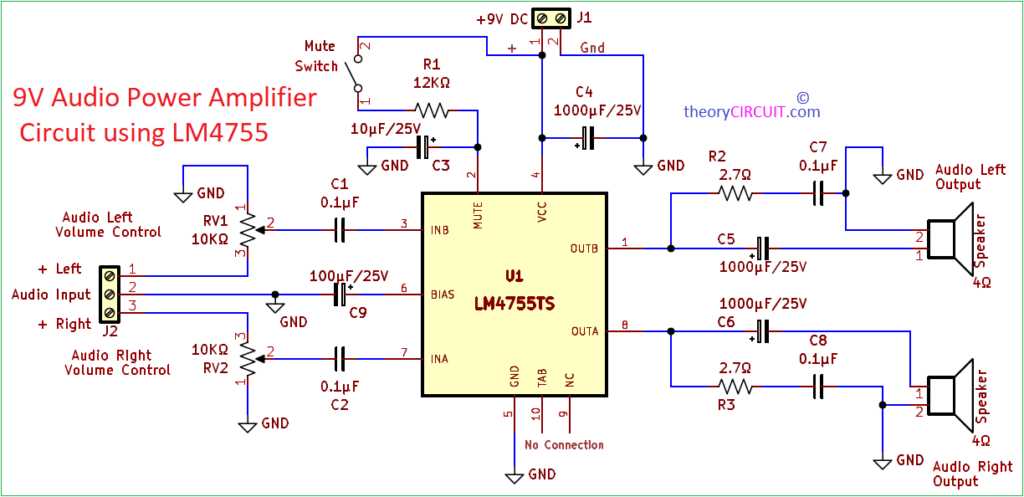

Build Your Own Audio Power Booster: A Step-by-Step Schematic Guide
Select a Class AB push-pull configuration for balanced performance–it delivers 5–20 watts with minimal distortion and operates at 60–70% efficiency. Begin with a complementary pair of power transistors like TIP31C (NPN) and TIP32C (PNP), rated for 3A collector current and 100V breakdown voltage. Mount them on a heatsink with thermal resistance below 2°C/W to prevent overheating during continuous operation.
Use a 12V–24V DC power supply with at least 2A capacity; higher voltage improves dynamic range but increases heat dissipation. For smoothing, pair a 10,000µF electrolytic capacitor with a 0.1µF polyester film capacitor across the rails to filter ripple below 50mV. Keep lead lengths under 3cm to reduce inductance and parasitic oscillations.
Key Component Values for Optimal Signal Path
Input coupling capacitors (0.47µF–1µF) determine low-frequency response–aim for -3dB at 30Hz. Bias the output stage with a 22kΩ resistor in series with a diode (1N4148) or a small-signal transistor (2N3904) to set quiescent current at 20–50mA for crossover distortion suppression. A 470Ω emitter resistor stabilizes gain, while a 1kΩ–10kΩ potentiometer at the preamp stage offers volume control.
Feedback is critical: connect a 22kΩ resistor from the output to the inverting input of an op-amp (NE5532 or LM386) to set gain at 10–20 (20dB–26dB). Decouple the op-amp power pins with 0.1µF capacitors to ground, placed within 2mm of the IC. For stability, add a 10pF–47pF capacitor across the feedback resistor to roll off phase shifts above 50kHz.
Final Assembly and Testing Protocols
Layout the board with a star-ground topology, separating input, output, and power grounds to prevent hum loops. Route high-current traces ( ≥2mm wide) for the output stage and keep signal paths under 1cm. Test with a 1kHz sine wave at 1V RMS–measure output for clipping (expect clean waveforms up to 8V RMS with a 24V supply) and THD below 0.5%. Verify quiescent current with a multimeter; adjust bias until voltage across emitter resistors reads 5–12mV.
Shield the input section with a metal enclosure grounded to the PCB’s star point. Use an RCA jack for line-level signals and binding posts for speakers. If oscillations occur, check grounding and add a 10Ω–47Ω resistor in series with the base of each output transistor. For extended bandwidth, replace electrolytic capacitors with film types in high-frequency paths.
Key Parts for Your Transistor Signal Booster Build
Start with a 2N3904 (NPN) or 2N3906 (PNP) transistor–these are the backbone of small-signal gain stages, handling up to 200 mW and 40 V. For input/output coupling, use 10–47 μF electrolytic capacitors (polarized) to block DC while passing audio frequencies; bypass them with 0.1 μF ceramic caps to stabilize supply voltage at high frequencies. A 1 kΩ resistor as the collector load and a 100 kΩ bias resistor (adjust to set proper Q-point) complete the core. If adding feedback, include a 22 kΩ resistor between collector and base for stability.
Supporting Elements
- Power supply: 9–12 V DC (regulated) via a 78L09 or similar linear regulator to avoid ripple. Decouple the rail with a 100 μF electrolytic and 0.1 μF ceramic cap near the transistor.
- Potentiometers: A 10 kΩ log-taper pot for volume control at the input; a 50 kΩ linear pot for bias adjustment if fine-tuning is needed.
- Passive components: 1% metal-film resistors (1/4 W) for predictable behavior; 2.2 μF film caps (non-polarized) at input/output if electrolytics cause phase shifts.
- Protection: A 1N4007 diode in reverse across the collector-emitter to clamp inductive spikes (e.g., from relays or speakers).
Heat management isn’t critical for small-signal stages, but if driving low-impedance loads (e.g., 8 Ω), use a TIP31C (NPN) or TIP32C (PNP) with a small heatsink (1°C/W rating) and insulate the tab with a mica washer. For multi-stage designs, isolate grounds by connecting all signal returns at a single star point to minimize hum–avoid daisy-chaining ground paths. Test with a 1 kHz sine wave at 100 mVpp input; expect 10–20× gain before clipping at ~1 Vpp output.
Step-by-Step Wiring Guide for a Single-Stage Signal Booster
Connect the power supply directly to the transistor’s collector terminal using 22 AWG solid-core wire. Ensure the voltage matches the component’s datasheet–typically 9V for general-purpose NPN devices like the 2N3904. Solder a 1kΩ resistor between the base and ground to establish a stable reference point, preventing thermal runaway.
Attach the input signal via a 10µF coupling capacitor to the transistor’s base. This blocks DC offset while allowing AC signals (audio frequencies) to pass. For optimal performance, ground the capacitor’s outer foil side to minimize noise pickup. Follow this with a 10kΩ resistor in series to define input impedance at 10kΩ, balancing sensitivity and signal integrity.
| Component | Value | Function |
|---|---|---|
| Transistor (NPN) | 2N3904 | Current gain |
| Collector resistor | 4.7kΩ | Load regulation |
| Emitter resistor | 470Ω | Bias stabilization |
| Coupling capacitors | 10µF (input/output) | DC blocking |
Solder a 4.7kΩ resistor from the collector to the power rail to set the quiescent current at ~2mA. Add a 470Ω emitter resistor to ground–this improves linearity and temperature stability. For output, wire another 10µF capacitor to the collector to isolate the boosted signal from DC voltage, then route it to the next stage or speaker with a 1kΩ potentiometer for volume control. Test with a sine wave (1kHz) and oscilloscope to verify a clean, undistorted waveform before finalizing connections.
Calculating Resistor and Capacitor Values for Target Signal Boost
Begin with the feedback network to set voltage gain. For an inverting stage, use the formula G = -Rf / Rin, where Rf is the feedback resistor and Rin the input resistor. For non-inverting stages, apply G = 1 + Rf / Rin. Example: to achieve a gain of 10, choose Rf = 90 kΩ and Rin = 10 kΩ. Keep resistor tolerances tight (1% or better) to avoid gain drift.
- For AC-coupled inputs, select coupling capacitors based on the lowest frequency of interest:
C ≥ 1 / (2πfR). - At 20 Hz cutoff with Rin = 10 kΩ, C ≥ 0.796 µF (use 1 µF standard value).
- Bypass capacitors on power rails follow similar logic:
C ≥ 1 / (2πfR), where R is the ESR of the rail. - For 100 Hz ripple suppression on a 5 Ω ESR rail, C ≥ 318 µF (use 330 µF).
Stability demands compensation capacitors across feedback resistors. Use Cf = 1 / (2πf-3dB Rf), where f-3dB is the desired bandwidth. With Rf = 90 kΩ and 20 kHz bandwidth, Cf ≃ 88 pF–round to 100 pF. Verify phase margin via SPICE or a network analyzer; aim for ≥ 60° at unity gain.
Output stage loading affects resistor choices. Buffers require low output impedance: Rout . For 8 Ω loads, keep Rout ≤ 0.1 Ω. Emulator designs often use emitter followers; base resistors set quiescent current: Rb = (Vrail – Vbe – Vre) / Iq. With Vrail = 15 V, Vbe = 0.7 V, Vre = 1 V, and Iq = 5 mA, Rb = 2.66 kΩ–use 2.7 kΩ.
- Measure DC offset at input and output; cap values scale inversely with offset.
- Input bias currents dictate capacitor leakage tolerance: select film or C0G ceramics.
- For bipolar supplies, split decoupling caps: 100 µF electrolytic + 0.1 µF ceramic per rail.
- Trim gain experimentally: replace Rf with a 100 kΩ potentiometer in series with a fixed 10 kΩ resistor.
Common Mistakes When Assembling Audio Electronics
Avoid applying excessive heat to joints–most components degrade if soldering iron contact lasts longer than 3 seconds. Small resistors and capacitors, especially those rated for 1/8 watt or below, can fail internal connections at temperatures above 350°C. Use a temperature-controlled iron set to 300-340°C for tin-lead alloy, or 350-380°C for lead-free. Pre-tin both the pad and component lead before bringing them together to reduce heating time.
Cold joints form when insufficient heat prevents full solder flow, creating a dull, grainy surface. These connections fail under mechanical stress or thermal cycling, introducing intermittent faults. Verify joint quality under 5x magnification; a proper joint should be shiny, concave, and fully wetted. If a joint appears suspect, reheat with fresh solder–never attempt to fix it by adding more solder to a half-melted blob.
Bridging adjacent pads occurs when solder flows between closely spaced traces, typically on 0.5 mm pitch ICs or surface-mount parts. Apply solder resist (flux) to the area, then use de-soldering braid or a fine iron tip to remove excess. For prevention, hold the board at a 45-degree angle and apply solder to only one pad at a time–surface tension will keep it contained. Always work in well-lit conditions; shadows obscure small shorts.
Component orientation errors–reversed diodes, electrolytic caps, or IC pinouts–often destroy semiconductors instantly. Check datasheets for polarization markings before insertion; for ICs, align notch or dot with the board silkscreen. Storage capacitors rated beyond 16V should never be inserted with polarity reversed–even brief reversal causes internal gas formation, leading to explosive rupture. Mark components with tape or a checklist as you install them to catch mistakes before powering up.
