How to Wire a Double Pole Switch Step-by-Step Guide with Diagram
Use a 12-gauge or thicker wire for circuits handling 20 amps or more–anything thinner risks overheating under load. For 15-amp setups, 14-gauge copper is the absolute minimum, but check local regulations; some jurisdictions mandate 12-gauge even for lower-current applications. Strip exactly 5/8 inch of insulation from each conductor to ensure a secure connection without exposed wire extending beyond the terminal screw. Loose strands or excess copper can cause short circuits when the cover plate is fastened.
Label every wire before disconnecting power–black or red for live, white for neutral, green or bare copper for ground. Confusing these will trip breakers, damage appliances, or create a fire hazard. Connect neutral conductors first if working with a split-circuit configuration; this reduces the chance of accidental contact with live terminals. Ground wires must attach to the metal switch box first before connecting to the device–skipping this step leaves the system vulnerable to electrical shock.
Test continuity with a multimeter before restoring power. Probe between live and neutral terminals while toggling the lever–expect zero resistance in the “on” position and infinite resistance when off. If readings deviate, recheck connections for crossed wires or damaged insulation. Always cap unused terminals with wire nuts, even if the switch has a built-in cover–this prevents accidental shorts if someone removes the plate later.
Use terminal screws, not push-in connectors, for permanent installations. Push-in slots weaken over time, especially with aluminum wire, leading to overheating. Tighten screws to 12–15 inch-pounds of torque; overtightening can strip threads, while undertightening creates resistance that degrades the connection. For outdoor or high-moisture areas, apply dielectric grease to terminals to prevent corrosion–this is non-negotiable for circuits exposed to humidity or temperature swings.
Mount the device with the lever oriented upward for standard “on” positions–this prevents unintended activation from gravity or vibration in industrial settings. If enclosing it in a box deeper than 3.5 inches, use extension rings to maintain proper clearance; shallow boxes cause heat buildup that can melt insulation over time. Verify box fill calculations before installation–each conductor counts as one, grounds as half, and clamps as one, regardless of wire gauge.
How to Connect a Double-Break Control for Circuit Isolation
Begin by identifying the live feed entering the enclosure–this is typically a black or red conductor rated for the circuit’s amperage. Ensure the supply is disconnected at the breaker before proceeding. Splice the incoming hot wire to both upper terminals of the control device, matching the screw or clamp type to the conductor gauge. For 12 AWG copper, use terminals rated for at least 20A; for 10 AWG, confirm a 30A minimum capacity.
Handling Neutral and Ground Conductors
If the application requires a neutral return, connect it to the designated terminal–usually silver–without sharing terminal slots unless the device explicitly permits parallel connections. Ground conductors must be bonded to the metal enclosure via a green screw or dedicated grounding busbar. For plastic enclosures, route the ground to the terminal marked with a green dot or bare wire symbol.
Attach load-side conductors to the lower terminals, observing polarity: black or red to brass, white to silver. For motors or inductive loads, add a snubber capacitor (0.1µF, 250V) across the load terminals to suppress arcing. Verify all connections with a torque screwdriver–18 lb-in for 12 AWG, 24 lb-in for 10 AWG–to prevent high-resistance failures.
Test the installation with a multimeter in continuity mode: between the top and bottom terminals on both sides, resistance should measure near zero when engaged, infinite when disengaged. Energize the circuit at the breaker and confirm voltage drops to zero across the load terminals in the off position. If residual voltage persists, revisit terminal tightness or capacitor placement.
Common Pitfalls and Safety Measures
Avoid jumpering terminals across the device–this defeats the purpose of circuit separation. For dual-voltage appliances (e.g., 120/240V), use separate neutrals for each phase; mixing them creates imbalance and potential fire hazards. If the device lacks thermal protection, install an inline fuse rated 125% of the continuous load current.
Label all conductors at both ends with heat-shrink tubing or permanent markers. For outdoor or damp locations, use a weatherproof cover with silicone gaskets and ensure all entry points are sealed per NEC Section 312.5. Recheck all connections after 24 hours of operation–thermal cycling often reveals loose terminals that require retightening.
Understanding Terminal Connections on a Two-Circuit Control Device
Identify the four contact points labeled as COM (common), L1, L2, and a second COM on the opposite side–these are standard for breakers handling separate circuits simultaneously. Connect the line input (hot wire) to the first COM terminal, then route the load wires to L1 and L2 respectively, ensuring each feeds a distinct circuit path. If the device includes a grounding screw, attach the bare copper wire directly to it–do not skip this step, as improper grounding creates shock hazards.
Key Terminal Pairings and Safety Checks
| Terminal | Wire Type | Function | Color Code (US/CA) |
|---|---|---|---|
| COM (Line Side) | Supply | Input from breaker panel | Black or Red |
| L1 | Load | Output to first circuit | Black |
| L2 | Load | Output to second circuit | Red |
| COM (Load Side) | Neutral Bridge | Links neutral paths if required | White (if used) |
Verify connections with a multimeter set to continuity mode–probe the COM and L1/L2 terminals while toggling the actuator. An open reading in the off position confirms proper isolation; closing the breaker should yield a closed circuit signal. Misaligned terminals causing partial disconnects indicate mechanical failure–replace the unit immediately. For reversible configurations (e.g., 3-way setups), swap L1 and L2 wires but never cross line and load sides, as this violates NEC Article 404.2.

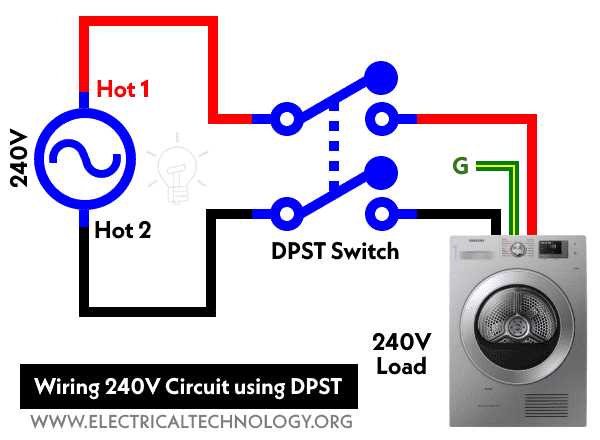

How to Connect a 240V Appliance Control with a Two-Contact Breaker
Begin by shutting off the main power at the service panel to prevent electrical shock. Verify the absence of voltage using a non-contact voltage tester on the circuit cables. If dealing with existing cables, remove the outer sheathing carefully to expose the hot (red and black), neutral (white), and ground (bare or green) conductors. For new installations, run 10 AWG or thicker cable from the panel to the installation point, ensuring the length does not exceed 100 feet to avoid voltage drop.
Attach the two hot wires (typically red and black) to the upper terminal screws of the breaker mechanism–each screw corresponds to one line of the 240V supply. The neutral wire (white) is not used in this setup unless the appliance requires 120V components; cap it with a wire nut inside the box. Connect the ground wire to the designated green terminal on the box or breaker. If the box is metal, ensure it’s bonded to the ground conductor.
Mounting and Finalizing the Connection
Secure the breaker assembly in the electrical box using the provided screws, ensuring no wires are pinched or exposed. For surface-mounted boxes, drill pilot holes to prevent splitting. If the appliance has a dedicated plug, wire the corresponding outlet following the same color-coding (red and black to brass screws, ground to green). Test the circuit by restoring power and using a multimeter to confirm 240V across the hot terminals.
Common pitfalls include reversed polarity (hot wires swapped), improper grounding, or loose connections. Double-check each termination with a torque screwdriver (follow manufacturer specs: typically 10–15 lb-in for 10 AWG). If the breaker trips immediately, re-examine for shorts or crossed wires. For garbage disposals, pumps, or compressors, consider adding a surge protector rated for 240V to prevent damage from voltage spikes.
Common Mistakes to Avoid When Installing a Two-Circuit Control
Mixing line and load wires on the same terminal is a critical error that can create a short circuit. Each contact pair must separate the incoming power (line) from the outgoing connection (load) strictly–never swap them. Manufacturers often label terminals, but if markings are absent, use a multimeter to confirm polarity before fastening screws. Reversing these leads not only disrupts functionality but risks damaging appliances or tripping breakers repeatedly.
Ignoring Grounding Requirements
Skipping the ground connection leaves exposed metal parts energized during faults, turning a simple toggle into a shock hazard. Even in systems where grounding isn’t mandatory, connecting the green or bare wire to the chassis prevents stray current from seeking unintended paths like plumbing or appliance casings. Verify continuity between the ground screw and the electrical box–corrosion or loose strands can break this safety link without visible signs.
Over-tightening terminal screws crushes conductor strands, reducing conductivity and causing overheating. Use wire strippers to remove exactly 12 mm of insulation, twist strands clockwise, and loop the wire in the same direction as the screw thread. Tighten until snug–just enough to prevent slippage–then tug gently to confirm grip. Loose connections arc, while excessive force breaks strands, both leading to intermittent failures that manifest as flickering lights or silent toggles.
