Step-by-Step Guide to Ebike Motor Wiring Connections and Schematics

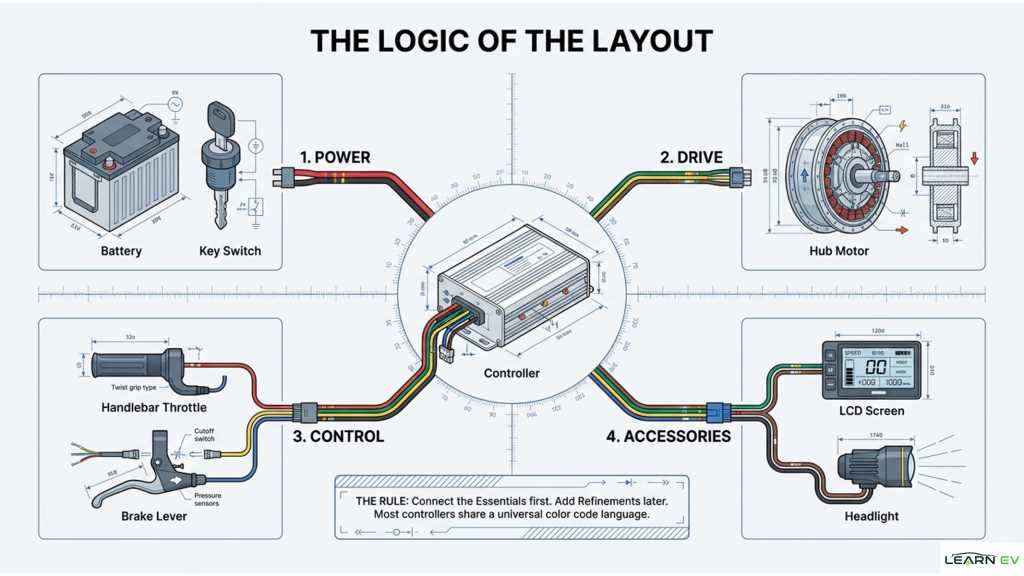

Start by identifying the three core components in any drive assembly: the battery pack, controller unit, and propulsion hub. The battery’s positive and negative terminals must interface directly with the controller’s corresponding power inputs–typically marked as B+ (positive) and B– (negative). Miswiring here causes immediate short circuits or irreversible damage to internal circuits. Use 10–14 AWG silicone-coated wire to handle currents above 20A; thinner gauges overheat.

Locate the phase wires emerging from the hub–usually three thick cables colored blue, green, and yellow. These must connect to the controller’s phase outputs labeled similarly. A multimeter set to continuity mode verifies accuracy: no resistance between any two phase wires indicates proper pairing. Reverse any incorrect matches; swap only two wires to avoid rotational issues.

The throttle sensor–often a Hall-effect twist grip–requires three connections: 5V (red), signal (white or black), and ground (green or bare). Match these to the controller’s throttle port ensuring polarity: red goes to +5V, signal to the middle pin, ground to the shared negative rail. Incorrect hookups cause erratic acceleration or stalling.

Include a 30A fuse inline between the battery positive and the main switch. Omit this step and a sudden surge can melt wiring insulation, igniting insulation materials. Secure all terminals with insulated spade connectors or soldered joints covered with heat-shrink tubing to prevent moisture ingress, which corrodes connections over time.

Test the finished system at low speeds in an open area free of obstacles. Listen for unusual humming or grinding–these signal misaligned phases or insufficient grease inside the hub bearings. Recheck all linkages if problems persist; never operate without confirming the brake cut-off switch (normally closed) disengages when levers are squeezed.

Electrical Schematic for Velomobile Propulsion Units

Start by verifying the compatibility of your voltage system with the controller’s specifications. Most mid-drive assemblies operate at either 36V, 48V, or 52V; mismatches can cause overheating or failure. For direct-drive hubs, check the phase wire gauge–typically 12-14 AWG for currents under 20A, thicker for higher loads. Label each connection before disconnecting to avoid errors during reassembly.

Connect the throttle to the control module using the provided JST or bullet connectors. Ensure the red wire aligns with the +5V terminal, black with ground, and signal wire (often green or blue) to the designated input. Hall sensors in torque-sensing pedals require precise polarity; triple-check orientation against the manufacturer’s pinout diagram to prevent sensor errors.

Common Pitfalls in Circuit Assembly

• Reversing phase wires (A, B, C) reduces efficiency by 30% and may trigger controller faults.
• Loose connections cause intermittent power loss; use ferrules or solder for secure joints.
• Skipping the shunt resistor calibration step leads to inaccurate battery monitoring.
• Ignoring insulation resistance tests risks short circuits; use a megohmmeter before first power-up.

For regenerative braking systems, wire the brake levers to the controller’s designated pins–usually a two-wire setup with voltage thresholds between 0.3V and 4.5V depending on the model. Test brake engagement with a multimeter: apply light pressure to the lever and confirm voltage drops to ~0.8V before proceeding. Double-check that the e-brake (if present) cuts power fully to avoid unintended acceleration.

When integrating a battery management system, match the BMS discharge/charge ports to the corresponding controller terminals. Note the maximum continuous current rating–mid-range BMS units handle 20-30A, while high-performance models support 50A+. For 72V systems, ensure all components (contactor, fuse holder) are rated for the higher voltage to prevent arcing. Final step: secure all cables with zip ties, avoiding tight bends near connectors to prevent wire fatigue.

Recognizing Critical Elements in an Electric Bicycle Powertrain Schematic

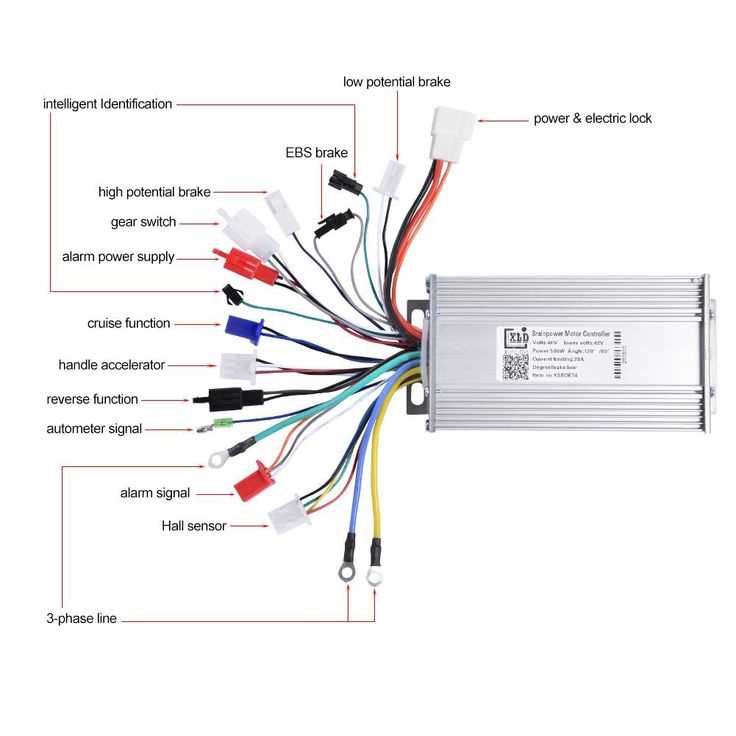

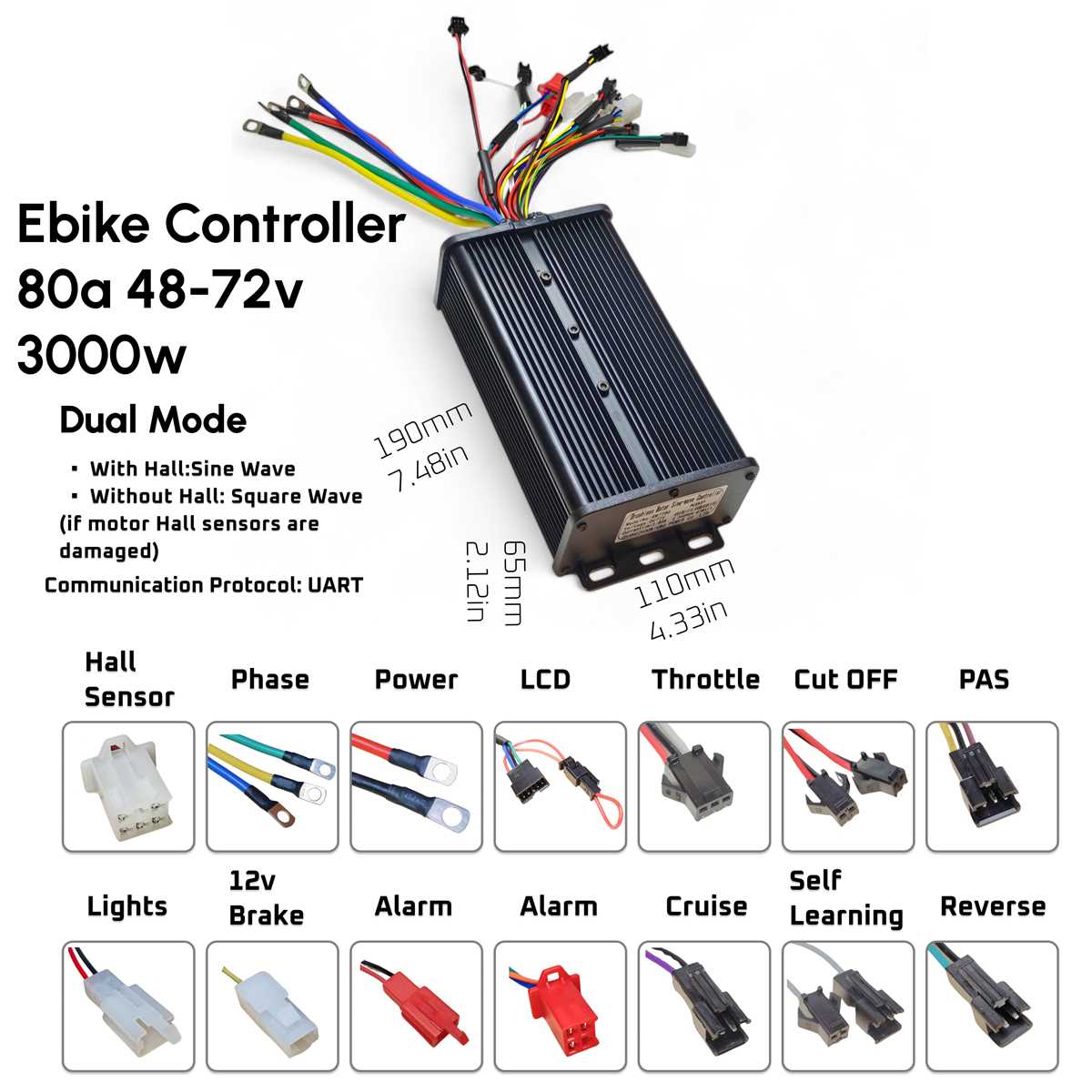

Start by locating the controller unit–typically a rectangular module with multiple terminals. This component acts as the brain, regulating current flow to the propulsion assembly based on throttle input and pedal assist signals. Verify the labels on its connectors: look for phase wires (often thick, colored red, blue, and green), hall sensor leads (smaller, usually yellow, blue, and green), and the power input (black for negative, red for positive). Misalignment here can cause erratic behavior or complete failure.

Examine the stator coils indicated in the plan–three windings connected in either wye (star) or delta configuration. The wye setup shows one common wire (often neutral) connecting all three coils’ ends, while delta loops each coil’s start to the next’s finish. Thicker lines in the drawing denote higher current paths; confirm these match your vehicle’s voltage rating (commonly 36V, 48V, or 52V) to avoid overheating.

Sensor Alignment and Power Delivery

Identify the rotor position detectors–tiny magnetic pickups that provide feedback to the control module. Their placement on the schematic mirrors physical attachment near the brushless propulsion hub; displacement as little as 1mm can disrupt synchronization. Cross-reference each detector’s signal wire color with the schematic to ensure correct polarity: swapped connections may trigger false starts or abrupt stops.

Safety and Overcurrent Protection

Spot the thermal cutoff and fuse links–critical for preventing damage under load spikes. The fuse symbol (a straight line interrupted by a zigzag) should align with the vehicle’s amp rating (e.g., 15A, 20A). Absent or undersized fuses risk melting insulation or causing fires. Additionally, locate the brake cutoff switch (if integrated), ensuring its circuit opens fully when activated to immediately halt current to the drive assembly.

Step-by-Step Guide to Linking a Wheel Drive to Its Control Unit

Use a multimeter to verify the output of your battery pack before attaching any components. Set it to DC voltage mode and check the reading matches the expected range–typically 36V, 48V, or 52V–depending on your system. If the voltage deviates by more than 5%, inspect the battery terminals for corrosion or loose connections. Clean oxide buildup with a wire brush and retighten securely.

Identify the phase wires on both the wheel drive and control unit. These are usually thicker, color-coded (often yellow, green, blue), and connect via bullet connectors or waterproof plugs. If replacing, ensure the gauge matches–most mid-drive setups use 14-12 AWG, while high-power hubs require 10 AWG. Cross-reference the color scheme with the manufacturer’s technical sheet to avoid misalignment.

Secure the Power Wires First

Connect the positive (red) and negative (black) power cables from the battery to the control unit’s main input terminals. Use ring terminals crimped tightly with a hydraulic crimper for a gas-tight seal–avoid solder alone as vibration can cause fatigue. Apply dielectric grease to terminals to prevent moisture ingress, especially in wet climates. Route cables away from spinning parts, zip-tying every 6 inches for strain relief.

Attach the throttle signal cable (usually a 3-pin JST connector) to the designated port on the control unit. Match the pinout: red for 5V reference, black for ground, and the third wire (often green or white) for the hall sensor signal. If the throttle becomes unresponsive, swap the signal and ground wires before troubleshooting further. Test the throttle response with a wheel elevated to confirm smooth modulation before final assembly.

For systems with pedal assist, link the cadence sensor’s wires to the control unit. These sensors typically use a 5-pin connector: two for power (5V), two for ground, and one for the signal. Ensure the magnet on the crank aligns precisely with the sensor–misalignment by more than 3mm disrupts detection. Secure the sensor with thread-locking compound to prevent vibration-induced drift.

Validate Connections Before Final Assembly

Power the system and observe the control unit’s LED indicators. A solid light usually signals normal operation, while flashing patterns indicate errors (e.g., throttle fault, low voltage). If the wheel drive hesitates or jerks, recheck phase wire continuity with a multimeter in resistance mode (target

Seal all connectors with heat-shrink tubing or liquid electrical tape, particularly those exposed to weather. Avoid standard tape, as it degrades under UV exposure. For toroidal drives, verify the axle nuts are tightened to 40-50 Nm–loose mounting causes bearing wear. Perform a final road test at low speed, monitoring for abnormal noises or heat buildup, which may indicate miswired phases or insufficient cooling.

Frequent Assembly Errors and Practical Fixes

Securely fasten every connector by pushing until a distinct click is heard–partial insertion causes intermittent power loss. Test connections with a multimeter set to continuity mode: probes on matching terminals should show near-zero resistance. If readings fluctuate, disassemble, inspect pins for corrosion, and re-seat firmly.

Over-tightening phase cables damages threads and distorts crimp sleeves–apply torque within 4-6 Nm, never exceeding manufacturer specs. Use a torque wrench for consistency. For stripped threads, helicoils restore threads; DIY kits cost under $15 and take 20 minutes to install.

Crossing signal lines with high-current traces introduces noise that triggers false throttle engagement. Maintain a 5 mm separation between the two; route control cables perpendicular to power feeds. When interference persists, add a 10 nF capacitor between signal ground and chassis at the controller.

Critical Voltage Drop Scenarios

• Battery terminals oxidized? Scrub with a wire brush, apply dielectric grease–voltage losses above 0.3 V indicate poor contact.
• Thin gauge extension cords cause 7% more drop per meter–replace 14 AWG with 10 AWG if runs exceed 3 m.
• Loose fuse holders add resistance; upgrade to blade-type fuses pressed directly into holders.

Incorrectly paired Hall sensors misfire, stuttering under load–verify sequence using an oscilloscope: standard order is A-yellow, B-blue, C-green. Swap any reversed pairs at the sensor cluster, not the harness, to avoid confusion downstream. For Hall sensors spaced unevenly, adjust air gap to 0.3-0.5 mm with shims.

Grounding Pitfalls and Solutions

1. Single-point grounding prevents loops–bundle all grounds to the frame at one clean, painted-free spot adjacent to the controller.
2. Isolated components (lights, displays) need dedicated returns tied back to the main ground bus; shared returns create feedback.
3. Tin-plated steel corrodes faster than stainless–use stainless bolts and ring terminals for grounding connections.

Reverse polarity protection diodes fail silently–bypass them temporarily with a jumper to confirm. If power returns, replace the diode with a 40 V Schottky model for lower dropout. When diodes are bypassed, never apply power for more than 10 seconds to avoid overheating the controller’s MOSFETs.
