Complete ECM Motor Wiring Diagram Guide with Color Codes and Connections

Begin by identifying the power input terminals–typically labeled L, N, and ground–before proceeding. Most modern controllers integrate a 230V single-phase supply, but verify the terminal block layout first. Variations exist: some models include dedicated neutral and live markings, while others rely on color-coding (brown for live, blue for neutral, green/yellow for earth).

Step 1: Disconnect all power sources before handling any internal connections. Failure to do so risks damaging the control board or creating hazardous short circuits. Measure voltage absence at the terminals with a multimeter set to AC 600V as an additional precaution. If residual voltage persists, check for faulty capacitors or improperly disconnected external circuits.

Critical component paths: The Hall sensor wiring harness (often a 5-pin connector) must align precisely with the controller’s mating port. Misalignment here disrupts rotor position feedback, causing erratic operation or complete failure. Reference the manufacturer’s pinout–common configurations pair pins as follows:

• Pin 1: 5V supply
• Pin 2: Ground
• Pins 3–5: U, V, W sensor signals

Low-voltage signal wires demand segregated routing from high-current lines. Bundle communication leads (PWM, speed control inputs) together, shielding them with foil tape or spiral wrap to minimize electromagnetic interference. For torque control applications, ensure the 0–10V analog input connects to the correct terminal–mistaking it for a digital signal input will override intended performance curves.

Final verification: Reconnect power and test in incremental steps. Power on the system without engaging the drive; observe LED indicators for error codes. If the controller defaults to fault mode, cross-reference the onboard diagnostics with the technical manual–common culprits include reversed phase order, improper grounding, or Hall sensor misconfiguration. Use an oscilloscope to confirm proper trapezoidal waveform generation at the phase outputs before full-load operation.

Connecting a Brushless Drive: Step-by-Step Field Guide

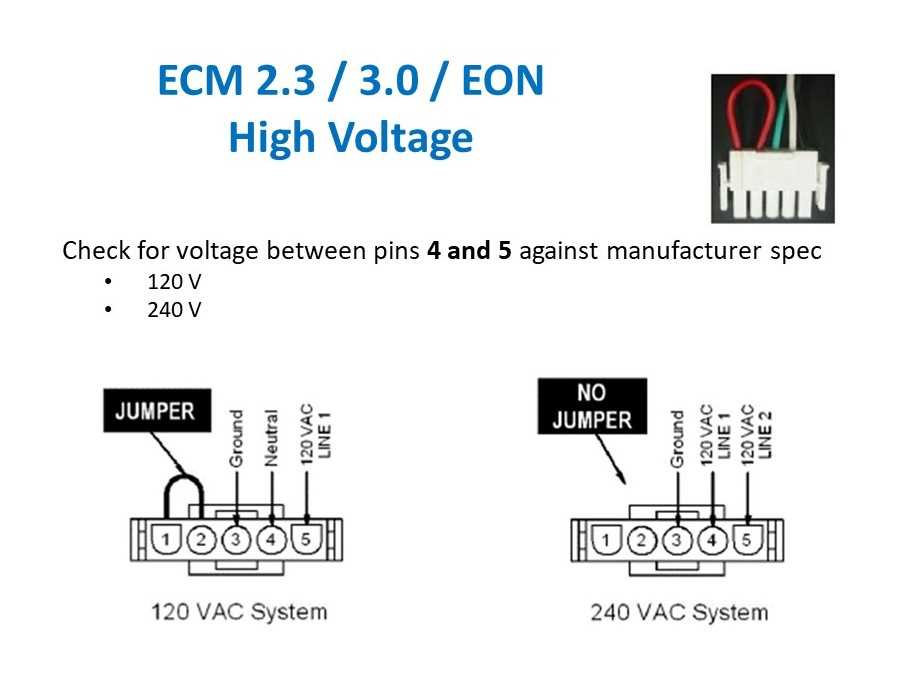

Always verify the line voltage matches the module’s rating–most residential setups require 120V or 240V AC input. Check the label on the control board for exact specifications; errors here will trip breakers or damage components.

Identify the low-voltage terminals before attaching wires. Typical pinouts include:

• Power in: Two leads (L1, L2) for AC supply.
• Thermistor: Two small-gauge wires for temperature feedback.
• Speed control: A trio of signal wires (often purple, brown, gray) interfacing with the HVAC control board.

Reverse polarity on the speed inputs will cause erratic RPM or failure to start–label wires before disconnecting old units.

Key Safety Checks

Disconnect all power at the breaker before handling terminals. Use a non-contact voltage tester on each wire; residual current can linger even after main power is off. For 240V models, ensure the neutral wire (white) is properly bonded to the grounding bar–floating neutrals create hazardous conditions.

Tighten terminals to 10-12 in-lbs; overtightening strips threads, while loose connections arc and overheat. After securing wires, tug each one to confirm mechanical grip. Apply dielectric grease to aluminum-to-copper junctions to prevent galvanic corrosion, especially in coastal or high-humidity environments.

Most ECM-type drives use a three-wire speed signal:

1. Constant 24V DC on the first lead (reference voltage).
2. Pulse-width modulated input on the second lead (0-10V or 4-20mA, depending on system).
3. Ground return on the third.

Cross-check these against the HVAC board schematic; mismatches cause speed irregularities or burnouts.

Test functionality with a multimeter before reassembling the housing:

• Measure DC voltage at speed sensor wires–should read stable 24V between power and ground.
• Check AC voltage at the input terminals; fluctuations above 5% indicate unstable power delivery.
• Observe RPM under load; deviations from factory specs signal miswired speed controls or failing capacitors.

Persistent humming or failure to ramp up suggests swapped signal wires–swap them one at a time while monitoring changes.

Post-Installation Protocols

Reattach all safety interlocks (thermal cutoffs, door switches) before energizing. Run the system through each speed setting, monitoring current draw with a clamp meter; exceeding nameplate amperage indicates an internal fault. Recheck connections after eight hours of runtime–thermal cycling can loosen terminations.

Decoding Control Module Leads and Standard Chromatic Markings

Begin by locating the power input leads–typically marked by black (L1, line) and red (L2, neutral) in most residential units, though industrial variants may use brown (L1) and blue (N) per IEC standards. Ground connections universally follow green or green-yellow striped insulation, and any deviation from this pattern should trigger immediate resistance testing with a multimeter. For variable-speed assemblies, the control signals split into white (speed reference), gray (feedback), and occasionally purple (tachometer output); verify against the unit’s label, as manufacturers like GE and Regal Beloit may swap gray and purple roles.

For secondary circuits, always cross-reference the schematic–modular designs often bundle commutation leads in orange (phase A), yellow (phase B), and pink (phase C), but Lenze or Delta configurations might employ light blue (phase A) and violet (phase B) instead. If stripping insulation, limit exposure to 5–7mm of bare conductor to prevent short risks; torque terminals to 4–6 in-lbs for signal paths and 8–10 in-lbs for power inputs, using a calibrated screwdriver. Ambiguous color assignments? Tag leads with heat-shrink sleeves during disassembly, noting function and polarity directly on the sleeve with indelible ink.

Installation Guide for Variable-Speed Drive Units in Climate Control Setups

Disconnect the main power supply at the breaker before initiating any connection work. Verify the absence of voltage using a multimeter across the terminal block to prevent accidental shorts or electrical hazards.

Identify the phase, neutral, and ground conductors on the drive unit’s label, typically marked as L (line), N (neutral), and PE (protective earth). Cross-reference these with the manufacturer’s technical sheet to confirm pin assignments, as deviations exist between 230V and 115V models.

Connection Sequence for Standard Three-Phase Modules

Terminal	Conductor	Torque Specification
L1	Line (Black)	1.5 Nm
L2	Line (Red)	1.5 Nm
L3	Line (Blue)	1.5 Nm
N	Neutral (White)	1.2 Nm
PE	Ground (Green/Yellow)	2.0 Nm

Secure each conductor to the designated terminal using a torque screwdriver set to the specified value. Under-tightening risks intermittent faults; over-tightening may strip threads or crack terminal housings.

For single-phase configurations, omit L2 and L3 connections. Instead, bridge L1 and the neutral terminal with a jumper if required by the unit’s design, ensuring the jumper’s gauge matches the main conductor.

Attach the control signal leads (typically 24V or 0-10V) to the low-voltage terminal block. Use shielded twisted pair cable for signal integrity, grounding the shield at the control board end only to avoid ground loops. Polarity matters: reference the control board’s legend for “+” and “-” markings.

Reconnect the power supply and perform a static check with the multimeter. Measure line-to-neutral voltage (230V ±10V expected) and confirm continuity on the ground path. Activate the system briefly to observe startup behavior–unusual noises or excessive vibration indicate misaligned connections or internal faults.

Finalize the setup by securing loose cables with UV-resistant zip ties and enclosing the terminal block in a non-conductive cover. Document each connection in the system log for future troubleshooting, noting phase colors and terminal designations.

Solving Frequent Issues in Electronic Control Assembly Connections

Start by verifying the power supply voltage at the terminals matches the unit’s specifications. Most control assemblies require 115V or 230V AC; deviations beyond ±10% indicate a faulty transformer, loose connectors, or incorrect input. Use a multimeter to measure voltage directly at the board’s power input–avoid testing through wiring harnesses, which may hide intermittent faults. If readings fluctuate, inspect for oxidized contacts or corrosion on terminals, especially in humid or coastal environments.

Check for reversed polarity in low-voltage signals, a common cause of erratic operation. Control modules typically use 24V DC for communication; swapping positive and negative leads can prevent startup or cause continuous resets. Trace connections using the manufacturer’s color code: red for positive, black or white for negative. If the module still fails to initialize, test continuity between the control panel and board–broken wires often lurk inside insulation, undetectable without probing.

Common symptoms of miswired feedback loops include:

• Unresponsive speed adjustments despite correct input commands
• Erratic RPM variations unrelated to load
• Overheating accompanied by error codes (if equipped)

For variable-speed units, ensure the signal wire (typically blue) maintains a clean 0-10V DC range from the thermostat or control interface. Voltage drops below 0.5V suggest a short to ground; spikes above 10.5V may overload the module’s input circuitry. Isolate the signal path and test with a known-good reference voltage to confirm the issue.

If the unit powers on but exhibits inconsistent torque or fails to reach target speeds, examine the high-voltage output stage. Look for:

1. Burnt marks or bulging capacitors on the power board
2. Mismatched phase sequences in three-phase configurations
3. Loose or improperly crimped splice connectors

For single-phase setups, verify the run capacitor’s microfarad rating matches the system requirements–undersized capacitors cause insufficient starting torque, while oversized ones lead to excessive current draw. Replace any capacitors displaying swelling, leakage, or ESR values exceeding 20% of nominal.
