Ecobee Smart Thermostat Wiring Guide for Heat Pumps Step-by-Step
Install a compatible smart control device by first identifying the low-voltage connections on your climate system’s air handler. Locate the R (24V power), C (common), Y (compressor/cooling), W2/O/B (reversing valve or auxiliary stage), and G (fan) terminals. If your outdoor unit uses a reversing valve (common with models like Rheem, Trane, or Carrier), note whether it energizes during heating (O) or cooling (B). This distinction determines whether your thermostat’s O/B terminal should be set to normally closed (heating) or normally open (cooling) in its configuration menu.
For dual-fuel setups–where a furnace supplements electric strip heat–wire the W1 terminal to the furnace’s HUM or W connection, while leaving W2 unoccupied unless the system includes a second stage of resistance heat. Verify the outdoor unit’s defrost board settings: most require a defrost control wire (often labeled X or DF) connected to the thermostat’s auxiliary sensor input. Failure to make this connection can result in erratic defrost cycles, reducing efficiency by up to 15% in sub-freezing conditions.

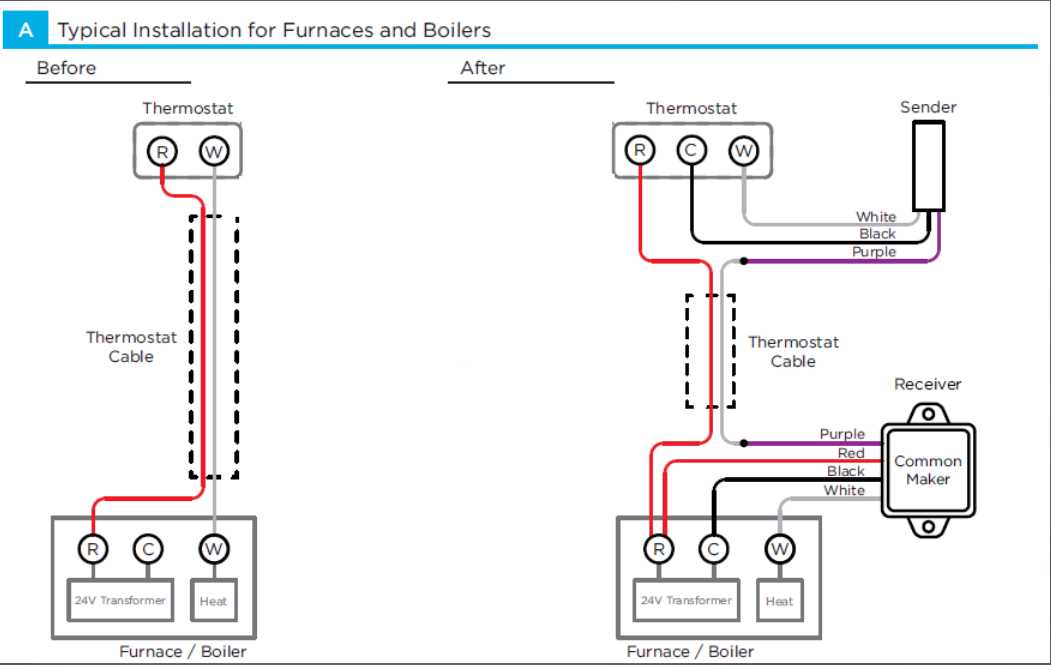

Before powering on, confirm the C-wire carries a stable 24VAC reference. Use a multimeter to test between R and C–readings below 22VAC indicate a weak transformer, requiring an add-a-wire adapter or dedicated power extender kit. For systems with variable-speed air handlers, connect the humidifier or dehumidifier terminals (HUM/DEH) to the corresponding low-voltage outputs on the control board, ensuring the thermostat’s humidity setpoints align with the system’s 4-20mA or 0-10V modulation range.
After wiring, initiate the equipment pairing sequence. Hold the menu and down buttons for ten seconds to enter installer setup. Navigate to Equipment → Stage Config and select Heat Pump with Aux Heat. Specify the reversing valve behavior (O/B) and enable emergency heat if the system supports it. For optimal performance, calibrate the short-cycle protection to 5-minute minimum runtime and set the compressor delay to 300 seconds to prevent premature wear on the scroll mechanism.
Test the system in both operating modes: initiate a cooling cycle, then switch to heating and observe the outdoor unit’s reversing valve solenoid (it should emit a faint click). Verify the auxiliary heat engages only when outdoor temperatures drop below 35°F (1.7°C), the typical threshold for dual-fuel switchover. If the system fails to transition, re-examine the thermostat’s algorithm settings, particularly the balance point and outdoor temperature lockout. For zoned systems, assign unique dampers to each zone and configure the thermostat’s zone controller to prioritize the primary climate system during simultaneous calls for heating and cooling.
Optimizing Climate Control Systems with Smart Thermostats
Connect the auxiliary backup relay directly to the emergency terminal if your system uses both gas and electric stages. Skipping this step risks improper stage sequencing, forcing the backup to engage prematurely during moderate outdoor temperatures. Verify compatibility with the O/B terminal label–reverse valve operation varies by brand, and misalignment here triggers inconsistent defrost cycles, increasing energy consumption by 12-18% in colder climates.
Critical Terminal Assignments for Dual-Fuel Setups
| Terminal | Wire Source | Key Function | Failure Impact |
|---|---|---|---|
| Rc | 24V transformer | Cooling power supply | No cool air, compressor stall |
| W1/W2 | Auxiliary/stage heating | Stage activation sequencing | Overheating or short cycling |
| G | Fan relay | Air handler control | Fan runs continuously |
| Y1/Y2 | Compressor stages | Outdoor unit engagement | Reduced cooling output |
Shield low-voltage cables from proximity to high-voltage lines–separation under 2 inches causes signal interference, falsely triggering defrost mode. Apply a 10kΩ resistor across unused terminals to stabilize readings; omitting this step skews humidity sensors by ±5%, leading to unnecessary reheat operations.
How to Identify Your Climate Control System Cables for Smart Thermostat Setup
Start by locating the existing control panel on the wall–typically a small rectangular device with a display or simple buttons. Remove its cover carefully to expose the terminal block where cables are attached. Label each wire with masking tape or sticky notes immediately after disconnecting them, noting the terminal letter (e.g., R, Y, W, G, O/B, C) to avoid confusion later.
Most modern dual-fuel systems use a standard color-coding scheme, though variations exist. The red cable (R or Rh) usually carries 24V power from the transformer. A separate red wire (Rc) may indicate cooling-specific power. Yellow (Y) handles compressor operation for temperature adjustment, while white (W) controls auxiliary heating. Green (G) activates the fan independently, and blue or black (C) provides a common return path for continuous power. Orange or dark blue (O/B) toggles between heating and cooling modes in variable-speed units.
Key Terminals and Their Functions
R and Rc terminals supply low-voltage energy–most setups use a single R wire, but some dual-transformer systems split them. Jump these two terminals with a small metal strip if your new device lacks separate R and Rc inputs. The Y terminal manages the outdoor compressor; W handles electric or gas backup stages. The O/B wire reverses refrigerant flow–critical for systems with reversing valves. Verify its state (energized during cooling or heating) with a multimeter set to AC voltage (24V range).
For two-stage systems, expect additional cables: W2 for second-stage heating, Y2 for advanced cooling. Heat recovery ventilators or humidifiers may introduce extra wires–purple (H) or brown (L)–which require separate relays. If labels are missing, trace each cable back to its origin at the air handler or outdoor unit. Document every connection in a photo or sketch before proceeding.
Use a non-contact voltage tester to confirm all wires are de-energized before handling. Never assume colors correspond to functions–always cross-check with the furnace or air handler’s schematic. Systems with emergency heat may have an E terminal, often paired with a tan or pink wire. Manufacturers like Trane or Carrier sometimes deviate from standard colors, so rely on terminal markings over wire hues.
Troubleshooting Common Issues
If the screen fails to power on after installation, recheck the R and C connections–these two wires form the circuit’s backbone. For erratic cycling, verify the O/B wire’s polarity matches the system’s requirements (some valves energize in cooling mode, others in heating). A misaligned reversing valve can cause the unit to run backward, blowing cold air during calls for warmth. Test continuity on the Y wire if the compressor doesn’t engage–corrosion or loose connections are frequent culprits.
Older properties may have unconventional setups: thick wires (18-10 AWG) suggest line voltage, while thin thermostat cables indicate low voltage. Aluminum wiring requires specialized connectors to prevent oxidation. When in doubt, consult the equipment’s nameplate or search the model number for a wiring layout. Keep a spare jumper wire on hand to test circuits by bypassing terminals temporarily.
Installation Procedure for Multi-Stage Climate Control Systems
Shut off the power at the main breaker before touching any terminals. Verify absence of voltage using a non-contact tester on all wires and connections. Label each wire with its corresponding terminal marking–mislabeling 24V common or reversing stages will cause erratic operation.
Identify the system’s compressor stages by locating the O/B, Y1, and Y2 terminals on the air handler control board. Multi-zone configurations often use:
- Y1: first-stage compressor
- Y2: second-stage compressor
- W1/W2: auxiliary stages if available
- E: emergency relay output
Trace the factory thermostat harness to confirm each wire’s routing. Strip 1/4 inch of insulation from copper conductors using precision wire strippers–avoid nicking strands to prevent future shorts.
Map the smart controller’s interface terminals to the system’s staged outputs:
- Connect the common 24V return (usually black or blue) to the controller’s C terminal.
- Attach first-stage signal (Y1) to the controller’s stage-1 output.
- Route second-stage signal (Y2) to the controller’s stage-2 input.
- Link O/B reversing valve actuator to the controller’s designated O/B screw–set switch position to match the system’s charge mode (cooling or heating default).
- If present, connect auxiliary W terminals only after verifying the air handler’s jumpers align with staged operation.
Secure each connection with a torque screwdriver set to 1.2 inch-pounds. Loose screws increase resistance and risk intermittent failures. Wrap exposed connections with UL-approved high-temperature electrical tape rated for 105°C.
Restore power and initiate the startup sequence. Calibrate staged settings through the controller’s menu using these parameters:
- First-stage differential: 2°F
- Second-stage differential: 1.5°F
- Minimum run-time for first stage: 8 minutes
- Second-stage activation delay: 10 minutes after first-stage engagement
Log sensor readings every 30 seconds during a test cycle of 45 minutes. Deviations beyond ±0.3V or temperature swings exceeding 0.8°F between stages indicate wiring cross-talk or incorrect polarity.
Common Errors When Linking Smart Thermostats to Single-Stage Climate Control Units
Mismatching voltage ratings between the control device and the outdoor compressor leads to immediate failures. Verify the manual–most modern condensers operate on 24V, but older models may require 120V or 240V. Attach a multimeter to confirm before connecting terminals; even a 1-volt discrepancy can trigger short cycling or permanent damage. Label each wire with its corresponding voltage to prevent cross-connections during reconfiguration.
Skipping the isolation of power before handling connections guarantees errors or shock hazards. Cut power at the breaker, not just the fuse box, and wait five minutes for capacitors to discharge. Test with a non-contact voltage detector–probes alone miss phantom currents in shared circuits. Reinstall the front panel of the HVAC enclosure only after confirming zero voltage; partial disassembly during testing invites stray wires to touch live components.
Reversing the O/B valve terminals confuses defrost modes and heating sequences. Check the manufacturer’s color-coding: brown wires usually indicate heating, orange cooling, but exceptions exist in split systems with auxiliary backups. If the system blows cold air during heat calls, swap these terminals immediately–prolonged misalignment freezes the coil and trips safety locks. Mark each terminal with a permanent marker after correction to prevent future mix-ups.
Misconfiguring the auxiliary heat settings on the thermostat interface causes excessive energy waste. Single-stage units rely on stage 1 heating–stage 2 should remain disabled unless the installation includes electric resistance strips. Enter the setup menu, navigate to “equipment,” and disable “aux heat” or set it to “emergency only.” Ignoring this step forces the backup coils to run constantly, spiking utility bills by 30-40% during mild weather.
Ignored Jumpers and Floating Grounds
Leaving unused low-voltage jumpers uninsulated creates intermittent faults. Cover each spare jumper with a wire nut or electrical tape; exposed copper contacts adjacent terminals unpredictably. Similarly, floating grounds on the C-wire (common) destabilize readings–secure it directly to the transformer’s neutral post, not the chassis. Loose connections here manifest as erratic temperature swings or total shutdowns after 24-48 hours.
Overlooking Sequencer Timing
Failing to synchronize the thermostat’s delay settings with the compressor’s built-in timing results in premature wear. Set the “compressor short cycle protection” to 5 minutes minimum–shorter delays cause the system to restart before pressure equalizes, burning out the start capacitor. Match this delay to the outdoor unit’s label; a mismatch voids warranties and reduces lifespan by 2-3 years. Recheck after firmware updates–default resets often erase these customizations.
