Building and Understanding Electronic Stethoscope Circuit Designs

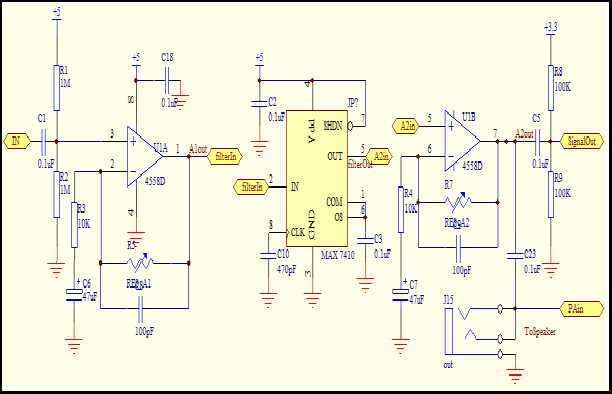

For reliable auscultation signal capture, integrate a microphone preamp with a band-pass filter centered at 100–500 Hz and 1–2 kHz. Dual-op-amp configurations (e.g., TL072) with 10kΩ feedback resistors and 1µF coupling capacitors minimize drift while preserving heartbeat and lung frequency ranges. Add a 10nF capacitor in parallel to the feedback resistor to suppress high-frequency noise above 10 kHz.

Power supply stability dictates performance. Use a low-dropout regulator (e.g., LM2940) to maintain 5V ±2% under load. Decouple each op-amp with 0.1µF ceramic capacitors placed within 5mm of the VCC pins. Include a 100µF bulk capacitor at the regulator output to absorb transient current spikes during fetal heartbeat detection.

Signal amplification should target 40–60 dB gain, adjustable via a 100kΩ potentiometer in the feedback loop. However, ensure the feedback network includes a 1kΩ resistor in series with the potentiometer to prevent oscillation at maximum gain. For true differential pickup, employ an instrumentation amplifier (e.g., INA125) with CMRR >100 dB to reject ambient artifacts.

Output conditioning requires a buffer stage followed by an active low-pass filter (cutoff at 2 kHz) using a second-order Sallen-Key topology. Choose 1% tolerance resistors and NP0 capacitors for consistent roll-off. Add a 3.5mm audio jack with a series 100Ω resistor to interface with standard earphones, ensuring maximum power transfer without distortion.

Designing a Medical Auscultation Device: Key Schematic Components

Start with a low-noise preamplifier stage using an op-amp like the TL072 or OPA2134, configured for a gain of 10–50x. This ensures weak body sounds (20–1000 Hz) are amplified without significant noise introduction. Place a 100nF decoupling capacitor on the op-amp’s power pins to minimize ripple. For power, use dual ±5V supplies–avoid single-ended if battery life exceeds 8 hours, as DC offset can distort signals.

Incorporate a bandpass filter with cutoff frequencies at 50 Hz (high-pass) and 1500 Hz (low-pass). Use a 2nd-order Sallen-Key topology for steep roll-off (12–18 dB/octave). For the high-pass section, a 33kΩ resistor and 100nF capacitor work well; for low-pass, pair 10kΩ with 10nF. Verify filter response with a signal generator–phase shifts above 1kHz can muddle lung sounds.

Signal Processing and Output Options

• For analog output: Buffer the filtered signal with an LM386 (gain 20–50) and drive 8Ω earphones. Add a 220µF coupling capacitor to block DC.
• For digital recording: Feed the op-amp output into an ADS1115 ADC (16-bit, 860 SPS max). Connect via I²C to an MCU like the STM32F4 for real-time FFT analysis (use CMSIS-DSP library).
• To reduce motion artifacts: Add a 3-axis accelerometer (ADXL345) and subtract correlated noise via software (least-squares algorithm).

Use a condenser mic rated for 20Hz–20kHz (e.g., CUI CMA-4544PF-W) with a sensitivity of -44dB. Mount it in a rigid, acoustically sealed chamber (3D-printed ABS works) to prevent feedback. For chestpiece coupling, use a 25mm diameter silicone tube (1.5mm wall thickness)–thicker walls attenuate high frequencies. Test with a 1Vpp 100Hz sine wave; expected output should be ≥500mV without clipping.

Power Management and Safety

1. Isolate power rails: Use a TPS65130 to generate ±5V from a single LiPo (3.7V). Add a 10µF tantalum capacitor near the mic to suppress spikes.
2. Prevent leakage currents: Place 1MΩ resistors in series with all patient-facing conductors (IEC 60601-1 compliance).
3. For portable use: Add a MAX17225 fuel gauge. Set low-battery cutoff at 3.3V to avoid op-amp saturation.
4. Test electromagnetic interference: Use an RF generator (150kHz–30MHz) at 3V/m–signal should deviate

Core Parts for Building a Medical Auscultation Device

Begin with a high-impedance contact microphone, preferably a piezoelectric sensor, to capture low-frequency vibrations from the body. Models like the Murata 7BB-12-9 offer a frequency response between 20 Hz and 20 kHz, ideal for detecting heartbeats, lung sounds, and murmurs. Ensure the sensor’s sensitivity exceeds -50 dB to avoid signal loss during transmission.

Incorporate an operational amplifier (op-amp) like the LM386 or NE5532 to boost weak signals. Configure it in a non-inverting setup with a gain of 20–50 to balance noise suppression and clarity. Avoid using generic op-amps; low-noise variants reduce hiss that can obscure critical audio details.

Add a bandpass filter to isolate relevant frequencies. Heart rhythms peak between 20–200 Hz, while respiratory sounds range from 100–1500 Hz. Use a combination of RC networks or active filters (e.g., Sallen-Key topology) to cut interference from muscle noise or environmental disturbances. Target a Q-factor of 2–5 for optimal bandwidth.

Integrate an analog-to-digital converter (ADC) like the MCP3008 for processing signals into a microcontroller. Choose 16-bit resolution or higher to preserve subtle amplitude variations. Ensure the sampling rate reaches at least 10 kHz to prevent aliasing of high-frequency components.

Select a microcontroller with sufficient processing power, such as the STM32F4 or ESP32. Prioritize models with multiple timers and DMA channels to handle real-time audio streaming without latency. Pre-load firmware capable of compressing data (e.g., using ADPCM) if wireless transmission is required.

For wired output, include a 3.5mm audio jack or a Bluetooth module (e.g., HC-05) for wireless use. For Bluetooth, enforce SBC or AAC codec support to maintain audio fidelity. Add a small lithium-polymer battery (e.g., 3.7V 1000mAh) with a charging IC like the TP4056 for portability.

Shield the entire assembly with a grounded metal enclosure to minimize electromagnetic interference. Use ferrite beads or inductors on signal lines to suppress high-frequency noise. Test the device with a signal generator set to 100 Hz to verify signal integrity before clinical use.

Calibrate the system using a reference tone generator or an existing clinical device. Adjust the gain stages so that normal heartbeats register at -12 dBFS on the output. Store calibration settings in EEPROM to avoid recalibration after power cycles.

Step-by-Step Assembly of the Condenser Microphone Module

Select a low-noise FET (field-effect transistor) such as the 2SK596 or BF256B for impedance matching–critical for capturing faint acoustic signals. Solder the FET’s source pin directly to the microphone’s signal pad, ensuring minimal trace length to reduce parasitic capacitance (target <1pF). Use a 2.2kΩ resistor between the drain and a stable 5V supply; this defines gain while preventing saturation from ambient noise.

Connect the microphone’s backplate to a decoupling capacitor (e.g., 0.1µF X7R ceramic) tied to ground. Place this capacitor within 2mm of the backplate pad to filter high-frequency interference. For polarization, apply 2-3V DC to the backplate via a 1MΩ resistor–this bias must be noise-free, sourced from a low-dropout regulator like the TPS7A05 or a precision voltage reference.

Critical Signal Conditioning

• Preamp stage: Use an OPA2340 op-amp (rail-to-rail, 5µV noise) in non-inverting configuration. Set gain via Rf/Rg (e.g., 100kΩ/10kΩ = 11x) to avoid clipping from lung sounds. Power the op-amp with ±3.3V split supply to handle AC signals symmetrically.
• Anti-aliasing: Add a 2nd-order Sallen-Key filter (fc = 1kHz) at the op-amp output, using 1% tolerance resistors and 5% COG capacitors to maintain phase integrity.
• PCB layout: Keep analog traces short and shielded under a ground pour. Route digital signals (if present) on a separate layer, perpendicular to analog paths, to minimize crosstalk.

Test the module with a 1kHz, 1mVpp sine wave from a signal generator. Measure the output on an oscilloscope: harmonics should be <-60dB relative to the fundamental. If noise exceeds 20µVrms, re-check solder joints for cold connections and verify the ground plane continuity. Calibrate by adjusting the backplate bias in 50mV increments–optimum sensitivity typically occurs between 2.4V and 2.7V.

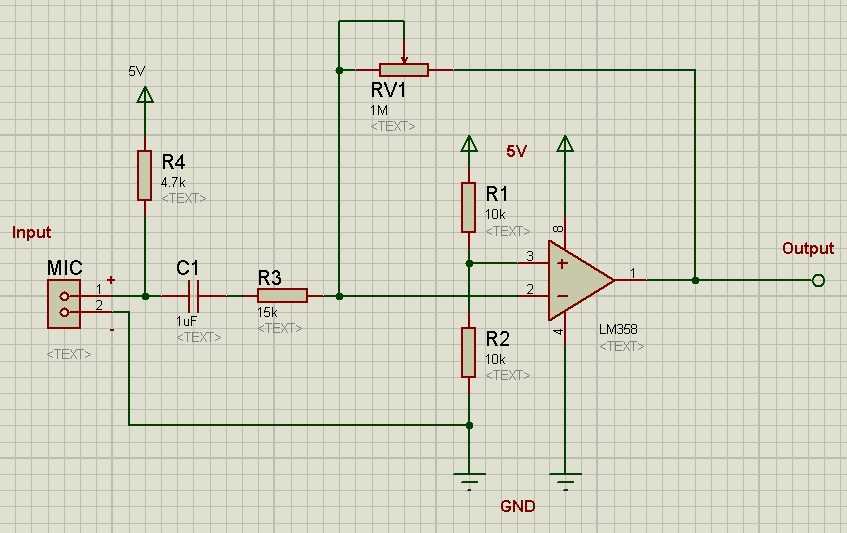

Amplification Stage Design Using Operational Amplifiers

Select op-amps with a low input noise density, ideally below 5 nV/√Hz, to avoid masking faint signals during auscultation. The OPA2188 or AD8676 provide suitable specifications, though AD797 reaches lower noise at 0.9 nV/√Hz if cost permits. Ensure the chosen device supports rail-to-rail output swings when powered from dual 3.3 V supplies, as sound waves captured by acoustic sensors require full dynamic range without clipping.

Configure a non-inverting amplifier with a gain between 20 and 100, settling on 60 dB for most chest-piece pickup scenarios. Calculate resistor values using R_f = R_g(A_v – 1), where A_v is the desired voltage gain. For A_v = 60 dB (1000 V/V), set R_g = 1 kΩ and R_f = 999 kΩ; trim to standard 1% E96 values 1 kΩ and 976 kΩ to maintain precision while simplifying procurement.

Gain (dB)	Rg (Ω)	Rf (kΩ)	Bandwidth (kHz)
40	1k	99	200
60	1k	999	20
80	100	999	2

Add a 10 Hz–1 kHz band-pass filter immediately after the first gain stage to isolate heart and lung sounds from extraneous noise. Use a Sallen-Key topology with 1% tolerance capacitors: C₁ = C₂ = 100 nF, R₁ = 160 kΩ, R₂ = 1.6 kΩ. This combination yields a Q-factor of 0.7 and minimizes ringing on transient events like S1 and S2 tones.

Include a single-pole low-pass filter at the amplifier output with a cutoff frequency of 1.6 kHz to reject electromyographic interference and power-line harmonics. Implement it passively with R = 10 kΩ and C = 10 nF for minimal part count. Verify frequency response with a signal generator sweeping from 1 Hz to 10 kHz; ensure attenuation exceeds 20 dB above 3 kHz.

Power decoupling demands 0.1 µF ceramic capacitors placed within 2 mm of each op-amp supply pin, plus a 10 µF tantalum capacitor at the board’s power input. Route analog and digital grounds separately, joining them at a single star point beneath the main regulator to avoid ground loops. Keep trace lengths below 10 mm for high-impedance nodes to prevent stray capacitance from degrading bandwidth.
