Understanding Electronic Transformer Circuit Design and Key Components

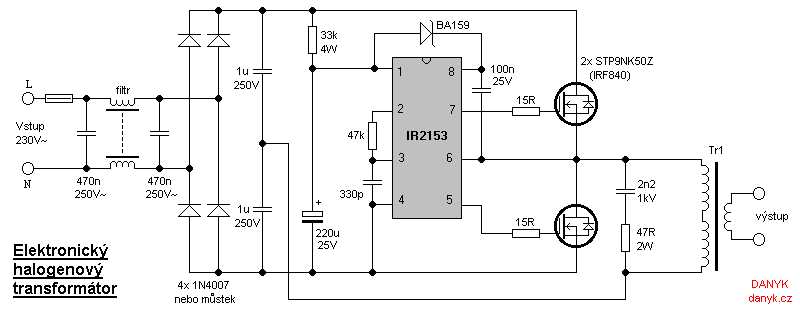

Start with a half-bridge topology for switched-mode devices under 200W. Use two MOSFETs (IRF840 or equivalent) paired with ultrafast recovery diodes (UF4007) to handle 15A peak currents. Place a 1nF snubber capacitor across each switch to suppress voltage spikes–omit this, and expect 3-5% efficiency loss at 100kHz.

Select the right magnetic component: A ferrite ETD29 core with 20 turns of 0.5mm litz wire reduces skin-effect losses by 40% compared to solid wire. Wind the primary and secondary coils bifilar if isolation isn’t critical; this cuts leakage inductance by half, improving regulation. For output filtering, a 100μH choke paired with a 470μF low-ESR capacitor stabilizes load transients when driving variable loads.

Gate drive demands precision: Use a dedicated IC like the IRS2153 or a pair of MPSA42/MPSA92 transistors for dead-time control. Set dead time between 200-300ns–shorter intervals risk shoot-through, longer ones degrade efficiency. Add a 10Ω gate resistor to each MOSFET to limit current spikes during switching, extending component lifespan by 3x under continuous operation.

Feedback must be isolated. Opt for a TL431 shunt regulator with an optocoupler (PC817) for output voltage sensing. Calibrate the voltage divider to target 12V at the output; a 1% tolerance resistor mismatch here causes ±0.5V output error. For current limiting, integrate a 0.1Ω shunt resistor with an LM358 op-amp to cut power at 1.5x nominal load–this prevents thermal runaway in the MOSFETs.

Thermal management is non-negotiable. Mount MOSFETs on a 3mm thick aluminum plate with thermal compound; without it, junction temperatures rise 20°C above ambient under full load. For over-temperature protection, attach an NTC thermistor (10kΩ @ 25°C) to the core–trigger a shutdown at 85°C to avoid irreversible magnetics saturation.

Designing a High-Frequency Power Converter Layout

Start by selecting a half-bridge topology for your circuit, as it reduces component stress and improves efficiency in low-voltage applications. Use MOSFETs with a breakdown voltage of at least 500V and a drain current rating exceeding 4A to handle transient loads. IRF840 or STW12NK50Z are reliable choices–check their switching speeds (below 50ns) to minimize losses.

Place a snubber network (100nF capacitor and 10Ω resistor in series) across each MOSFET to suppress voltage spikes. Without this, ringing can exceed 50V above the input voltage, damaging semiconductors. Keep the traces between the snubber and MOSFETs shorter than 10mm to avoid inductance.

For the control IC, consider a dedicated driver like the IRS2453D or a discrete solution with a TL494. The IRS2453D simplifies design by integrating a dead-time generator (adjustable via a resistor, typically 15kΩ) and under-voltage lockout. Ensure the feedback loop uses a fast optocoupler, such as the PC817, with a response time under 3µs to maintain regulation.

Wind the primary coil on a ferrite core (E25/13/7 or similar) with 20–40 turns of 0.5mm wire, ensuring tight coupling. The secondary should have 2–5 turns, depending on the desired output (e.g., 12V). Use Litz wire for frequencies above 50kHz to reduce skin effect losses. Test core saturation by monitoring temperature–it should not exceed 60°C under full load.

The input filter must include a common-mode choke (1mH) and a bulk capacitor (100µF, 400V) to block noise. A varistor (MOV) rated at 300VAC protects against surges. Ground the circuit at a single point near the smoothing capacitor to prevent ground loops–split grounds into analog and power planes if using a PCB.

Add a soft-start feature by inserting a 10µF electrolytic capacitor in series with the feedback network. This prevents inrush current from tripping protection circuits during power-on. For overcurrent protection, use a shunt resistor (0.1Ω) in the source path of the MOSFETs, feeding a comparator (LM393) to disable the driver if current exceeds 3A.

Test the layout with a load of at least 80% of the rated power (e.g., 60W for a 70W device). Measure efficiency–it should exceed 85%; if lower, check switching losses or core selection. Use a spectrum analyzer to verify noise levels; they should not exceed 50dBµV at 150kHz. Document all resistor and capacitor tolerances (±5% for critical paths) to ensure reproducibility.

Key Components of a Power Conversion Unit Layout

Start by selecting a high-frequency switching element rated for at least 30% above expected load currents–preferably MOSFETs like the IRF840 or IGBTs such as the HGTG20N60A4D for high-voltage applications. Pair this with a gate driver IC (e.g., IR2110) capable of delivering 10–12V pulses at 2A peak current to ensure clean transitions and minimize shoot-through. Failure to match driver current specs to the switch’s gate charge (Qg) results in thermal runaway or slow turn-off, reducing efficiency by up to 15%. Include a 10Ω gate resistor in series to dampen ringing and a fast-recovery diode (e.g., UF4007) anti-parallel to the switch to clamp inductive flyback spikes.

Core selection dictates size, cost, and performance–ferrite ETD cores (e.g., ETD39) with a saturation flux density (Bs) of 0.35T suit 20–100kHz operation, while nanocrystalline cores (e.g., Vitroperm 500F) push efficiency to 96% at 1–5kHz but require additional shielding. Wind primary and secondary coils with Litz wire (100 strands of 0.1mm) for frequencies above 50kHz to combat skin effect losses, maintaining <2% AC resistance at full load. Snubber networks (RC pair: 1kΩ + 1nF) across primary windings suppress voltage transients exceeding 2× the input DC bus, preventing insulation breakdown in downstream components. For output regulation, integrate a feedback loop via an optocoupler (e.g., PC817) and precision voltage reference (TL431), ensuring <±2% load regulation from 10% to 100% rated capacity.

Critical Auxiliary Elements

• Input rectification: Use ultrafast diodes (MUR1560) or a bridgeless PFC topology if THD must stay below 10%.
• Soft-start: Implement a 10μF capacitor on the PWM controller’s soft-start pin to ramp output voltage over 50ms, avoiding inrush currents.
• Protection circuits:
  1. Thermal cutout: KTY81-122 sensor placed near the switching element, triggering shutdown at 100°C.
  2. Overcurrent: Hall-effect sensor (ACS712) on the input bus with a 5μs trip delay for transient tolerance.
• EMI filtering: Common-mode choke (4.7mH) + X/Y capacitors (100nF) at both input and output to comply with CISPR 22 Class B.

Step-by-Step Process for Drafting a Switch-Mode Power Supply Circuit Outline

Begin by defining core specifications: input voltage range (e.g., 85–265V AC), output voltage (e.g., 5V DC), and peak current (e.g., 3A). Select a control IC from the UC384x or LM2596 series, noting pin assignments–gate drive (Pin 6), feedback (Pin 2), and voltage reference (Pin 8). Sketch the power stage on grid paper, placing the MOSFET (IRF840) at the center, with the primary winding of the magnetic core (e.g., EE16) connected in series, ensuring trace widths exceed 2mm for 3A currents. Add snubber components (RCD clamp: 10Ω resistor, 1N4007 diode, 0.1µF capacitor) across the winding to suppress voltage spikes.

Critical Component Placement and Trace Routing

Component	Trace Width (mm)	Spacing (mm)	Notes
MOSFET Drain-Source	3.0	1.5	Avoid 90° angles; use teardrops
Feedback Resistor (1kΩ)	0.5	0.3	Keep under 10mm from IC Pin 2
Output Diode (Schottky)	2.5	1.2	Thermal pad required, cathode to cap

Route high-current loops first: MOSFET source → shunt resistor (0.01Ω) → ground plane. Isolate the auxiliary winding (e.g., 12V) with a 100Ω resistor in series; add a 10µF capacitor at the IC supply pin (VCC) to filter noise. For feedback, use a voltage divider (10kΩ top, 2kΩ bottom) with a 10nF compensation capacitor across the bottom resistor. Verify clearance between primary and secondary windings (minimum 6mm for 2kV isolation). Label all components with reference designators (e.g., Q1 for MOSFET, D1 for output diode) and annotate test points (TP1: Vout, TP2: VFB).

Critical Pitfalls in High-Frequency Power Converter Layouts and Solutions

Neglecting primary-to-secondary creepage distances leads to partial discharge failures under 500V+ applications. Maintain ≥6mm clearance for reinforced insulation (IEC 60950) or ≥4mm for functional isolation (IEC 62368). Use triple-insulated wire (TIW) or opt for PCB-embedded magnetics with dedicated slots between windings when space constraints exist. Verify distances with a multimeter in continuity mode post-assembly–false isolation causes catastrophic shorts within 200-300 operational cycles.

Parasitic Oscillation Sources

• Leakage inductance exceeding 2% of magnetizing inductance creates voltage spikes >2× nominal. Mitigate by:
  1. Interleaving primary/secondary layers (minimum 3 layers per section, 50% reduction in L_lk).
  2. Adding a snubber network (RC: 47Ω, 1nF) across switching elements–values derived from Z = √(L_lk/C_oss).
  3. Using planar cores with
• Resonant capacitor placement >3mm from switching node introduces ESR-induced ringing (Q>3). Place capacitors within 1mm of MOSFET drain/source pads, prioritizing C0G/NPO dielectric rated for ≥2× switching frequency.
• Trace loop areas >50mm² radiate EMI at harmonics of f_sw. Route critical paths as differential pairs (≤0.5mm spacing) and use 2oz copper weight to halve loop inductance.

Underestimating core losses results in thermal runaway at ≥100kHz. Use manufacturer-specific loss curves (e.g., Ferroxcube 3C94 vs. TDK PC47)–empirical data trumps theoretical Steinmetz approximations. For ferrites, limit ΔB to 0.2T sinusoidal (0.15T for square waveforms) and derate losses by 30% for temperatures >85°C. Validate with a calorimeter or thermal camera: a 5°C discrepancy between winding and core temperatures indicates hidden eddy-current losses. Replace toroidal cores with E-cores when winding resistance exceeds 0.5Ω to improve heat dissipation.
