Design Principles for High Frequency PCB Layouts and Schematics

Begin by isolating power planes from sensitive traces using ground stitching vias spaced no farther than λ/10 apart, where λ corresponds to the shortest wavelength in your design. For GHz-range signals, this translates to via placement at 3–5 mm intervals to suppress common-mode noise and prevent ground bounce. Avoid right-angle bends–replace them with 45° miters or smooth arcs to minimize impedance discontinuities, which can reflect up to 20% of signal energy at sharp corners.

Use controlled-impedance structures for all critical paths. Microstrip lines on the outer layers should maintain 50 Ω ±10% impedance with a trace width-to-height ratio of ~2:1 (e.g., 0.2 mm trace over 0.1 mm dielectric). For striplines, bury traces between two ground planes with a dielectric thickness of 0.127–0.254 mm and a trace width of 0.1–0.3 mm to achieve 75 Ω impedance for differential pairs. Prepreg and core materials matter: choose Panasonic Megtron 6 (Dk 3.3) or Rogers 4350B (Dk 3.48) over FR-4, whose loss tangent (tan δ = 0.02) introduces 0.5–1 dB/cm attenuation at 10 GHz.

Decoupling capacitors must be placed from IC power pins, with values ranging from 10 pF to 1 μF to cover the full spectrum of noise frequencies. Use reverse-geometry X7R or NP0 dielectrics–avoid Y5V, which loses 80% of capacitance at 5V bias. For termination, apply series resistors of 22–51 Ω at the driver end of point-to-point links; parallel termination (50–75 Ω to V_CC/2) suits multidrop buses. Simulate S-parameters in Keysight ADS or Ansys HFSS to verify insertion loss () and return loss () before fabrication.

Test probes and fixtures distort signals if not calibrated. Use GSG probes with 250 μm pitch and 50 GHz bandwidth for on-wafer measurements. De-embed fixture effects by measuring THRU, REFLECT, and LINE standards–this subtracts 0.3–1 dB insertion loss introduced by connectors. For board-level validation, solder SMA connectors with lead length and 3.5 mm center pin to maintain VSWR up to 18 GHz. Log results in a touchstone (.s4p) file for post-processing correlation.

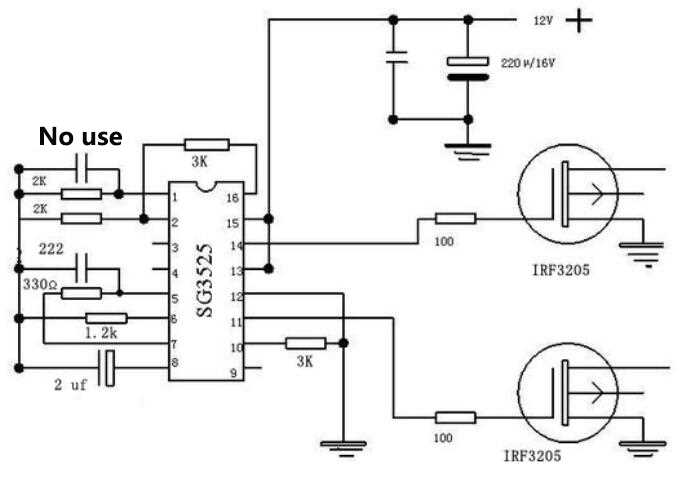

Designing RF Schematic Layouts: Critical Practices

Start with a ground planepour on the bottom layer–no exceptions. For gigahertz-range signals, even a 1 mm gap in the return path forces currents to detour, creating parasitic inductance that distorts phase response. Use a continuous copper pour with stitching vias spaced no more than λ/20 apart (λ = wavelength in dielectric). For 5 GHz on FR-4 (ε_r = 4.3), this translates to vias every 5.2 mm. Route signal traces directly over the plane, minimizing stubs; any branch longer than 3 mm at 3 GHz acts as an unintended resonant circuit.

Match trace impedance to 50 Ω ±2 Ω using a 2D field solver before fabrication. On 0.2 mm FR-4, a 0.3 mm wide top-layer trace yields ~50 Ω; adjust width inversely with layer thickness. For multi-layer boards, stack signal layers adjacent to uninterrupted planes to prevent crosstalk–spacing between aggressor and victim traces must exceed 3× trace width. Avoid right-angle bends; miter 45° at turns to reduce reflections, keeping the inner corner radius ≥ trace width to maintain impedance continuity.

Decouple every active component within 5 mm of its power pin using 0402 ceramic capacitors rated for series resonance below 1 GHz. Place a 100 nF capacitor adjacent to the IC, then add a 10 nF and 1 nF in parallel to cover harmonics up to 6 GHz. For PLL circuits, supplement with a 100 pF at the VCO supply to suppress sub-100 MHz noise. Never route return vias through thermal relief pads–the added inductance (>2 nH) forms a low-pass filter that rolls off signal integrity above 500 MHz.

Validate layouts with TDR for impedance deviations and VNA for S-parameters; peak return loss should stay below −20 dB up to 10 GHz. Use solder mask-defined pads for BGAs to prevent solder bridging–keep mask openings 20 μm smaller than the pad diameter. For differential pairs, maintain skew 3 dB. Log every via’s parasitic inductance (typically 0.5–1.5 nH) and capacitance (0.1–0.3 pF) in the BOM for post-layout simulation.

Critical Elements for RF/Analog Board Design

Minimize trace lengths on transmission lines carrying signals above 500 MHz by routing them as straight segments with ≤15° bends; sharp corners introduce impedance discontinuities up to 12% at 2 GHz, measured via TDR. Use 50 Ω controlled impedance for single-ended lines and 100 Ω for differential pairs, adjusting trace width/space according to dielectric thickness (e.g., 8 mil width for 1 oz copper on 10 mil FR-4). Ground vias spaced ≤λ/10 (6 mm at 1 GHz) prevent slot antenna effects, calculated via full-wave simulation for via diameters ≥20 mils.

• Power integrity: Decoupling capacitors (0402 or smaller) placed ≤1 mm from IC pads, using values 10 pF–100 nF with self-resonant frequencies matching harmonics (e.g., 1 nF for 500 MHz fundamental).
• Isolation: 30 dB shielding between sensitive nodes (e.g., LNA input) and noisy components (e.g., DC-DC converters), achieved via stitched vias or continuous copper pours.
• Material selection: PTFE (ε_r = 3.0) or Rogers RO4350B for loss tangent
• Component placement: SMD passives ≤0201 size to reduce parasitics; inductors oriented perpendicular to current return paths to minimize mutual coupling.
• Stackup: Symmetrical layers with ground plane adjacent to signal layers; prepreg thickness ≤5 mils to suppress crosstalk (>40 dB isolation at 1 GHz).

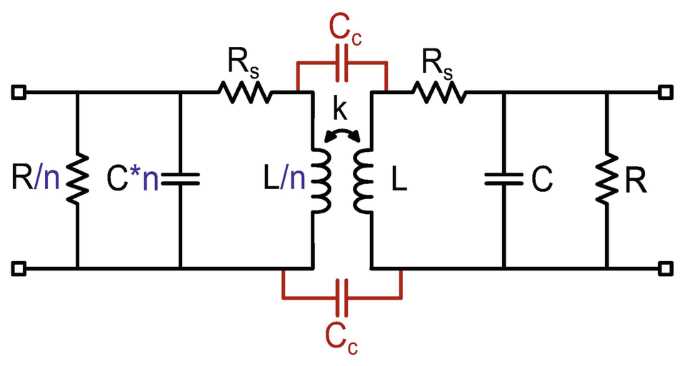

Impedance Matching Networks for Radio Signal Paths

Begin with the Smith chart to visualize load mismatches–plotting the complex reflection coefficient (Γ) directly identifies required adjustments. For a 50Ω system, if the antenna presents 30 + j40Ω, rotate Γ clockwise along the constant |Γ| circle until intersecting the 50Ω resistance circle, then apply series/parallel reactance to cancel the imaginary component.

L-networks suit narrowband applications where component count must stay minimal. Two configurations exist:

• Series L, shunt C: Use for loads with impedance lower than system reference (e.g., 25Ω → 50Ω). Calculate:
  • C = 1 / (ω × √(Z₀ × (Z_load – Z₀)))
  • L = (Z₀ – Z_load) / ω
• Series C, shunt L: Applies for loads exceeding system impedance (e.g., 100Ω → 50Ω). Formulas invert:
  • L = Z₀ / (ω × √(Z_load × (Z_load – Z₀)))
  • C = √(Z_load × (Z_load – Z₀)) / (ω × Z₀)

Verify Q-factor: Q = √((Z_load/Z₀) – 1) must remain ≤ 10 to avoid excessive loss.

For bandwidths exceeding 10%, substitute L-networks with π or T topologies. π-networks distribute power dissipation:

• Start with load impedance Z_L, target Z₀.
• Place two capacitors (C₁, C₂) around a central inductor (L).
• C₁ = 1 / (ω × √(Z_L × R_p – Z_L²)) where R_p = Q × Z₀
• C₂ = 1 / (ω × √(Z₀ × R_p – Z₀²))
• L = R_p / ω

Example: Z_L = 20Ω, Z₀ = 50Ω, Q = 5 → R_p = 250Ω, yielding C₁ = 12.7 pF, C₂ = 3.2 pF, L = 79.6 nH at 1 GHz.

Automate element selection using RF simulation software–set optimization goals:

1. Minimize VSWR ≤ 1.2 across the passband.
2. Constrain component values to commercially available ranges (e.g., 0.1 pF–100 pF, 0.5 nH–100 nH).
3. Target insertion loss ≤ 0.5 dB.

Iterate until deviation from ideal S₁₁ ≤ –20 dB. For discrete components, tolerance ≤ 2% prevents drift exceeding 0.3 dB.

Transmission line stubs replace lumped elements above ~500 MHz where parasitic reactance dominates. Open-circuited stubs introduce capacitance:

• C (pF) = (Z₀ × tan(β × l))⁻¹ × 10¹² / (2π × f)
• Short-circuited stubs provide inductance: L (nH) = Z₀ × tan(β × l) × 10⁹ / (2π × f)

Stub length (l) ≈ λ/8 for 45° phase shift; truncate at ¼λ to avoid resonance. For a 50Ω microstrip on 0.5 mm Rogers RO4350B (ε_r = 3.66), λ/4 at 2 GHz measures 19.2 mm–reduce stub length incrementally until VSWR meets spec.

Distributed couplers outperform discrete networks when layout area permits. Quarter-wave transformers scale impedance:

1. Z₁ = √(Z₀ × Z_load)
2. Example: Z_load = 100Ω → Z₁ = 70.7Ω.
3. Manufacture via microstrip: W (mm) = (7.48 × h) / (e^{(Z × √(ε_r + 1.41) / 87.1)} – 1.25 × t / h) where h = substrate thickness, t = conductor thickness.
4. For 17 µm copper on RO4003C (ε_r = 3.55, h = 0.81 mm), W = 1.42 mm.

Bandwidth improves with multiple cascaded sections: n = 2 yields BW ≈ 50%, n = 3 → ≈ 70%. Insert spacing ≥ 3h between sections to decouple fringing fields.

Final validation requires vector network analysis–measure S-parameters at five equidistant points across the band. Verify:

• |S₁₁| ≤ –15 dB in-band, ≤ –10 dB at band edges.
• |S₂₁| ripple ≤ 0.3 dB.
• Stability factor K > 1 (K = (1 – |S₁₁|² – |S₂₂|² + |Δ|²) / (2|S₁₂S₂₁|).

Export Touchstone file, overlay on simulation–deviation indicates parasitic effects needing correction via layout adjustments: shorten traces, increase clearance to ground plane, or substitute components with tighter tolerance.

Ground Plane Implementation for Signal Integrity

Use a continuous solid plane directly beneath critical signal traces to minimize return path inductance. Copper pours should be at least 20 µm thick for 50 Ω microstrip lines, with impedance calculations accounting for dielectric thickness (typically 0.1–0.5 mm for FR-4). For signals above 1 GHz, reduce plane splits to under 1 mm width–gaps wider than 10% of the trace-to-plane spacing degrade performance.

Connect ground vias at intervals no greater than λ/10 (e.g., 15 mm for 2 GHz) along transmission paths. Place vias within 0.5 mm of trace transitions to prevent return-loop discontinuities. For differential pairs, maintain symmetry: ground vias should mirror the pair’s spacing ±10% to avoid skew. The table below lists via dimensions for common stack-ups:

Layer Count	Via Diameter (µm)	Pad Size (µm)	Annular Ring (µm)	Max Via-to-Trace (mm)
4	300	500	100	0.3
6	250	450	100	0.4
8+	200	400	80	0.5

Isolate analog and digital ground planes with a single-point connection at the power source. For mixed-signal designs, split planes must overlap only at the star-point, with no cuts beneath RF sections. Maintain clearance of 3× the trace width between plane edges and nearby traces to prevent fringe-field coupling. Use 1 oz copper for outer layers and ½ oz for inner layers in multi-layer boards to balance cost and performance.

Thermal relief pads on ground vias should use 4 thermal spokes, each ≤0.2 mm wide, to reduce inductance while permitting solder flow. Avoid thermal reliefs on vias connecting to reference planes for fast edges (>1 V/ns). For power integrity, stitch ground vias along the perimeter of the plane at 5 mm intervals to suppress edge radiation. Measure plane impedance with a vector network analyzer: target

For flex-rigid assemblies, use solid copper foil on flex sections–avoid cross-hatched planes, as they increase inductance by 30–50 µH/m. When routing signals across plane cuts, add ground stitching vias on both sides of the cut, spaced ≤λ/20 (3 mm at 5 GHz). Verify ground plane continuity with a multimeter: resistance between any two points should not exceed 5 mΩ.

Ferrite beads between ground domains are only valid below 100 MHz. Above this threshold, they introduce parasitic capacitance (>2 pF) and resonance. For clock lines, place ground vias within 0.2 mm of the oscillator’s ground pin to shunt noise directly to the plane. In multi-board systems, connect chassis ground to the primary plane at one location only, using an M4 screw torqued to 1.5 Nm to ensure
