Guide to Designing Reliable Electronics Circuit Diagrams Step by Step
Begin with standardized symbols–resistors (zigzag lines), capacitors (parallel plates), transistors (three lines converging), and ICs (rectangles with pin labels). Use IEEE 315 or IEC 60617 as your baseline; deviations create confusion. Label each component with its value (e.g., 10kΩ, 0.1µF) and reference designator (R1, C2). Align symbols horizontally or vertically for readability–avoid diagonal placements unless tracking signal paths.
Power rails require clear annotation. Mark positive (+5V, VCC) and negative (GND, -12V) lines distinctly. Connect ground symbols (inverted triangle) only at a single node to prevent floating references. For mixed-signal designs, isolate analog and digital grounds via a star topology–centralize the common ground at one physical point, then branch out.
Signal flow must follow logical progression. Arrange inputs on the left, outputs on the right. Group related components: place decoupling capacitors (100nF) within 5mm of their IC power pins. Use buses for parallel data lines–label them individually (e.g., D0-D7). Keep high-frequency traces short (under 5cm) to minimize noise; route critical paths first, then fill in low-priority connections.
Annotate test points and jumpers. Mark calibration pads (e.g., “TP1: VREF”) and leave space for probe access. For prototypes, add jumper headers (2.54mm pitch) to isolate sections during debugging. Include a bill of materials (BoM) in the bottom-right corner: part numbers, quantities, and supplier codes (e.g., “R1: 10kΩ 1% 0805, Digikey 123-4567”).
Verify continuity with a multimeter before prototyping. Check for accidental shorts–especially under ICs–and verify all connections map to the netlist. Export in PDF or SVG; DXF is unreliable for revisions. Store master files in a version-controlled repository (e.g., Git) with commit messages like “Added pull-up resistors to I2C lines.”

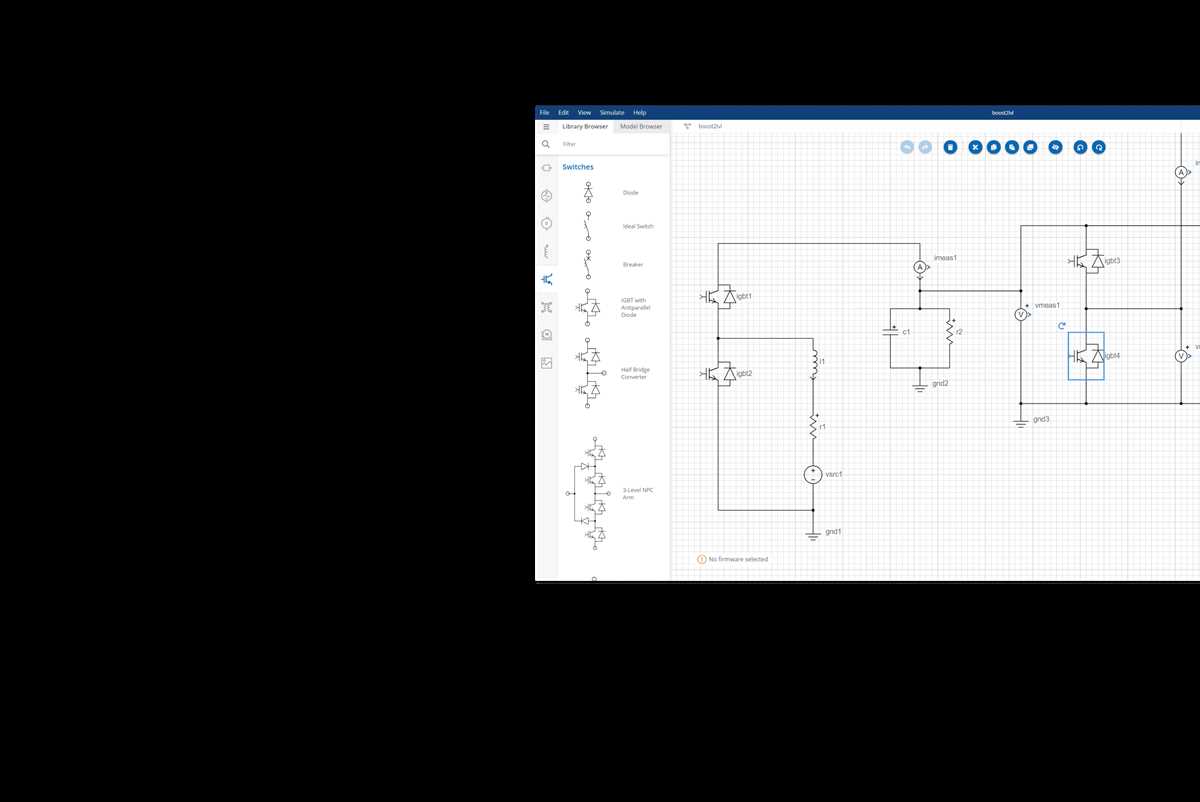

Mastering Blueprint Designs for Modern Hardware Projects
Begin every project by selecting standardized symbols from IEC 60617 or ANSI Y32.2–this eliminates ambiguity in multi-team collaboration. Use solid lines for power rails, dashed for signal paths carrying intermittent data, and dot-dash for grounds. Break complex assemblies into hierarchical blocks, linking them via off-page connectors labeled with matching alphanumeric codes.
Label every component with reference designators–R for resistors, C for capacitors, U for ICs–followed by sequential numbers starting from the top-left corner. Include tolerance values in parentheses (e.g., R1 1kΩ (5%)) and attach footnotes for non-standard parts. Color-code high-speed traces red, analog blue, and digital green to visually separate functional zones.
Add a revision history block in the bottom-right corner listing date, author initials, and changes. Use version numbers incremented by 0.1 for minor tweaks, full integers for major overhauls. Store originals in PDF/A format to preserve vector precision and embed metadata with project name, target voltage ranges, and environmental specs.
Implement net names instead of relying solely on graphical connections. Assign logical names like “CLK_2MHz” or “VCO_OUT” and ensure they appear next to every pin they connect to. This speeds up debugging and allows automated DRC checks to flag open circuits during pre-fabrication validation.
Signal Integrity Practices in Blueprint Drafting
Route differential pairs with matched lengths using serpentine tuning; maintain a 10:1 trace-to-gap ratio to keep impedance stable. Avoid right-angle bends–replace them with 45° miters to reduce EMI. For high-frequency designs, use rounded corners where possible to minimize reflections.
Separate analog and digital grounds with a single star point near the power input; isolate sensitive components like PLLs with guard rings tied to the clean ground plane. Connect decoupling capacitors directly to power pins with the shortest possible traces, placing 0.1µF ceramics within 2mm of active devices.
Annotate test points with circular markers labeled TP1, TP2, etc.; include expected voltage ranges during typical operation. Place fiducials–small crosshairs–on all four corners and near fine-pitch components to aid automated optical inspection. Use silk-screen layers to denote component polarity and orientation arrows for connectors.
Export Gerber files with embedded drill data and aperture lists; validate them with free viewers like Gerbv to check for missing pads or orphaned traces. Generate a separate pick-and-place file in CSV format listing centroid coordinates, rotation angles, and package types–this streamlines assembly and reduces manual errors.

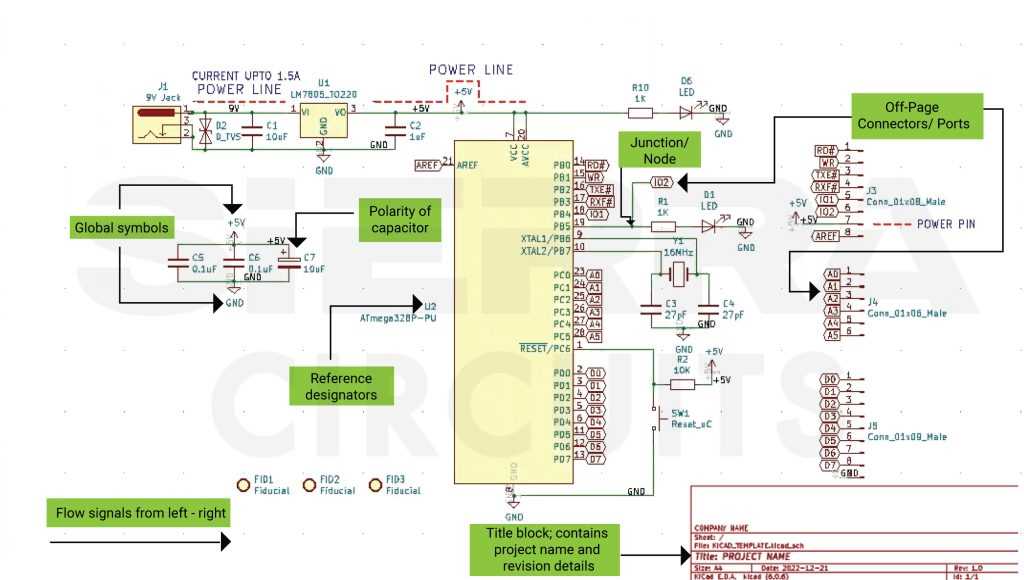

Critical Elements for a Functional Design Blueprint
Begin with power sources–clearly label voltage rails, ground symbols, and current paths. Use standardized symbols (IEC/DIN or ANSI) for batteries, regulators, and AC/DC converters, noting exact values (e.g., VCC = 5V ±0.2V). Include decoupling capacitors near ICs, typically 0.1µF for high-frequency noise suppression and 10µF for bulk stabilization. Specify component tolerances where critical, such as 1% resistors in precision amplifiers.
Add signal flow annotations: mark input/output nodes, clock lines, and control pins with descriptive labels (e.g., CLK_IN, PWM_OUT). For microcontrollers, include pin numbers and function names (e.g., PA3/USART_TX). Use net labels instead of lines for long or intersecting traces to simplify readability. Highlight test points and debugging hooks, like probe pads or serial headers, to accelerate prototyping. Group related sections (e.g., analog front-end, digital logic) with dashed outlines for visual hierarchy.

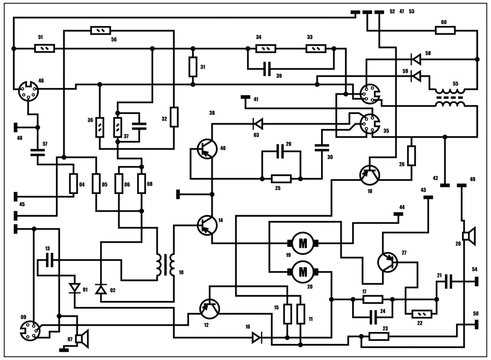

Mastering Symbol Recognition in Wiring Blueprints
Begin by identifying power sources: a straight line with a perpendicular short line at the end denotes a battery. The longer line represents the positive terminal, while variations in symbology (e.g., alternating short/long dashes) indicate multi-cell configurations. Polarized capacitors use a curved line for the negative side; non-polarized types show identical straight plates. Ground symbols split into three categories: chassis (three descending lines with decreasing length), signal (three equal lines), and earth (vertical line with branching horizontals). Memorize these first–they appear in every layout.
Passive Components and Their Patterns
| Symbol | Component | Key Traits |
|---|---|---|
| ⎯⎯⎯⎯⎯ | Resistor (fixed) | Value in ohms (Ω), often omitted if implied |
| ⎯⋮⎯⎸ | Potentiometer | Adjustable via central tap; arrow shows wiper |
| ⎯⎯⎮ | Inductor | Coiled line; core marked by parallel lines if magnetic |
| ⎯||⎯ | Capacitor (polarized) | Curved plate = negative; “+” often omitted |
Tolerance markings appear near numbers: 5% resistors use a gold band, 10% silver, while 1% lack bands but may show “1%” text. Dual in-line packages (DIPs) display circles or dots for pin 1; single-gate logic symbols (e.g., AND: flat front with curved back) proliferate in digital designs. Transformers combine inductors with coupling dots–a dot at the start/end of coils signals phase alignment. Look for dashed lines: they denote shields or mechanical linkages.
Active parts require decoding pin functions. Transistors use a circle (FET/BJT) or no circle (SMD); arrows distinguish emitter/source from collector/drain. Arrow direction matches current flow (NPN/P-channel: inward; PNP/N-channel: outward). ICs simplify gates into rectangles with labels like “74HC00” (NAND); triangles with numbers mark operational amplifiers (e.g., 741). Diodes show arrows for direction–LEDs add two small perpendicular lines at the tip. Switches split into momentary (curved line) and latching (angled bracket) types. Always cross-reference symbols with datasheets for exact pinouts.
How to Draft a Basic Wiring Blueprint from Scratch

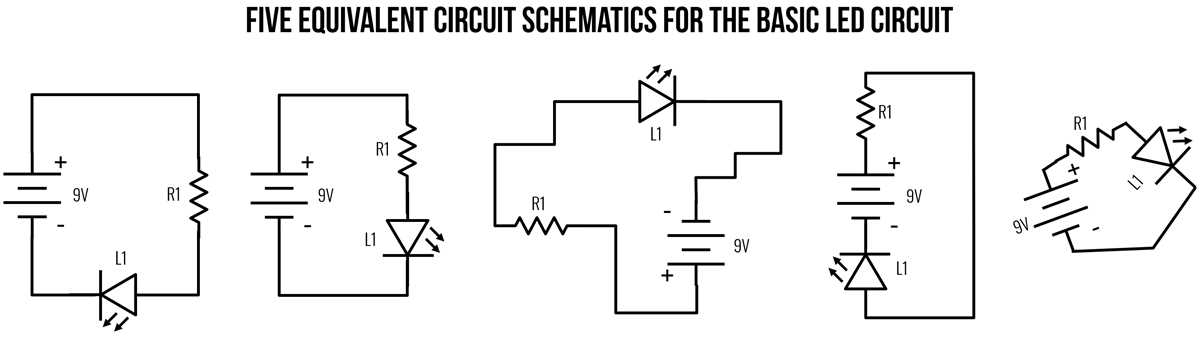

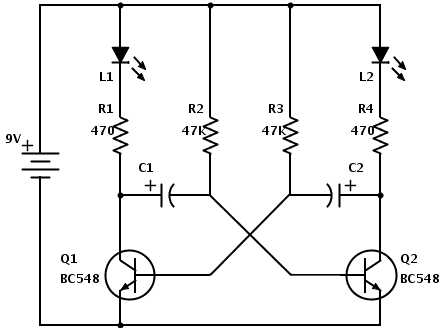

Begin by selecting a simple project–like a battery-powered LED–to minimize confusion. List the components: a 9V power source, a single LED, a 220-ohm resistor, and connecting wires. Place them on a clean sheet or digital editor in logical order: power supply on the left, output device (LED) on the right, and resistors or switches in between.
Use standardized symbols for each part. Draw a long, thin rectangle for the battery, a straight line with a break for the switch, a zigzag for resistances, and a triangle with a line for the diode with LED. Keep symbols uniform–misplaced shapes lead to misreading. Label each symbol with values: “9V” for the battery, “220Ω” for the resistor, and “+” or “-” for polarity.
Connect elements with straight lines, avoiding diagonal intersections. If lines must cross, use a small semicircle “jump” over the intersection to indicate no electrical connection. Maintain consistent line thickness–thicker lines for power rails, thin lines for signal paths. Leave space between components for clarity; cramped layouts hide errors.
Verify the flow: current should start at the positive terminal, pass through the switch, resistor, then LED, and return to the negative side. Introduce one modification at a time–add a second LED, then a potentiometer. Each change requires recalculating resistor values; a 1kΩ limit works for two LEDs in series.
Double-check connections against a reference sheet. Incorrect polarity burns LEDs instantly; reversed battery connections damage components. Measure traces with a multimeter before powering: continuity between points confirms correct links, while zero resistance suggests accidental shorts.
Annotate every segment. Write “Current regulating resistor” beside the 220Ω, “Output indicator” near the LED, and “Power input” above the battery. Annotations help others–especially if revisiting the project months later. Use clear, concise language; avoid acronyms unless defined on the layout.
Refine clarity by aligning similar components. Group resistors vertically, capacitors horizontally. Distribute text evenly–labels should touch their symbols without overlapping other lines. Use contrasting colors for digital platforms: red for power, blue for ground, green for signals. For physical drafts, colored pencils highlight layers: red for live wires, black for neutral.
Scan or save the draft in multiple formats. PNG keeps clarity, PDF preserves vector details, and SVG allows later edits. Share the file with peers for review–early feedback catches missed shorts, reversed diodes, or mislabeled values. Store the original alongside modifications; version control prevents reintroducing old mistakes.
