How Regenerative Braking Works with Step-by-Step Schematic Explanation

To harness kinetic energy during deceleration, electric and hybrid systems convert motion into usable electrical power. This process reduces mechanical wear, extends range, and cuts energy waste. Below is a breakdown of the core mechanism with key components and their interaction.

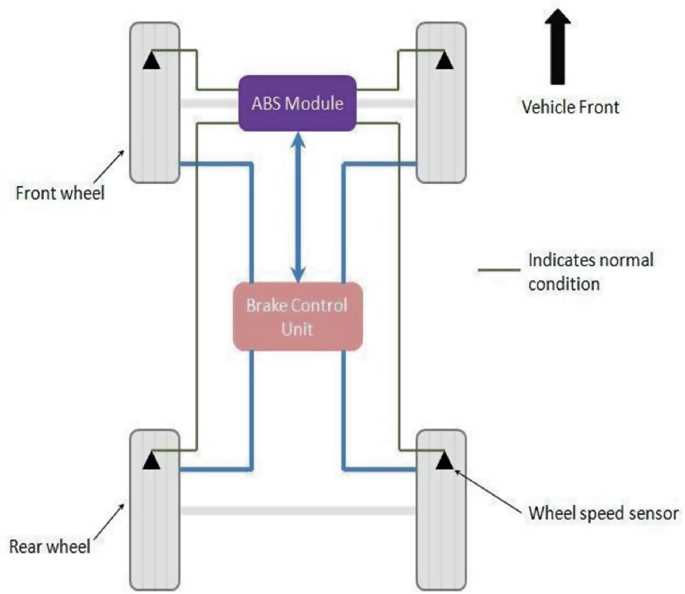

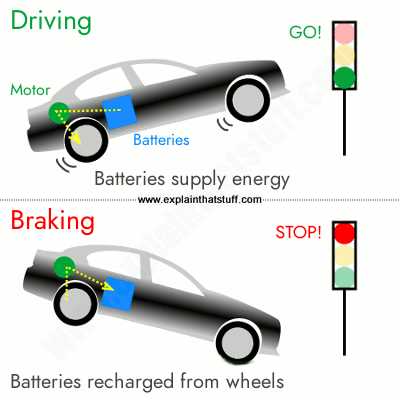

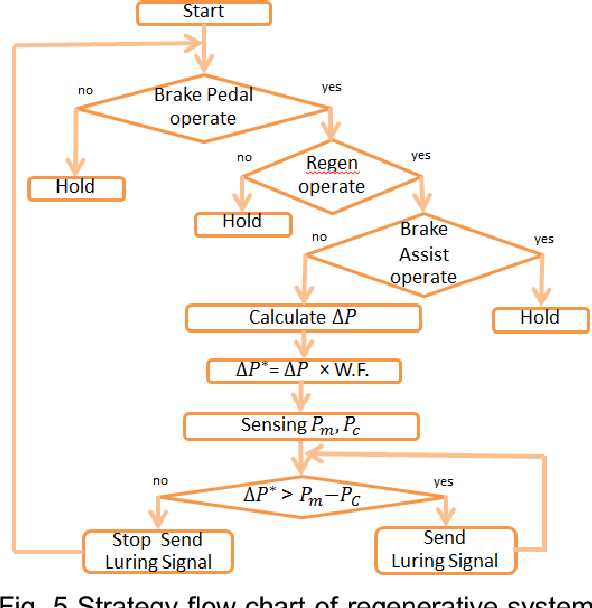

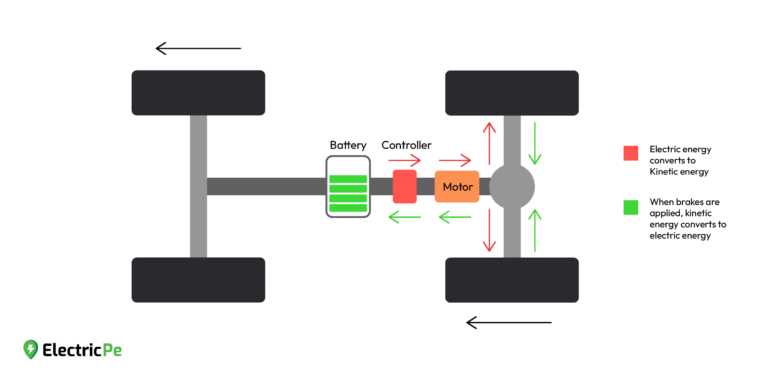

Key elements: traction motor (acting as a generator), power electronics (inverter/rectifier), battery storage, and control unit. When the driver releases the accelerator or applies light pedal pressure, the system switches modes–redirecting rotational force from wheels to the motor shaft instead of dissipating it as heat.

The inverter modifies voltage polarity to enable AC generation from the motor, while the rectifier converts it into DC for battery charging. Voltage levels adjust dynamically based on speed, load, and battery state. Recovery efficiency reaches 60-70% in optimal conditions but drops under 15 km/h due to diminished kinetic energy.

A typical setup includes:

• DC-link capacitor: stabilizes voltage fluctuations during transition
• Gate drivers: control semiconductor switches (IGBTs/MOSFETs) for precise current flow
• Braking resistor: absorbs excess energy if the battery is fully charged
• Sensor array: measures rotor position, speed, and torque for real-time adjustments

For implementation, ensure the inverter’s switching frequency aligns with motor inductance (5–20 kHz for most applications). Overvoltage protection must cap charging at 80-90% of battery capacity to prevent thermal runaway. Pulsed energy delivery–modulated via PWM (Pulse Width Modulation)–maximizes recovery while minimizing harmonic distortion.

Avoid sudden transitions between motoring and generative modes; gradual ramping (50-100 ms) reduces stress on mechanical linkages. Test under varied gradients–downhill segments optimize recovery, while flat terrain requires fine-tuned control algorithms to balance regeneration with friction braking.

Energy Recovery in Electric Drivetrains: Operational Mechanism

Connect the traction motor as a generator during deceleration by routing kinetic energy back into the battery pack. Configure the power electronics to invert DC bus voltage using a bidirectional DC-DC converter (typically a synchronous buck-boost topology) with switching frequencies between 10–50 kHz to minimize losses. Set the converter’s duty cycle dynamically based on battery state-of-charge (SoC) and vehicle speed–prioritize energy capture above 20% SoC to avoid deep discharging, which degrades cell lifespan. For lithium-ion packs, limit regenerative current to 1–2C to prevent overheating; use a thermal management system (liquid cooling for high-power applications) to maintain battery temperatures below 40°C during charging cycles.

Component	Key Specifications	Optimal Operating Range
Bidirectional DC-DC Converter	Synchronous MOSFETs (SiC/GaN), 50–300 kW	Switching frequency: 20–40 kHz
Traction Motor	Permanent magnet (PM) or induction, 80–95% efficiency	RPM: 0–15,000; Torque: 0–400 Nm
Battery Pack	Li-ion NMC or LFP, 30–100 kWh	SoC: 20–80%; Current: 1–2C

Design the control strategy using a cascaded PI controller: the outer loop regulates battery current based on SoC feedback, while the inner loop adjusts motor torque via PWM signals from the inverter. Implement a sliding mode observer to estimate rotor position and speed for precise torque control–this prevents abrupt transitions that cause jerky deceleration. For hybrid systems, integrate the engine control unit (ECU) to blend friction and electrical braking seamlessly; use a lookup table mapping vehicle speed vs. brake pedal position to determine the proportion of energy recapture. Deploy a pre-charge circuit with a resistor-capacitor (RC) network to limit inrush current during system activation–typically 10–100 Ω resistors for 50–200 ms to protect the inverter’s IGBTs.

Core Mechanism Behind Energy Recovery During Deceleration

Implement motor inversion during vehicle slowdown to convert kinetic momentum into storable power. When the driver releases the accelerator or applies pedal pressure for slowing, the traction motor switches from propulsion to generator mode, feeding recovered voltage back to the battery pack. Tesla’s Model 3 achieves up to 30% range extension using this method, while hybrids like the Toyota Prius recover ~20–25 Wh per braking event in urban cycles.

Key components dictate efficiency:

• Bidirectional power electronics (IGBT inverters) that reverse current flow.
• Lithium-ion or LTO cells with fast-charging capabilities (C-rates ≥ 3C).
• Control algorithms (e.g., fuzzy logic PID) to balance braking force and energy capture.

Without precise torque blending between friction and electric deceleration, drivability suffers–BMW i3 uses a 3-phase system with

Voltage management is critical: recovered energy peaks at ~400V in most EVs, matching battery voltage levels to prevent backflow or damage. Nissan Leaf’s early systems capped recovery at 25 kW to avoid overheating, while Porsche Taycan employs an 800V architecture to handle 265 kW peaks. Overvoltage protection circuits monitor cell balance, disconnecting recovery if any cell exceeds 4.2V.

Urban driving benefits most–EPA testing shows recovery rates of 12–18% of total energy consumption in stop-and-go traffic, dropping to 5% on highways due to lower braking frequency. Configure maximum recovery torque to ~80% of motor capacity to avoid premature wear; excessive load degrades bearings and rotor alignment faster. Tesla’s v11 software update introduced predictive coasting, using navigation data to modulate recovery ahead of hills, boosting efficiency by 4%.

Test energy recovery under controlled conditions: use a dynamometer to log voltage and current waveforms, ensuring no current spikes above 1.2× rated motor amperage. Check battery temperature pre/post session–optimal recovery occurs between 25–35°C; below 10°C, internal resistance rises, reducing capture rates by 40%. For retrofit applications, use a DC-DC converter rated for at least 120% of peak recovery power to isolate auxiliary systems from voltage fluctuations.

Key Components and Their Roles in Energy Recovery Systems

Integrate a bidirectional DC-DC converter as the core interface between the traction motor and energy storage. This component must handle power flow in both directions while maintaining efficiency above 92% at nominal load; deviations beyond ±3% require immediate diagnostic checks on inductor saturation or diode forward voltage drops. Specify a switching frequency between 20–50 kHz to balance thermal losses and response time, though frequencies above 75 kHz are viable only with SiC MOSFETs due to reduced switching losses. The converter’s controller should implement adaptive dead-time compensation to prevent shoot-through in half-bridge configurations, with a minimum dead-time of 50 ns for 600V systems.

Energy Storage Module Requirements

Select lithium-ion batteries with a charge/discharge efficiency of at least 95% and an internal resistance below 0.5 mΩ per cell at 25°C. For supercapacitors, target an equivalent series resistance (ESR) under 0.1 mΩ to minimize heat generation during rapid energy absorption–this is critical for urban driving cycles with frequent deceleration events. The storage module’s thermal management must maintain temperatures below 40°C during continuous operation, as every 10°C increase above this threshold reduces cycle life by 30%. Implement active cooling with phase-change materials for systems exceeding 10 kW of power dissipation, avoiding reliance on air-cooling alone due to its limited heat transfer coefficient (10–100 W/m²K).

Traction motors in energy recovery applications must operate in quadrants II and IV of the torque-speed plane, requiring a permanent magnet synchronous motor (PMSM) or induction motor with a rated efficiency above 90%. PMSMs offer superior power density (up to 5 kW/kg) but demand precise rotor position sensing via resolvers or high-resolution encoders (minimum 12-bit resolution) to avoid torque ripple exceeding 2%. For inverter-driven motors, use space vector pulse-width modulation (SVPWM) instead of sinusoidal PWM to reduce harmonic distortion by 15–20%, lowering motor copper losses. Ensure the inverter’s DC link capacitor has a ripple current rating at least 1.5× the peak motor current to prevent premature failure from dielectric stress.

Implement a dedicated control algorithm within the vehicle’s power management ECU to prioritize energy recovery over friction-based deceleration when vehicle speed exceeds 15 km/h and the battery SOC is below 85%. This algorithm must incorporate road gradient data from an inclinometer (±0.5° accuracy) to adjust the recovery torque dynamically–uphill gradients below 5% allow maximum recovery (up to 0.2g deceleration), while downhill conditions above 7% require supplementary hydraulic braking to avoid exceeding the motor’s thermal limits. Include a state-of-charge (SOC) balancing mechanism for multi-cell packs, using active cell balancing (5A–10A balancing current) instead of passive methods, which waste 10–15% of recovered energy as heat. For fail-safe operation, integrate a bypass relay with a closing time under 20 ms to disconnect the recovery system in case of inverter overvoltage (>5% above nominal DC link voltage).

Step-by-Step Energy Conversion in Dynamic Deceleration

Activate the motor controller within 20–50 milliseconds of pedal pressure to switch the traction motor into generator mode, diverting kinetic energy from the drivetrain. Configure the inverter to rectify the AC output into DC, targeting a voltage slightly above the battery’s state of charge–typically 5–15% higher–to ensure efficient energy transfer while preventing overcharging. Engage the DC-DC converter to stabilize voltage spikes, maintaining a range of 350–450V for lithium-ion packs, and route current through the pre-charge circuit to avoid inrush surges exceeding 20A. Monitor battery temperature via embedded sensors, halting energy recovery if thresholds surpass 45°C to prevent thermal degradation.

Direct recovered power into the battery pack through a bidirectional topology, prioritizing high-capacity cells with low internal resistance (below 0.5mΩ). Employ active balancing to distribute charge evenly across modules, targeting a state-of-charge increase of 1–3% per second during aggressive stops. Disable regeneration momentarily if the battery reaches 95% capacity or if cell imbalance exceeds 2%, triggering mechanical friction systems as a fallback. For hybrid systems, synchronize with the internal combustion engine’s control unit to suppress fuel injection during deceleration phases, optimizing net energy recovery to 60–80% of available kinetic potential depending on road gradient and vehicle mass.
