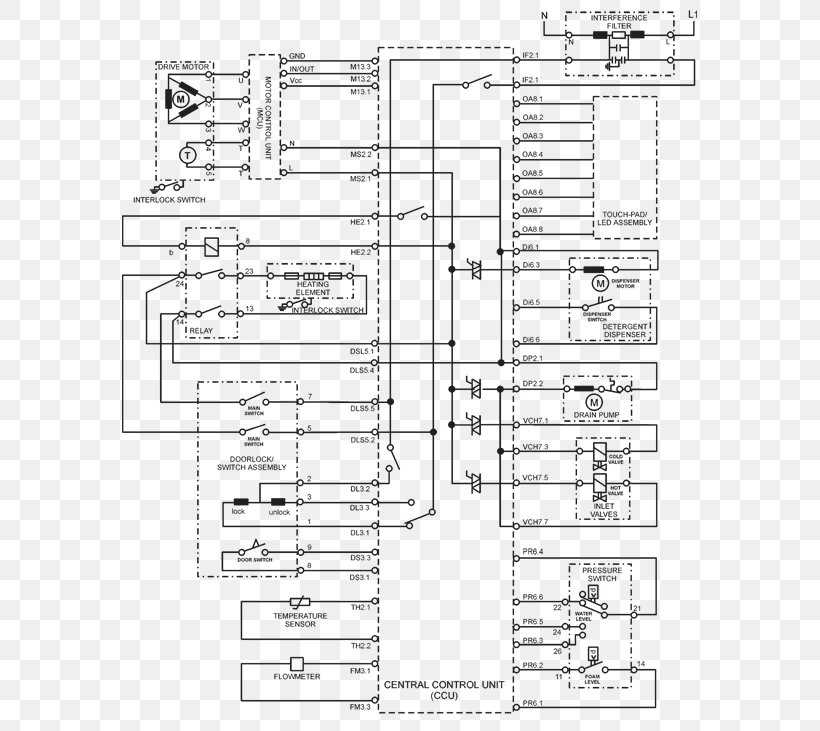

Complete Washing Machine Electrical Wiring Guide with Circuit Explanation

Tracing connections in a newer model requires identifying three primary zones: power input, motor control, and heating circuits. Begin by locating the main terminal block–typically marked L, N, and ground–where the cable enters the unit. Follow the brown or black lead to the timer or control module, ensuring continuity with a multimeter (resistance should read under 2 ohms). Any deviation suggests a fault in the mains filter or internal wiring loom.

For motor circuits, examine the gray or blue conductors linking the drive capacitor to the stator windings. Capacitor values in standard units range between 8–20 µF; values outside this bracket often indicate degradation. Use an ESR meter to test capacitor health–readings above 10% of nominal capacitance warrant replacement. Avoid bypassing thermal fuses mounted on motor housings, as these protect against overheating during extended spin cycles.

Heating elements in front-loaders draw 1800–2400W at 220–240V. Verify element resistance (20–30 ohms) before disassembly. If readings exceed 50 ohms, corrosion or scaling is likely; clean terminals with electrical contact cleaner. Check for dual thermostats–one regulates water temperature (40–90°C), while the secondary safety cutoff (120–150°C) prevents scalding or fire hazards. Replace if continuity fails above 70°C.

Control boards use relays to switch high-current components. Activate test mode (consult service manual for key combinations) to isolate relay clicks–audible clicking without motor engagement points to burnt contacts. De-solder and replace affected relays if diode tests show reverse leakage or coil resistance deviates ±10% from factory specs. For digital interfaces, probe the 5V or 12V lines feeding the microcontroller; voltage drops below 4.5V indicate faulty voltage regulators.

Always disconnect power at the breaker before probing live circuits–even 110V can cause lethal shock through wet hands. Label each connector with masking tape to prevent misplacement during reassembly. For integrated units with smart diagnostics, cross-reference error codes with the schematic’s error table; software resets (holding power + start for 5 seconds) often resolve transient faults without hardware intervention.

Understanding Electrical Connections in Laundry Appliances

Start by locating the main power terminal block, typically positioned near the rear panel beneath a protective cover. Most modern units feature a standardized 3-terminal layout: line (L), neutral (N), and ground (⏚). Verify the voltage rating–commonly 220-240V for European models or 110-120V for North American variants–before touching any connectors. A multimeter set to AC voltage mode should read consistent values between L and N when the appliance is inactive.

Trace the internal circuitry to identify auxiliary components like the motor, heater, and control module. The motor often connects via crimped spade terminals, identifiable by their compact, forked design. Inverter-driven variants may include a dedicated capacitor bank, marked with μF ratings and temperature tolerance labels. Heater elements, if present, attach via thick gauge wires, usually shielded in heat-resistant sleeves. Always cross-reference these findings with the manufacturer’s technical manual to avoid misidentifying proprietary connectors.

Safety Protocols for Repair and Inspection

Disconnect power at the fuse box and confirm zero residual voltage with a non-contact tester before handling any cables. Capacitors in older models can retain lethal charges; discharge them by bridging terminals with an insulated screwdriver for 30 seconds. Use crimp connectors–not solder–for repairs to maintain flexibility under vibration. Replace any wires exhibiting brittle insulation, discoloration, or signs of abrasion against metal edges, as these indicate imminent failure.

Label each connection using masking tape and a permanent marker before detachment. Note the sequence of multi-pin plugs, especially for electronic control boards, where incorrect reconnection can trigger error codes or component damage. For dual-voltage models, ensure the selector switch is correctly positioned–incorrect settings can overload low-voltage circuits. If bypassing a defective component, use wires with identical or higher AWG ratings to prevent overheating.

Troubleshooting Common Circuit Issues

Flickering displays or intermittent power loss often stem from loose L/N terminals or corroded ground connections. Clean oxidation from terminals using fine-grit sandpaper or a dedicated electrical contact cleaner. Inspect the door interlock switch–its malfunction can halt cycles mid-operation. Use a continuity tester to verify its functionality; replace if resistance exceeds 1Ω. For tripped thermal fuses, identify root causes like restricted airflow or faulty thermostats before resetting or replacing them.

Locating Critical Parts in Your Appliance’s Electrical Schematic

Begin by tracing the power entry module–typically a bulky terminal block near the rear panel–marked with color-coded lines indicating live (brown/red), neutral (blue), and ground (green/yellow). Verify voltage ratings on the label; most household models operate at 220-240V or 110-120V depending on region. Cross-check these against local electrical standards to prevent overload.

Isolate the main control module next–a rectangular board housed behind the front fascia, often secured by screws or clips. Identify microprocessors, relays, and voltage regulators by their ceramic or epoxy coatings. Look for fuses adjacent to this assembly (axial or blade type) and note their amperage; a blown fuse usually signals a short in the motor or heating element.

The motor assembly deserves close inspection. DC brushless types dominate modern units, distinguishable by three thick wires (U/V/W) feeding the stator windings. AC induction variants have two connectors and may include a capacitor (cylindrical or oval) for phase shifting. Check for thermal protectors–disc-shaped components nestled near the windings–that trip under overheating conditions.

Decoding Auxiliary Systems

Locate the water level sensor, a pressure switch connected via a tube to the tub. Its wiring consists of three terminals: common, normally open, and normally closed. Test continuity with a multimeter after disconnecting power; a faulty switch causes overfilling. Nearby, the inlet valve solenoids (2-3 terminals each) control hot/cold water flow–verify resistance values (typically 3.5-5 kΩ) to confirm coil integrity.

Follow the heating element’s path–usually a sheathed rod at the tub’s base–wired through a thermostat (bimetallic strip or NTC sensor). Expect resistance between 15-60 Ω depending on power rating (1800-2500W). Inspect for scale buildup or corrosion; a compromised element draws excessive current. Adjacent is the drain pump (impeller type), wired directly to the main module–check for obstructions if the unit fails to empty.

Examine door interlock mechanisms: a microswitch paired with a magnetic latch. Two sets of contacts (power and safety) must close simultaneously for cycles to initiate. Bypass temporary failures by jumpering terminals, but replace compromised units immediately–faulty locks pose electrocution risks. Nearby, the user interface board (membrane or capacitive touch) routes signals via ribbon cables–avoid bending connectors during servicing.

Troubleshooting Shortcuts

Label all connectors before disassembly using masking tape–avoid relying on memory alone. Photograph each stage of disconnection. Trace circuits backward from non-functional components: for example, if the spin cycle fails, start at the motor relay, then proceed to the motor itself, and finally the control module. Use a schematic-specific to your model (downloaded from manufacturer manuals) rather than generic ones, as wire colors and terminal arrangements vary by brand.

Equip yourself with a clamp meter to measure current draw during operation. A normal load consumes 5-10A during agitation but spikes to 15-20A at spin start. Deviations suggest bearing failure or drum imbalance. Always discharge capacitors manually (via insulated screwdriver across terminals) before handling–residual charge persists even after power-off, risking shocks up to 500V DC.

Step-by-Step Guide to Interpreting Electrical Schematics for Household Appliances

Locate the power inlet symbol–usually a rectangle with two parallel lines (L and N) marked near the top–on the schematic. Trace the live (L) line first: it passes through the main switch, fuse (typically 10A–16A for 220V–240V systems), and thermal protector (rated 115°C–135°C) before entering the motor’s start winding. Verify voltage ratings on adjacent labels; mismatches above ±5% indicate faulty or incompatible components. For direct-drive models, the inverter IC (often Toshiba TMPM375FSDMG or similar) connects via a 6-pin JST connector–check continuity to pins 1 (VCC), 3 (GND), and 5 (PWM) using a multimeter in diode mode (expected forward voltage: 0.5V–0.7V).

Critical Paths and Diagnostic Values

Component	Symbol	Expected Reading	Fault Indicator
Door lock solenoid	Coil with diode	12Ω–20Ω (coil), 0.3V–0.5V (diode)	>30Ω or open circuit
Hall sensor	3-pin IC	4.5V–5.5V (VCC), 1.8V–2.2V (signal)	Signal flux >±0.5V or VCC deviation
Water level switch	SPDT relay	Click at 0.2–0.8 bar (NO/NC toggle)	No continuity at >1 bar
Heating element	Zigzag line	20Ω–50Ω (1800W–2500W models)	0.5mA

Identify color-coded jumpers: red (L/220V), black (N), yellow-green (PE), and blue/white for neutral variants in 110V systems. Cross-reference the legend–manufacturers like LG (PCB# 6871EC1075A) and Samsung (DE92-03756A) mark control boards with QR codes leading to firmware specifics. For triac-controlled valves, measure resistance between T1 and MT1 (
