Complete Fender Precision Bass Wiring Guide with Schematics and Connections
For optimal performance, use a 250kΩ potentiometer for volume control paired with a 0.047µF capacitor in a standard two-pickup configuration. This setup ensures a balanced frequency response without attenuation in the midrange. If modifying a 1970s-era model, replace the original cloth-wrapped wire with modern tinned copper to reduce noise.
Grounding the control cavity shield directly to the bridge plate eliminates hum in high-gain settings. Avoid daisy-chaining grounds between pots–each should connect independently to the main ground point. For active electronics, a 9V alkaline battery with low internal resistance prevents signal degradation during long sessions.
Switchcraft toggle switches outperform generic alternatives in durability, though require precise soldering to prevent intermittent failures. When installing a push-pull potentiometer for coil-splitting, verify the switch lugs align with the intended pole configuration to avoid misrouting. Use heat-shrink tubing on solder joints near the jack plate to prevent accidental shorts.
For hum-canceling applications, reverse-wound pickups require opposite polarity connections; test with a multimeter to confirm phase alignment before final assembly. High-impedance outputs benefit from a 1MΩ resistor in parallel with the volume pot to maintain brightness when rolled down. Conduct signal tests with the instrument fully assembled–open cavity testing introduces variables that skew tonal results.
Precision Instrument Circuit Layout Guide
Start by securing a high-quality potentiometer rated at 250kΩ for volume controls and 500kΩ for tone adjustments–values directly influence signal clarity and frequency response. Classic configurations pair a 250kΩ audio taper pot for volume with a 500kΩ linear taper for tone, preventing muddiness in the low-end while preserving high-frequency detail. For active electronics, ensure the onboard preamp receives clean 9V power; unstable voltage causes inconsistent output levels.
Grounding remains critical: connect the bridge pickup’s grounding wire to the shielding cavity first, then route a dedicated wire from the control plate to the bridge ground screw. This eliminates hum without relying on shielding paint alone. For split-coil pickups, observe polarity–incorrect phase alignment weakens midrange punch. The table below outlines standard wire colors and their functions in a dual-pickup instrument:
| Wire Color | Function | Connection Point |
|---|---|---|
| Black | Pickup ground/hot lead (series) | Volume pot lug 1 or switch |
| White | Neck pickup hot lead | Switch input or blend pot |
| Red | Bridge pickup hot lead | Switch input or bridge volume pot |
| Green | Ground | Control plate or shielding |
| Bare | Braided shield | Star ground or bridge screw |
Replace stock capacitors with polypropylene film types–values between 0.047µF and 0.1µF shape the roll-off curve without introducing noise. Solder joints must be concise; excess wire length acts as an antenna, capturing interference. For push-pull pots, confirm the switch mechanism engages cleanly before finalizing wiring–misaligned actuators cause intermittent signal drops.
Avoid daisy-chaining grounds between pickups and electronics housing. Instead, use a star grounding technique: route all grounds to a single point on the control plate, then connect to the bridge. This reduces ground loops that manifest as buzzing at higher gain settings. Test continuity with a multimeter before reassembly–open circuits in grounded components are a common failure point.
For instruments with vintage output jacks, upgrade to a switching mono jack that disconnects the circuit when unplugged. This prevents battery drain in active setups and protects the signal path from oxidization. Keep traces short between the output jack and volume pot–long cable runs degrade high frequencies. When installing a new circuit, pre-tin all connection points for reliability, but avoid excessive heat that can damage potentiometer internals.
Core Circuitry Elements for Precision-Style Instruments
Prioritize shielding the control cavity with adhesive copper foil to reduce hum–apply it to all interior surfaces, including the back of the pickguard and potentiometer enclosures. Use 250kΩ linear taper pots for volume and tone controls; these values preserve midrange clarity while allowing smooth adjustment without abrupt high-frequency roll-off. Install a 0.047µF polyester film capacitor for the tone circuit to maintain consistent tonal character across the sweep range, avoiding ceramic variants that introduce microphonic noise. Ground the bridge directly to the control cavity via a dedicated wire soldered to the bridge base plate, ensuring solid contact without relying on string or saddle conductivity. Route pickup wires through the instrument body with minimal slack, securing them with small clips to prevent vibration-induced signal degradation.
Critical Connections and Error Prevention
- Solder all potentiometer lugs with 60/40 rosin-core wire, pre-tinning surfaces to avoid cold joints–use a temperature-controlled iron (350°C) for precision work.
- Connect the output jack’s sleeve terminal to a central ground point, typically the back of the volume pot casing, consolidating all grounds to eliminate loop-induced noise.
- Mark pickup wires before disconnecting: hot leads (standard color coding: white or red) attach to the volume pot’s middle lug; ground leads (black or bare) connect to the back of the volume pot.
- Verify continuity between the bridge and control cavity ground post assembly with a multimeter (target:
- Coil excess wire neatly around components, avoiding sharp bends near solder joints that could fatigue and break over time.

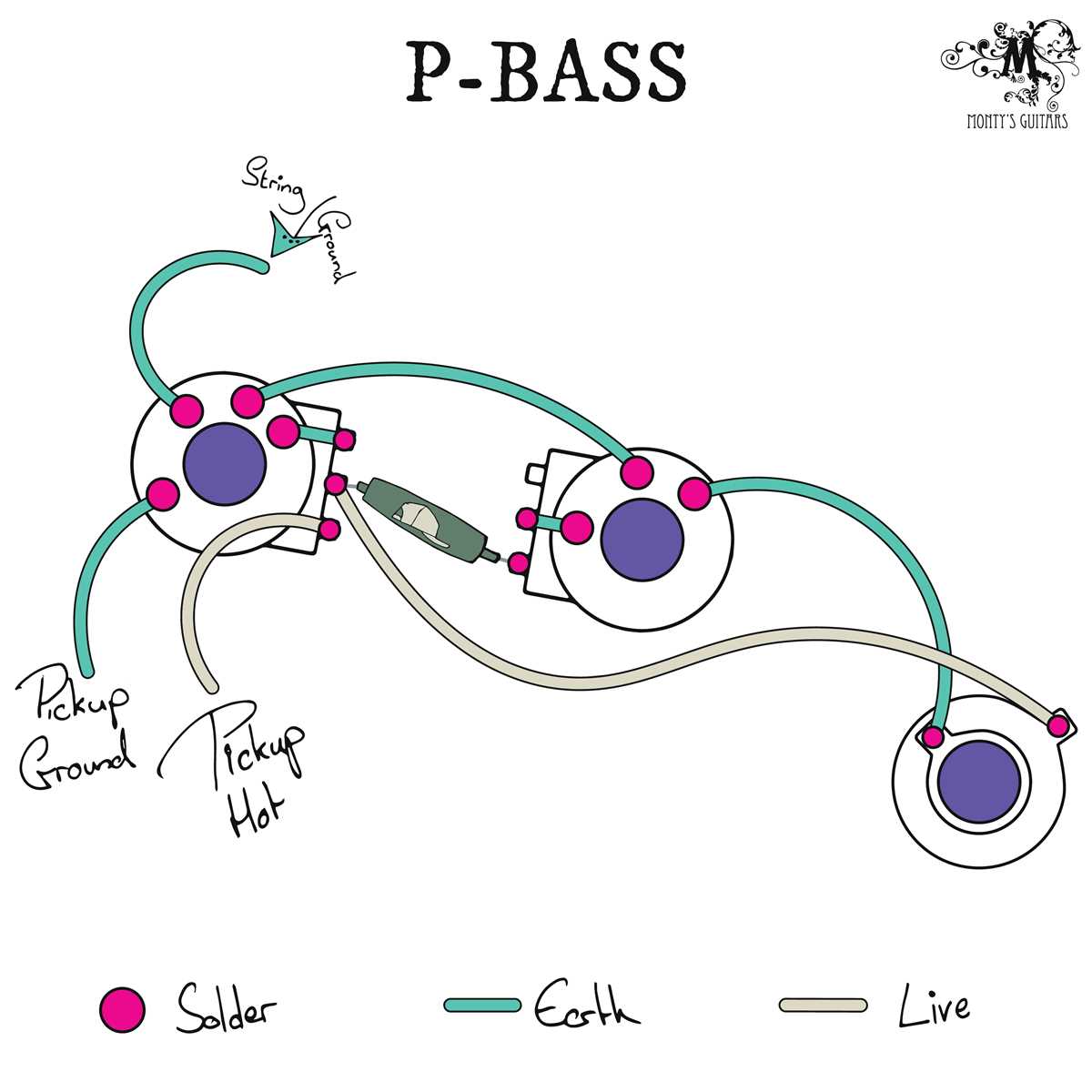

Guide to Assembling a Vintage Precision-Style Electrical Layout
Start by securing a high-quality potentiometer with a 500K ohm rating for volume control and a 250K ohm rating for tone adjustment, ensuring smooth taper characteristics to avoid abrupt signal drop-off. Verify the potentiometers’ shafts align with the pickguard’s pre-drilled holes to prevent misalignment during installation. Use cloth-insulated wire for grounding connections to minimize interference, particularly when routing near active pickups.
Connect the pickup’s hot lead directly to the volume potentiometer’s input lug (typically lug 2) using a shielded coaxial cable with a maximum length of 8 inches to prevent capacitance-related tone degradation. Ground the pickup’s metal casing to the back of the volume potentiometer (lug 1 or the sleeve) by soldering a single strand of braided shielding stripped from the coaxial cable–avoid twisting multiple strands, as this can introduce hum.
- Route the tone circuit separately by linking the volume potentiometer’s output (lug 3) to the tone potentiometer’s input (lug 2).
- Attach a 0.047μF capacitor between the tone potentiometer’s output (lug 3) and its ground (lug 1) for a classic mid-range roll-off.
- Ensure the capacitor’s lead length does not exceed 1.5 inches to maintain signal integrity.
Solder the output jack’s hot terminal to the tone potentiometer’s output (lug 3) using a tinned, stranded wire no thinner than 22 AWG to handle current without resistance loss. Ground the jack’s sleeve to the nearest potentiometer’s grounding lug, avoiding daisy-chaining to prevent ground loops. Test continuity with a multimeter before finalizing solder joints; resistance between the hot terminal and ground should read under 1 ohm.
For shielding, line the pickguard’s underside with adhesive copper foil, covering at least 90% of the surface area. Connect the foil to the main ground at a single point–preferably near the volume potentiometer–to consolidate interference dissipation. Avoid overlapping foil edges, as this can create parallel ground paths and introduce noise. Confirm all connections with a voltage check: plucking an open string should produce a clean 1V peak-to-peak signal at the output jack.
Common Modifications to Enhance Precision-Style Instrument Electronics
Swap stock 250kΩ potentiometers for 500kΩ or 1MΩ variants to brighten pickups without replacing them. Mid-priced carbon-film pots exhibit less scratchiness than budget options, but audio-taper models still introduce non-linear volume drops–a logarithmic-taper push/pull pot with custom resistance values resolves this while adding dual-coil phase switching.
Install a treble-bleed capacitor between the volume pot’s input and output lugs (0.001µF–0.01µF range) to retain high frequencies when lowering output levels. Ceramic or polypropylene caps offer superior tone stability over electrolytic types, though polyester film caps provide a cost-effective middle ground for players prioritizing clarity over minor signal loss.
Replace the standard 0.1µF coupling cap with a paper-in-oil or silver-mica capacitor to tighten low-end response and reduce muddiness. Pair this with a series resistor (10kΩ–50kΩ) to fine-tune roll-off behavior; values above 20kΩ preserve punch while reducing boom, ideal for slap and fingerstyle techniques.
Diagnosing Common Problems in Precision-Style Instrument Circuits
Start by isolating hum or buzz when the instrument is unplugged but pickups are engaged–this often points to ground loop issues. Disconnect the shielding foil or conductive paint from the control cavity and test again. If noise disappears, reapply shielding with copper tape, ensuring full coverage of the cavity walls and solder tabs without overlapping seams, which can create capacitance and weaken signal integrity.
Check for weak or intermittent output by measuring resistance across the volume pot with a multimeter. A steady reading between 250kΩ and 1MΩ confirms proper function; values below 50kΩ suggest a faulty potentiometer or cold solder joint. Reflow suspect connections with rosin-core solder, using a temperature-controlled iron set to 350°C to prevent overheating adjacent components, particularly tone caps made of polyester or paper-in-oil.
If treble frequencies drop unexpectedly, verify the tone control circuit with a 0.047µF capacitor–A/B test against a known-good film capacitor to rule out microphonic failure, which can occur in vintage ceramic discs. Parallel testing with a 10kΩ resistor will help identify whether the issue stems from the cap itself or the potentiometer’s taper, which should exhibit smooth logarithmic response under load.
Split coil pickups may exhibit phase cancellation if wires are reversed during installation. Trace the hot and ground leads back to the output jack, confirming continuity with a probe–correct orientation shows unity gain when bridge and neck units are engaged simultaneously, while incorrect wiring produces a thin, hollow tone. Color-code connections using heat-shrink tubing to avoid future misalignment.
Scratchy pots during adjustment indicate worn conductive material; clean with contact cleaner sprayed directly into the shaft while rotating the knob. If noise persists, replace the component rather than lubricating with graphite, which can attract debris and degrade solder joints over time. Ensure the control plate sits flush against the body to prevent grounding through mechanical pressure rather than proper electrical connection.
High-frequency loss in active circuits often results from depleted battery voltage–test with a fresh 9V alkaline unit, as lithium cells can cause premature sag under load. Passive configurations may suffer from cable capacitance exceeding 300pF/meter; use low-capacitance coax for runs over 3 meters, or verify that tone caps are not leaking signal to ground due to poor-quality dielectric material.
