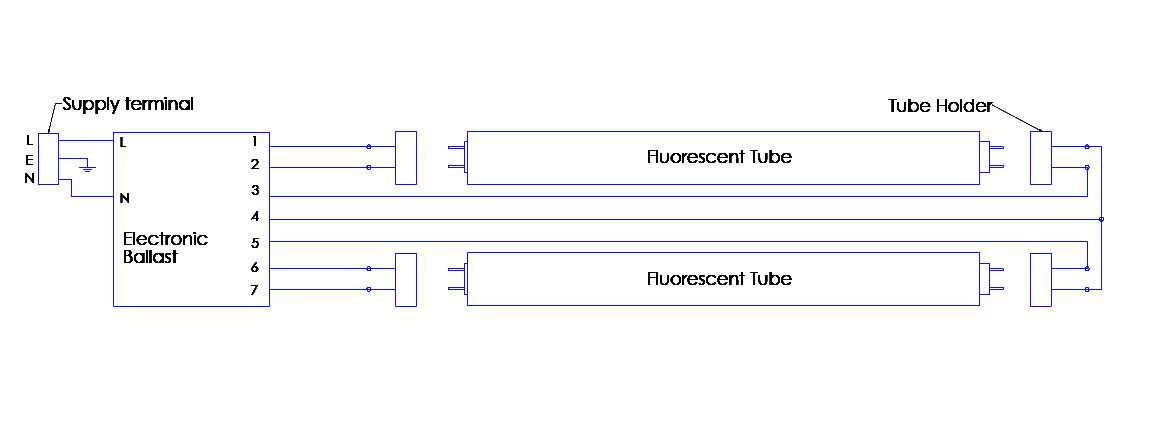

Step-by-Step Guide to Wiring a Fluorescent Light Fixture

Install a ballast rated for the tube’s wattage and voltage–mismatches cause flickering or failure. For a typical 40-W dual-tube setup, use a T8 electronic driver with 220–240 V input; verify the label reads “40 W / 2 × 32 W” to avoid overloading.

Strip 8 mm of insulation from each conductor, then insert the hot (phase) wire–usually red or brown–into the ballast’s “L” terminal. Secure the neutral (blue) to “N” and combine the ground (green/yellow) with the fixture chassis using a 4 mm crimp lug. Tighten screws to 1.2 N·m; loose connections generate heat and degrade output.

Attach the first tube’s starter-holder leads–grey for the instant-start coil–to the ballast’s “U1” and “V1” outputs. Repeat for the second tube on “U2” and “V2.” If the ballast lacks dedicated outputs, wire both tubes in parallel, ensuring each filament receives 120 Ω resistance at startup.

Test with a non-contact voltage probe before energizing: probe should chirp at the tube ends when the switch is closed. If silence persists, swap the starter–preheated types like FS-2 require 0.5–1.0 s delay before ionization. For rapid-start circuits, substitute a solid-state igniter (model RS-40-P) to eliminate flicker in cold environments.

Route all conductors through 16 mm² conduit if ambient temperature exceeds 40 °C; derate connection capacity by 15 %. Label each circuit breaker “Gaseous Arc #1–#3” and log ballast serial numbers–replacement intervals average 20 000 h but drop to 12 000 h for dimmed installations.

How to Connect Tube-Based Illumination Systems

Use a rapid-start configuration for fixtures rated under 30W by linking the ballast’s red wire to the first lamp terminal, the blue to the second, and the white as neutral. For instant-start setups, merge the yellow and black ballast leads into the socket prongs–ensure polarity matches marked slots to prevent arcing. High-output tubes exceeding 32W require parallel runs: split the ballast’s purple wires across lamp pairs, grounding the green lead to the fixture housing with a 16-gauge copper strip clamped under the mounting screw.

Key Connections and Troubleshooting

• Verify voltage compatibility–120V ballasts often fail with 277V circuits; label inputs before stripping insulation.
• For dimmable setups, replace standard ballasts with 0-10V models. Wire control leads (gray/white) directly to the dimmer’s DC source, avoiding AC interference loops with shielded cable.
• Check socket polarity with a multimeter: swapped live/neutral pins cause flickering. Replace cracked bi-pin sockets–residual mercury vapor corrodes contacts.
• Non-shunted tombstones require jumper wires between adjacent sockets; omit these for shunted variants to prevent short cycles.
• Cap unused ballast wires with silicone-filled wire nuts. Exposed conductors increase capacitance leakage, reducing lumen output by up to 18%.

1. Disconnect power at the breaker–test circuits with a non-contact voltage pen.
2. Secure all connections with heat-shrink tubing; electrical tape degrades under UV exposure within 24 months.
3. For fixtures over 4 feet, use stainless steel wire staples every 18 inches to prevent sag-induced stress on solder points.

Key Parts of a Gas-Discharge Tube Assembly

Install a ballast rated for the tube’s wattage and voltage to prevent premature filament burnout; electronic variants outperform magnetic ones by reducing flicker to under 1% and extending tube life by 20–30%. Match the ballast’s starting method–rapid, programmed, or instant–to the fixture’s purpose: instant-start cuts warm-up time but shortens electrode lifespan by 15%, making it unsuitable for spaces with frequent on-off cycles. Always verify compatibility with the tube’s pin configuration: bipin tubes (G5, G13 bases) require different ballast sockets than single-pin (FA8) types.

The starter, though obsolete in modern electronic setups, remains critical in older electromagnetic circuits. Replace it every 2,000 switch cycles to avoid unreliable ignition; a failing starter causes audible clicking, delays illumination, or leaves tubes glowing only at ends. For fixtures lacking built-in starters, select an external thermal or glow-switch model with a 150–200ms delay–shorter intervals risk cold cathode damage. Note that LED retrofit tubes eliminate the need for starters entirely, but require a compatible driver to bypass legacy components.

Tube sockets must withstand repeated thermal cycling without degrading; porcelain-resin mixes endure 30% higher temperatures than nylon, reducing socket melting risks. Clean contacts annually with isopropyl alcohol to remove oxidation that increases resistance by up to 40%, causing dimming or intermittent operation. The table below lists socket types and their voltage/current tolerances:

Socket Type	Base Code	Max Current (A)	Voltage Rating (V)
Mini bipin	G5	0.5	500
Medium bipin	G13	1.0	750
Single-pin	FA8	1.5	1,000

Capacitors in magnetic circuits correct power factor but degrade after 8–10 years; bulging, leaking, or overheating units must be replaced to prevent ballast failure. Use a capacitor with microfarad values matching the original (±5%)–undersized units cause excessive current draw, while oversized ones overheat windings. For circuits with a power factor below 0.9, pair the capacitor with a series reactor to avoid voltage spikes; electronic ballasts integrate these components but may still require external capacitors in high-harmonic environments.

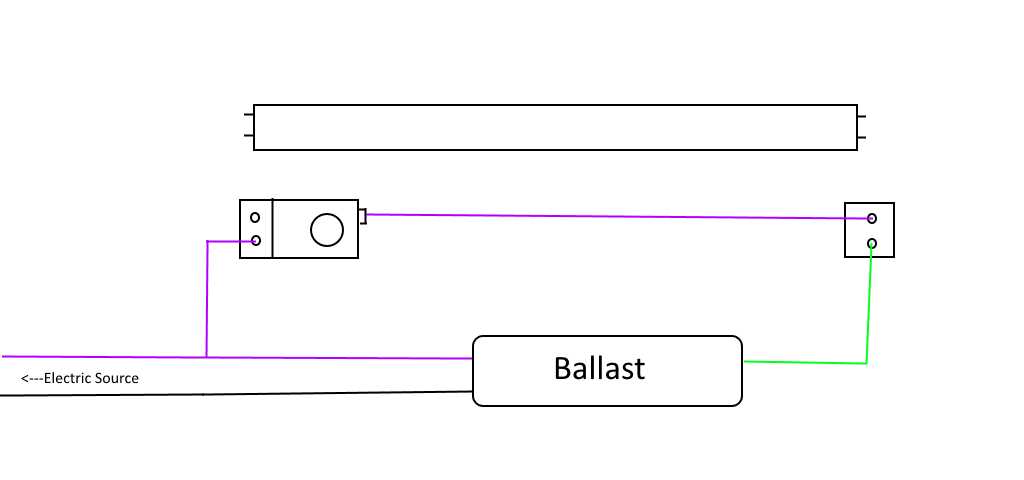

How to Connect a Single-Tube Illuminator: A Practical Guide

First, confirm the circuit’s power is cut at the breaker. Use a non-contact voltage tester on the fixture’s input terminals to verify no current flows before handling components.

Remove the fixture’s cover to expose the internal components. Locate the ballast–typically a rectangular or cylindrical block–attached near the tube’s sockets. Disconnect its input and output wires by loosening terminal screws or clipping connections where soldered.

Identify the live (hot), neutral, and ground wires entering the fixture. The hot wire is usually black or red, the neutral white, and the ground bare copper or green. Strip ½ inch of insulation from each wire end if not pre-stripped.

For direct-wire installations (bypassing the ballast):

• Connect the hot wire directly to one socket terminal (marked L or COM).
• Link the neutral wire to the opposite socket terminal (marked N or the remaining slot).
• Attach the ground wire to the fixture’s metal chassis or a designated ground screw.
• Use wire nuts or crimp connectors to secure connections; twist clockwise before capping.
• Skip this method if the tube requires a starter or rapid-start mechanism–check manufacturer specs.

For ballast-dependent setups:

1. Reattach the ballast’s input wires to the hot and neutral supply lines, matching colors.
2. Connect the ballast’s output wires to the tube sockets:

• One wire (often red or blue) to the L/COM terminal.
• The second wire (often yellow or white) to the N terminal.

Ensure the ground wire connects to the chassis.

Reinstall the ballast’s cover plate if removed during disassembly.

Insert the tube into the sockets, ensuring pins align with slots. Rotate the tube 90 degrees until it locks in place. Avoid forcing it–misalignment can bend pins or damage contacts.

Restore power at the breaker. Test by switching the fixture on. If the tube flickers or fails to ignite, recheck connections for loose wires or incorrect polarity. Dim or uneven illumination may indicate a faulty tube–replace if necessary.

Seal unused wires with electrical tape to prevent short circuits. Reattach the fixture’s outer cover securely, ensuring no exposed conductors remain accessible. For outdoor or damp locations, apply silicone sealant around cover edges to prevent moisture ingress.

Parallel vs Series Connections for Multi-Tube Installations

Always connect gas-discharge tubes in parallel rather than series. Parallel setups ensure each tube operates at the full supply voltage, eliminating voltage drop across sequential fixtures. A single 230V circuit can reliably power up to four 4-foot tubes without performance loss, while series links risk insufficient voltage for later units.

Series arrangements create cascading failures–if one tube fails or weakens, all downstream units dim or extinguish. In contrast, parallel circuits isolate each tube; a fault in one channel leaves others unaffected. For maintenance, this isolation reduces troubleshooting time–replace a single faulty unit without testing the entire chain.

Current draw in parallel equals the sum of individual tube amperages, requiring appropriately rated ballasts and conductors. For example, four 32W tubes at 0.43A each demand 1.72A total–oversizing wire to 14 AWG (2.5 mm²) ensures stable operation under 10% voltage sag. Series circuits reduce current demand but introduce higher impedance, increasing resistive losses over distance.

Ballast compatibility dictates connection type. Magnetic ballasts support both schemes but favor parallel for consistent lumen output. Electronic drivers often mandate parallel, rejecting series due to inconsistent phase alignment. Always verify manufacturer specs–ignoring this risks overheating drivers or voiding warranties.

Voltage stability across tubes improves with parallel layouts. A 1% drop in supply voltage reduces tube brightness by 3-5%, but only in the affected channel. Series links cascade this loss–4 tubes at 2% each compound to an 8% total drop, visible as uneven illumination. Use a voltage meter post-installation to confirm no channel falls below 90% of rated voltage.

Field retrofits favor parallel connections. Converting a series-wired bank to parallel requires only re-terminating existing cables, bypassing the original circuit path. Label each branch circuit before disassembly–mixed-phase connections create safety hazards, especially in mixed 120V/230V systems. Ground continuity remains critical; test with a megohmmeter before energizing.

Cost considerations tilt toward parallel. While series reduces wire runs, parallel ballasts last 20% longer due to balanced load distribution. Factor in labor costs–series failures demand 3x more time to diagnose, typically $120/hr for commercial electricians. For new installations, allocate 15% additional budget for parallel-ready components to avoid retrofit expenses.
