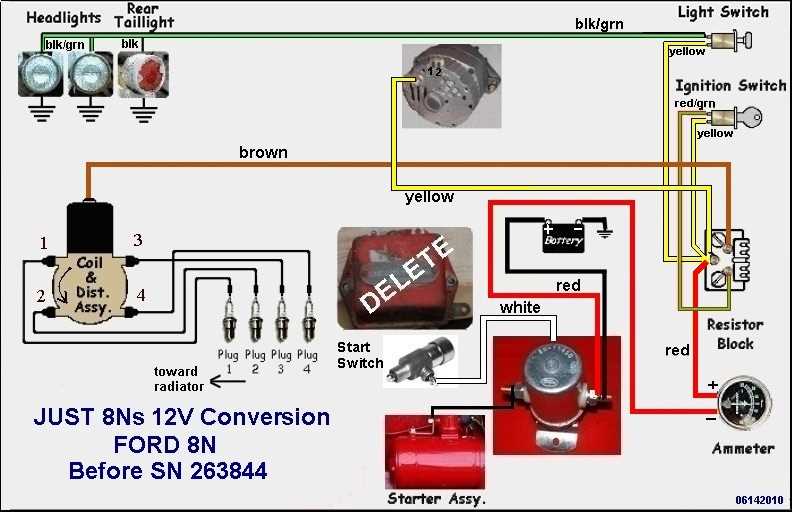

Ford 8N 12V Electrical Wiring Schematic and Circuit Connections Guide
Start with the ignition switch harness. Locate the red wire–it carries power directly from the battery. Trace it to the voltage regulator, ensuring no corrosion interrupts the circuit. A faulty regulator often mimics generator failure, so test continuity before assuming replacement needs.
The generator output wire (typically yellow) must connect to the battery terminal via the ammeter. If voltage drops below 11.8V at idle, inspect the ground strap on the block–loose connections here create phantom electrical gremlins.
Headlight circuits rely on a separate fuse block. The original design routes power through a three-position switch: off, dim, and bright. Modern LED replacements require a resistor bypass; omit this and bulbs will flicker or burn prematurely.
For the starter solenoid, the black/red wire carries activation current. If the engine cranks but won’t fire, check the neutral safety switch–adjust the linkage if engagement is intermittent. Aftermarket solenoids often lack the proper terminal spacing; verify dimensions before purchase.
Wiring color codes before 1953 differ slightly: brown may replace light green for instrument lighting. Always cross-reference with the serial number plate–variations exist between early and late models. Use a 14-gauge wire for repairs to match original resistance specs.
Electrical Schematic for Vintage Tractor: 8N Series
Begin by identifying the color-coded leads in the harness–red (hot), white (keyed ignition), yellow (generator output), brown (tail/brake), and green/black (starter solenoid). Trace each wire from the terminal block beneath the dash to its destination: the starter motor, voltage regulator, and lighting circuits. Use a multimeter set to continuity mode to verify connections if wires appear brittle or insulation is cracked; replace any degraded segments with 18-gauge automotive wire of identical color to maintain polarity.
Critical Circuit Verification
Test the solenoid engagement by connecting a jumper from the battery’s positive terminal to the green/black wire at the starter–you should hear a decisive click. If absent, remove the solenoid and check the internal contacts for pitting; clean with fine emery cloth or replace the unit entirely. Ensure the voltage regulator’s “A” (armature) terminal registers 13.8–14.2 volts with the engine at 1500 RPM–any reading below indicates a faulty generator or regulator requiring bench testing.
Secure ground connections by scraping paint from the tractor’s frame where the negative cable attaches; corrosion here mimics charging issues. For auxiliary accessories like a modern alternator conversion, splice in a 30-amp inline fuse between the new output and the original ammeter circuit–failure to do so risks overheating the original harness. Keep a printed reproduction of the schematic available during work (oemdocs.com offers accurate reprints), as repairs frequently require cross-referencing specific terminal IDs.
Locating Critical Connections in the 8N Tractor Electrical Network
Begin by tracing the battery’s positive lead–typically a thick red cable–to the starter solenoid. This link is the primary power source for the entire system, and any corrosion or fraying here will cause intermittent failures or total startup refusal.
Examine the ignition switch harness, which consists of three smaller wires: one for accessory power, one for the coil, and one returning to the voltage regulator. The coil wire (often green or yellow) carries current to the ignition unit, while the regulator wire (usually white) stabilizes output. Swap these mistakenly, and the engine may crank but never fire.
Distinguishing Generator and Regulator Leads
The generator’s armature terminal connects via a brown wire to the regulator’s “ARM” post, while the field terminal links through a black wire to “FLD.” A third, lighter gauge wire runs from the generator’s battery terminal to the regulator’s “GEN” post. If these are reversed, the charging circuit fails, draining the battery even with the tractor running.
Check the ground strap–often overlooked–secured to the engine block or frame. A weak or missing ground causes dim lights, slow cranking, and erratic gauge readings. Clean the contact point with a wire brush and ensure the strap is tight.
Lighting circuits use a dedicated yellow wire (headlights) and a brown wire (tail/brake lights) branching from the main harness. If lights flicker, inspect the bullet connectors; these are prone to loosening or oxidation. Re-crimp or solder connections for a solid contact.
Fuse and Auxiliary Circuits
The fuse holder (if equipped) sits inline with the red cable between the battery and ammeter. A blown fuse cuts power to all accessories, leaving only the starter operational. Replace with the correct amperage–never bypass.
For tractors with a three-point hitch or auxiliary hydraulics, the control valve operates via a purple wire. This lead originates from the ignition switch and connects to the valve solenoid. A faulty connection here prevents implement lift, even if the pump runs.
Always test wires under load–multimeter readings can mislead if the circuit isn’t actively drawing current. Probe while turning the key or adjusting the throttle to catch voltage drops that don’t appear in static checks.
Step-by-Step Guide to Reading the Tractor’s Electrical Blueprint
Locate the battery symbol at the top left of the schematic–this marks the power source. Trace the thick red line from the positive terminal; it splits into two paths: one leads to the ignition switch (labeled “IGN”), the other to the lighting circuit (marked “LIGHTS”). Use a multimeter set to 20V DC to verify voltage at each junction before proceeding. Note color codes: red (hot), black (ground), yellow (accessory), and green (neutral). Disconnect the negative battery cable before probing to avoid shorts.
Identifying Circuit Components
Find the fuse block mid-schematic–two 10A fuses protect the ignition and lighting branches. Below it, the ammeter (labeled “AMM”) shows current flow direction. Look for dotted lines: these indicate metal chassis grounds. For relays, check the oval symbols with coils and contacts; the starter solenoid appears as a larger coil near the bottom. Label each wire with masking tape and a marker–use abbreviations like “IGN-SW” for ignition switch output to avoid confusion.
Common Electrical Problems and Solutions in the 8N Utility Vehicle
Check the voltage regulator if the battery fails to charge. Disconnect the regulator’s “BAT” terminal and measure voltage at the generator’s “A” terminal with the engine running at medium speed–readings should stabilize between 7.2 and 7.8 volts. If outside this range, test the regulator’s internal resistors by probing the “F” and “A” terminals with a multimeter set to ohms; resistance should read 2.5–3.0 ohms. Replace the regulator if readings are inconsistent, as faulty regulation causes overcharging or undercharging, damaging the battery within hours.
Faulty Lighting and Ignition Circuits
Inspect the headlight switch for corroded contacts if lights flicker or fail. Remove the switch from the dash and clean terminals with 400-grit sandpaper, then apply dielectric grease before reassembly. For ignition failures, trace the path from the coil’s “+” terminal to the distributor’s primary lead–resistance should not exceed 0.5 ohms. A quick check: bypass the ballast resistor by jumpering 10-gauge wire from the coil’s “+” to the starter solenoid’s “BAT” terminal; if the engine starts, replace the resistor immediately, as prolonged bypass risks coil burnout.
| Symptom | Cause | Test Method | Fix |
|---|---|---|---|
| Dim or no lights | Poor ground at light socket | Measure voltage drop between socket shell and chassis (should be <0.1V) | Clean chassis ground or add 12-gauge jumper to frame |
| Starter spins slowly | Weak battery or corroded cables | Voltage drop across battery terminals (should be <0.2V) | Clean terminals or replace cables if resistance >0.5 ohms |
| Gauges erratic | Loose sender unit connection | Check sender resistance (oil: 10–75 ohms, temp: 20–150 ohms) | Tighten connections or replace sender if resistance out of spec |
Test the ammeter for accuracy by connecting a known load (e.g., 30-watt bulb) between the battery and ammeter’s “BAT” terminal–the needle should swing to 2.5 amps within 3 seconds. If it lags or displays incorrectly, recalibrate by adjusting the shunt resistor behind the gauge; turn the adjustment screw clockwise in ¼-turn increments until the reading matches the load. Never exceed 5 turns, as over-adjustment risks burning the gauge’s coil.
Replace frayed harness segments immediately. Use heat-shrink tubing over soldered connections–electrical tape degrades within months, exposing wires to moisture. For intermittent shorts, probe suspect wires with a tone generator while wiggling the harness; a sudden tone shift pinpoints the fault. Always fuse replacement circuits with a 10-amp blade fuse, even for low-draw accessories like work lights, as the factory fuseblock often lacks spare slots.
Customizing the 8N Electrical System for Add-On Equipment
Install a dedicated fused circuit for each accessory to prevent overloading the original harness. Use 14-gauge wire for lighting and 12-gauge for power-hungry devices like winches. Route all new cables through a corrugated loom to protect against abrasion and moisture.
Relocate the battery to the opposite side of the engine bay if adding a high-output alternator. Secure it with a vibration-dampening mount and vent the hydrogen gas outside the tractor’s chassis. Connect the positive terminal directly to the starter solenoid with an 8-gauge cable to handle increased current.
- Switch-controlled accessories require a relay to prevent switch burnout–use a 30-amp automotive relay for each.
- Ground all relays and accessories to the engine block, not the sheet metal, to avoid voltage drops.
- Include an inline fuse (5-20 amps depending on load) within 7 inches of the battery for each new circuit.
For LED work lamps, calculate total amperage and select a relay with a matching or higher rating. Splice into the ignition switch’s accessory terminal to ensure the lights only activate when the engine runs. Add a momentary pushbutton for temporary operation if needed.
When integrating a hydraulic pump, use a 10-gauge wire from the battery to a heavy-duty solenoid, then to the pump motor. Install a thermal breaker (rated 5-10% above the pump’s running amperage) to protect the circuit from overheating during stalled conditions.
- Disconnect the negative battery terminal before making any connections to avoid short circuits.
- Test every new connection with a multimeter–voltage should match the battery’s 12.6V with the engine off.
- Label all wires at both ends with heat-shrink tubing and a permanent marker.
Avoid tapping into factory circuits like the headlight or tail light leads for accessories. These aren’t sized for additional loads and may fail under prolonged use. Instead, run a separate fused line from the battery or fuse block to each new component.
