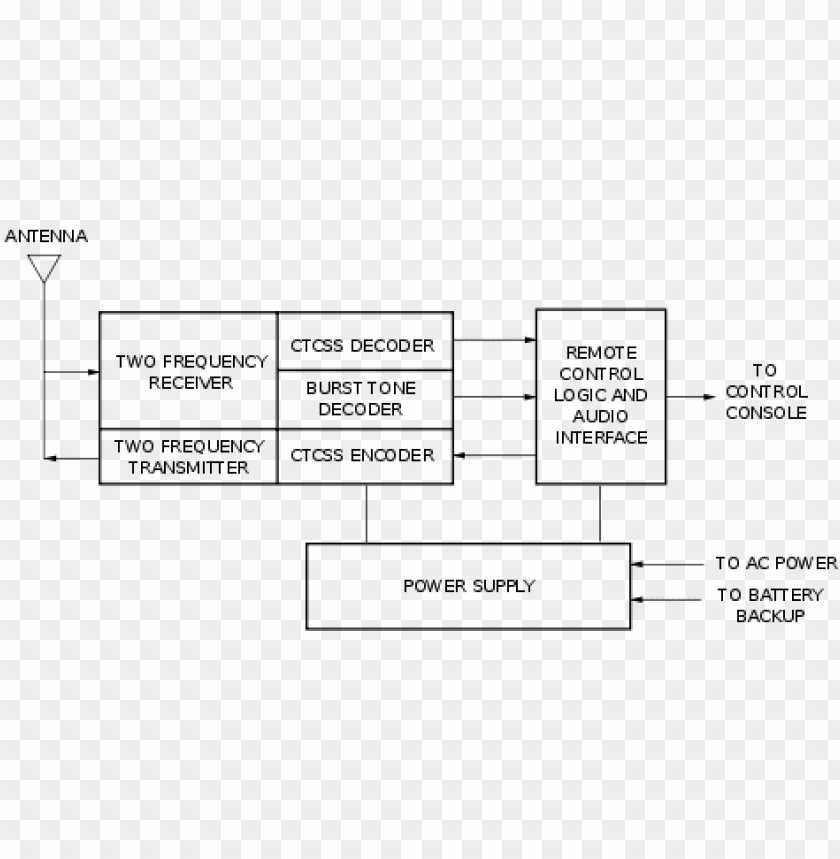

Designing RF Transceiver Circuits Key Components and Wiring Guide

Start with a low-noise amplifier (LNA) at the input stage to minimize signal degradation. Use a MGA-62563 or similar GaAs monolithic microwave IC for frequencies up to 6 GHz. Ensure a 50-ohm impedance match between antenna and LNA to prevent reflections–mismatches beyond ±10% reduce efficiency by 20%. Ground the LNA’s bias network through a ferrite bead to suppress high-frequency noise without affecting DC performance.

Integrate a mixer stage immediately after the LNA to downconvert RF to intermediate frequency (IF). The LT5522 (DC-3 GHz) delivers +24 dBm IIP3, critical for handling strong adjacent-channel interference. Use a local oscillator (LO) with

For the IF amplifier, prioritize linearity over gain. A THS4521 differential amplifier achieves 0.1 dB gain flatness across 10-500 MHz, essential for distortion-free signal processing. AC-couple all stages with capacitors sized for 3 dB cutoff 20% below the lowest signal frequency. Avoid electrolytic capacitors–use C0G/NP0 dielectric (≤5 ppm/°C drift) for stability.

Power distribution demands separate rails for analog and digital sections. Regulate the RF chain with a TPS7A47 (noise TPS763xxx with

Test prototype boards with a spectrum analyzer before finalizing layout. Measure spurious emissions at multiples of the LO frequency–harmonics beyond -60 dBm require shielding or filtering. For SMT components, use 0402 packages only when trace lengths are

Key Elements of a Wireless Communication Board Layout

Prioritize ground plane integration beneath all RF traces to minimize noise and crosstalk–use a continuous copper pour on at least one inner layer of a 4-layer PCB. Maintain 3-5 mm clearance between the RF output stage and digital logic sections to prevent spurious emissions; violations can degrade sensitivity by 6-12 dB. For the power amplifier, incorporate low-ESR caps (100 pF and 1 nF) within 2 mm of the IC’s power pin, combining X7R and C0G dielectrics to address both bulk and high-frequency decoupling. Route crystal oscillator tracks as short, symmetrical striplines with matched lengths (tolerance: ±0.5 mm) to avoid phase imbalance; any asymmetry introduces jitter exceeding 5 ps RMS.

Isolate the LNA input with a π-network filter–series inductor (1.5 nH), shunt capacitor (2.2 pF), and another series inductor (2.7 nH)–to achieve 25 dB attenuation at the image frequency while inserting less than 0.8 dB loss at the desired band. Use 0402 or 0201 packages for all passive components to reduce stray inductance below 0.3 nH. Keep via stitching density at ≥1 per λ/20 along RF traces to suppress substrate modes; single-row stitching risks 3 dB gain ripple across a 100 MHz span.

Key Elements of a Radio Communication Board

Begin with a low-noise amplifier (LNA) to boost weak incoming signals without adding excessive noise. Select a component with a noise figure below 1 dB for frequencies under 2 GHz, such as the Avago MGA-635P8 or Mini-Circuits ZX60-3018G. Place it as close as possible to the antenna connector to minimize signal degradation before amplification. Avoid long PCB traces; use microstrip lines with controlled impedance matching the system’s characteristic impedance (typically 50 Ω).

Integrate a mixer to translate the desired frequency to an intermediate frequency (IF) or baseband. Dual-balanced mixers like the Analog Devices ADL5350 reduce spurious emissions and reject LO leakage. Ensure the local oscillator (LO) has low phase noise–target -140 dBc/Hz at 10 kHz offset for stable mixing. Use a PLL synthesizer like the LMX2594 with an external voltage-controlled oscillator (VCO) for flexible frequency tuning. Bypass capacitors of 100 nF and 10 nF should be placed near the LO and mixer power pins to filter high-frequency noise.

Power amplifiers (PAs) must deliver sufficient output power while maintaining linearity. For handheld devices, the Skyworks SKY66101-11 achieves 27 dBm output with 40% PAE at 2.4 GHz. linearity is critical; use predistortion techniques or a driver stage with impedance matching to prevent spectral regrowth. Include directional couplers (e.g., Anaren XC0900A-03S) for output power sampling and automatic level control (ALC). Thermal vias under the PA’s exposed pad improve heat dissipation–space them at least 1.2 mm apart to avoid solder wicking.

Filters shape the signal spectrum and reject out-of-band interference. Surface acoustic wave (SAW) filters like the Taiyo Yuden FAR-F5CH-2450T5 offer sharp roll-off for 2.4 GHz applications. For wider bandwidth requirements, ceramic filters like Murata DEA162450BT-1294C1 provide smaller footprint and lower insertion loss. Always verify filter specifications against the required passband and rejection; even a 1 dB mismatch in insertion loss compounds system inefficiency.

Switches route signals between receive and transmit paths with minimal loss. GaAs MMIC switches like the Peregrine PE42590 support frequencies up to 6 GHz with 0.5 dB insertion loss. Ensure the switch’s isolation exceeds 40 dB to prevent TX leakage into the RX path. Use control circuitry with fast settling times (under 1 µs) to avoid signal interruption. Decouple control lines with 10 nF capacitors to ground to suppress transient spikes.

Baseband processing relies on a high-speed analog-to-digital converter (ADC) and digital-to-analog converter (DAC). The Texas Instruments ADS5483 offers 16-bit resolution at 125 MSPS, sufficient for most RF applications. Isolate analog and digital grounds with a single-point connection near the ADC/DAC to prevent ground loops. Ferrite beads on power lines suppress digital noise from coupling into sensitive RF sections. Keep signal traces short and route differential pairs with 100 Ω impedance for signal integrity.

Step-by-Step Assembly of RF Transmitter Section

Begin by mounting the voltage-controlled oscillator (VCO) on a copper-clad board to minimize noise. Use an ATF-54143 or similar low-noise RF transistor as the core active component, biasing it with a 3.3V regulated supply via a 100Ω resistor and a 10nF bypass capacitor. Ground the emitter directly to the board’s ground plane, ensuring a wide, low-impedance path. Verify oscillation frequency with a spectrum analyzer before proceeding–target 433MHz for license-free ISM band operation.

Solder the output matching network next. Attach a 22pF capacitor in series with the VCO’s output, followed by a 47nH inductor to ground. This forms a low-pass filter, reducing harmonic emissions. Follow this with a pi-network: 33pF shunt capacitor, 10nH series inductor, and another 33pF shunt capacitor. Calculate component values for 50Ω impedance using the formula Z = √(L/C), adjusting tolerances to ±2% for stability. Measure impedance with a vector network analyzer to confirm less than -15dB return loss.

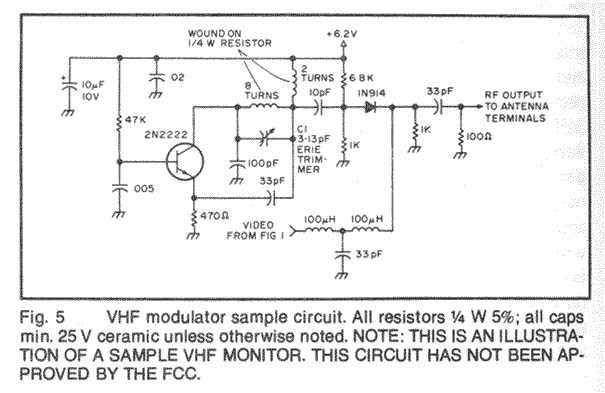

Modulation Circuit Integration

Integrate the modulation stage using an SA602AN double-balanced mixer. Connect the VCO’s output to the mixer’s RF input via a 10pF coupling capacitor. Apply the baseband signal (e.g., audio or data) to the mixer’s IF port through a 1kΩ resistor and a 1µF coupling capacitor. Bias the IF port at 1.5V using a voltage divider (10kΩ and 6.8kΩ resistors) to ensure linear mixing. Confirm the mixer’s conversion gain of ~17dB with a 3dBm LO drive.

• Use a ferrite bead (e.g., BLM18PG121SN1) on the power supply line to suppress high-frequency noise.
• Add a back-to-back diode pair (1N4148) at the antenna output to clamp transient voltages.
• Twist supply and ground wires tightly to reduce inductance–loop area should not exceed 1cm².

Finalize the antenna connection with a tuned network. For a quarter-wave monopole, solder a 17.3cm wire (for 433MHz) to a 27pF series capacitor, followed by a 4.7µH choke to block DC. Alternatively, use a commercially available 433MHz helical antenna with a 50Ω SMA connector, ensuring the feedline is trimmed to an odd multiple of λ/4. Test radiated power with a calibrated field-strength meter; aim for -10dBm EIRP to comply with FCC Part 15.231 regulations.

Post-Assembly Validation

1. Measure DC current draw–expect 12-18mA for the VCO and 5-8mA for the mixer at nominal voltage.
2. Inject a 1kHz tone into the IF port and observe the output spectrum; spurious emissions should be below -30dBc.
3. Sweep the supply voltage from 3.0V to 3.6V–frequency drift must not exceed 50kHz.
4. Monitor thermal stability by heating the PCB to 60°C; verify frequency does not shift beyond ±100kHz.

Designing the Receiver Stage for Signal Demodulation

Select a low-noise amplifier (LNA) with a noise figure below 0.8 dB for frequencies up to 2.4 GHz to preserve weak incoming signals. Match the LNA’s input impedance to the antenna’s characteristic impedance (typically 50 Ω) using a π-network or LC-matching circuit. Use a band-pass filter immediately after the LNA to reject out-of-band interference–surface acoustic wave (SAW) filters offer >30 dB rejection with minimal insertion loss (≤2.5 dB). For software-defined architectures, pair the LNA with a high-speed analog-to-digital converter (ADC) sampling at ≥4× the signal bandwidth to avoid aliasing.

Demodulation requires precise local oscillator (LO) accuracy. For frequency modulation (FM), employ a phase-locked loop (PLL) with Δf ≤ ±100 Hz drift at 1 GHz to maintain signal integrity. Quadrature demodulation for I/Q signals necessitates

Signal Type	Demodulation Method	Key Components	Typical Performance
AM (DSB/SSB)	Envelope or Product Detector	Diode (e.g., 1N4148), Active Mixer (e.g., NE602)	THD <1%, Sensitivity -110 dBm
FM	PLL or Foster-Seeley Discriminator	LM567, Ceramic Resonator (455 kHz)	Deviation <±75 kHz, Capture Ratio <1 kHz
I/Q (Digital)	Quadrature Demodulator	ADL5380, FPGA with FIR Filters	EVM <-40 dB, SFDR >70 dB
FSK	Limiting Amplifier + Frequency Discriminator	MC1350, RC Network	BER <10-6 at Eb/N0 = 10 dB

Minimize gain compression in the receiver chain by cascading amplifiers with progressive compression points (e.g., 1 dB CP ≥15 dBm for the final stage). For digital signal processing (DSP) demodulation, implement a 16-bit ADC with sampling jitter

Test receiver sensitivity with a signal generator outputting -120 dBm and measure the output SINAD. A well-designed stage achieves ≥12 dB SINAD at this level. For weak-signal environments, add a pre-selector filter (e.g., helical resonator for VHF) to enhance selectivity–aim for
