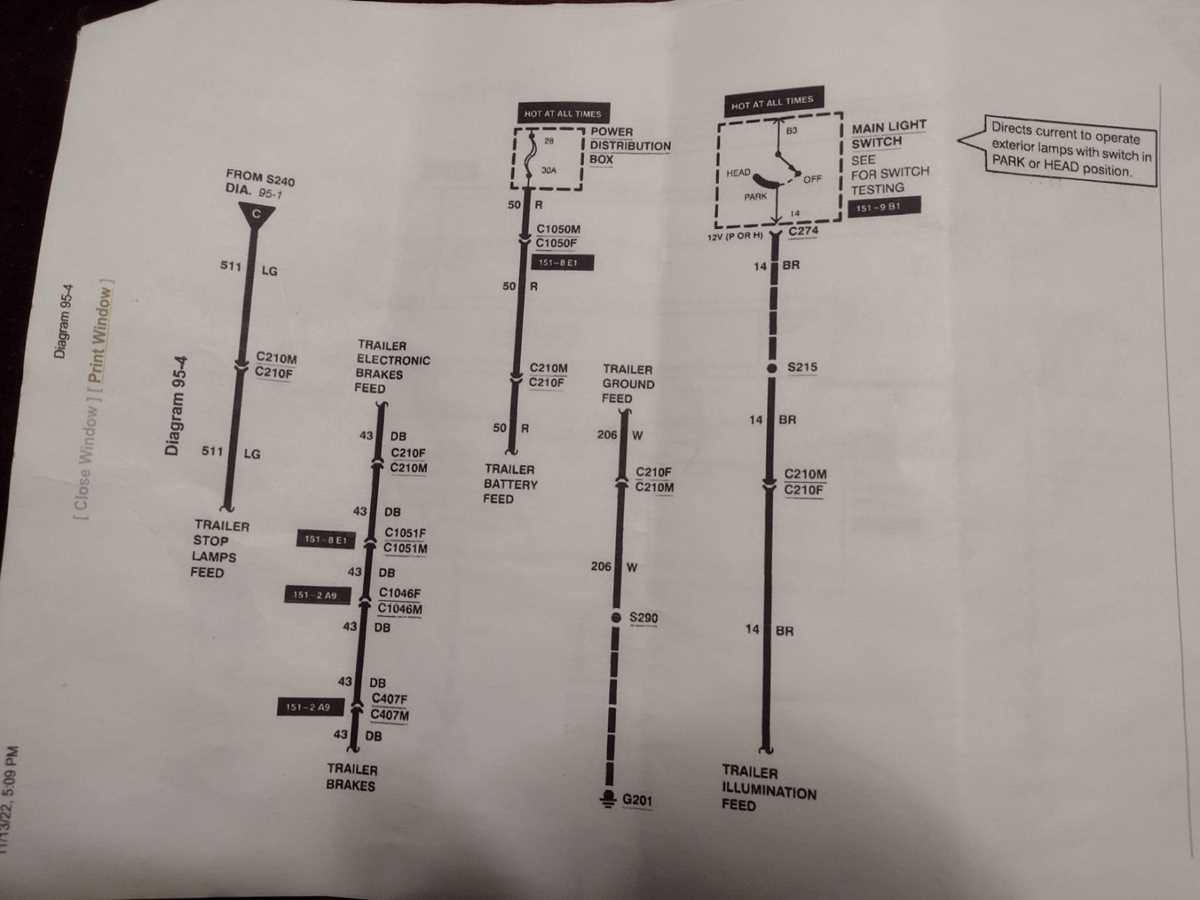

Ford Factory Trailer Brake Controller Wiring Guide and Diagram
Start by connecting the power source directly to the module’s input terminal marked +12V–use a minimum 12-gauge wire for stability under load. Attach the ground wire to a clean, unpainted chassis point to prevent voltage drop, securing it with a #10 stainless steel screw and star washer for corrosion resistance. Verify the tow vehicle’s fuse block for a dedicated circuit; if absent, install a 30-amp blade fuse within six inches of the battery.
Manufacturers often route the blue modulator cable through the driver-side frame rail. Follow the factory harness until it splices into the rear lamp assembly–avoid tap splices here, as they introduce failure points. Instead, use heat-shrink butt connectors rated for automotive temperatures (minimum 221°F/105°C). For diagnostic clarity, label each connection with industry-standard wire codes: blue for proportional output, purple for reverse signal, and yellow for stop lamp input.
Test functionality before finalizing mounts. Activate the system at 6 mph (9.7 km/h); the actuator should engage with delay. If response exceeds this threshold, inspect the inertia switch for debris or misalignment–clean with isopropyl alcohol and recalibrate. For vehicles with integrated stability control, disable trailer sway detection temporarily during setup to isolate interference from the tow mechanism’s feedback loop.
Route auxiliary circuits away from high-current lines (alternator, starter) to minimize electromagnetic noise. Use twisted pair wiring for signal integrity, maintaining a 1:1 twist ratio per inch. Secure all runs with nylon zip ties spaced every 12 inches (30.5 cm), avoiding sharp edges or exhaust components. Seal vulnerable junctions with dielectric grease to prevent moisture ingress, prioritizing connectors exposed to wheel wells or undercarriage.
Integrated Towing System Electrical Schematic Instructions
Identify the manufacturer-specific harness connector–typically a 7-pin or custom 14-pin plug–located beneath the dashboard near the vehicle’s tow port. Pin assignments follow a standardized sequence: pin 1 carries the fused ignition voltage (12V+), pin 2 delivers the brake signal (variable PWM output, 0–12V), pin 3 provides ground, and pin 4 relays stop lamp activation. Verify connectivity using a multimeter set to DC voltage; probe each terminal while depressing the brake pedal–readings should mirror the system’s voltage curve (0V at rest, 12V at full manual activation).
If the system fails to engage, inspect the following components in sequence:
- Fuse integrity (locate the dedicated 30A fuse labeled “Tow/Haul” or equivalent in the under-dash panel).
- Ground strap attachment–ensure bare metal contact at the chassis anchor point, free of corrosion or paint.
- Module calibration via the vehicle’s onboard diagnostics (access menu through the instrument cluster settings under “Towing Setup”).
- Signal interference from aftermarket splices–verify all factory crimps using a wire gauge matching the OEM specification (typically 14–16 AWG for power leads).
Replace any damaged connectors with heat-shrink butt splices; avoid twist-and-tape methods for critical circuits. For PWM-sensitive setups, confirm compatibility with 5th-wheel configurations–some systems require a supplementary relay to handle additional 2,000 lb+ loads.
Finding the Integrated Towing System Link Connection Point
Begin beneath the dashboard on the driver’s side, adjacent to the steering column base. The factory-installed coupling typically resides behind a snap-off plastic panel marked with a small circular or arrow-shaped icon. Release the panel by pressing inward along the edges until it disengages, exposing a 6- or 8-pin rectangular port labeled inline with part numbers prefixed by P/N or SP.
If the connector remains elusive, trace the thick cable bundle back from the under-dash fuse block. Look for a secondary branch exiting the main harness roughly twelve inches aft of the pedal assembly; the bundled wires converge into a compact, molded plug shielded by a corrugated plastic sleeve. This sleeve often bears faint notches or color bands–red and black–that distinguish it from adjacent electrical feeds.
On models equipped with factory trailer lighting integration, verify placement with an OBD-II module removal. Once the lower dash trim is lifted, the harness connection sits directly above the parking brake release lever on select recent build series. Align the connector’s keyed notch before firmly seating to prevent intermittent signal drop during heavy-duty towing scenarios.
Locating Pin Assignments for Integrated Towing Signal Connections
Begin by accessing the vehicle’s main harness connector adjacent to the fuse box–typically a 13-pin or 7-way round socket. The critical outputs for auxiliary stopping power activation reside in pins 4 (blue), 5 (red), and 7 (white). Verify these assignments using a multimeter set to DC voltage: apply manual braking input and measure for 12V output on pin 4 when engaged; pins 5 and 7 should carry ground reference.
For vehicles equipped with an integrated module, consult the build sheet or window sticker for option codes beginning with 53A or 53B. These denote factory-installed signal processing units. If the codes are present, the harness will include a dedicated purple wire (CKT 541) spliced into the main orange lead–this carries proportional voltage modulated by the system’s logic during deceleration. Absence of this splice indicates a standalone interface must be retrofitted.
Common deviations exist across model years. Pre-2017 platforms often use a 6-way rectangular connector with alternate pin labels: STOP (blue), PWR (red), and GND (white/black). Post-2018 architectures consolidated these into a single 13-pin socket, relocating the proportional signal to pin 6 (purple). Always cross-reference with the vehicle-specific electrical schematic–available via manufacturer service portals–to confirm assignments before modifying connections.
To test signal integrity without a tow load attached, perform these steps:
- Disconnect the main harness from the socket.
- Set meter to continuity mode; probe pin 4 (blue) and chassis ground–no connection should exist in rest state.
- Have an assistant depress the pedal fully; meter should briefly register low resistance (~0.5Ω) as the circuit closes.
- Repeat for pin 6 (purple), observing a variable voltage output (0.5–4.5V) correlating with pedal travel.
For retrofitting aftermarket interfaces, prioritize adapters compatible with both ISO 11446 (13-pin) and SAE J2863 (7-way) standards. Verify the adapter’s pin mapping aligns with the OEM configuration–mismatches in pin 4/blue (auxiliary stop input) will result in either constant activation or complete failure of the deceleration response. Use dielectric grease on all mating surfaces to prevent corrosion in high-humidity environments.
Certain platforms integrate a brake light feedback circuit that superimposes a pulsed signal onto pin 7 (white) during heavy braking. This feature, if enabled, demands a compatible interface capable of decoding the pulse-width modulation. Standard relay-based modules will misinterpret this signal as erratic grounding–opt for solid-state units with microcontroller-based processing to ensure fidelity.
Troubleshooting Signal Dropouts
Intermittent loss of auxiliary force often stems from:
- Corroded terminals: Remove the connector and inspect for green/white oxidation on copper contacts; clean with electrical-grade contact cleaner followed by a nylon brush.
- Harness chafing: Trace wires from the socket to the processing module, focusing on areas near suspension components or sharp bodywork edges–exposed conductors require immediate repair using heat-shrink tubing.
- Voltage drop: Measure voltage at pin 4 (blue) during activation; readings below 11.5V indicate excessive resistance in the circuit–test individual wire segments with a load tester to isolate.
Step-by-Step Installation for Third-Party Towing Module Setup
Locate the factory harness behind the driver-side dashboard panel near the pedal assembly–this exposes a six-pin blue connector for direct splicing. Strip 1/4 inch of insulation from the red (power), black (ground), dark blue (output), and white (signal return) leads, then solder to matching aftermarket unit terminals using 18-gauge heat-shrink tubing for insulation. Secure the main module with industrial Velcro behind the glovebox to prevent vibration damage, ensuring clearance from HVAC ducts.
Final Connection Checks
Verify proper polarity with a multimeter–red lead should show 12.6V unkeyed; dark blue must spike to 12V under manual lever activation. Route excess cabling through existing firewall grommets to avoid pinching, bundling with zip ties every 8 inches. Test functionality by attaching a test light to the output terminal–it should illuminate in sync with the dash-mounted control switch before attaching any downstream equipment.
Common Electrical Integration Errors and Wire Identity Confirmation
Always verify circuit polarity before connecting the interface module–reversing the feed and ground leads destroys integrated circuits instantly. Use a multimeter in continuity mode to test each conductor from the connector to the harness junction; even a single misrouted strand can trigger intermittent faults. Typical factory color codes vary between model years–1998-2004 blue/white is output, while 2005-2012 switches to violet/red for the same function. Cross-reference the actual harness with the following table:
| Function | Standard Color (Pre-2010) | Standard Color (2010-Present) | Common Incorrect Substitution |
|---|---|---|---|
| Power Feed | Red/Brown stripe | Orange/Light blue stripe | Solid red (12V constant) |
| Ground Return | Black | Brown/White stripe | Green (chassis ground) |
| Signal Output | Blue/White stripe | Violet/Red stripe | Blue (alternative lighting) |
| Sensor Input | Green/Yellow stripe | Gray/White stripe | Yellow (diagnostic line) |
Tinning stranded ends prevents oxidation, but overheating during soldering melts adjacent insulation–use a heat sink clip between the connection point and the plastic jacket. Secure every splice with adhesive-lined shrink tubing; ordinary tubing slides off under vibration, exposing copper to moisture ingress. Label each conductor at both ends with the function and connector pin number–generic tags (e.g., “wire 1”) lead to miswiring during future maintenance.
Aftermarket harness adaptors frequently delete the diode network that prevents voltage spikes from damaging the control unit–install a 1N4007 diode between the output lead and ground if the original suppressor is missing. Probe all suspected loose connections with a logic pulser instead of a test light; test lights mask high-resistance faults that a pulser reveals clearly.
Incorrect gauge selection is a frequent pitfall–20 AWG is sufficient for signal paths, but 14 AWG is mandatory for power feeds rated above 10 A; undersized conductors overheat, tripping thermal fuses unpredictably. Route power cables away from CAN bus communication lines; induced noise disrupts communication heartbeat signals, setting false diagnostic trouble codes.
Always disconnect the vehicle battery negative terminal before servicing any electrical junction–skipping this step risks shorting the 12 V bus through grounded tools, damaging fuses and microprocessors. Reconnect ground last, after verifying every circuit path with an ohmmeter; gradual voltage recovery prevents destructive inrush currents.
