Complete Foxbody Mustang Wiring Diagram Schematic Guide 1979-1993

Start with the main fuse block under the driver-side dash–pin 1 feeds constant 12V to the ignition switch. Trace the red/pink wire through the firewall grommet to the starter solenoid before moving to critical components. Without verifying this primary circuit first, troubleshooting downstream connections wastes time.

Heater blower control relies on three relays: low, medium, and high. Locate each relay next to the blower motor under the glove box. The brown/white stripe wire connects all relay coils to pin 85; confirm resistance under 0.5 ohms between this point and ground. Failed continuity here explains intermittent fan failures.

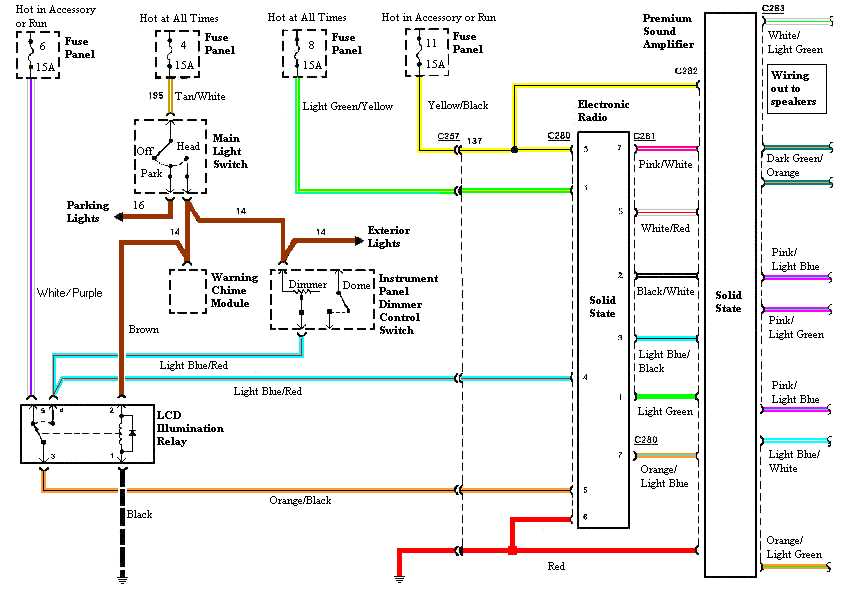

Instrument cluster illumination depends on the dimmer switch and trace-orange wire. Disconnect the headlight switch before testing; probe the trace-orange pin on the printed circuit board. Voltage should vary between 0-12V when rotating the dimmer. No change indicates a corroded rheostat or broken orange/black wire inside the steering column.

Power door locks require two-door actuators and the inline fuse (10A) behind the kick panel. Each actuator draws 3-5 amps during operation–exceeding this suggests binding linkage or shorted brown/purple wires inside the door jamb. Test actuator function before reattaching trim panels.

Fuel pump relay activation depends on the inertia switch and ECU trigger. Bypass the relay by jumping pin 30 to pin 87 if the pump won’t prime; listen for pump whine at the rear quarter panel. Silent operation means a failed pump or severed gray/yellow wire between the relay and tank.

Cooling fan engagement hinges on the engine coolant temperature sender (tan/orange wire). Probe the sender plug with the ignition on; 4.5V at 180°F triggers fan relay closure. Substituting a 10K resistor replicates full temperature signal for testing. Persistent fan cycling reveals a faulty relay or melted gray wire insulation near the hood latch.

Air conditioning compressor clutch draws 6-8 amps continuously; fuse F6 (25A) protects this circuit. Verify clutch coil resistance (2.5-3.5 ohms) first–lower readings indicate internal shorts. Excessive current trips F6, overheating the light-green/orange wire inside the main harness conduit.

Decoding the Electrical Blueprint for 1979–1993 Mustang Chassis

Start by isolating the fuse block harness–pins 14 and 18 on the main connector feed power to the instrument cluster and rear lighting circuits. Use a multimeter to verify continuity between these pins and the corresponding terminals on the bulkhead plug (C201 for coupe, C202 for hatchback). A common failure point is the brown/white stripe wire (ground return for dash gauges), which often corrodes near the firewall grommet. Splicing in a new 16-gauge copper segment with heat-shrink butt connectors restores reliability without risking voltage drop.

Trace the door ajar switch wiring (light blue/orange stripe for driver, dark green/orange for passenger) to their termination at the generic electronic module (GEM). If the system throws a code 54 or 63, probe the wiring at the door hinge pillar–resistance should read below 2 ohms. Replace the switch if readings fluctuate or exceed this threshold. The GEM also controls the intermittent wiper function via a separate grey/red wire; a failing relay often mimics a short here, so swap the relay with a known-good unit before diagnosing further.

Critical Ground Points and Common Failures

Three primary grounds–G100 (left fender apron), G200 (beneath the driver’s seat), and G300 (passenger kick panel)–handle the majority of the electrical load. Corrosion here manifests as dim headlights, erratic gauge behavior, or no-start conditions. Clean each ground stud with a wire brush, apply dielectric grease, and secure with a new 10mm fastener. The G200 location, often overlooked, is responsible for the fuel pump circuit; if the pump primes but stalls, inspect this ground first before suspecting the inertia switch.

For the HVAC controls, the blend door actuator relies on a pink/yellow wire for vacuum signal. If the system defaults to defrost-only mode, backprobe the actuator connector with a vacuum pump–if the door moves, the issue lies upstream in the vacuum reservoir or check valves. Replace the vacuum lines in sections, starting with the brittle 5/32-inch diameter lines between the reservoir and firewall. The A/C clutch circuit (dark green/red wire) also ties into the GEM; verify the 15-amp fuse (labeled “A/C Clutch”) before condemning the compressor.

The rear defroster grid connects via two thick red wires at the package tray (C101 connector). If portions of the grid remain cold, test each segment with a 12V test light–an open circuit requires stripping back the vinyl and re-soldering the broken trace with conductive epoxy. The defroster timer module, mounted behind the glovebox, often fails; bypass it temporarily by jumping the relay socket (terminals 85 and 86) to confirm before sourcing a replacement.

Advanced Diagnostics for Intermittent Issues

Intermittent turn signal failures typically stem from the flasher relay (mounted near the fuse block) or a poor ground at the steering column (brown wire, S105 junction). Replace the relay first; if the issue persists, toggle the hazard switch while monitoring voltage at the brake switch–if the signals drop out during engagement, the hazard switch contacts are worn and require replacement. For radio static, focus on the antenna coaxial cable: the shield must bond to the chassis at both ends (radio chassis and fender mount). A broken shield strands noise into the audio signal; solder a new ground strap to the antenna base for immediate improvement.

Finding Primary Electrical Connector Points in Early Mustang Models

Begin under the dashboard on the driver’s side–directly above the pedals. The main harness splits into two bulky plastic plugs: a 22-pin black connector (instrument cluster) and an adjacent 18-pin grey plug (fuse block interface). Both are secured by single Phillips screws; remove them before attempting to disconnect.

The power distribution box sits behind the battery tray. A single oval-shaped connector, typically dark blue, links the harness to the relay panel. Trace the cables forward; the same bundle branches to the engine bay at the firewall grommet near the brake master cylinder.

Key Engine Bay Junctions

Look for a rectangular green connector under the cowl, left of the windshield washer reservoir–this bridges interior circuits to the front lighting cluster. Nearby, a purple 6-pin plug connects the ignition module; corrosion here often disrupts starting. Further right, a grey 8-way bullet connector joins the fuel pump circuit.

Behind the alternator, a lone red 4-pin connector interfaces with the voltage regulator. Disconnecting requires squeezing the locking tab inward while pulling straight back; twisting risks breaking the housing. Label each before separation to prevent misconnection during reassembly.

Check beneath the passenger-side fender liner. A secondary bundle exits the main harness here, branching to the rear via a white 12-pin plug (tail lights) and a smaller yellow 5-pin (trunk release). Both pass through a split loom–damage to this section frequently causes intermittent taillight failures.

Step-by-Step Guide to Decoding Mustang II Electrical Color Standards

Locate the main harness connectors first–typically beneath the dashboard or near the firewall. Ford’s 1979–1993 models use a dual-stripe system: a base color (primary) with a secondary stripe indicating function. For example, Y/LG (yellow with light green stripe) identifies the ignition feed wire, while BK/P (black with purple stripe) signals a ground circuit with a switched accessory role.

Refer to the vehicle’s service manual for specific pinouts, as color assignments vary between years. A 1987 model’s instrument cluster might use O/LB (orange with light blue stripe) for the fuel gauge sender, whereas a 1993 version replaces it with GY/Y (gray with yellow stripe). Always cross-check with a multimeter: set to continuity mode and probe both ends of the wire to confirm its path before splicing.

Common Mistakes to Avoid

• Assuming consistency across trims: An LX’s engine harness differs from a GT’s–verify the build sheet or door jamb sticker for exact options.
• Ignoring faded stripes: Older harnesses may have discolored stripes; use a flashlight and magnifier to distinguish DG/W (dark green/white) from LG/W (light green/white).
• Overlooking splice points: Factory splices near the fuse box or steering column often group related circuits–trace these carefully to avoid misdiagnosing shorts.

For engine sensors, prioritize T/R (tan/red) for the TPS input or R/Y (red/yellow) for the coolant temp sender. Turbo models add complexity: DB/Y (dark blue/yellow) handles the wastegate solenoid, while naturally aspirated versions omit this entirely. Label every wire with masking tape during disassembly–this prevents hours of retracing later.

Tools for Accurate Verification

1. Digital multimeter: Measure voltage (DC) at connectors; 12V at PK/LG (pink/light green) confirms the fuel pump relay output.
2. Power probe: Inject current into suspect circuits to isolate opens or high-resistance faults.
3. Oscilloscope: Capture waveforms on DB/O (dark blue/orange) to diagnose intermittent ABS signal issues.

Document every finding. Sketch a simplified map of connectors (e.g., C200 under the dash) with exact pin locations–Ford’s numbering starts at the top left of each connector when viewed from the wire side. For projects involving aftermarket parts, match colors precisely: substituting BR/W (brown/white) for a W/BK (white/black) sensor wire will trigger engine codes.
