How to Read and Understand Electrical Circuit Diagrams Step by Step

Start with the power rails. Locate the battery symbol (a long and short parallel line) or ground reference (three descending lines). Trace these first–every component connects back to them. Mistaking +5V for +12V in a PCB layout can fry microcontrollers, so label each rail clearly before proceeding.

Identify passive components immediately: resistors (zigzag lines), capacitors (two parallel lines), and inductors (curved loops). Resistors regulate current; check their values in ohms (Ω) or kilohms (kΩ). Capacitors store charge–polarized types (marked with a curved line) must align with positive voltage. Inductors oppose current changes; their Henry (H) values rarely exceed millihenries (mH) in small designs.

Learn semiconductor symbols cold. Diodes (triangle with a line) allow current in one direction–cathode (marked with a stripe) points toward ground. Transistors come in NPN/PNP (three-layer symbols); the arrow indicates emitter direction. For ICs (rectangles with numbered pins), consult datasheets–pin 1 is often marked with a dot or notch, and incorrect orientation burns silicon.

Map connections with net labels. Lines crossing without a dot are not connected–junction dots confirm electrical contact. In complex layouts, nets labeled “VCC” or “GND” reduce clutter. Use a multimeter’s continuity mode to verify connections before soldering; misread schematics waste hours debugging.

Master common conventions. Switches toggle between open/closed states. Relays (coil with contacts) separate high-voltage from logic circuits. Transformers (two coils) isolate AC circuits–polarity matters for winding direction. Crystal oscillators (XO symbols) drive clock signals; incorrect loading capacitance (typically 10-30pF) causes unstable frequencies.

Reverse-engineer existing hardware by annotating schematics. Draw unknown symbols as black boxes with labeled pins first, then research functions later. For SMD components, note package types (e.g., SOIC, TSSOP) to cross-reference with datasheets. Debugging requires a systematic approach: divide the schematic into functional blocks (power, control, output) and test each sequentially.

Avoid assumptions. A “NC” pin on an IC means no connect, not “normally closed.” Ground symbols vary–three descending lines imply chassis ground, while a single line is signal ground. Differential pairs (e.g., USB, Ethernet) require twisted pairs with matched impedance (typically 90-100Ω). When in doubt, probe with an oscilloscope to confirm signal integrity before trusting theoretical designs.

Reading Electrical Schematics Like a Pro

Begin by scanning the entire layout to identify power sources, such as batteries or AC inputs, and trace their connections to loads like resistors, LEDs, or motors. Look for standard symbols–zigzag lines for resistors, parallel lines for capacitors, and circles with crosshairs for transistors–to quickly map functionality. Mistaking a ground symbol (three descending lines) for a chassis connection (a single line with a bar) can lead to miswiring, so verify each symbol against a reference sheet.

Highlight signal paths in a different color to distinguish them from power rails. For instance, a microcontroller’s data lines (often labeled SDA, SCL, MOSI, or MISO) should stand out against VCC and GND traces. In complex designs, use separate markers for analog, digital, and high-frequency lanes to avoid interference. If a trace splits into multiple branches, follow each path to its endpoint–missing a single component can disrupt the entire system.

Key Symbols and Their Pitfalls

• Switches: A break in the line indicates an open switch; a dot shows a closed one. Polarized switches (like MOSFETs) require correct orientation–reversing them can fry components.
• Diodes: The arrow points against conventional current flow. Placing a diode backward in a clamp circuit will block voltage instead of preventing backflow.
• ICs: Pin numbers are usually marked counterclockwise from the top-left notch. Confusing pin 1 (often VCC or a signal pin) with pin 8 (commonly ground) risks short circuits.
• Transformers: The primary coil has thicker lines or more turns; mismatching primary/secondary ratios leads to incorrect voltage output.

Annotate every component with its value and tolerance directly on the schematic–e.g., “R3: 10kΩ ±1%”–to avoid constant cross-referencing. For ICs, note the part number (e.g., LM358 vs. LM741) as similar symbols may represent entirely different behaviors. If a value is missing, measure or calculate it: voltage dividers divide by resistance ratios, while RC circuits’ time constants depend on combined capacitance and resistance.

Check for hidden connections under components like surface-mount devices or layered PCBs. Multimeter continuity tests can confirm if vias (small drilled holes) connect traces between layers. False positives occur with solder bridges–inspect visually under magnification. In double-sided boards, ensure top and bottom traces don’t unintentionally overlap without isolation.

Tracing Common Troubleshooting Scenarios

1. Unexpected voltage drops: Look for resistive elements (e.g., corroded connectors, thin traces) causing IR losses. Measure voltage at each node; a drop >0.1V between expected points flags a problem.
2. No output from a node: Verify the preceding stage has power–e.g., a transistor’s base needs ~0.7V to switch. Use an oscilloscope to check for AC signals masked by DC offsets.
3. Overheating components: Thermally stress-tested parts (datasheet’s “max junction temp”) may have inadequate heatsinks or improper cooling. Replace with higher-rated versions or redesign airflow paths.
4. Intermittent faults: Probe suspected connections while gently wiggling them; mechanical stress (e.g., flexing a PCB) often reveals solder cracks or loose connectors.

Cross-reference the schematic with the physical board by marking each verified trace with a highlighter. Discrepancies often appear in silkscreen errors–e.g., a resistor labeled “R10” might physically be “R12.” For modular designs, label connectors (e.g., “J1: UART to USB”) to simplify testing isolated sections. Document any modifications (e.g., removed components, added jumpers) in an updated version of the schematic to preserve accuracy.

Simulate critical paths before physical assembly using tools like LTspice or Proteus. Input expected voltages and measure outputs–e.g., confirm a 5V regulator outputs 5V despite input fluctuations. For high-frequency designs, verify impedance matching (e.g., 50Ω for RF traces) to prevent signal reflections. If simulation differs from real-world behavior, recheck component models and parasitic values (e.g., trace inductance).

Recognizing Standard Schematic Symbols and Their Roles

Memorize these core symbols first–they appear in nearly every electronic layout. A straight horizontal line represents a conducting path (wire). A break in the line with two dots marks a switch, defining whether current flows or stops. A zigzag path is a resistor, restricting current to a precise value measured in ohms. A solid bar with one curved side denotes a capacitor, storing charge and smoothing voltage fluctuations.

Power and Ground Icons

• A downward-pointing triangle is ground, the common reference point set to 0 V.
• A long line above a short horizontal line signifies a battery, indicating DC voltage (long line = positive terminal).
• Two intersecting lines with a filled circle at the junction show a connection, linking two wires without interruption.
• Three parallel semi-circles stacked vertically represent an inductor, generating magnetic fields when current passes.

Identify semiconductors swiftly. A triangle with a line perpendicular to its apex is an NPN transistor. Flip the triangle orientation for a PNP transistor. A diode appears as a triangle pressed against a line–current flows only from triangle base to line. Four connected diodes form a bridge rectifier, converting AC to DC. An oval with diagonal lines marks a lamp; count the filaments inside to identify bulb wattage.

Learn integrated components as units. An amplifier symbol resembles a triangle with a curved back edge–output at the point, inputs on the flat side. Seven-segment displays show a rectangle segmented into seven bars (A–G). A microcontroller appears as a box with multiple parallel pins, each labeled. Logic gates: a half-circle for OR, a flat edge for AND, a curved notch for NOT. Physical pin numbers or signal names usually accompany each symbol.

1. Scan any unfamiliar schematic left to right–power symbols cluster at the top.
2. Highlight signal paths in red for input, blue for output to avoid confusion.
3. Check resistor color codes: black=0, brown=1, red=2, orange=3, yellow=4, green=5, blue=6, violet=7, gray=8, white=9.
4. Cross-reference symbols with component datasheets to confirm exact functions.
5. Print a quick-reference cheat sheet; laminate it for bench work.

Step-by-Step Method to Trace Current Flow in a Schematic

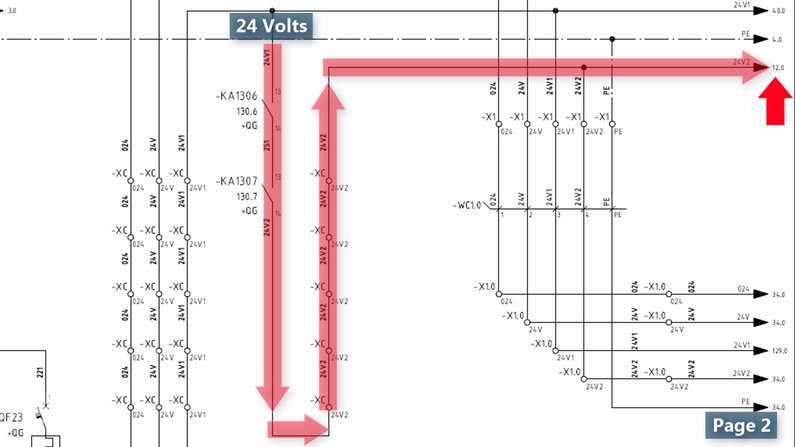

Begin at the power source–identify the positive terminal and mark its path with a highlighter or pen. Follow the conductive lines strictly, treating junctions as decision points: split the trace if the path branches, prioritizing direct continuity over parallel routes. If encountering resistors, capacitors, or inductors, note their symbolic labels (e.g., “R1,” “C2”) but proceed without pausing–components do not block flow unless explicitly broken.

Handling Components and Loops

At each component, verify its role in the path. For resistors, confirm the flow direction aligns with the schematic’s intended design; current exits the opposite terminal. For diodes, ensure the arrow’s direction matches the trace–reverse bias halts progress. In feedback loops or oscillators, trace the primary path first, then backtrack to secondary branches. Ground symbols act as endpoints; terminate the trace when reaching them.

Cross-reference each step with the schematic’s legend. If ambiguity arises–such as unlabeled switches or integrated blocks–isolate the subcircuit and trace internally before reintegrating. Document every deviation (e.g., “Current splits at node X; 60% through R3, 40% through Q1”) to avoid revisiting dead ends. The goal is a continuous line from source to ground or load, with all detours accounted for and validated against component datasheets.
