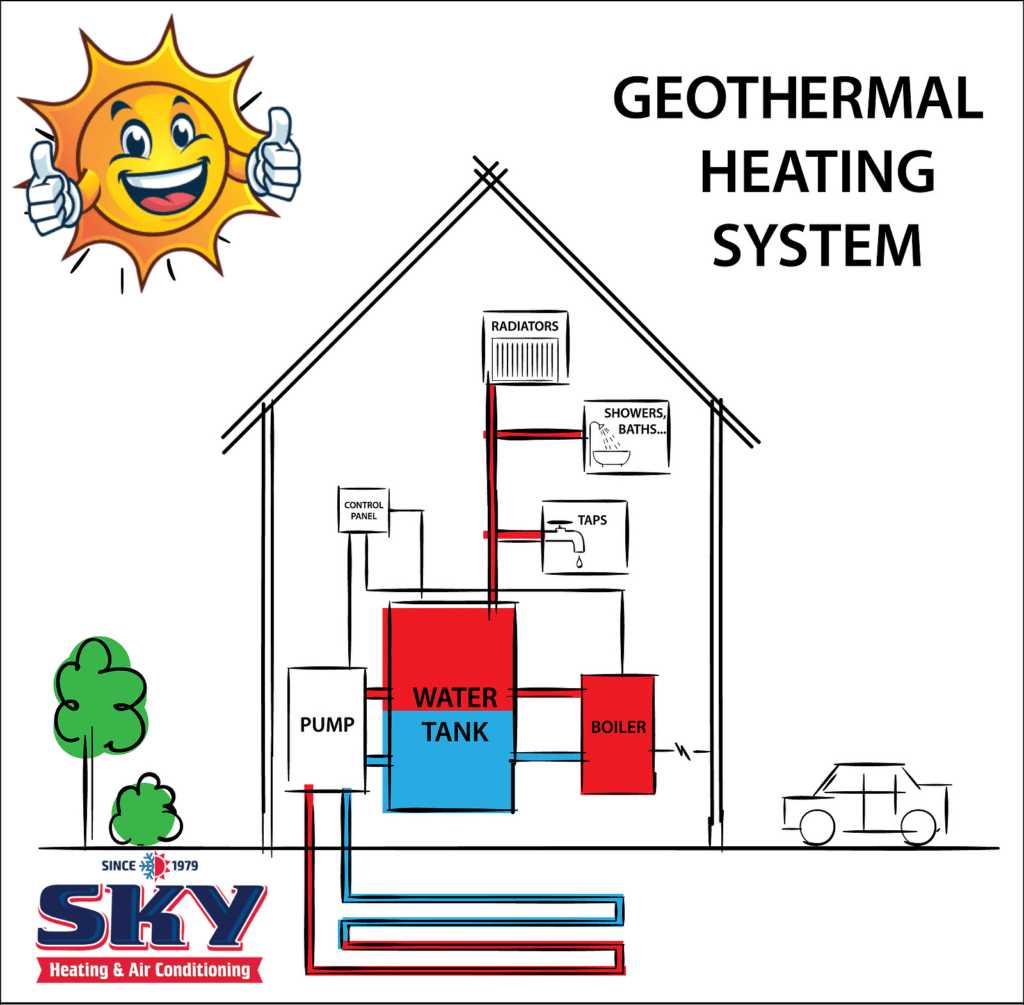

Understanding Geothermal Heat Pump Schematic Diagrams and Their Components

Start with a closed-loop vertical arrangement for properties under 0.5 acres–drill boreholes 150–300 ft deep, spaced 20 ft apart. Use high-density polyethylene (HDPE) pipes (SDR 11) filled with a 20% propylene glycol-water mix. Connect U-bends at each borehole base, then pair loops in series-parallel configurations to balance pressure drops under 10 psi. Avoid sharp bends; maintain a minimum radius of 18 inches to reduce turbulence and prevent long-term pipe fatigue. Ground temperatures between 45–65°F yield optimal efficiency–map local thermal gradients before drilling.

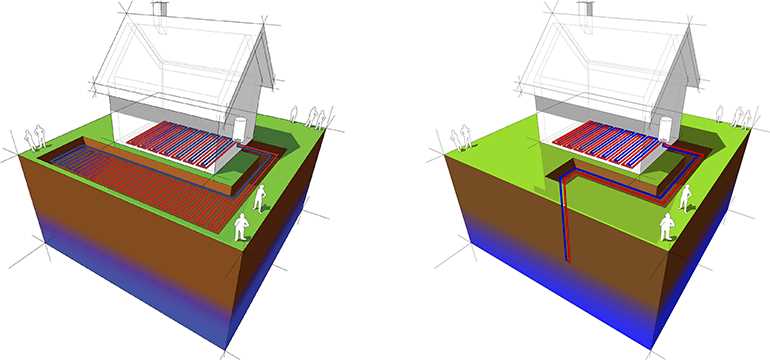

Horizontal trench layouts require 400–600 ft of pipe per ton of capacity, buried 6–8 ft underground. Space trenches 6 ft apart to prevent thermal interference. For slinky coil designs, overlap loops by 30% to maximize surface area; use ¾-inch pipes for better fluid dynamics. Testing soil conductivity (target: 1.0–2.5 Btu/hr·ft·°F) determines loop length adjustments. Always include isolation valves at main headers to enable system purging and flow rate tuning–target 2.5–3.0 gallons per minute (gpm) per ton for consistent heat transfer.

Open-loop setups demand iron removal filters upstream of the exchanger if groundwater iron exceeds 3 parts per million. Position the discharge reinjection well at least 100 ft downgradient of the extraction well to avoid thermal feedback. Use titanium plate-and-frame exchangers for saline or corrosive aquifers–design pressure drops below 5 psi to minimize pumping energy. Include temperature sensors at inlet/outlet ports and a bypass valve to modulate flow under freezing conditions. Verify well casing integrity annually to prevent cross-contamination.

For hybrid solar-assisted designs, size the auxiliary collector array to cover 30–40% of peak demand. Match solar thermal panel angles to latitude ±15° for year-round efficiency. Install a buffer tank (minimum 1.5 gallons per sq ft of collector area) to smooth load fluctuations. Connect pumps with variable-frequency drives (VFDs) to throttle speed during off-peak hours, reducing electrical consumption by 20–30%. Ground-source loops should integrate pressure relief valves set at 75% of pipe burst pressure and thermal expansion tanks sized to 10% of system volume.

Underground Energy Exchange System Layout

Position the ground loop at least 1.2 meters below frost line to prevent thermal interference from surface conditions. For horizontal loops in trenches, maintain 0.6–1 meter spacing between pipes to avoid heat transfer bottlenecks. Vertical boreholes should be drilled 50–200 meters deep, depending on soil conductivity–clay retains temperature better than sandy or rocky substrates, reducing required depth by up to 30%. Connect supply and return headers with reverse-return piping to balance flow rates across loops, ensuring uniform energy extraction.

Size the refrigerant circuit for 3–5 kW per ton of thermal capacity, using R-410A or R-32 with a 30–50 bar pressure rating. The compressor should operate at 40–60% of its maximum load during peak demand to extend lifespan–variable-speed scroll compressors achieve this with 20% higher efficiency than fixed-speed models. Install a heat exchanger with a 0.3–0.5°C temperature approach to minimize energy loss; plate exchangers outperform shell-and-tube types in residential setups due to their compact footprint and lower pressure drop.

Key Components and Their Optimal Configuration

• Expansion Valve: Use electronic valves for precise control, adjusting refrigerant flow based on 4–20 mA signals from evaporator outlet sensors. Thermostatic valves work but require manual adjustments for seasonal changes.
• Ground Loop Antifreeze: Propylene glycol solutions (20–30% concentration) prevent freezing down to -15°C, but increase viscosity by 25% compared to water, requiring larger pumps. Ethanol blends reduce viscosity but pose fire risks in closed systems.
• Pumps: Select circulators with a 0.7–1.2 m³/h flow rate per kW of system capacity. ECM motors reduce power consumption by 40% over PSC motors; pair with differential pressure sensors to maintain 1–1.5 bar across loops.
• Buffer Tank: Add a 20–50 liter tank for systems under 8 kW to prevent short cycling. Place it between the exchanger and distribution circuits, with stratification ports to separate high/low-temperature zones.

Integrate defrost controls on air-source coils if hybrid designs incorporate them–set defrost cycles to trigger at -3°C air temperature and terminate at +2°C to avoid energy waste. For radiant floor systems, limit supply water temperature to 35–40°C to prevent pipe degradation; forced-air systems allow 45–55°C but reduce efficiency by 15% due to heat stratification. Use PEX tubing with oxygen barriers in ground loops to prevent corrosion–copper is viable but risks scaling in high-mineral areas, requiring descaling flushes every 3–5 years.

Monitor performance with sensors placed at these critical points: loop inlet/outlet (±0.1°C accuracy), compressor suction/discharge (±1 psi), and building load return. Log data at 5-minute intervals to detect efficiency drops–an unbalanced loop often shows >3°C differential between supply and return. For diagnostics, prioritize checking refrigerant charge first (target ±5% of manufacturer spec), followed by flow rates (verify pump curves against fluid viscosity), and finally ground loop thermal resistance (use TRT tests for boreholes).

Key Components of an Earth-Coupled Thermal Exchange System Layout

Begin with a closed-loop ground array buried horizontally at least 1.5–2 meters deep or vertically in boreholes reaching 50–150 meters, depending on soil conductivity and local climate zones. Use high-density polyethylene (HDPE) pipes with a minimum SDR 11 rating to prevent thermal shortcuts and ensure 25-year durability under constant pressure cycles. Circulate a 20–30% propylene glycol solution to maintain a freezing point below -10°C in colder regions, adjusting concentration based on the lowest historical temperature recorded in the installation area.

Install a desuperheater between the compressor discharge and the condenser coil to recover excess energy during peak operational cycles. This device preheats domestic water to 50–60°C, reducing conventional water heating loads by up to 60%. Ensure the desuperheater is fitted with a bypass valve to maintain system efficiency when space conditioning takes priority over water heating demands.

Select a scroll compressor with a variable-speed drive to modulate capacity between 30% and 100%, reducing on-off cycling that degrades lubricants and shortens equipment lifespan. Position the compressor in a sound-dampening enclosure lined with 25 mm acoustic foam to keep operational noise below 55 dBA at 1 meter distance, complying with residential zone regulations.

Size the refrigerant-to-water plate heat exchanger for a 5–10°C approach temperature to maximize energy transfer without excessive pressure drops. Opt for brazed-plate designs with stainless steel AISI 316 surfaces to resist corrosion from glycol mixtures and dissolved minerals. Include a differential pressure sensor across the exchanger to trigger defrost cycles if ice formation is detected during reverse-cycle operations.

Ground-Side and Load-Side Circulation

Pair each loop circuit with a dual-stage circulator pump equipped with permanent magnet motors drawing less than 45W per ton of nominal capacity. Use ECM-driven pumps that adjust flow rates in 10% increments, synchronizing with outdoor reset controls to maintain delta-T between supply and return within 2–4°C. Install isolation valves and pressure gauges at the entry and exit points of every circuit to facilitate seasonal balancing and leak detection without system shutdown.

Integrate a buffer tank with a minimum volume of 10 liters per kilowatt of heating capacity to stabilize fluid temperatures during defrost or compressor staging. Locate the tank downstream of the evaporator coil to absorb thermal shock and prevent short-cycling. Equip the tank with a top-mounted air separator to vent microbubbles that impair pump performance and accelerate copper oxidation in the distribution network.

Deploy outdoor reset controls that adjust the leaving water temperature based on atmospheric conditions, reducing supply temperatures by 0.5°C for every 1°C rise in outdoor air above a pre-set balance point (typically 18°C). Link these controls to a zone manager that prioritizes critical loads during low-demand periods, such as maintaining underfloor radiant circuits at 35°C while allowing fan coils to modulate between 30–45°C.

Incorporate a fully modulating electronic expansion valve with a step resolution of 0.5% to regulate refrigerant flow dynamically, achieving superheat targets within ±1°C. Position temperature and pressure transducers immediately upstream and downstream of the valve to provide real-time feedback to the central controller, eliminating hysteresis loops that compromise efficiency. Validate sensor placement with thermal imaging scans during commissioning to confirm uniform heat distribution across the valve body.

Step-by-Step Ground Loop Installation for Residential Setups

Begin by drilling boreholes to a depth of 150–200 feet per ton of system capacity, spacing them at least 15 feet apart to prevent thermal interference. Use ¾-inch high-density polyethylene (HDPE) piping with a minimum SDR-11 rating for durability; fusion-weld joints with a socket or butt fusion tool to ensure leak-proof connections. Backfill the boreholes with thermally enhanced grout (e.g., bentonite with silica sand, 2.0–2.5 W/m·K conductivity) to maximize heat transfer–avoid air gaps, which reduce efficiency by up to 30%. For horizontal loops, trench at least 6 feet deep in trenches 4–6 feet wide, laying pipe in a series (straight runs) or parallel (slinky coils) configuration; maintain a minimum 2-foot vertical separation between pipe layers to prevent cross-contamination of temperatures.

Critical Installation Parameters

Parameter	Recommended Value	Tolerance	Rationale
Loop pipe diameter	¾”–1¼” (HDPE)	±10% flow variance	Balances pressure drop and thermal mass
Antifreeze mixture	20–30% propylene glycol	±5% concentration	Prevents freezing below -10°F
Circulation pump head	5–7 psi per 100 ft of pipe	±1 psi	Avoids laminar flow, ensures turbulent transfer
Thermal grout conductivity	>1.8 W/m·K	±0.2 W/m·K	Offsets borehole resistance

Pressure-test the loop at 1.5× operating pressure (typically 100 psi) for 2 hours–drops exceeding 5 psi indicate leaks requiring immediate repair. Purge air from the system using a dedicated flushing kit to avoid airlocks, which can degrade performance by 15–20%. Connect the loop to the indoor unit via insulated copper lines (½” for refrigerant, ¾” for water), ensuring proper slope (1/4″ per foot) to prevent vapor lock in vertical risers. Commission the system by verifying flow rates (2–3 gpm per ton) and delta-T (8–12°F for optimal efficiency).
