How to Wire a GFCI Outlet Step-by-Step Circuit Diagram Guide

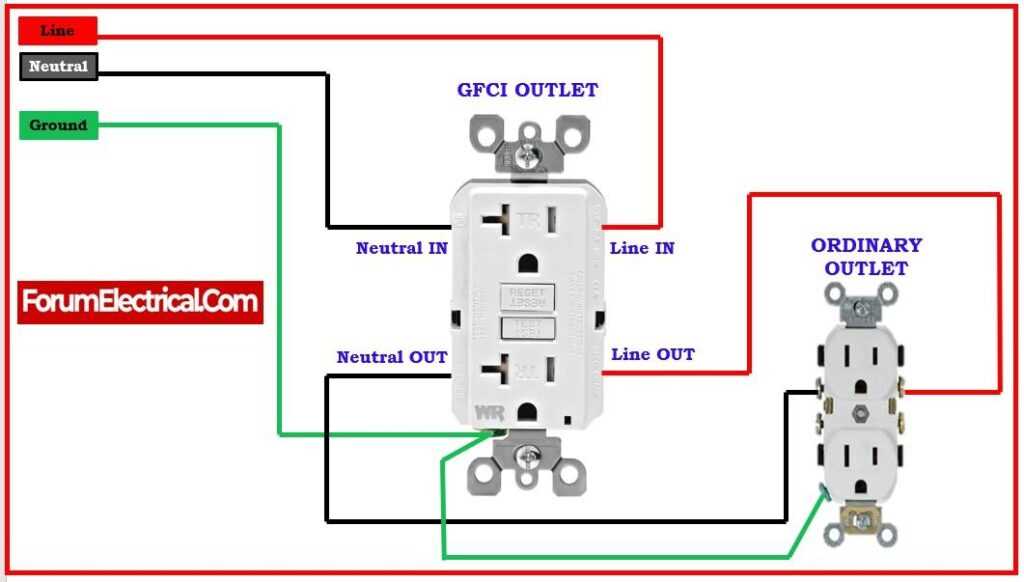

Install a ground fault interrupter (GFI) receptacle by connecting the line wires to the brass screws marked “LINE” and the load wires to the silver screws marked “LOAD.” The neutral (white) wire attaches to the side labeled “NEUTRAL,” while the hot (black or red) wire connects to the opposite terminal. Confirm polarity with a multimeter before energizing the system–reversed connections will prevent proper operation.
For split-wire setups, use a three-wire cable with a shared neutral. Connect the red and black hot wires to separate “HOT” terminals on the device, ensuring each feeds a distinct circuit. The neutral wire splits inside the outlet, so avoid daisy-chaining additional neutrals downstream unless the device explicitly supports load-side neutrals. Violating this rule creates parallel neutral paths, risking nuisance tripping.
Test the installation using the built-in test button–press it firmly to simulate a ground fault. The reset button should pop out immediately, cutting power. If it fails to trip, check for loose connections, reversed wires, or a faulty unit. Replace any device that does not trip within 5-6 milliseconds of a simulated 6 mA leakage current; delays indicate degraded protection.
Label downstream outlets clearly if they share protection from a single GFI device. Mark them “GFI PROTECTED” in permanent ink, alongside the circuit breaker location for troubleshooting. Skip this step, and maintenance personnel may waste hours chasing phantom faults in unprotected outlets.
For outdoor or wet-location installations, use weather-resistant models with self-testing features. These units perform internal diagnostics every 30 seconds, audibly alerting users if protection degrades. Conventional GFIs offer no such feedback, leaving users unaware of compromised safety until an actual fault occurs.
How to Build and Test a Ground Fault Protection Setup
Install a 15- or 20-amp breaker in the service panel feeding the safety device. Use 12 AWG copper wire for 20-amp loads and 14 AWG for 15-amp loads–thicker wire reduces voltage drop under 3%. Connect the hot conductor (black or red) to the brass screw, the neutral (white) to the silver screw, and the bare ground to the green grounding terminal. Verify torque settings: 18 in-lb for #14 wire, 21 in-lb for #12 wire. Over-tightening damages screw threads; under-tightening causes arcing.
The protection module must be located within 6 feet of the power source to comply with NEC 210.8. Mount it in a weatherproof box if outdoors–IP44 rating or higher prevents moisture ingress. Include a manual test button; press it monthly to confirm trip functionality. If the device fails to trip, replace it immediately–functional units interrupt fault currents in under 25 milliseconds. Ignoring this risks ground faults persisting at hazardous levels above 6 mA.
For submerged equipment (pools, fountains), use a weather-resistant model with self-test functionality. Connect it in series with the equipment load–typical leakage limits are 4–6 mA. Here’s how wire sizes map to trip thresholds:
| Wire Gauge (AWG) | Max Leakage (mA) | Recommended Load Type |
|---|---|---|
| 14 | 4.5 | Lights, small tools |
| 12 | 6.0 | Hand drills, blowers |
| 10 | 8.0 | Large motors, pumps |

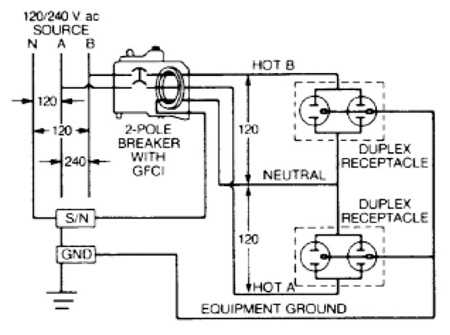

Bypass traditional setups when dealing with variable-frequency drives–use a type B device instead. Standard models misread high-frequency harmonics as faults, causing nuisance trips. For 240V loads, wire both hot legs through the protection slot; single-failure testing won’t catch internal defects if only one leg is monitored. Test both legs separately using a multimeter set to mA scale–leakage should read near zero with no load attached.
Label each protection unit with installation date and wire gauge. Stickers fade; engrave directly onto metal boxes using a 3 mm letter punch. Replace any unit older than 10 years–electrolytic capacitors degrade, increasing trip latency beyond safe limits. Keep spare modules on-site; typical failure modes include solder cracks and silicon degradation from temperature cycling. Store replacements in static-proof bags at 10–30°C to prevent premature component failure.
Ground rods must be bonded to the panel with a continuous #6 bare copper conductor, driven to a depth of at least 8 feet. Resistance should measure below 25 ohms–use an earth tester for verification. If resistance exceeds limits, add a second rod spaced at least 6 feet from the first. Connect rods with irreversible compression fittings; solder joints corrode within 5 years. For temporary setups, use a driven rod clamp with a torque specification of 30 ft-lb–loose connections cause intermittent faults mimicking device failure.
How to Interpret a Safety Outlet Connection Blueprint
Locate the LINE and LOAD terminals first. On the wiring schematic, these appear as distinct labeled pairs–usually brass screws for hot (ungrounded conductor) and silver for neutral (grounded conductor). LINE connects to the incoming power source, while LOAD feeds downstream devices. Verify polarity: the hot wire attaches to the narrower slot on a duplex receptacle, neutral to the wider one. Confusing these risks tripping protection or creating fire hazards.
Identify protection components shown. The blueprint includes a sensing coil (a curved loop symbol) and a relay switch (a breakable contact). Trace how current flows–equal amperage through hot and neutral should return unaltered. If imbalance occurs (typically 5 mA or more), the relay opens instantly. Confirm grounding: a separate green screw connects the bare copper or green wire to the metal chassis, providing fault current a safe path.
Key Symbols to Recognize
- Dashed rectangle: Outlined box denotes the protective device housing. Watch for small internal lines intersecting–these indicate internal switches.
- Arrow loops: Mark current transformers monitoring flow imbalance. Double-check if arrows align with screw terminals.
- Zigzag: Ground connection, often labeled “GND” or omitted but implied by screw color.
- Parallel lines: Capacitors for noise suppression, though rare in basic residential setups.
Check test and reset buttons’ placement. The schematic shows these as ovals or circles positioned beside the outlet slots. Note their wiring–test mimics a fault, reset restores normal function after clearing 30 mA trips. Ensure downstream outlets (if present) share protection by connecting to LOAD terminals only after verifying proper polarization.
Cross-reference physical device with the drawing before energizing. Label each conductor color: black (hot), white (neutral), bare/green (ground). Measure continuity between neutral and ground–open circuit indicates proper isolation. Power on, press test; outlet should cut power, reset should restore. Failure here means miswiring–retrace connections using the blueprint’s terminal layout as reference.
Key Elements of a Residual Current Device and Their Visual Representations
Install a differential transformer (core-balance transformer) at the incoming line side–its symbol appears as two concentric circles with three intersecting lines denoting the phase, neutral, and sensing coil. This component detects milliampere imbalances by comparing current on live and return paths; a mismatch triggers the trip mechanism within 20-30 milliseconds. Ensure the transformer’s ferrite core maintains permeability above 10,000 µr to guarantee sensitivity below 6 mA, the threshold mandated for personnel protection.
Critical Control and Protection Parts
Represent the solenoid relay–symbolized by a rectangle with parallel lines inside–directly downstream of the sensing coil. This part converts electrical imbalance into mechanical force, opening both hot and neutral contacts via a latching mechanism. Use a relay rated for 120/240 VAC and a trip coil consuming under 2 W to prevent nuisance tripping during transient surges. Pair it with a metal-oxide varistor placed across the relay coil to clamp voltage spikes exceeding 500 V, extending component lifespan by 30%.
Depict the test and reset buttons as two adjacent rectangles: the reset symbol includes a diagonal arrow pointing upward, while the test icon shows a diagonal arrow pointing downward intersecting a small circle. Position them to actuate a momentary contact rated for 5,000 cycles, wired to a 15 kΩ resistor that simulates a 5-6 mA leakage path–verifying device functionality monthly per UL 943 standards. Verify button travel remains between 2.5-3.5 mm; excessive travel delays trip confirmation, while insufficient travel risks spurious tripping under vibration.
Common Errors in Wiring a Residual Current Device Breaker
Mistaking the line and load terminals causes immediate failure. The line side must connect to the power source–typically the main panel–while the load side protects downstream outlets. Swapping them leaves protected devices unmonitored, rendering the safety mechanism useless. Confirm terminal labels before securing wires; manufacturers often mark them clearly but verify twice.
Overloading the protective device by exceeding its amp rating triggers nuisance tripping or permanent damage. A 20-amp model handles 12-gauge wire and a maximum of 20 amps total draw. Attaching heavier loads compromises insulation integrity and violates electrical codes. Calculate the total wattage of connected appliances and select a matching breaker capacity.
Neglecting to test after installation invites hidden faults. Press the test button monthly; a proper unit trips within milliseconds. If nothing happens, the device is defective, miswired, or lacks power. Replace it immediately–delaying risks undetected ground faults that could escalate into fire hazards.
Ignoring wire gauge compatibility creates fire risks. A 15-amp unit paired with 14-gauge wire works, but the reverse melts insulation. Match copper wire thickness to breaker rating: 14 AWG for 15 amps, 12 AWG for 20 amps. Never upsize wire without also upsizing the breaker; the protection level drops proportionally.
Incorrect Grounding Practices
Connecting neutral and ground wires together downstream bypasses the detection coil. The residual current device measures imbalance between hot and neutral; a bonded neutral falsifies zero leakage, failing to trip during faults. Separate grounds from neutrals at all downstream outlets to maintain accurate sensing.
Using aluminum wire without anti-oxidant compound corrodes terminals. Copper-aluminum junctions oxidize, increasing resistance until the connection arcs or melts. Apply Noalox paste liberally, torque to manufacturer specs–typically 12-15 in-lbs–and re-tighten after initial heat cycles. Improper torque loosens terminals, causing intermittent faults.
Combining multiple neutrals on one terminal violates load balancing. Each protected outlet requires its own neutral connection; sharing neutrals mixes return currents, confusing the sensing coil. Dedicate one neutral per outlet, daisy-chaining violates UL standards and nullifies protection.
Omitting proper labeling misleads future maintenance. Mark every downstream outlet clearly to indicate protection status. Unmarked outlets may be mistaken for unprotected circuits, leading to dangerous modifications. Use adhesive labels or embossed tags; permanent ink ensures visibility after years of service.
