Understanding GFI Wiring Diagrams for Safe Electrical Installations

Install a residual current circuit breaker (RCCB) with a rated sensitivity of 30 milliamps to prevent lethal shocks in kitchens or bathrooms. Ensure the device interrupts power within 25-40 milliseconds–delays beyond this increase fatality risks. Ground fault interrupters (GFIs) must adhere to NEC Article 210.8, requiring protection for outlets within 6 feet of sinks or in garages. Verify local codes–some jurisdictions mandate protection for all 15-20 amp receptacles in residential areas.

Use 12-gauge copper wire for 20-amp circuits, as thinner conductors generate heat under sustained loads, degrading insulation over time. Terminate neutral wires directly to the breaker’s output lug–bypassing this step creates parallel paths for current, raising fire hazards. Label each conductor at both ends: line (power source), load (downstream devices), and ground (safety return). Misidentification leads to nuisance tripping or, worse, failed protection.

Test protection devices monthly. Press the “test” button–an immediate cutoff confirms functionality. Replace units failing this check; manufacturers specify a lifespan of 10 years, though actual durability varies with usage frequency and environmental moisture. For outdoor or wet-location setups, select weather-resistant models with UV-stable enclosures. Avoid daisy-chaining multiple outlets–each branch circuit should have dedicated protection to localize faults.

For three-wire systems (split-phase 120/240V), connect the neutral bar only to the service panel’s main bus. Link ground wires to a separate bar bonded to the enclosure. Failure to isolate these paths violates NEC 250.24(A)(5) and generates stray voltages, potentially damaging sensitive electronics. Measure voltage between hot and neutral (must read 120V ±5%) and hot-ground (should match) to diagnose miswiring before energizing.

Understanding Ground Fault Circuit Installation Schematics

Always connect the line-side terminals of a residual current device first–terminals marked “LINE” must receive the incoming power from the breaker or service panel. The black (hot) wire attaches to the brass screw, while the white (neutral) wire secures to the silver screw. Verify torque specifications: most models require 14–18 in-lbs to prevent loose connections that could trip false alarms or fail under load. Never reverse these inputs; improper polarity will disable protection and violate electrical codes (NEC 210.8 for outlets, 210.12 for circuits).

For receptacle-type fault interrupters, the load-side terminals distribute power to downstream devices. Only use these if additional outlets or fixtures require protection–otherwise, cap the wires with twist-on connectors and tuck them into the box. Copper pigtail leads (minimum 12 AWG for 20-amp circuits) must be spliced using crimp sleeves rated for 90°C insulation, not backstab connections, which degrade under frequent surges. Test load distribution: if the circuit exceeds 80% of the device’s trip threshold (typically 5 mA), divide the branch or install a higher-rated model.

In three-wire configurations (such as split-phase 240V applications), attach the red conductor to the second brass screw labeled “LOAD.” Ensure the neutral bar in the subpanel bonds properly to the grounding electrode–NEC 250.50 mandates this for fault clearing. For outdoor or damp installations, use weather-resistant enclosures with drain holes drilled at 6mm intervals along the bottom edge. Seal all entry points with silicone-based duct sealant, avoiding petroleum-based products that corrode terminals over time.

After installation, press the test button monthly. A functional unit will click and cut power within 0.025 seconds–longer delays indicate worn contacts or incorrect wire sizing. Replace any device that fails consecutive tests; internal MOVs degrade after 20–30 operations. For hardwired appliances (e.g., sump pumps), place the circuit protector upstream of the on/off switch; downstream placement leaves the motor vulnerable during off cycles. Label each protected zone with “GFCI Protected Circuit” decals, as OSHA 1910.333 requires for maintenance clarity.

Troubleshooting erratic tripping? Measure line voltage at the terminals–fluctuations above 125V on 120V systems suggest a shared neutral or lost grounding path. Inspect for conductive dust in junction boxes, especially in concrete or metal enclosures, which can create phantom leaks. If the device hums under load, replace it immediately; this signals internal arcing that poses a fire risk. For commercial kitchens, pair fault interrupters with arc-fault breakers (DF/CAFCI) per NEC 210.12–AFCIs cover series faults not detected by ground-fault sensors alone.

How to Identify Correct Residual Current Device Input and Output Connections

Check the manufacturer’s embossed markings on the device housing. Most outlets have “LINE” and “LOAD” labels stamped near the screw terminals. If labels are faded or missing, refer to the device’s technical sheet or look for color-coded screws–brass for input, silver for output–or larger terminal openings on the load side.

Use a multimeter to verify terminal function. Set the meter to AC voltage and probe the screws while the circuit is live. Input terminals will show full supply voltage (120V or 240V), while output terminals will measure near zero until a downstream device is connected. Mark terminals with tape if labels are absent.

Observe terminal placement. Input connections are typically at the top of the device, while output connections sit at the bottom. This orientation matches standard installation practices, where power enters from above and exits below. Reversing these will disable protection for downstream outlets.

Test with a known power source. Connect a lamp or tester to the input side first. If it illuminates, the terminals are correctly identified. Move the tester to the output side–the light should turn off until the reset button is pressed, confirming the device is operational and terminals are properly assigned.

• Input terminals handle incoming power from the breaker.
• Output terminals feed protected power to additional outlets or devices.
• Miswiring bypasses protection and violates electrical codes.

Trace the circuit path if the outlet is part of a series. Disconnect power at the panel, then use a continuity tester to follow the cable from the breaker to the first outlet in the chain. This outlet’s input terminals will connect directly to the supply, while later outlets receive power through the output side.

Common Mistakes to Avoid

1. Assuming terminal positions without verification–some devices have non-standard layouts.
2. Ignoring warning signs like tripped breakers or outlets without power, indicating reversed connections.
3. Connecting downstream outlets to input terminals, which leaves them unprotected.
4. Overlooking physical damage or melted plastic near terminals, suggesting past miswiring.

For three-wire systems (split-phase 120/240V), note which terminals accept the red and black wires. Input terminals will require both hot wires, while the output side may only need one, depending on the circuit design. Consult the breaker panel diagram to confirm wire pairing before testing.

Step-by-Step Terminal Installation for Single-Point Ground Fault Receptacles

Shut off the circuit at the main panel before handling any conductors. Verify power is dead using a non-contact voltage tester on both the live and neutral terminals. Confirm the tester works by checking a known energized outlet first.

Remove the faceplate and existing outlet if replacing one. Note wire colors and positions: black (hot) to brass screw, white (neutral) to silver screw, bare/green (ground) to green screw. Use needle-nose pliers to straighten bent wires and strip 1/2 inch of insulation if needed.

Connecting the Line Side

• Attach the black wire to the brass-colored terminal marked “LINE.” Wrap the wire clockwise around the screw and tighten to 12 in-lbs with a torque screwdriver.
• Connect the white wire to the silver terminal also labeled “LINE.” Ensure the wire sits fully under the screw plate to avoid arcing.
• Ground the receptacle by attaching the bare or green wire to the green ground screw. Loop the wire 180 degrees around the screw and secure tightly.

If the circuit includes a downstream device, connect its wires to the “LOAD” terminals using the same method. Never exceed 20 amps on a 12-gauge circuit or 15 amps on 14-gauge wire. Label the “LOAD” terminals with provided stickers to prevent future miswiring.

Securing and Testing

1. Fold wires neatly into the box, ensuring no insulation is pinched. Align the receptacle and secure it with the mounting screws, keeping it level.

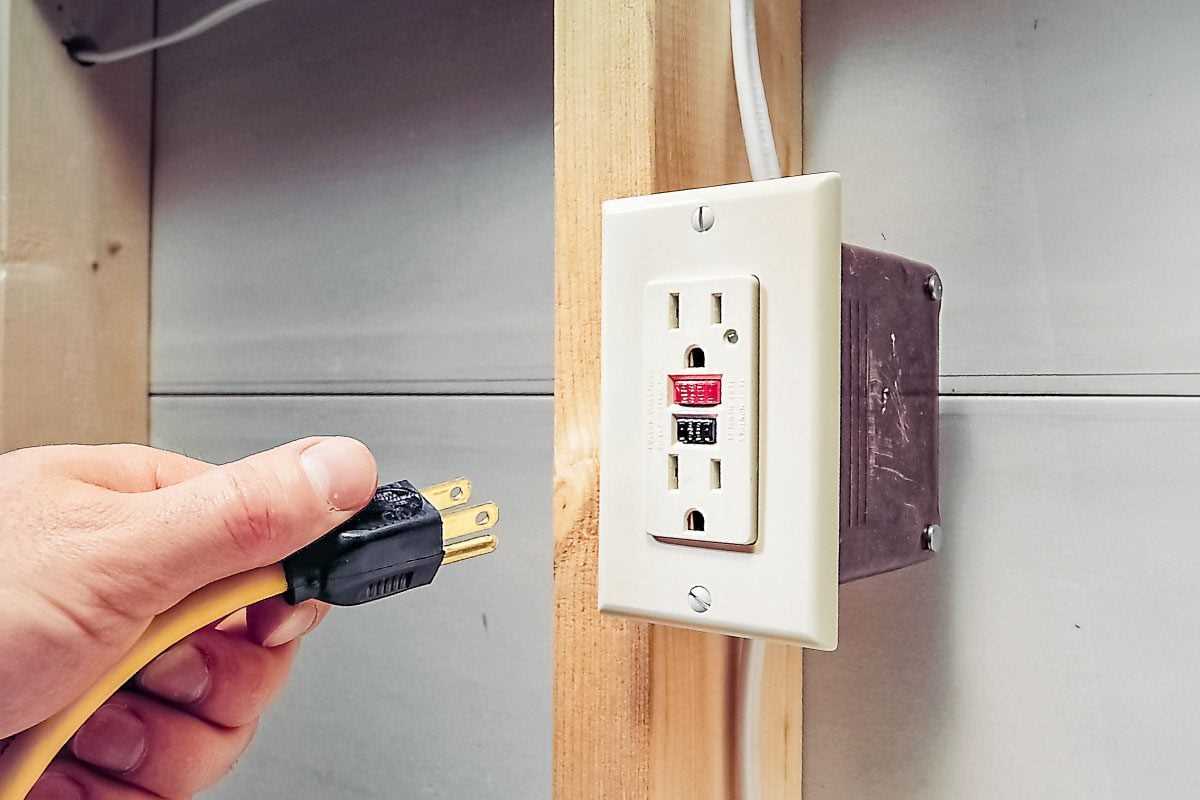

2. Reattach the faceplate and restore power at the panel. Press the “TEST” button; the outlet should click and trip. Confirm the reset button pops out.
3. Verify downstream protection if applicable. Use a receptacle tester on any connected outlets to ensure proper grounding and correct polarity.

For outdoor or wet locations, use an in-use cover rated NEMA 3R or higher. Seal unused knockout holes with weatherproof plugs. Inspect terminals annually for corrosion or loose connections, especially in high-moisture areas.

Store spare fuses or breakers matching the circuit rating near the panel for quick access. Document the circuit map with wire gauges, outlet types, and locations to streamline future troubleshooting or upgrades.
