Complete Wiring Guide for Large Vehicle Tail Lights Installation

Start with a multimeter to verify voltage levels at each connection point before proceeding. Rear illumination systems on heavy-duty commercial vehicles typically operate at 24 volts, while standard passenger models run at 12 volts. Mismatched voltages will immediately damage LED assemblies–confirm specifications in the manufacturer’s technical manual before making any splices.

Trace the main power feed from the fuse block: it should split into two paths–one for brake activation, another for running illumination. Use color-coded heat-shrink tubing on every joint to prevent corrosion. Avoid twisting wires; crimp connectors rated for automotive use (minimum 16 AWG) provide reliable, vibration-resistant connections. Verify polarity at each step: reverse polarity will destroy LED modules instantly.

Install a bidirectional transient voltage suppressor (TVS) diode rated for the system voltage near the power input. This protects against voltage spikes caused by solenoid engagement or alternator fluctuations, which are common in diesel applications. Test continuity between the switch and the bulb socket after installation; intermittent signals often stem from corroded ground points–sand the chassis attachment surface before securing the ground terminal.

For aftermarket upgrades, confirm compatibility with CAN bus protocols if present. Some newer models integrate signal monitoring; cutting a non-CAN-compatible feed can trigger false system warnings. Use a load resistor (typically 6 ohms, 50W) in parallel if installing low-draw LED replacements in a traditional filament-based harness to prevent hyperflashing or dashboard error codes.

Route wires away from sharp edges or moving components. Secure with nylon zip ties every 15 cm (6 inches) using mounting points on the frame or existing harness runs. Seal unused connector ports with dielectric grease to prevent moisture ingress. After final assembly, cycle through all signal functions–brake, running, turn–with the vehicle stationary to confirm consistent activation before road testing.

Electrical Schematic for Vehicle Rear Signal Systems

Begin by connecting the main power feed to a 15-amp fuse or circuit breaker, ensuring the wire gauge accommodates the total amperage draw–typically 16-14 AWG for standard marker assemblies. Route the fused lead directly to the first lamp’s positive terminal, avoiding splices near moving parts or sharp edges. If the system includes multiple units, use a T-tap or soldered joint sealed with heat-shrink tubing for corrosion resistance; twist-and-tape methods fail under vibration.

Ground each fixture independently to bare metal chassis points, not painted surfaces–oxide layers increase resistance and cause flickering. For vehicles with aluminum or composite bodies, install a star washer between the grounding lug and frame to penetrate surface coatings. Test continuity with a multimeter before final assembly; a reading below 0.5 ohms confirms a reliable connection. Corroded factory ground screws are a common failure point–replace them if visibly compromised.

The neutral or running circuit should split into two paths: one to the side markers and another to the central brake signal via a single-pole relay if the assembly combines both functions. The relay coil requires a 12V trigger, often sourced from the brake pedal switch or turn signal flasher module. Verify the relay’s pinout–the 85 and 86 terminals must handle at least 2A, while the 30 and 87 contacts support the lamp’s full load without overheating.

Use waterproof connectors rated for at least IP67 when joining wires near wheel wells or undercarriages. Deutsch DT series or AMP Superseal sockets prevent moisture ingress better than generic crimp terminals. Stagger splice points vertically to avoid short circuits if the harness rubs against the chassis. Label each connector with heat-shrink markers coded by function–red for power, black for ground, yellow for turn signals–to simplify future diagnostics.

Before securing the harness with zip ties, power the system and check for proper operation: side markers illuminate steadily, brake lamps activate at full brightness, and turn signals flash at 60-120 cycles per minute. Dim or erratic behavior indicates a voltage drop–trace the circuit with a non-contact tester, probing each joint under load. Replace any wire segment showing more than 0.2V loss over 3 feet. Finalize the installation by anchoring the harness to the vehicle’s frame at 12-inch intervals, avoiding heat sources like exhaust systems.

How to Match the Right Rear Signal Connector for Your Vehicle

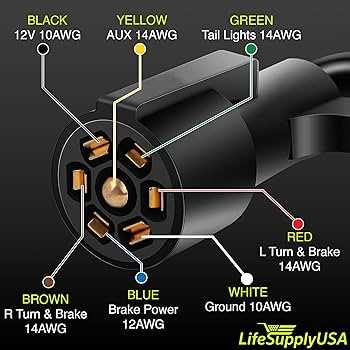

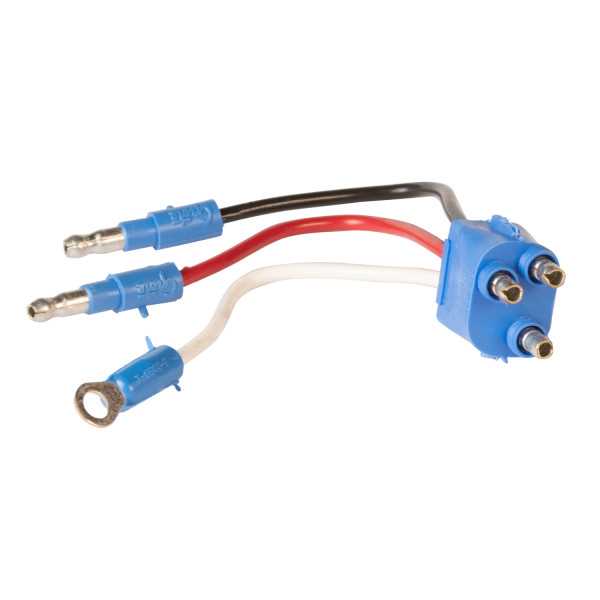

Check the plug shape first–rectangular, round, or blade-style. Vehicles from Ford often use a 4-pin flat connector, while GM models frequently include an oval 7-way socket. European brands typically rely on 13-pin round plugs. Measure the pin spacing if unsure: 5 mm, 7 mm, or 9 mm centers indicate different patterns.

Examine the pin count. Older sedans may have 3 or 4 connections, whereas heavy-duty trucks often require 6 or 7 for trailer brakes and reverse functions. Use a multimeter to verify live pins, noting voltage on running, brake, and turn circuits–12V, 24V, or intermittent signals help clarify the plug’s role.

Key Features of Common Plug Variants

Flat 4-pin: standard for stop, turn, and marker circuits–pins arranged in a straight line. Oval 7-way: includes a central ground, auxiliary power, and charge line. Round 7-way (SAE J560): six pins surrounding a center ground, common on freight trailers. Note the notch or tab position–these prevent mismatched connections.

Adapters exist for cross-compatibility, but direct fitting avoids signal loss. Identify OEM vs. aftermarket plugs: factory units often feature molded ridges or branding, while universal replacements may lack secure latching. Test latch function–clips should click firmly to prevent disengagement on rough roads.

Color coding rarely matches across manufacturers. Instead, trace wires: red for braking, amber/brown for directional signals, white for neutral. Strip 2 mm of insulation if labels fade–copper stranding thickness (18-14 AWG) confirms current capacity. Replace corroded terminals immediately; solder joints outlast crimp connections on vibrating chassis.

For vehicles with integrated reflectors, ensure the chosen plug includes a dedicated marker circuit. Lack of this wire risks visibility violations. If adapting older wiring, bridge circuits manually–diode isolators prevent feedback loops that drain battery or confuse onboard computers.

Decoding Color Standards for Rear Vehicle Illumination Systems

Begin by identifying the primary conductor color conventions: brown for running beams, red for brake activation signals, and yellow (or amber) for turn indication circuits. Verify these against the manufacturer’s schematic–deviations may indicate aftermarket modifications or regional variations. Use a multimeter set to continuity mode to confirm each wire’s function before connecting; this prevents cross-wiring that could trigger fuse overloads or malfunctioning assemblies.

Ground connections demand special attention. Black wires typically serve as the return path, but some models split this into multiple strands–one for basic operation, another for supplementary functions like reverse lamps. Secure these to bare metal surfaces, ensuring no paint, rust, or debris interferes; corroded grounds cause flickering or complete operational failure. Apply dielectric grease to terminals to prevent oxidation over time.

Handling Auxiliary and Multifunction Circuits

Blue wires often control auxiliary functions–commonly backup illumination or integrated reflectors. These may require relay activation if drawing current beyond the standard 2-3 amps. White wires in some configurations double as park beam feeds or provide power to license plate units. Cross-check with the fuse box assignments; incorrect pairing risks damaging sensitive electronics. For vehicles with trailer adapters, orange or purple wires may carry separate feeds–isolate these with a dedicated harness to avoid overloading the main cluster.

When splicing into existing bundles, use heat-shrink tubing instead of electrical tape–it provides superior moisture resistance. Crimp connectors should match the wire gauge (usually 18-14 AWG for standard assemblies). Avoid twisting exposed copper; instead, strip 5mm of insulation, align, and apply a butt connector with a ratcheting crimper. Test each connection under load before finalizing; a 12V test lamp or oscilloscope can detect voltage drops or intermittent faults.

For LED upgrades, note that some modules require resisters in-line to mimic filament load. Failure to include these can trigger error codes in modern CAN bus systems. Brown/white striped wires, if present, typically serve as daylight running feeds–verify whether these receive switched or constant power based on local regulations. Document all changes in a basic schematic; future troubleshooting relies on precise, accurate records of modifications.

How to Verify Rear Lamp Circuit Integrity Using a Multimeter

Set the multimeter to continuity mode before connecting probes to any contacts. Touch the leads together to confirm a steady tone–this ensures the meter functions correctly. Probe the connector pins on the harness side while the system is disconnected from the fixture to detect shorts or open circuits. A clear signal indicates an intact path; silence or erratic readings suggest faults.

Switch the multimeter to DC voltage mode (20V range) to measure power delivery at the harness connector. With the ignition active and the relevant switch engaged, place the black lead on a chassis ground, then probe each terminal individually. Expected readings should match the vehicle’s nominal voltage (12V–14.8V). Deviations below 11V may indicate a dying battery, corroded terminals, or excessive resistance in the feed line.

Inspect ground connections by measuring voltage drop. Attach the multimeter’s black probe to the negative battery post, then use the red probe to check the ground terminal at the rear assembly. A drop exceeding 0.1V signals corrosion, loose attachments, or inadequate cable gauge. Clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.

Check signal outputs for turn indicators by setting the multimeter to voltage mode. Activate the hazard or turn signal switch, then probe the corresponding circuit terminal. A healthy signal cycles between 0V and vehicle voltage at the blink rate (typically 60–120 pulses per minute). Flat readings indicate a failed switch, burnt-out bulb filament, or an open in the signal wire.

Component	Optimal Reading	Fault Indication
Power Feed	12V–14.8V	<11V or >15V
Ground Path	<0.1V drop	>0.5V drop
Signal Output	Pulsing 0V/12V	Constant 0V or 12V

Locate intermittent faults using a back-probe technique. Insert a fine needle probe into the insulation of a suspect wire without piercing it. Connect the multimeter and flex the wire while monitoring for voltage fluctuations. A stable reading rules out internal breaks; erratic jumps confirm damaged strands or insulation failure. Replace compromised cables with equal or larger gauge wire.

Test for parasitic loads by leaving the multimeter in DC voltage mode over an extended period. Connect the probes to the harness terminals while all switches are off. A reading above 0.1V hints at a faulty switch, crossed circuits, or internal short within the assembly. Isolate the suspect module by systematically disconnecting harness segments until the voltage stabilizes.

Safety Precautions During Testing

Always disconnect the battery’s negative terminal before probing bare wires to prevent accidental shorts. Wear insulated gloves when handling live circuits, especially near components carrying residual voltage. Never rely on the vehicle’s metal chassis as the sole ground reference–use a dedicated test lead clamped directly to the battery post for accurate measurements.
