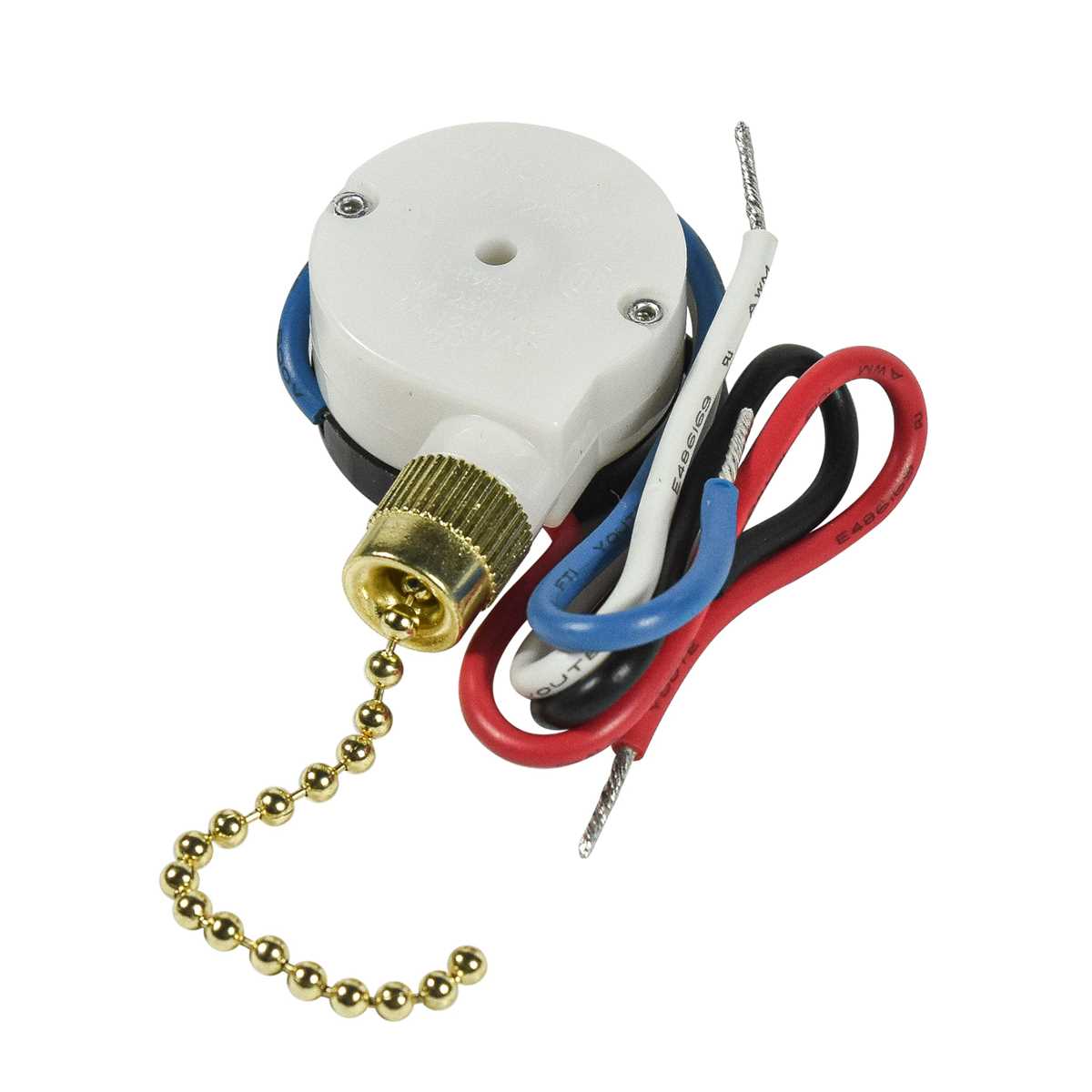

Complete Guide to Wiring a Hampton Bay 3-Speed Ceiling Fan Switch
Locate the black (live), white (neutral), and blue or striped (light control) wires first–these form the core of the assembly. Secure the live input to the regulator’s common terminal, typically marked L or COM. The three output contacts (Low, Medium, High) must then be linked to the respective leads of the motor unit, ensuring no cross-connection disrupts airflow settings.
Verify the ground (bare/green) wire is fastened to both the motor housing and the regulator’s metal base. Loose grounding exposes the system to erratic operation or safety hazards. Use a multimeter to confirm 120V AC between live and neutral before energizing–deviations indicate incorrect terminal placement or faulty components.
If the control includes a pull-chain or remote module, bypass it temporarily to isolate rotary switch behavior. Wire the capacitor–usually a round, dual-pronged device–directly to the regulator’s output and motor’s auxiliary winding. Reverse rotation often stems from reversed capacitor polarity; swap the leads if the blades spin opposite the intended direction.
Label each connection with color-coded sleeves for future troubleshooting. Store spare 0.5A–1.5A fuse and 18–20 AWG wire nearby–these components fail predictably under sustained load mismatches. Replace the entire regulator if burns appear on terminals; partial repairs rarely restore full reliability.
How to Connect a Three-Position Airflow Regulator in Your Overhead Rotator
Before stripping wires, confirm the control module’s voltage rating matches your power source–most residential setups use 120V AC, while commercial units may require 240V. Identify the common (black), low (blue), medium (red), and high (orange) terminals on the regulator’s casing; if colors deviate, consult the manufacturer’s label for pin assignments. Strip ½ inch of insulation from each conductor, then secure them to the corresponding screw terminals using a torque screwdriver (8–10 in-lbs) to prevent loose connections that generate heat or arcing. If the rotor lacks a capacitor, install a dedicated 4.5 µF run capacitor between the common and high-speed wires to stabilize motor operation under load changes.
Test the assembly with a non-contact voltage tester before restoring power–verify no exposed strands touch adjacent terminals or the housing, as shorts can fry the control board. For ceiling-mounted oscillators exceeding 52 inches in diameter, add a remote receiver between the motor and regulator to bypass potential interference from dimmers or smart home modules; wire the receiver’s blue output to the common terminal and its black input to the line voltage source. If humming occurs at the lowest setting, replace the regulator–internal carbon traces degrade over time, especially in high-humidity environments.
Pinpointing Conductors in Your Three-Tier Air Circulator
Locate the motor housing’s marked terminals first–manufacturer labels (usually L for line, N for neutral, 1/2/3 for regulator stages, and G or C for light kit if present) simplify identification. Strip ⅜ inch of insulation from each lead, then use a non-contact voltage tester to confirm power absence before handling. For models without labels, probe with a multimeter set to continuity: the lead paired to the metal housing is ground (bare copper or green), while the thickest wire (often white) is neutral. The remaining three–black, red, blue–correlate to low, medium, high settings; verify by checking resistance between each pair (lowest resistance equals lowest tier).
| Conductor Color | Function | Resistance to Neutral (Ω) * |
|---|---|---|
| White | Main return path | 0–0.5 |
| Black | Base output (700 RPM) | 20–25 |
| Red | Mid output (900 RPM) | 15–18 |
| Blue | Peak output (1200 RPM) | 10–12 |
| Bare/Green | Safety ground | 0 (continuity to housing) |
Typical values for 120V AC units; measure with windings at room temperature.
Step-by-Step Guide to Connecting the Control Leads Properly
Start by identifying the common (usually black), low (often blue), medium (typically red), and high (white or gray) output leads from the rotary selector. Use a multimeter set to continuity mode to verify each terminal’s function–press the tester probes against the common and each colored lead while rotating the knob through its positions. Label each wire with masking tape based on its confirmed role: “L” for the slowest, “M” for intermediate, and “H” for fastest rotation, ensuring no contact overlaps exist between adjacent terminals during testing.
Verifying and Securing Connections
Strip 1/4 inch of insulation from each conductor, then insert the prepared ends into the corresponding terminal slots on the device’s control module–common to the brass-colored screw, low to the blue, medium to the red, and high to the silver. Twist the exposed strands clockwise before tightening the screws to prevent fraying. Tug each lead gently to confirm retention, then wrap electrical tape around the terminals to isolate exposed metal. Repeat voltage verification with the circuit energized, ensuring 120V between common and each output at the correct selector positions before finalizing the housing assembly.
Common Errors in Connecting a Three-Rate Air Circulator Control
Skipping voltage verification before handling terminals risks electric shock or device burnout. Always use a multimeter to confirm the circuit is dead–never rely on wall toggles alone. Standard household installations typically carry 120 volts; deviations suggest breaker or outlet issues requiring resolution first.
Mixing wire colors causes malfunction or short circuits. Secure connections demand strict adherence: black (live), white (neutral), red/green (ground). Swapping these–even once–can bypass safety cutoffs, overheat coils, or trip AFCI breakers. Label each conductor at both ends before detachment for accurate reassembly.
Avoid twisting wires bare-handed. Loose strands create arcing gaps, accelerating corrosion and heat buildup inside junction boxes. Use needle-nose pliers to wrap conductors clockwise around terminal screws, then tighten to manufacturer torque specs–usually 12-15 inch-pounds. Over-tightening strips threads; under-tightening invites vibration failure.
- Neglecting strain relief: dangling wires pull connections apart over time, especially in units with pendulum mounts. Secure cables every 6 inches using approved clamps to prevent fatigue at solder joints.
- Ignoring continuity tests: after assembly, probe each terminal pair to ensure no opens exist; faulty switches often read 0 ohms when actuated, infinite when off.
- Reversing phase polarity: while not always fatal, this sometimes dims LED lights or slows rotation rates under light loads. Swap black and red feeds if blades spin backward.
Overstuffing junction boxes violates NEC fill limits, trapping heat and degrading insulation. Calculate cubic inch capacity–plastic boxes handle 4-6 conductors, metal up to 9. Replace with deeper enclosures if adding control modules or smart hubs.
Forgetting breaker trips during testing wastes hours. Start with maximum pull setting, then step down; sudden 15-amp draws often trigger delayed trips. If tripping persists, isolate windings–each coil segment should draw 0.3–0.5 amps at rated line voltage.
Assuming factory labels are error-free leads to wiring mismatches. Cross-reference with manual schematics; some models merge low/medium feeds, requiring jumper installation. Mark discrepancies with indelible ink directly on the housing for future reference.
Essential Gear for Installing a Rotary Control Mechanism
Start with a voltage tester rated for at least 250V AC to verify circuit deactivation–non-contact models reduce risks of accidental arc faults. Use insulated pliers and wire strippers with a 14-12 AWG gauge guide to prevent nicking conductors, which weakens structural integrity under load. A small flat-head screwdriver (3mm tip) fits most terminal screws without stripping threads, while needle-nose pliers help route wires in tight junction boxes. Include a torque screwdriver set to 10-12 in-lbs to comply with NEC 314.23(B) for secure connections, preventing loosening from vibration.
Critical Consumables and Safety Equipment
Twist-on wire connectors (red for 2-4 #12 wires) ensure gas-tight splices; pre-twist strands counterclockwise before applying caps to improve grip. Heat-shrink tubing (3:1 shrink ratio, polyolefin) seals exposed soldered joints when paired with a 60W heat gun–avoid electrical tape for primary insulation. For grounded systems, use 12-gauge THHN copper wire (black, white, green/bare) to match 20A circuit ratings. Equip rubber-soled shoes, ANSI Z87.1-rated safety glasses, and flame-retardant gloves (Class 0, 1000V rating) to handle unexpected voltage surges during installation.
