How to Install Stereo in Honda Civic 2007 Wiring Guide Explained

Begin by locating the factory harness behind the dashboard’s lower trim panel on the driver’s side. The 12-pin connector labeled “A” (often white or gray) carries the critical signals–pinpoint each wire by color before splicing. Yellow (constant 12V) delivers uninterrupted power for memory retention; connect it directly to the battery via a 10-amp fuse to prevent parasitic drain. Red (accessory 12V) triggers the system when the ignition is activated–link it to a switched source, such as the fuse box’s ACC circuit, to avoid battery depletion.

Ground cables (black or brown) must terminate to a clean, bare-metal chassis point–sand away paint or corrosion to ensure stable operation. Orange (illumination) adjusts display brightness in sync with dashboard lights; tap into the dimmer switch’s violet wire for consistent behavior. For speaker outputs, match the following pairs: gray (+) and gray/black (-) (front right), white (+) and white/black (-) (front left), green (+) and green/black (-) (rear right), purple (+) and purple/black (-) (rear left). Verify impedance with a multimeter to prevent amplifier damage.

If integrating an amplifier, splice the blue/white (remote turn-on) wire to the aftermarket unit’s trigger input–this ensures synchronized power-up. For vehicles with steering-wheel controls, retain the light blue (bus) wire for compatibility with adapters like Metra ASWC-1. Isolate unused wires with shrink tubing to prevent shorts. Test each connection with the ignition off, then on ACC, and finally at full crank to confirm reliability under varying voltage conditions.

Guide to Connecting Your Car’s Audio System

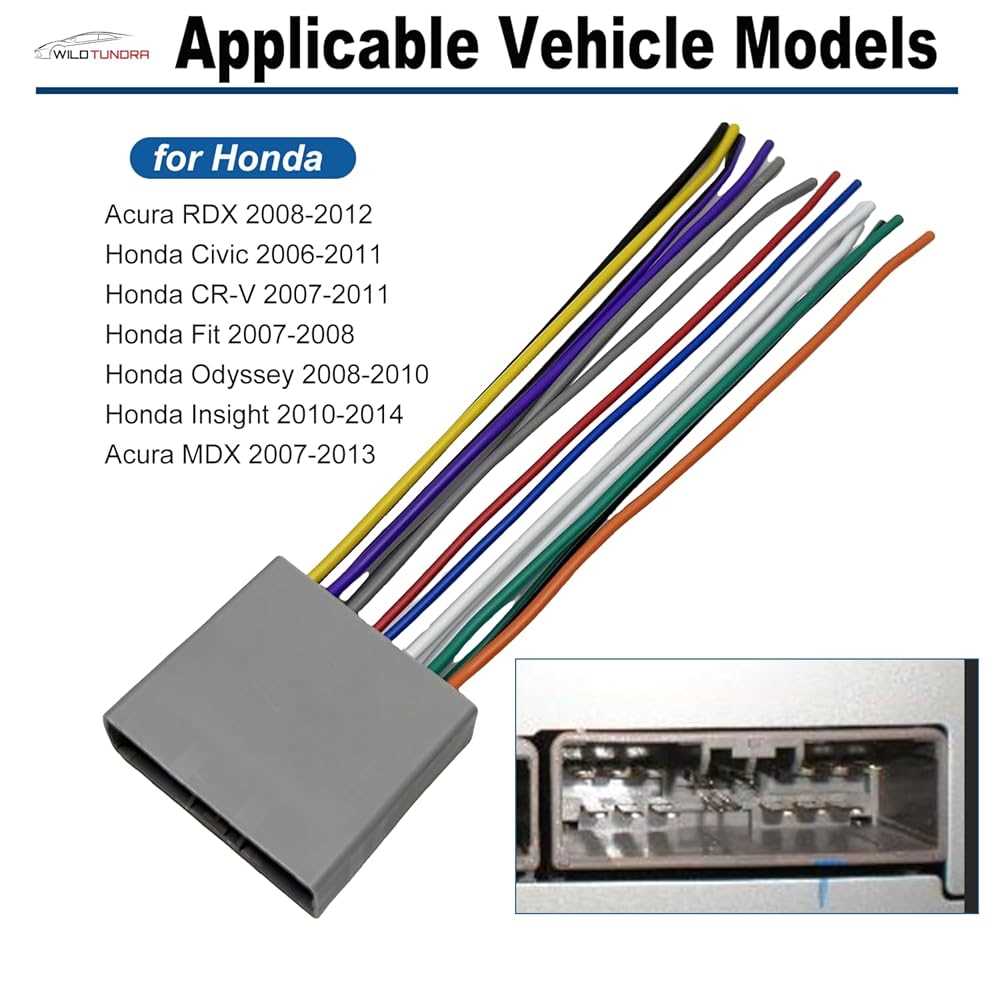

Start by identifying the aftermarket head unit’s harness adapter. For this vehicle model, the standard 16-pin ISO connector simplifies integration. Match each wire by function: yellow (constant 12V), red (switched 12V), black (ground), and blue/white (remote turn-on). Use a multimeter to verify voltages–constant power should read 12V regardless of ignition state, while switched power drops to 0V when the key is off.

Front speaker wires follow a consistent color scheme: gray (+) and gray/black (-) for right, white (+) and white/black (-) for left. Rear channels mirror this: purple (+) and purple/black (-) for right, green (+) and green/black (-) for left. Avoid twisting mismatched polarities–this distorts bass and may damage amplifiers. Pre-existing factory tweeters often share front channels; locate their splices near the dashboard if clarity suffers.

Dimmer circuits (often orange or orange/white) adjust display brightness with dashboard lights. If your unit lacks this function, cap the wire to prevent erratic behavior. Illumination faults–flickering or unresponsive screens–typically trace back to poor grounding. Scrape paint from the chassis mount point and tighten connections with star washers for corrosion resistance.

Factory amplifiers (if equipped) require a bypass module or direct wiring to aftermarket units. Locate the amp near the rear deck lid; its removal exposes cleaner signal paths. When rerouting cables, secure bundles with zip ties every 6 inches to prevent interference from moving parts. Avoid routing over sharp edges or near exhaust components–excessive heat degrades insulation and causes intermittent shorts.

Steering wheel controls (if retained) need an adapter like Metra ASWC-1 or PAC SWI-RC. These devices translate resistive signals into digital commands for third-party radios. Calibration requires navigating the unit’s settings menu–refer to the adapter’s manual for button mappings. Failure to pair correctly results in unresponsive or erratic controls, often mistaken for wiring issues.

Antennas connect via a thin blue coaxial cable, typically routed behind the glovebox. If reception weakens after installation, check for pinched or broken shielding. Bend the cable no tighter than a 3-inch radius to prevent signal loss. For powered antennas, ensure the blue remote wire receives 12V upon activation–without this, the motorized unit won’t extend.

Subwoofer outputs (if present) appear as brown, brown/black, or gray/purple wires. These carry low-level preamp signals requiring amplification. Direct connection to passive speakers will yield no sound. Use an external amp with RCA inputs; match impedance ratings (usually 2–4 ohms) to avoid overheating. Signal cables should never run parallel to power wires–cross them at 90-degree angles to minimize noise.

Post-installation, test all functions before reassembling panels: FM/AM bands, CD/USB inputs, Bluetooth pairing, and equalizer presets. Reset the unit to factory defaults if issues persist–sometimes factory presets interfere with custom configurations. Document all splices with labels and photographs for future troubleshooting.

Decoding Original Harness Colors for 2008 Compact Sedan Sound System

Start by locating the 12-pin connector behind the factory-installed head unit–typically tucked near the dash center on the driver’s side. The primary power feed uses a yellow cable (constant 12V) and a red lead (switched 12V, activated with ignition). Ground is a black wire, often thicker than signal wires and grouped with auxiliary feeds. Verify these three first with a multimeter; voltage readings should match 12V ±0.5V on the yellow and red when ignition is on, and 0V on the black relative to chassis ground.

Signal and Speaker Leads Breakdown

Speaker outputs follow a consistent color scheme: gray and gray/black (front right positive/negative), white and white/black (front left), green and green/black (rear right), purple and purple/black (rear left). The negative wires always carry a secondary stripe–confirm polarity with a 9V battery test; a faint pop indicates correct matching. Illumination control uses a light green wire, dimming the display in sync with dash lights, while the orange/white cable handles antenna power–check continuity if the powered antenna fails post-install.

Auxiliary inputs and muted circuits use less common colors: blue/white triggers aftermarket amplifiers, delivering 12V when the head unit powers on. Pink/blue is the vehicle speed sensor input–critical for speed-sensitive volume adjustments. If retrofitting a navigation unit, the brown wire carries reverse signal for parking sensors or camera activation; splice carefully to avoid shorting the backup lamp circuit.

For confirmation, cross-reference the wiring against a door jamb sticker–most models list harness codes near the VIN plate. Mismatches between documented colors and actual harness wires occur in ≤3% of production runs; if discrepancies arise, trace each wire back to the harness splice under the driver’s kick panel where factory connectors merge. Use heat-shrink tubing on all exposed splices and avoid twisting wires–crimp connectors with a proper tool (e.g., Klein Ratcheting Crimper) to prevent intermittent failures.

Step-by-Step Guide to Locating the Audio System Harness Connector Behind the Dashboard

Disconnect the vehicle’s negative battery terminal first to prevent short circuits. The connector is typically positioned to the right of the climate control unit, secured behind a trim panel. Remove the lower dashboard cover by gently prying it away with a flathead tool–start at the bottom edge near the driver’s side and work upward to avoid damaging plastic clips.

Locate the factory audio interface by tracing the wiring bundle from the back of the head unit. The harness will be a rectangular plug with 12–16 pins, often color-coded for easier identification (e.g., yellow for power, red for accessory, black for ground). If the connector is obscured, remove the glove compartment or center console storage bin for better access–these components are usually held by 4–6 screws or snap-fit fasteners.

• Check behind the air vent assembly if the harness isn’t visible–it may be tucked behind the HVAC ducts.
• Use a flashlight to spot the connector’s distinct shape and color scheme, differentiating it from climate control or USB port wiring.
• Label each wire with masking tape before reconnecting to avoid mismatches during installation.

If resistance is felt, verify no hidden screws or latch mechanisms are securing the panel–force can crack the dashboard housing.

Connecting Third-Party Audio Systems to 2008 Compact Sedan Speaker Outputs

Begin by locating the vehicle’s factory harness behind the OEM audio unit–typically concealed beneath the dashboard trim near the driver’s side. Identify the speaker output wires by color: front left positive (light green), front left negative (gray/black stripe), front right positive (gray), front right negative (light blue/black stripe), rear left positive (green/black), rear left negative (red/black stripe), rear right positive (blue/black), and rear right negative (pink/black stripe). Cross-reference these with the aftermarket head unit’s manual, as color-coding rarely matches exactly; verify using a multimeter set to DC voltage while playing a test tone to confirm polarity and ensure no short circuits exist.

For amplified systems, disconnect the factory amp by cutting or bypassing the power antenna/remote turn-on wire (solid blue) from the original harness–failure to do so risks damaging the new unit’s internal amplifier. Instead, splice this wire into the aftermarket harness’s remote lead (typically blue/white) to activate external amplifiers or powered subwoofers. If retaining the stock amp (e.g., for premium audio models), connect the new unit’s front/rear outputs directly to the amp’s input wires, maintaining the high-level integration to preserve signal fidelity and volume controls.

Ground the new system properly by securing the black ground wire (from the aftermarket harness) to a bare metal chassis point near the installation site, scraping off paint and corrosion for optimal conductivity. Avoid daisy-chaining grounds or using bolted connections from other components, as this introduces noise or intermittent faults. Test the ground by turning the ignition to ACC and checking for pops, hisses, or distortion at low volumes–adjust placement if interference persists.

Use heat-shrink tubing or solder-seal connectors to join wires, avoiding electrical tape for long-term durability. For aftermarket units with RCA outputs, route shielded cables away from power wires and ECU modules to prevent engine noise; cross them at 90-degree angles if paralleling paths is unavoidable. Label each connection with masking tape or a wiring diagram reference during installation to simplify troubleshooting later–miswired channels (e.g., rear left swapped with front right) may not be immediately audible but degrade imaging and bass response.

Before finalizing, verify all connections by playing a full-range test track (e.g., 40Hz–20kHz sweep) and adjusting the new unit’s fader/balance settings to isolate each speaker. If one channel is muted or distorted, recheck polarity, ground integrity, and amplifier settings (gain, crossover, phase). For systems with time alignment or EQ presets, disable these temporarily to confirm raw signal clarity before customizing tuning.
