Complete 2003 PT Cruiser Electrical System Wiring Schematic Guide
Start with the under-hood fuse block located near the driver’s side firewall. Pinouts here directly impact ignition, headlight relay, and cooling fan controls. Label each connector–mislabeled wires cause intermittent failures in the engine control module (ECM) or air conditioning clutch. Use a multimeter to verify continuity; voltages should read 12V on switched circuits and 0V on grounds.
Trace the instrument cluster harness next. The 16-pin connector at the back interfaces with the vehicle speed sensor, fuel gauge, and warning lamps. Check for corrosion–common in pin 5 (fuel level sender) and pin 12 (check engine light). If resistance exceeds 5 ohms, replace the harness or clean terminals with electrical contact cleaner.
The rear lighting circuit hides a frequent fault: the trailer wiring junction box. It splits brake, reverse, and turn signals across three 6-way connectors. Test each leg–brake lights may fail while turn signals work if the ground (black/white wire) is compromised. Use a load tester instead of a probe to avoid false readings.
For power windows, focus on the driver’s door module. The 10-pin connector supplies power, ground, and data. Pin 7 correlates to the auto-down relay–if windows stall mid-motion, inspect the motor’s brushes. Lubricate tracks with silicone spray to prevent binding.

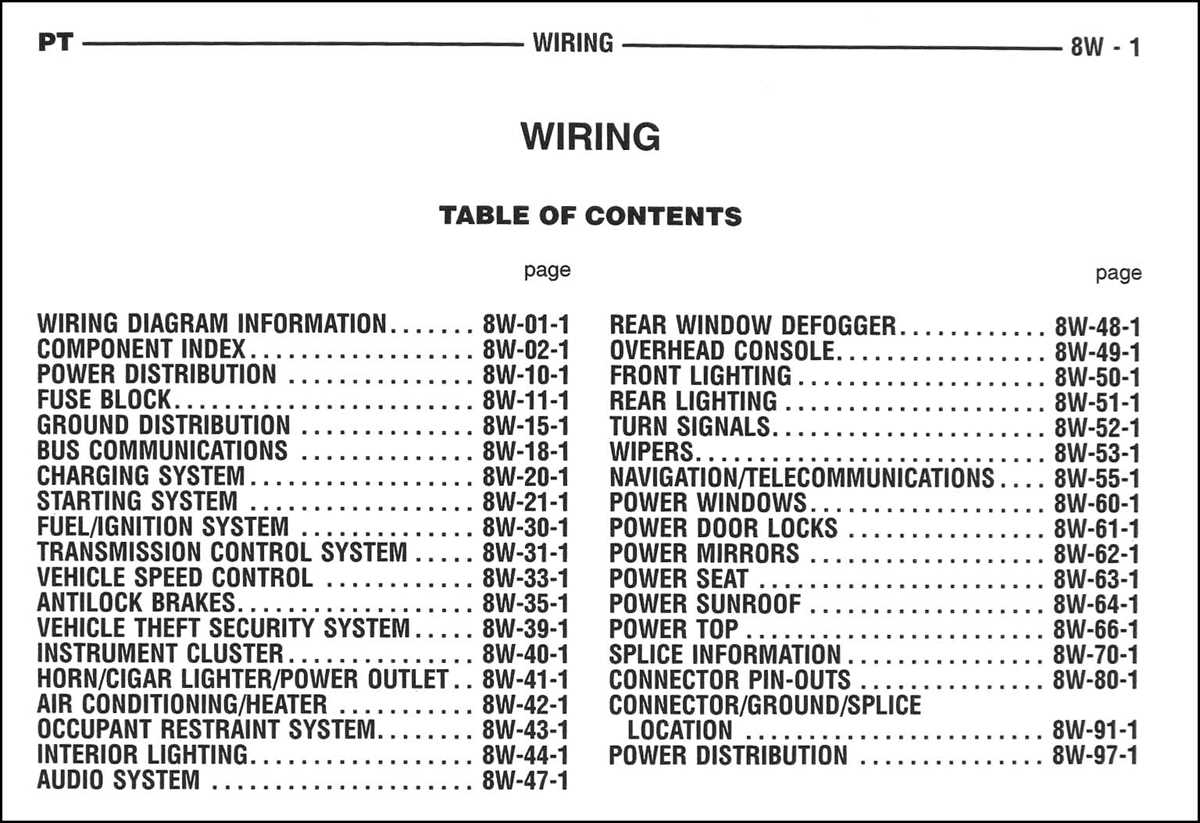

Download the official service manual PDF with bookmarked diagrams. Avoid generic aftermarket schematics–they omit critical splice points in the body control module (BCM) wiring. Highlight circuits with a color-coded highlighter: red for fused 12V, blue for switched, black for grounds. Keep a notebook for voltage readings during diagnostics.
Electrical System Schematics for the 2003 PT Model
Locate the fuse box under the dashboard on the driver’s side–access requires removing the lower trim panel secured by two 7mm screws. Pinouts for connectors C1 (instrument cluster) and C2 (BCM) are critical for troubleshooting dash warning lights. Use a multimeter set to 20V DC to verify voltage at pin 8 of C1 (power feed) against ground; readings below 11.8V indicate corroded terminals or a failing alternator output.
Common Circuit Failures and Fixes
| Circuit | Symptoms | Diagnosis | Solution |
|---|---|---|---|
| A/C clutch relay | No cold air, clutch not engaging | Check 12V at relay coil (pin 85) | Replace relay if coil resistance exceeds 70Ω |
| Power window switches | Single window fails, others work | Test switch continuity–faulty contacts show >2Ω | Clean contacts with DeoxIT or swap switch |
| Fuel pump module | Long crank, stalling at idle | Measure ground at pump connector (gray/black wire) | Repair chassis ground (G401) near rear shock tower |
For rear defroster circuits, trace the orange wire from the heater grid to the relay–intermittent operation often stems from broken grid filaments (visible under magnification). Splice repairs require soldering and Marine Tex epoxy for insulation; crimp connectors will corrode within months. The rear wiper motor uses a dedicated 10A fuse (location: fuse block position 22); if the motor runs but the wiper doesn’t move, replace the gearbox assembly–never lubricate the internal nylon gears.
Finding the PT Interior Fuse Panel and Relay Connections
Open the driver’s side door and remove the lower dashboard trim panel by gripping the top edge and pulling outward sharply. Two retaining clips secure it in place–disconnect these first if resistance is felt. Behind this panel, the primary fuse block sits mounted below the steering column, identifiable by a black plastic cover with embossed labeling along the left edge.
Press the eight rectangular tabs around the cover’s perimeter to release it. Inside, numbered slots correspond to the legend printed on the underside of the cover. Relay positions R1 through R7 occupy the upper row, while fuses F1 to F24 fill the lower slots. Use a flashlight to confirm slot numbers before removal–labels may fade.
Trace the relay connections by following the metal contact plates visible on the back of each relay. R3, controlling the front wiper motor, links directly to terminals C1 and C3 via red and white wires. R5, managing the cooling fan, routes to brown and dark green leads–cross-reference these colors against service manual pinouts to avoid misdiagnosis.
For hidden relay circuits, locate the secondary junction under the left side of the dashboard near the knee bolster. Remove the three 8mm bolts holding the cover to access additional relays and splice connectors. Yellow wire bundles here feed the power window regulators–inspect for fraying before handling live circuits.
Test fuses in situ with a multimeter set to continuity mode. Probe the small exposed metal strips on the fuse’s surface; intact circuits read near zero ohms. Replace blown units with identical amperage–10A fuses protect turn signals, while 20A variants handle the rear defroster grid.
Reinstall removed panels in reverse order. Ensure retaining clips snap fully into place to prevent rattles or moisture ingress. Tighten all fasteners to 8-10 Nm torque to avoid stripping dashboard mounts during future access.
Store spare fuses and relays in the glovebox’s built-in organizer tray. Label each slot clearly–mismatched installations can trigger shorts or system failures. Keep a printed copy of the slot legend taped inside the fuse panel cover for quick reference during roadside repairs.
Locating and Interpreting Powertrain Bay Cable Assembly Terminals and Color Codes
Start by locating the main engine bay fuse block on the driver’s side firewall–its upper cover lists connection points for high-current feeds. The primary power distribution cable (black/orange stripe, 8-gauge) terminates here; verify continuity with a multimeter set to 200-ohm scale before probing other branches.
Trace the thick red cable (4-gauge) from the battery positive terminal to the starter solenoid–its insulation must remain intact, showing no abrasions near the hood latch mechanism. If corrosion is visible at junction points, apply dielectric grease after cleaning with a wire brush and terminal cleaner.
Identify the crankshaft position sensor connector (small 3-pin plug, tan with purple stripe wires) near the front valve cover. Disconnect the negative battery cable before unplugging; accidental shorting while powered can fry the engine control module.
Relay and Sensor Circuit Mapping
The ignition coil pack harness (three 14-gauge wires: dark blue/tan, dark green/orange, dark blue/yellow) converges behind the intake manifold. Label each terminal with masking tape before disconnecting for testing–cross-mixing during reassembly can cause misfires or no-start conditions.
Examine the throttle position sensor cable (dark blue, black/light blue, gray/black) for fraying along its path over the air intake corrugated hose–this high-vibration zone often causes hidden breaks. Use a flashlight to inspect inside the corrugation if intermittent throttle response is reported.
Grounding Points and Secondary Connections
The two main chassis grounds bolt to the front driver’s side strut tower (bare copper, 10-gauge) and firewall passenger side near the brake master cylinder (black, 12-gauge). Remove, clean threads with a tap, and torque to 8-12 ft-lbs; poor grounding mimics multiple sensor failures.
Check the A/C pressure switch wires (light green/white, dark blue/white) where they wrap around the refrigerant lines–heat exposure causes insulation embrittlement. Route replacement wires away from hot surfaces and secure with spiral wrap every 6 inches to prevent chafing against metal edges.
How to Trace and Fix Dashboard Gauge Cluster Electrical Problems
Disconnect the battery before handling any connectors behind the instrument panel. Use a 10mm socket to remove the negative terminal; wait 15 minutes to discharge residual current. Locate the 22-pin plug at the back of the cluster–it’s typically black with green locking tabs. Gently release the tabs by sliding a small flathead screwdriver along the edges, then pull the connector straight out without twisting. Inspect each pin for corrosion, bent contacts, or melted plastic; clean with electrical contact cleaner and a microfiber cloth if needed.
Check voltage at the cluster’s power pins using a multimeter set to 20V DC. Probe pin 1 (red/black stripe) for ignition-switched 12V and pin 16 (violet) for constant battery voltage. If readings drop below 11V, trace the circuit back to the fuse box–focus on fuse #18 (10A) for illumination and #8 (10A) for gauge power. Replace blown fuses with identical amperage, but verify no short circuits exist by checking for melted wires or exposed copper near the A-pillar or under-dash harness.
Testing Signal Inputs
Reattach the connector and reconnect the battery. Turn the key to the “ON” position without starting the engine. Observe the fuel gauge–if it pegs full or empty, suspect a faulty sender unit or grounded signal wire. For mechanical gauges (tachometer, speedometer), tap the cluster lightly with the handle of a screwdriver; erratic needle movement indicates a failing stepper motor. Swap the cluster with a known-good unit if available, ensuring all connectors match–common mismatches include clockspring harnesses interfering with turn signal inputs.
Verify data bus integrity if warning lights activate erratically. Probe pins 6 (white/black) and 7 (tan/black) for CAN-low and CAN-high signals; voltage should fluctuate between 2.3V and 2.8V when the key is on. If static, inspect the Body Control Module (BCM) for water damage or failed solder joints. Common failure points include the junction behind the left kick panel where the CAN wires splice into the main harness–look for brittle insulation or rodent chew marks.
Repairing Common Failures
Solder broken traces on the circuit board using a 30W iron and 60/40 rosin-core solder. Avoid excessive heat to prevent lifting pads–apply flux to oxidized areas first. For intermittent backlighting issues, replace the entire LED strip behind the dials rather than individual bulbs; pry the clear lens carefully with a plastic trim tool to avoid cracking. If the odometer displays “ERROR” or shows garbled digits, reflash the EEPROM using a compatible scan tool–consult TSB #21-007-03 for the correct procedure.
Secure loose wires with silicone-filled adhesive-lined shrink tubing, not electrical tape–heat-shrink provides a watertight seal and prevents future chafing against sharp metal edges. Route harnesses away from moving parts, like the steering column tilt mechanism, and use split-loom tubing to organize bundles. After reassembly, test all functions including dimmer control, trip reset, and gauge sweep to confirm repairs hold under vibration.
Document each step, noting wire colors, connector pinouts, and resistance readings. Photograph connector positions before disassembly to simplify reinstallation. If problems persist, dissect the symptoms methodically–separate signal issues (e.g., speed sensor inputs) from power issues (e.g., blown instrument fuse) to isolate the root cause without guesswork.
