Complete Wiring Guide for Honeywell TH8320R1003 Thermostat Installation

Start by connecting the Rc and Rh terminals to a 24VAC power source–use 18-gauge solid copper wire, stripping exactly 5/16 inch of insulation. If the system lacks dedicated transformers, bridge Rc and Rh with a jumper wire (included in the kit) to ensure seamless operation of heating and cooling cycles. Failure to bridge these terminals in single-transformer setups will prevent the device from powering on.

W (heating) and Y (cooling) must link to the corresponding equipment relays–verify compatibility with low-voltage systems (24V). For heat pumps, connect O/B to the reversing valve: O for cooling mode, B for heating (confirm with the HVAC manual). Reversing this polarity will force the system to operate backward, risking compressor damage. Tighten screws to 12-15 in-lbs torque–over-tightening strips threads, while loose connections cause intermittent failures.

Ground the C terminal to the transformer’s common side for stable voltage (≤0.5V ripple). Skip this step, and the display may flicker or reset during load shifts. For humidifier integration, attach the humidifier output to HUM and pair it with a 120V relay if the humidifier lacks low-voltage control (check amperage rating–max 1A).

Use twisted pair wiring for signals extending beyond 50 feet to reduce noise interference. Color-code per ANSI/TIA-568 (e.g., red for power, blue for cooling, white for heating, green for ground). Test continuity with a multimeter (resistance ) before energizing the system. If resistance exceeds 1Ω, inspect for corrosion or loose crimps–oxidized terminals are a leading cause of erratic behavior.

For multi-stage systems, connect W2 (second-stage heat) and Y2 (second-stage cool) to the appropriate relays. Ensure the equipment supports multi-stage operation–ignoring this will default to single-stage, reducing efficiency by up to 30%. After wiring, restore power and observe the display: “waiting…” should resolve within 60 seconds. If not, recheck Rc/Rh and C connections.

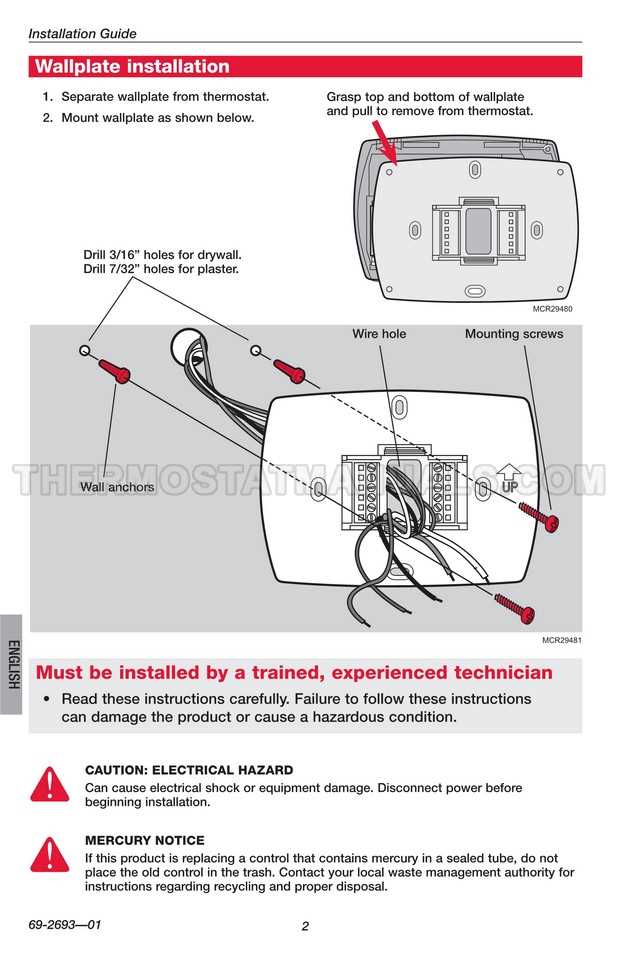

Label all wires with heat-resistant sleeves before securing the subbase to avoid misidentification during future servicing. Store the user manual’s pinout diagram (page 12) near the installation for reference–80% of callbacks stem from miswiring.

Connecting the TH8320R1003 Thermostat: Key Circuit Layouts

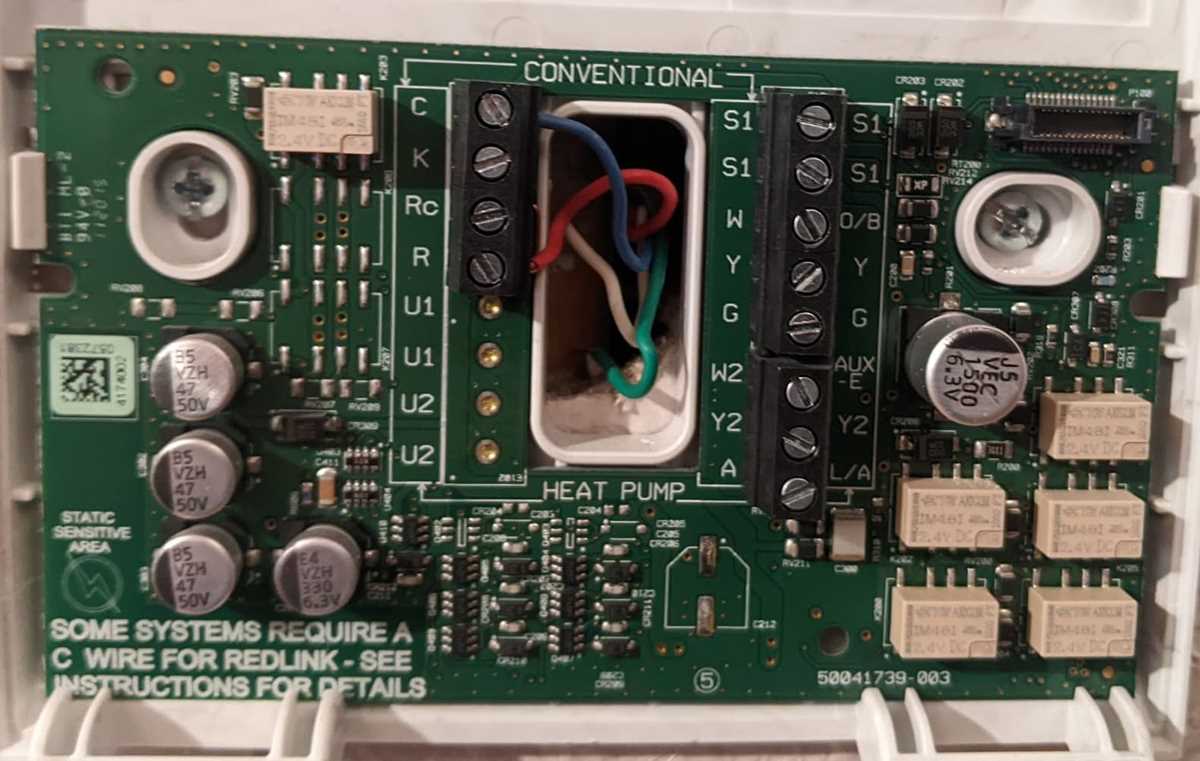

Start by identifying the R, C, W, Y, G, and O/B terminals on the control unit’s baseplate. The R terminal supplies 24V AC power from the heating/cooling system transformer. For systems with a common wire, attach it to the C terminal to ensure steady power for the display and Wi-Fi functionality. If your setup lacks a C wire, consider using an external transformer or a power extender kit to avoid intermittent shutdowns.

For single-stage heating, connect the furnace’s control wire to the W terminal. Split systems with cooling require the Y terminal for the compressor relay, while the G terminal handles the fan relay–critical for both heating and cooling cycles. Heat pump configurations need the O/B terminal engaged to switch between heating and cooling modes. Verify jumper settings between the R and RC terminals if the system has separate transformers for heating and cooling.

Heat Pump and Emergency Heat Configurations

When working with a heat pump, the O/B terminal must be wired to the reversing valve. Systems using emergency heat should route the auxiliary heat wire to the E terminal. Double-check voltage at the control panel before securing connections–across R and C it should read 24V AC ±10% to prevent damage. Use 18-gauge solid copper wire with spade connectors for reliability; stranded wire or improperly crimped terminals can cause intermittent faults.

Ground the thermostat’s baseplate to the system’s earth ground if the installation site risks electrical interference or static buildup. Shielded cables may be necessary near fluorescent lighting or variable-speed drives. Label each wire at both ends with its terminal designation before disconnecting old units to avoid miswiring. Test continuity with a multimeter if reusing existing wiring to confirm integrity.

Programmable models demand specific voltage thresholds for proper operation: low-power signals below 18V may trigger resets, while spikes above 30V risk frying internal circuitry. Install a surge protector inline with the power supply if the local grid experiences frequent fluctuations. For outdoor sensors, use twisted pair wiring and shielded cables to minimize signal degradation from temperature changes or moisture ingress.

Advanced Two-Stage and Variable-Speed Hookups

Two-stage heating requires splitting the W terminal into W1 and W2–first-stage wire connects to W1, second-stage to W2. Variable-speed systems often use the K terminal for communicating with modulating furnaces or air handlers; refer to the equipment’s technical manual for exact pinouts. Avoid bundling signal wires with high-voltage lines; maintain at least 6 inches of separation to prevent induction interference. If the display flickers or controls respond sluggishly, suspect loose connections or voltage drops–recheck all screws and crimps.

Locating the Correct Terminals for Power Supply Connections

Identify the transformer’s primary and secondary sides by checking the voltage ratings labeled on the control board. The high-voltage input (typically 120V or 240V) connects to the terminals marked “R” and “C” or “Rh” and “Rc” if separate heating and cooling transformers are present. Use a multimeter to confirm terminal assignments–measuring between “R” and “C” should show the expected supply voltage; zero or near-zero readings indicate incorrect connections. Label these terminals immediately to avoid confusion during later installation steps.

The low-voltage output (usually 24V) powers the thermostat and related components. Terminals for this output are often marked “W,” “Y,” “G,” and “O/B” but may vary by model. Verify the transformer’s secondary side by measuring voltage between the “R” terminal and each low-voltage terminal–readings should match the transformer’s rated output. Connect the common (C) wire to the terminal labeled “C” or a designated ground point, ensuring a secure, corrosion-free attachment. Avoid loose connections, as even minor resistance can disrupt system operation.

• Check for terminal groupings–some boards separate heating and cooling circuits (e.g., “Rh” for heat, “Rc” for cool).
• Use a wire gauge appropriate for the current load (typically 18 AWG for 24V circuits).
• Tighten screws to 0.5–0.7 Nm torque to prevent vibration-induced loosening.
• If terminals lack clear labeling, consult the product’s technical documentation for diagrams.
• For dual-fuel systems, confirm the “O/B” terminal activates the heat pump’s reversing valve in cooling mode.

Test the installation by powering the system and checking for voltage consistency across all terminals. If the display fails to illuminate or the system cycles abnormally, recheck the “R” and “C” connections first–these are the most common points of failure. For battery-powered models, ensure the “C” terminal is properly connected even if no external power is required, as it completes the circuit for smart features. Never assume terminal positions; cross-reference with the unit’s labeling or a verified schematic before finalizing connections.

Connecting R, C, and W Terminals for Heating: A Practical Walkthrough

Start by identifying the R (power) terminal on your control board–typically marked in red. This terminal supplies 24V AC from the transformer and must be connected first. Verify voltage with a multimeter before proceeding; a reading below 22V indicates a faulty transformer or poor connection.

Locate the C (common) terminal–often labeled in blue or black. This serves as the return path for the 24V circuit. If your system lacks a dedicated C terminal, use the transformer’s secondary side as a substitute, ensuring polarity matches the R terminal to avoid short circuits.

For the W (heat) terminal–usually white–connect it to the heating relay or furnace control board. Use 18-gauge thermostat wire for runs under 50 feet; for longer distances, upgrade to 16-gauge to prevent voltage drop. Strip 3/8 inch of insulation from each wire end, twist tightly, and secure with a wire nut.

Before energizing the system, double-check connections against this reference:

Terminal	Wire Color (Standard)	Purpose	Voltage Check
R	Red	24V power supply	24V to C
C	Blue/Black	Common return	0V to R
W	White	Heat call signal	24V to R when activated

If the thermostat fails to engage the furnace, test continuity between R and W with the system off. A closed circuit confirms proper wiring; an open circuit suggests a broken wire or loose connection. Recheck wire nuts for oxidation–clean terminals with a wire brush if corrosion is visible.

For systems with emergency heat (W2), wire this terminal directly to the backup heating source, such as an electric heat strip. Label all wires clearly to avoid confusion during future servicing. Use heat-shrink tubing over connections exposed to outdoor elements to prevent moisture ingress.

When wiring to a gas valve or electric furnace, ensure the W terminal connects to the circuit that initiates the ignition sequence or relay closure. Some setups require bridging R to W briefly to test furnace response–do this only if the manufacturer’s manual permits. Never energize W without verifying the C terminal connection first.

After completing connections, power up the system and observe furnace behavior. A successful heat call should trigger the inducer motor, then ignition within 60 seconds. If ignition fails, measure voltage between W and C–absence of 24V indicates a faulty thermostat or broken wire. Replace components systematically until normal operation resumes.
