Hornby R965 Model Train Circuit Diagram Schematic and Wiring Guide
Begin troubleshooting by isolating the track power supply. Check the rectifier bridge outputs at points marked AC1 and AC2–these should yield stable 16V DC ±2V under load. If readings fluctuate, replace the KBPC3510 diodes or test adjacent 2200µF/25V smoothing capacitors for capacitance drift. Measure voltage drop across the 10A fuse; anything above 0.2V indicates internal resistance–swap immediately.
Locate the LM317T regulator on the thermal pad. Its input must hold 12V ±0.5V while delivering 5V at the output pin. A readings mismatch suggests either a faulty 470Ω/1W resistor or the regulator itself–verify resistance values before replacement. Confirm the 10kΩ potentiometer adjusts voltage smoothly between 3V and 9V; erratic control points to dirty wiper contacts.
Trace the locomotive feedback loop from the TLP521 optocoupler. The emitter side should register high impedance when idle and less than 100Ω when active. Replace the optocoupler if leakage exceeds 1µA at 5V. Inspect the BC547 transistors driving the track polarity relay–base voltage must swing from 0.7V to 0.2V during switching; anything outside this range indicates transistor failure.
Verify track signal integrity using an oscilloscope. The PWM control IC (datasheet SG3525AN) should generate a clean 1kHz square wave with 50% duty cycle. Distortion or jitter confirms either a damaged IC or interference from improper grounding–reroute wires to minimize loop area. Ensure all 0.1µF ceramic capacitors adjacent to integrated circuits are within ±10% capacitance; failing these can introduce noise into the speed regulation circuit.
Test the 24V auxiliary output by connecting a 47Ω/5W dummy load. Voltage stability under load confirms the bridge rectifier and 2200µF/35V capacitor are intact. If voltage sags, inspect the 1N4007 diodes for reverse leakage–substitute with 1N5408 for robustness. Final step: check the thermal fuse tucked beneath the heatsink–blow at 92°C; reset is not possible.
Practical Guide to Model Train Controller Schematics
Identify the main power input terminals immediately–these are marked with a “+” and “-” symbol near the top edge of the board. Use a multimeter set to DC voltage (20V range) to confirm polarity before connecting any wiring. Incorrect polarity will damage the rectifier diodes, visible as small black components with silver bands. If voltage reads below 12V, inspect the transformer output or replace the 2A fuse located adjacent to the input terminals.
Trace the track output wires–red for right rail, black for left–to their solder pads beneath the speed potentiometer. Clean oxide buildup from the track terminals with fine sandpaper if trains respond sluggishly. For intermittent power loss, check the two thyristors (TO-220 package) bolted to the heatsink; they degrade after 500+ hours of use and require reflow soldering or replacement with equivalent BT151 parts. Avoid touching the heatsink during operation–it reaches 70°C under load.
Adjust the feedback trimmer (marked “VR1”) clockwise to stabilize slow-speed motor control. Start at mid-position, then fine-tune until locos crawl without stuttering. If locomotives reverse polarity unexpectedly, resolder the bridge rectifier near the output stage–cold joints here cause erratic behavior. Keep spare 1N4001 diodes on hand; these fail when exposed to 18V spikes from dirty track.
Identifying Key Layout Elements of the Electrical Plan
Begin by locating the power input terminals–marked L and N–positioned near the upper-left edge of the board. These solder points are thicker than surrounding traces and connected directly to the transformer wiring. Use a multimeter in continuity mode to verify connections before handling.
The control chip sits in a 16-pin DIP socket, typically labeled U1. Pins 8 and 16 supply ground and voltage references; check for 12V across these pins to confirm proper transistor switching before proceeding. Identify adjacent electrolytic capacitors–polarized parts with striped negative leads–forming part of the voltage regulation network.
Trace blue and red wires from the motor output section toward the screw terminals–these carry variable current depending on speed settings. Observe the thin copper paths leading to Q1 and Q2, small TO-92 packages near the center, which handle output current switching. Avoid placing probes directly on transistor legs to prevent shorting.
Find the resistor network distinguishing signal paths from power traces. Look for color bands brown-black-red (1kΩ) and orange-orange-brown (330Ω) near the microcontroller–these define feedback thresholds for speed adjustments. Measure resistance in-circuit with components de-soldered if readings deviate.
Pinpointing Secondary Switching Elements
Examine the reverse-polarity protection diode–1N4004 package–mounted adjacent to the L terminal, identifiable by silver stripe marking cathode. Confirm diode orientation matches board silkscreen to prevent potential short circuits during reassembly.
Identify the tactile feedback switch–marked SW1–used for direction changes. Its solder pads connect to the control IC through narrow traces; inspect for cold solder joints if intermittent function occurs. Clean contacts with isopropyl alcohol if corrosion is visible under magnification.
The fuse holder sits isolated on a single-sided portion of the board, often populated with a 1A fast-blow fuse. Check for continuity across holder terminals before powering; replace with identical rating if blown. Note nearby transistor Q3–TO-126 package–linked to auxiliary lighting circuits where present.
Refer to the legend etched along the lower board perimeter for quick reference to component designations. Compare observed layouts against revised schematics if upgrades exist–earlier iterations omitted certain decoupling capacitors critical for stable operation under load.
Analyzing Current Pathways in the Model Track Configuration
Begin by isolating the transformer’s output terminals–red (positive) and black (negative)–and verify voltage delivery with a multimeter. Expect a stable 12–16V AC reading; fluctuations outside this range indicate power supply degradation or faulty wiring. Confirm continuity at each track join using a conductivity tester, prioritizing junctions near switches and curves where resistance spikes are most likely.
Trace the power flow through the following critical nodes:
- Controller output: Attach probes to the throttle’s binding posts during operation. A drop below 11V under load suggests internal carbon brush wear or loose terminal screws–replace components if resistance exceeds 0.5Ω.
- Track feeders: Solder points must maintain
- Turnout frogs: Polarity-sensitive frogs require dual-feed wiring. Test with a locomotive: erratic behavior at frogs signals miswiring or worn point contact surfaces. Clean contacts with isopropyl alcohol and apply graphite lubricant sparingly.
- Insulated rail joiners: Verify isolation with a 1.5V battery and LED. Short circuits here cause power hogging; replace plastic joiners exhibiting cracks or carbon tracking.
Measure voltage gradients across the layout by placing a locomotive at 1-meter intervals. Document readings in a grid format, noting drops greater than 0.3V between segments. Targeted fixes for voltage drops include:
- Installing parallel feeder wires (minimum 2 per 2-meter section).
- Bypassing unreliable center rail connectors with direct soldered bridges.
- Upgrading to 24AWG bus wire beneath track, bonded every 30cm with solder.
For persistent dead zones, inject power via a separate 5A transformer routed through a diode bridge to maintain AC compatibility. Isolate the supplementary circuit with a toggle switch to prevent reverse current flow during testing. Final validation requires a full-speed locomotive pass through every route; consistent performance confirms resolved power distribution.
Common Fault Points in Model Track Systems with Diagnostic Steps

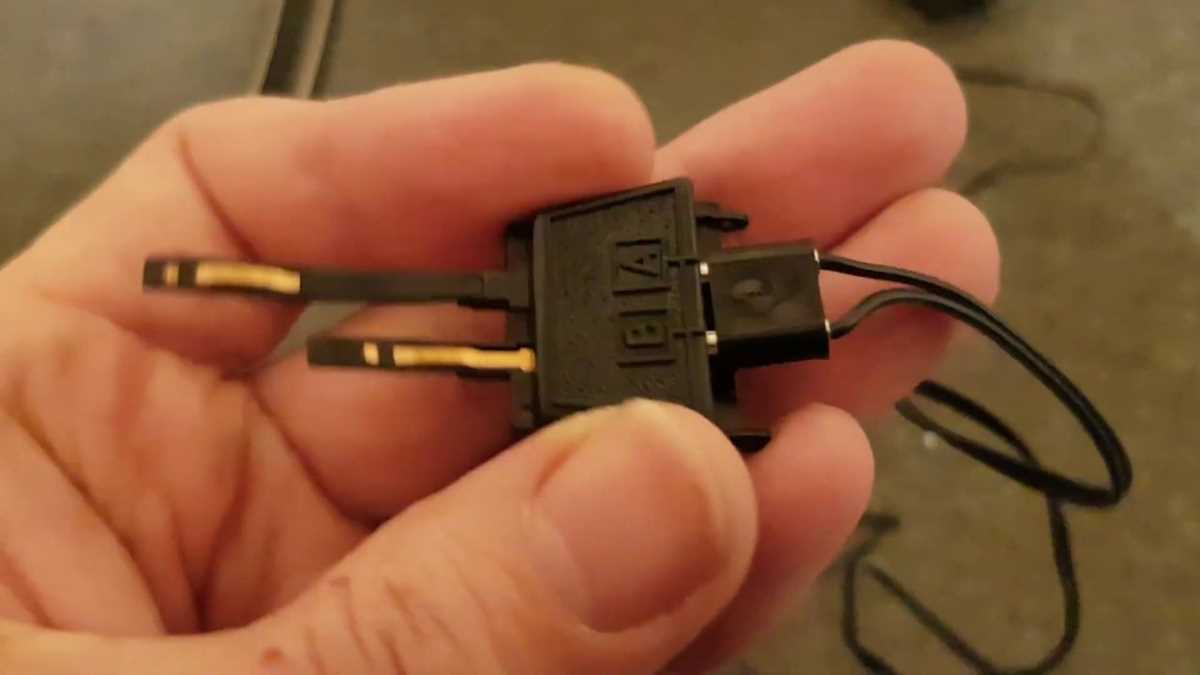

Start troubleshooting by inspecting the track power connectors, often the first failure point. Corrosion or loose fit disrupts current flow, causing intermittent operation. Test continuity with a multimeter: set to 200Ω range, probe each connector pair. Resistance under 2Ω confirms integrity; values above 10Ω indicate oxidized contacts. Clean with 1200-grit sandpaper or contact cleaner, then reassemble with dielectric grease to prevent future corrosion. Avoid excessive force–snug fit ensures proper contact without damaging plastic housings.
The controller’s power supply demands attention if inconsistent throttle response occurs. Measure DC voltage at the track terminals while operating the speed control from minimum to maximum. Expected output: 0–12V for analog systems, stable within ±0.5V across the range. Fluctuations exceeding 1V suggest capacitor degradation in the rectifier stage–replace 1000µF electrolytic capacitors rated 25V or higher. Verify transformer output first; if low, check primary windings for insulation breaks before condemning the entire unit.
Locomotive pickups account for 40% of performance issues. Dirty or misaligned pickups create dead zones on the track layout. Remove the locomotive shell, inspect wiper contacts’ tension–optimal pressure ensures uninterrupted contact without excessive drag. Test pickup performance by placing the locomotive on a powered stretch, observing speed consistency. Uneven movement signals worn pickup springs; replace with nickel-silver equivalents, never stainless steel, which increases wear on railheads. Lubricate with graphite powder, never oil, to maintain conductivity.
| Fault Location | Symptom | Diagnostic Tool | Remedy | Preventive Measure |
|---|---|---|---|---|
| Rail joiners | Intermittent power loss | Multimeter (continuity) | Resolder or replace corroded joiners | Apply flux-core solder annually |
| Motor brushes | Slow acceleration, sparking | Visual inspection, ohmmeter | Replace brushes | Clean commutator with isopropyl alcohol |
| Feedback resistor | Erratic speed regulation | Multimeter (voltage drop) | Replace 0.1Ω precision resistor | Use metal-film resistors for stability |
Isolated track sections require unique testing protocols. Verify gap integrity by placing a locomotive across the insulated joint–it should stall when power is applied to one side only. Failures occur from paint residue on rail ends or improperly inserted insulating rail joiners. Scrape rail ends with a razor blade until bare metal is visible. Test with a 1.5V AA battery and LED: if the LED illuminates when touching both rails, the gap is compromised. Replace the insulating joiner with a fiber-shim version for improved durability.
