Step-by-Step Guide to Drawing a Room Layout Schematic
Start by measuring the perimeter of each section with a laser distance meter or steel tape. Record wall lengths to the nearest millimeter, including doorways, projections, and recesses. Note window positions, power outlets, and plumbing fixtures–mark their exact centers rather than edges to avoid misalignment in later stages. Sketch raw dimensions on graph paper before digitizing to catch errors early.
Select a scale that fits the smallest details without clutter. For most residential layouts, 1:50 works–each 2cm on paper equals 1 meter in reality. Use thicker lines (0.5mm) for walls and lighter ones (0.18mm) for furniture to maintain visual hierarchy. Avoid decorative fonts; opt for a clean sans-serif like Arial Narrow at 8pt for labels to ensure readability when printed or shared.

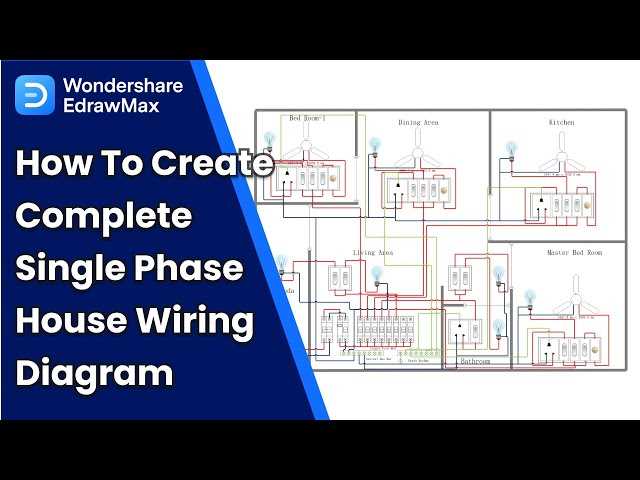

Divide the space into layers for clarity: walls, electrical, plumbing, HVAC, and furnishings. Color-code each layer–walls in black, electrical in red, plumbing in blue–to prevent overlap errors. Use dashed lines for hidden elements like ceiling beams or underfloor heating. Label every element with real-world dimensions (e.g., “2400mm × 900mm door”) directly on the sketch to save cross-referencing time.
Include a north arrow and scale bar in every version, even drafts. Add a disclaimer if the plan is for conceptual use (e.g., “Not for construction–verify measurements on-site”). Export final versions in PDF and DXF formats for architects and contractors, ensuring layers remain intact. Avoid JPG or PNG–raster files lose precision when scaled.

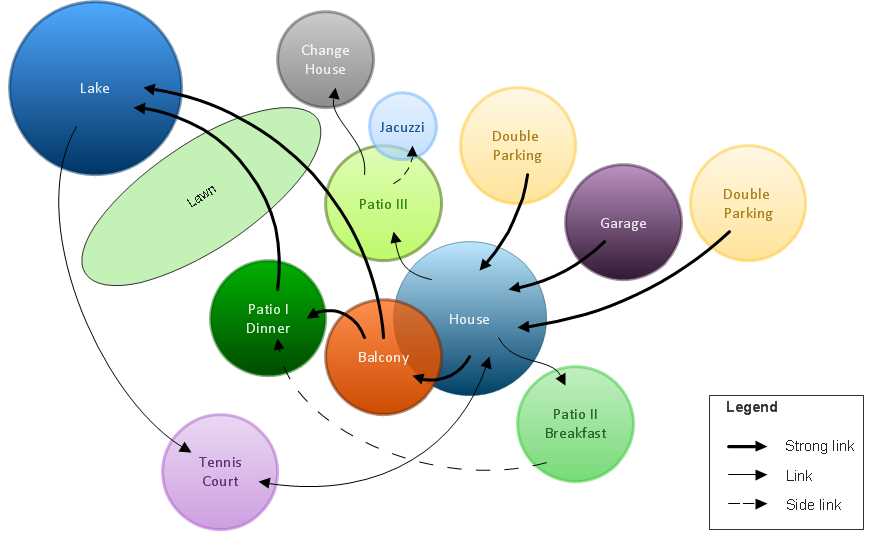

Creating a Visual Representation of Indoor Spaces
Begin by measuring walls, doors, and windows with a laser distance meter or tape. Record lengths in millimeters for precision–skips in scale later create alignment issues. Label each wall with temporary sticky notes to track orientation during drafting.
- Entryways: mark swing direction with arrows, noting clearance (minimum 800mm for wheelchairs).
- Windows: include sill height (typically 900mm) and total width; omit decorative trim in the drawing.
- Obstacles: columns, radiators, or built-in units under 100mm depth can be omitted unless obstructing movement.

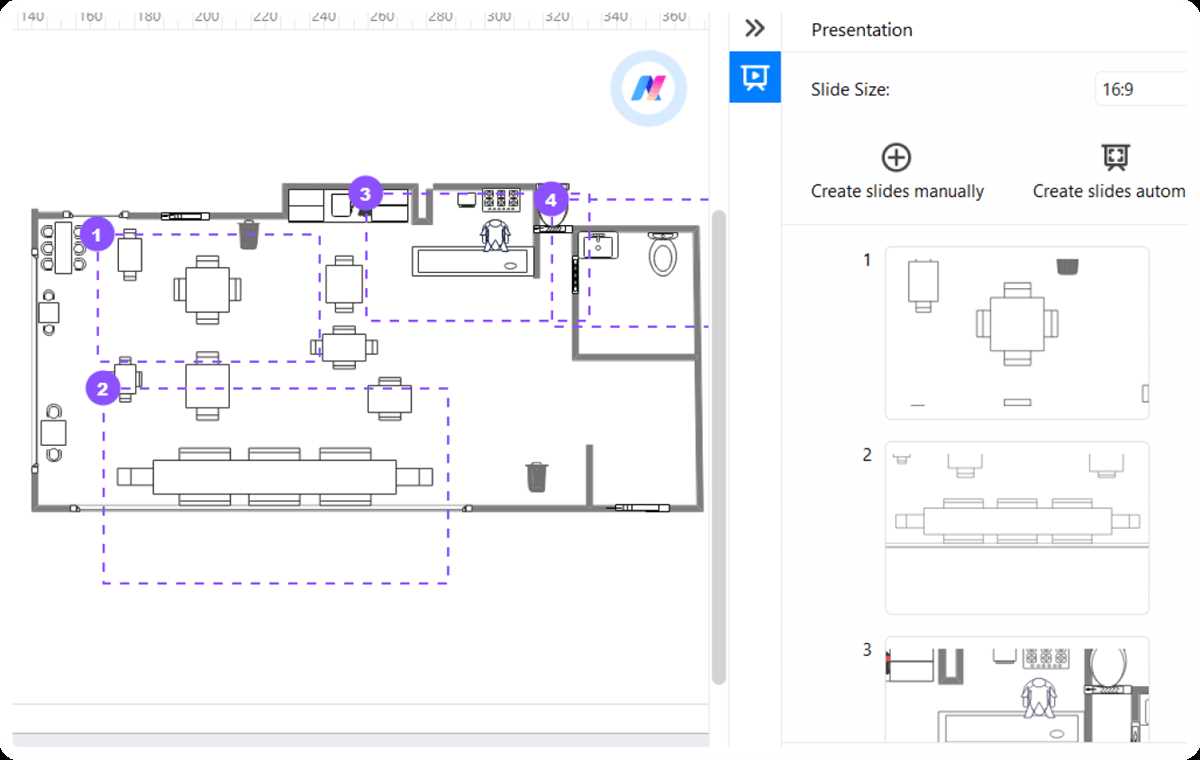

Select graph paper with 5mm squares or digital grid software offering similar density. Assign one square equal to 100mm real-world distance. Place thick borders along external walls; internal partitions use thinner lines. Door openings: arc identical to swing trajectory–omit hinges.
Furnishings require geometric simplification: rectangles for beds (standard 1400x1900mm), circles for round tables (diameter 900-1200mm). Maintain consistent proportions–shrink oversized pieces uniformly. Color-code zones: sleeping (blue), cooking (red), hygiene (yellow); legends belong outside drawing margins.
Validate draft by overlaying tracing paper; discrepancies under 20mm can be adjusted visually. Finalize using fine-liner pens or vector stroke widths (0.25mm walls, 0.1mm doors). Export as SVG or PDF; raster formats introduce scaling errors at printing.
- Label permanently: room function, north compass arrow, scale (1:20 typical for A3 sheets).
- Include revision date–layouts evolve with renovations.
- Insert disclaimer: “Not to be used for construction purposes.”
Selecting Optimal Applications for Spatial Layout Planning

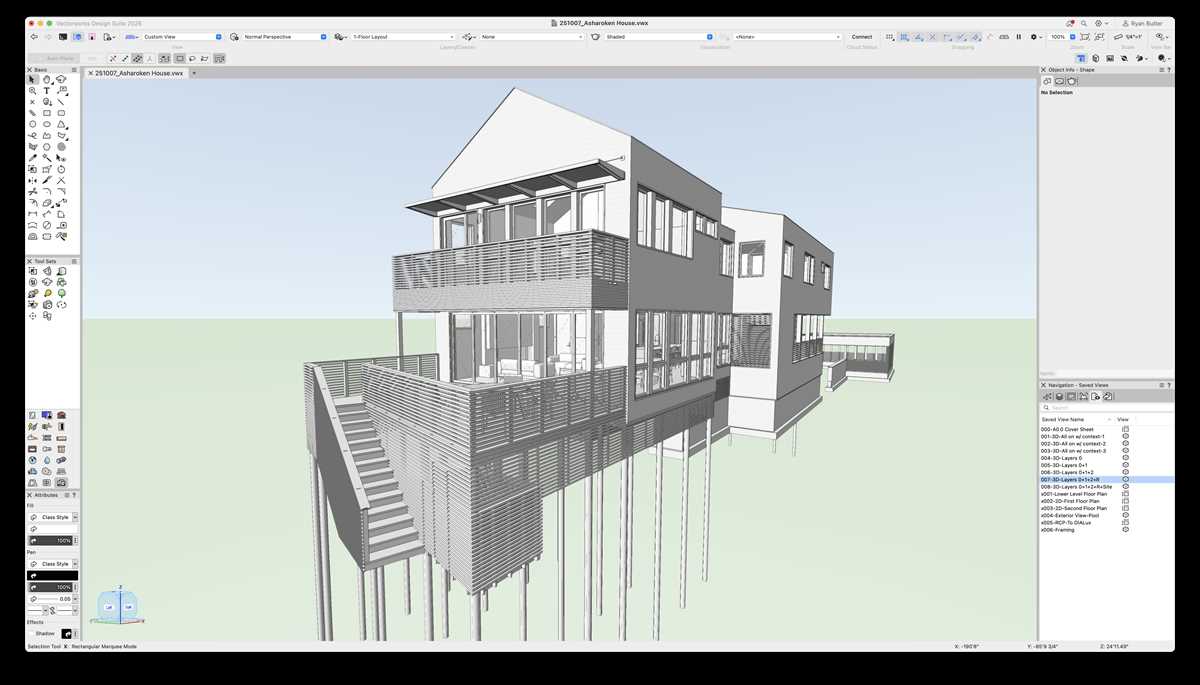

For precise interior representations, SketchUp Pro offers a balance of accessibility and professional-grade features, including 2D export capabilities and a vast library of 3D models. Its intuitive push-pull tool allows rapid prototyping of walls and furnishings, while extensions like SketchUp Layout enable clean, scalable blueprints. Licenses start at $299/year, making it viable for sustained use without recurring costs for basic functionality.
Floorplanner stands out for browser-based collaboration, enabling real-time edits across teams with minimal learning curve. The free tier permits one project with unlimited views, while paid plans ($29/month) remove restrictions on room count and add automated dimensioning. Its drag-and-drop interface exports vector files compatible with CAD software, bridging conceptual sketches and technical documentation.
Revit excels in data-rich environments where integration with building information modeling (BIM) is critical. Parametric components auto-update across views, ensuring consistency in architectural planning, lighting schemes, and electrical layouts. Though the $2,545/year subscription targets AEC professionals, its interoperability with AutoCAD and Navisworks justifies the cost for complex renovations or multi-story builds.
Sweet Home 3D appeals to budget-conscious users with its open-source core and offline functionality. The software renders realistic previews with adjustable textures and includes a catalog of 1,500+ customizable objects. Advanced features like metric/imperial switching and DXF export cater to international contractors but require manual fine-tuning for commercial-grade precision.
AutoCAD LT delivers industry-standard drafting at $440/year, prioritizing precision over visualization. Its toolset includes dynamic blocks for repetitive elements (doors, windows) and layer management for segregating structural, electrical, and plumbing plans. While lacking 3D modeling, it pairs seamlessly with Tinkercad for freeform additions before finalizing blueprints.
For Mac-centric environments, RoomSketcher offers native performance with a $49/year plan. The app’s augmented reality mode overlays designs onto physical spaces via iOS devices, while metric calculations streamline permit applications. Cloud storage synchronizes across devices, though rendering quality lags behind standalone alternatives like Chief Architect for photorealistic outputs.
Precise Spatial Documentation: Techniques for Capturing Interior Layouts
Use a laser distance meter for walls exceeding 3 meters–manual tape measures introduce cumulative errors up to 15 mm per 10 meters. Stand perpendicular to the surface, press the device flush to the baseboard, and record readings to the nearest millimeter. For angled walls, secure a straightedge (e.g., aluminum level) against the surface to create a reference line; measure from this line instead of the irregular edge.
Divide open spaces into quadrants or triangulate from fixed anchor points like electrical outlets or ventilation grates. Mark these anchors on your draft with unique symbols–circles for outlets, squares for vents–to avoid confusion during later scaling. If the area lacks fixed features, temporary adhesive markers (blue painter’s tape) can serve as placeholders, but remove them immediately after recording to prevent residue.
Document vertical dimensions separately: floor-to-ceiling height at 0.5-meter intervals along each wall, noting deviations from average. Variations greater than 20 mm may indicate structural anomalies requiring adjustment during drafting. For suspended ceilings or ductwork, measure both total height and clear height to the lowest obstruction. Store these values in a table:
| Wall Segment | Horizontal (mm) | Floor-Ceiling (mm) | Clear Height (mm) | Obstructions |
|---|---|---|---|---|
| North (A-B) | 4875 | 2540 | 2380 | Ductwork |
| East (B-C) | 3260 | 2550 | 2550 | None |
Account for finish materials when measuring. Baseboards add 20–30 mm; drywall thickness ranges from 12.5–15.9 mm per layer. Subtract these from raw measurements if the final representation requires net usable space. For tiled surfaces, include grout lines in calculations–ceramic tiles typically add 3% to total area compared to smooth finishes.
Photograph each wall section after measurement with a reference scale held parallel to the floor. A standard A4 sheet (297 mm) works; position it near the midpoint of the wall, ensuring both edges are visible in the frame. Overlay these images onto initial sketches to verify proportional accuracy during post-processing.
Cross-validate measurements by calculating perimeter totals using two methods: sum of individual wall segments and direct perimeter measurement. Discrepancies exceeding 1% indicate measurement errors–recheck the longest walls first, as they contribute the largest potential variance. For curved elements, use flexible measuring tapes and record chord lengths at 30° increments (or 0.5-meter intervals, whichever is smaller) to approximate the arc.
Store raw data in a structured format immediately after collection. Paper notes smudge; use voice recordings (with timestamped waypoints) or digital entry forms pre-loaded with field names. Synchronize all data within 2 hours of collection to prevent misalignment between memory and recorded values.
Prioritizing Key Features for Your Interior Layout
Begin with fixed structural components: doors, windows, load-bearing walls, and built-in fixtures like staircases or fireplaces–these dictate scale accuracy. Measure widths of openings to the nearest centimeter; door swings should indicate clear trajectories (arc radius = door width × 1.25). Mark permanent utility points: electrical outlets (height 30–45 cm above floor), light switches (120 cm), plumbing lines for sinks/toilets, and HVAC vents. Include alcoves or recessed shelves if their depth exceeds 15 cm, as they alter furniture placement boundaries.
Selective Furnishing Inclusion
Limit movable items to those occupying over 0.5 m² of floor space–sofas, beds, large tables–not chairs or standalone lamps unless they anchor zones (e.g., a desk defining a workspace). Represent built-in storage only if it extends past wall contours (e.g., wardrobes protruding 60+ cm). Exclude décor unless it impacts traffic flow (a tall bookshelf requiring 90 cm clearance). Use uniform symbols: rectangles for solid objects, dashed lines for conceptual boundaries like rugs or virtual work triangles in kitchens.
