Practical Guide to Understanding and Designing Switching Circuit Diagrams

Use a push-pull driver stage for fast signal toggling in high-frequency applications. Pair it with a low-inductance ground plane to minimize voltage spikes during state changes. For 3.3V logic, select MOSFETs with a threshold voltage (V_GS(th)) under 1.5V to ensure clean switching at low input levels. Gate resistors should match the driver’s impedance–typically 10Ω to 50Ω–to prevent ringing.

Place snubber circuits (RC networks) across inductive loads like relays or motors. A 100Ω resistor paired with a 1nF capacitor works for most 12V–24V systems. For noise-sensitive designs, add a ferrite bead on the power line near the load to suppress high-frequency transients without affecting DC performance.

Opt for bi-directional TVS diodes over standard zeners for transient suppression. Choose a breakdown voltage 10–20% above the operating rail (e.g., 36V for a 28V system) to avoid false triggers during normal operation. Position them within 3mm of the circuit entry point to maximize response time.

In mixed-signal layouts, segregate analog and digital grounds at the point of load, connecting them only at the primary power source. Use star grounding for high-current paths, ensuring no shared traces exceed 0.5mm in length between critical nodes. For 10MHz+ signals, maintain trace lengths under 20mm or introduce controlled impedance matches.

Test transition behavior with a 100MHz oscilloscope and a passive probe (

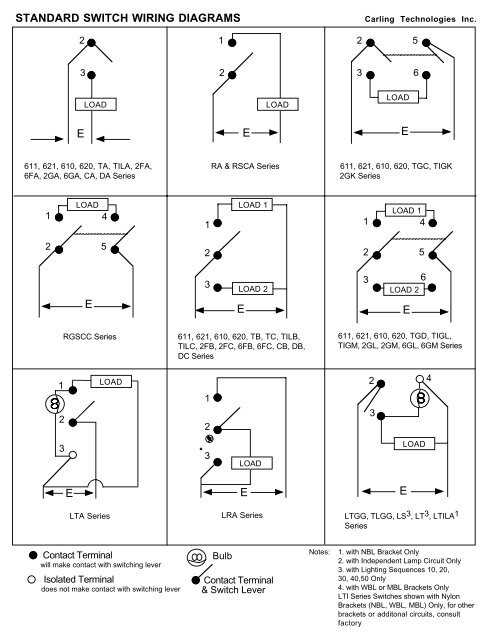

Building Reliable Circuit Paths: A Hands-On Approach

Start by identifying the exact voltage drop allowed across each contact–select relays with contact resistance lower than 10 milliohms for 5V logic paths to prevent signal degradation. For inductive loads, use flyback diodes rated at 1.5× the load current to avoid voltage spikes damaging sensitive components. Measure trace widths after calculating current; 0.5A per 1mm trace width on 1oz copper is a safe baseline, but verify with PCB design software for precise thermal modeling.

Group high-frequency toggling elements (e.g., MOSFETs, transistors) within a 5cm radius of their drivers to minimize parasitic inductance and capacitance. Place decoupling capacitors–100nF ceramic for general use, 10μF tantalum for bulk–directly between power pins and ground, ensuring vias connect to internal ground planes within 2mm. Avoid 90° angles in signal routes; 45° mitered corners reduce reflections better than abrupt bends.

Label every component with its exact part number and value directly on the layout–avoid generic references like “R1” without parameters. Include test points for critical signals: use 0.8mm diameter pads with 1.2mm clearance spaced at least 10mm apart to accommodate probe tips. For microcontroller-based designs, add a 10kΩ pull-down resistor to unused I/O pins to prevent floating signals.

Simulate load conditions before final assembly. Use SPICE models for power delivery verification–adjust component values iteratively if transient response shows overshoot exceeding 5% of nominal voltage. For switching regulators, confirm the feedback loop stability by probing compensation pin waveforms; phase margin should exceed 45° at crossover frequency to prevent oscillations.

Isolate analog and digital grounds at the board level, merging them only at a single low-impedance star point near the power input connector. Keep high-current traces (e.g., motor drivers) away from low-level signals; maintain 3mm minimum spacing to prevent electromagnetic interference. For multilayer boards, dedicate an inner layer to ground plane continuity, stitching it with via arrays around critical sections.

Document thermal constraints for heat-generating parts: attach thermal vias beneath power components, using 0.3mm diameter plated holes on a 1.5mm grid. Verify copper pour areas for heatsinking–1oz copper sinks approximately 2W per square centimeter under natural convection. Add silk-screen warnings for user-serviceable components requiring static protection, such as EEPROM or MOSFET gates.

Include a revision history on the layout itself, etched into an unused corner. Specify changes like “Rev 2: Increased C7 to 47μF for PSU ripple reduction” to track design iterations. Export Gerber files with separate layers for assembly (pick-and-place) and fabrication (drill holes, solder mask). Validate manufacturability by checking pad-to-hole ratios–minimum 0.2mm annular ring ensures reliable solder joints.

Core Elements of Power Conversion Layouts and Their Roles

Start with a solid-state relay or MOSFET rated for at least 20% above the expected load current. For low-voltage DC circuits (under 48V), opt for logic-level gate devices like the IRLZ44N, which can fully saturate with a 5V drive signal. Avoid cheaper alternatives with higher R_DS(on) values–a 10mΩ difference translates to ~0.5W extra loss per amp in continuous operation. Always place a freewheeling diode (Schottky preferred) directly across inductive loads to clamp voltage spikes; reverse recovery time should be under 100ns for switching frequencies above 50kHz.

For control signals, prioritize isolated gate drivers like the SI8271 or UCC21520. Non-isolated designs risk ground loops and latch-up, especially in half-bridge topologies. Drive signals should have rise/fall times under 50ns–slower transitions increase switching losses quadratically. Add a 10Ω series resistor to the gate path to dampen oscillations, but keep it close (within 5mm) to the semiconductor to minimize stray inductance. For high-side switches, bootstrap capacitors (typically 0.1µF–1µF) must be sized to maintain gate charge during on-time; derate voltage by 30% to account for ripple.

Critical Passive Components and Layout Rules

• Input capacitors: Use X7R dielectric ceramic capacitors (e.g., GRM32ER72A225ME20) in parallel with electrolytics for bulk storage. Place them within 1cm of the switching element to reduce trace inductance, which can cause overshoot exceeding 2× the input voltage. For 24V systems, a minimum of 47µF per amp of load current prevents voltage sag during transient events.
• Output inductors: Select core materials based on frequency:
  1. Under 200kHz: Ferrite (e.g., RM12-3F3) for low losses.
  2. 200kHz–1MHz: Powdered iron (e.g., T300-26) for balanced saturation and AC losses.
  3. Above 1MHz: Air-core or composite cores to avoid eddy currents.

  Wind inductors with litz wire for layers exceeding 3 turns to minimize skin effect. Ensure air gaps are distributed (not single-point) to reduce fringing flux, which can couple into nearby traces.

• Feedback networks: Use a Kelvin connection for current-sense resistors (e.g., WSL2512 1mΩ) to eliminate trace resistance errors. For voltage feedback, opt for resistor dividers with ≤0.1% tolerance (e.g., SMD 0603 1%) and a parallel capacitor (1nF–10nF) to filter switching noise. Position feedback traces away from noisy nodes–coupling as low as -60dB can destabilize regulation loops.

Thermal management begins with PCB layout. Dedicate at least 50mm² of copper pour (1oz or thicker) per watt of dissipation for devices like the TPS54331. Extend heat sink pads beyond the package perimeter by 2mm to improve thermal diffusion. For high-power designs (>10W), stack multiple vias under the device, with a diameter of 0.3mm–0.5mm and a pitch of 1.5× diameter, filled with solder or conductive epoxy. Always simulate thermal performance using tools like LTspice with RC thermal models–neglecting transient thermal impedance leads to premature failures.

Guard against EMI early. Separate high-current loops from signal paths by at least 5mm, and route them on opposite PCB layers if possible. Snubbers (RC networks across switches) should use resistors with ≤5% pulse tolerance and capacitors with X2 safety rating. For differential-mode filtering, use common-mode chokes (e.g., WE-CMB) with ≥2A saturation current; place them immediately after input capacitors to attenuate conducted emissions before they propagate. Finalize with a ground plane split: analog, power, and signal grounds should connect at a single star point, preferably under the main storage capacitor.

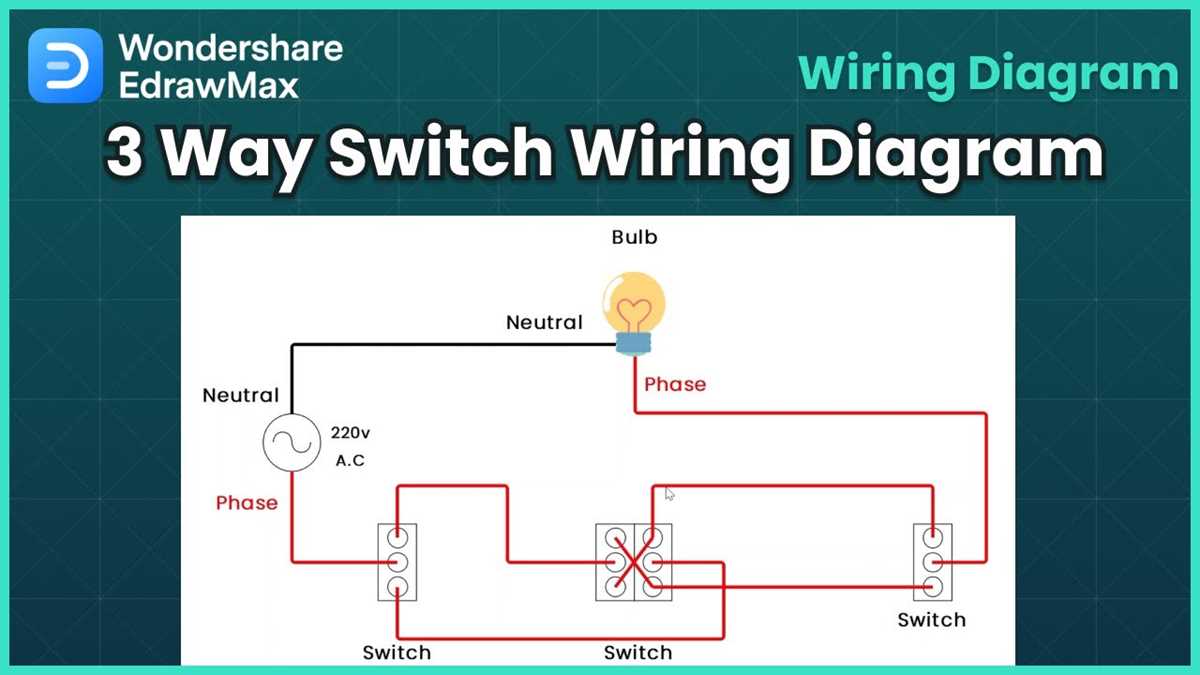

Creating a Toggle Circuit Layout: A Practical Approach

Start by placing the power source at the top left corner of your draft. Use a 9V battery symbol with clear positive and negative terminals. Draw a vertical line downward from the positive terminal–this will serve as the main supply path. At 3 cm intervals, mark connection points for components to ensure proper spacing. For resistors, use zigzag lines with values annotated directly above (e.g., R1 220Ω). Keep all annotations horizontal to avoid confusion. Skip generic labels like “R” or “C”–specify exact values and functions immediately.

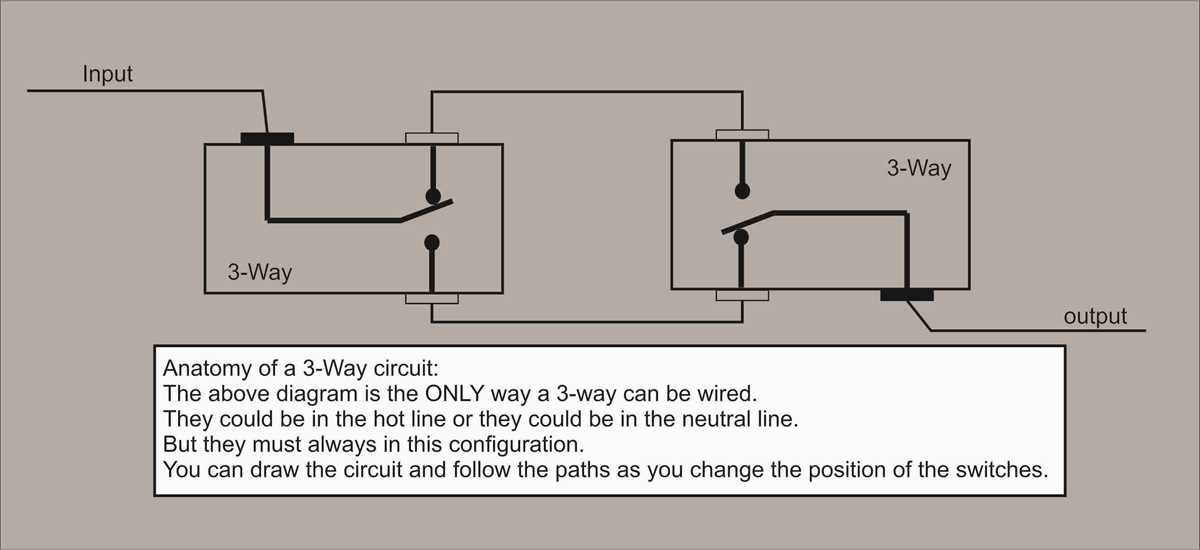

Connect the toggle element next. Position it 5 cm below the power source with three terminals: common (center), normally open (left), and normally closed (right). Use bold lines for primary connections (0.5mm thickness) and thinner lines (0.2mm) for secondary paths. Add a 100nF capacitor between the power rails near the toggle’s common terminal–this stabilizes voltage fluctuations. Ground symbols should be placed at the bottom of the layout, connected via short perpendicular lines to the negative rail. Verify each path has a clear endpoint: either a component, ground, or another terminal.

Refining Connections and Testing Paths

Isolate each branch before finalizing. Trace the route from the power source through the toggle’s common terminal to the output (e.g., an LED). Use dots at intersections–no ambiguous crossings. For branch circuits, insert a 1kΩ resistor in series to limit current. Label test points with alphanumeric IDs (e.g., TP1) in 8pt font. Double-check polarity for diodes and electrolytic capacitors. Print a 1:1 scale copy and probe each node with a multimeter set to continuity mode to confirm connectivity. Adjust line bends to 45° angles–avoid curves to ensure clarity when transferring to PCB design software.
