Understanding German Industrial Equipment Schematics A Practical Guide

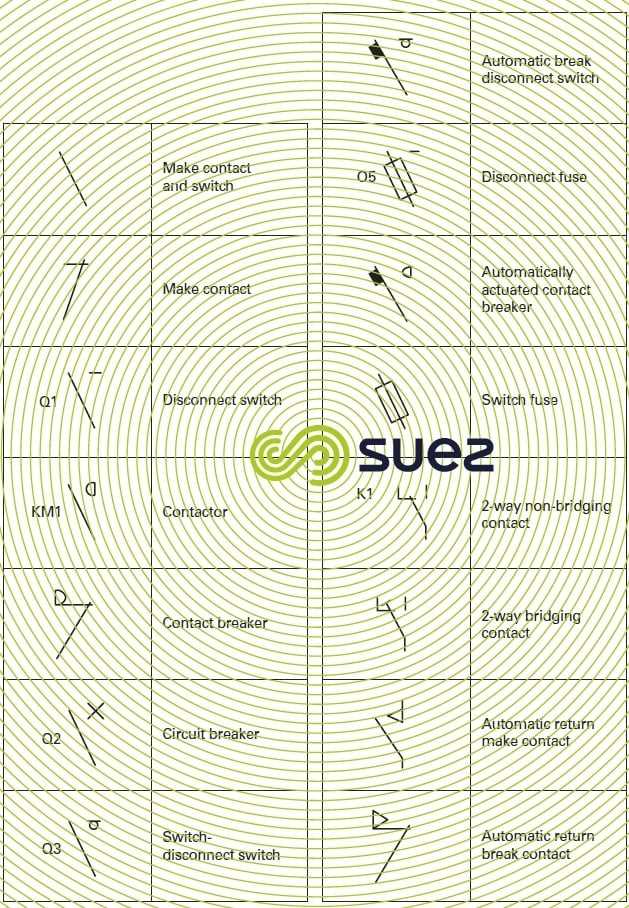

Begin by identifying the DIN symbol library – the backbone of these technical layouts. DIN standards (Deutsches Institut für Normung) dictate precise visual conventions: resistors (Widerstand) use a jagged line, capacitors (Kondensator) appear as parallel lines or curved plates, and inductors (Spule) are coils or loops. Cross-reference these with the legend, typically positioned in the lower-right corner, where symbols link to their functional descriptions.
Locate the circuit flow direction: German designs prioritize left-to-right signal paths in power sections, while control loops often follow bottom-up logic. Trace the thickest lines first – these carry main power or hydraulic pressure. Thin lines indicate low-current signals, dashed lines denote mechanical linkages, and dotted lines represent pilot circuits or auxiliary connections.
Memorize labeling syntax: “K” signifies relays, “Q” denotes switching devices (e.g., circuit breakers), “M” marks motors, and “X” labels terminal blocks. Numbers following letters (e.g., K12) indicate hierarchy (K1: master relay, K2: secondary actuation). Annotations like “-A1” or “-X2” refer to sub-assemblies mounted on a specific component.
Interpret color codes directly on the layout: red for AC phases (L1, L2, L3), blue for neutral (N), yellow-green for protective earth (PE). In pneumatic diagrams, solid lines represent supply air, dashed lines show exhaust, and arrows mark non-return valves or restrictors. Check for intersecting lines – a dot at the junction confirms electrical contact, while absence indicates no connection.
Use the reference designation system at intersections. A number inside a circle (e.g., “15“) points to another part of the diagram, often on a different page. Follow these cross-references systematically, noting whether they lead to power distribution, control logic, or sensor feedback loops. Ignoring these risks misinterpreting safety interlocks or manual override paths.
Validate against functional block diagrams if available – these simplify complex sections into high-level interactions. German schematics frequently split electrical, pneumatic, and hydraulic subsystems into layered views. Focus on one system at a time before integrating them; mixing subsystems prematurely leads to overlooking critical fail-safes like emergency stops (NOT-AUS) or overload protection (Thermistorrelais).
Consult the component data table, usually in an appendix. Here, part numbers, voltage ratings, and torque specifications clarify ambiguous symbols. For instance, a motor symbol (M) might list “400V Δ / 690V Y“, revealing both low- and high-voltage configurations. Missing this detail risks incorrect wiring or motor burnout during testing.
Pay attention to revision markings – “Rev. 3” or “Änderung A” indicate prior corrections. Earlier versions may contain errors; always work from the latest release, typically stamped with the engineer’s initials and date near the title block. Overlooking revisions can result in compatibility conflicts with adjacent machinery or safety certifications.
Mastering Circuit Blueprints from DACH Region Manufacturers
Locate the Klemmenplan (terminal plan) first–it decodes wire connections by color-coding and numerical tags, typically found in the lower-right corner. Verify symbols against DIN EN 60617 or VDE 0570 standards: a slash through a resistor denotes a potentiometer, while three staggered parallel lines signify a choke coil. Track power rails separately: L1, L2, L3 for three-phase, N for neutral, and PE for protective earth. Use the Stromlaufplan (current path layout) to follow signal flow–solid lines indicate main circuits, dotted lines show auxiliary paths, and arrows mark direction in control loops.
Cross-reference component tables (Stückliste) for exact part numbers–German schematics embed references like K12 for relays or S4 for switches directly on the drawing. Measure voltages between terminals labeled U, V, W (motor phases), and confirm against the Spannungsplan (voltage diagram). For PLC-controlled systems, seek FB (function blocks) or DB (data blocks) annotations in the margins, often paired with ladder logic excerpts. Always check revision history (Änderungsindex) in the footer–older versions may omit modern safety circuits like FI (RCD) modules.
Identifying Core Electrical Symbols in European Technical Blueprints

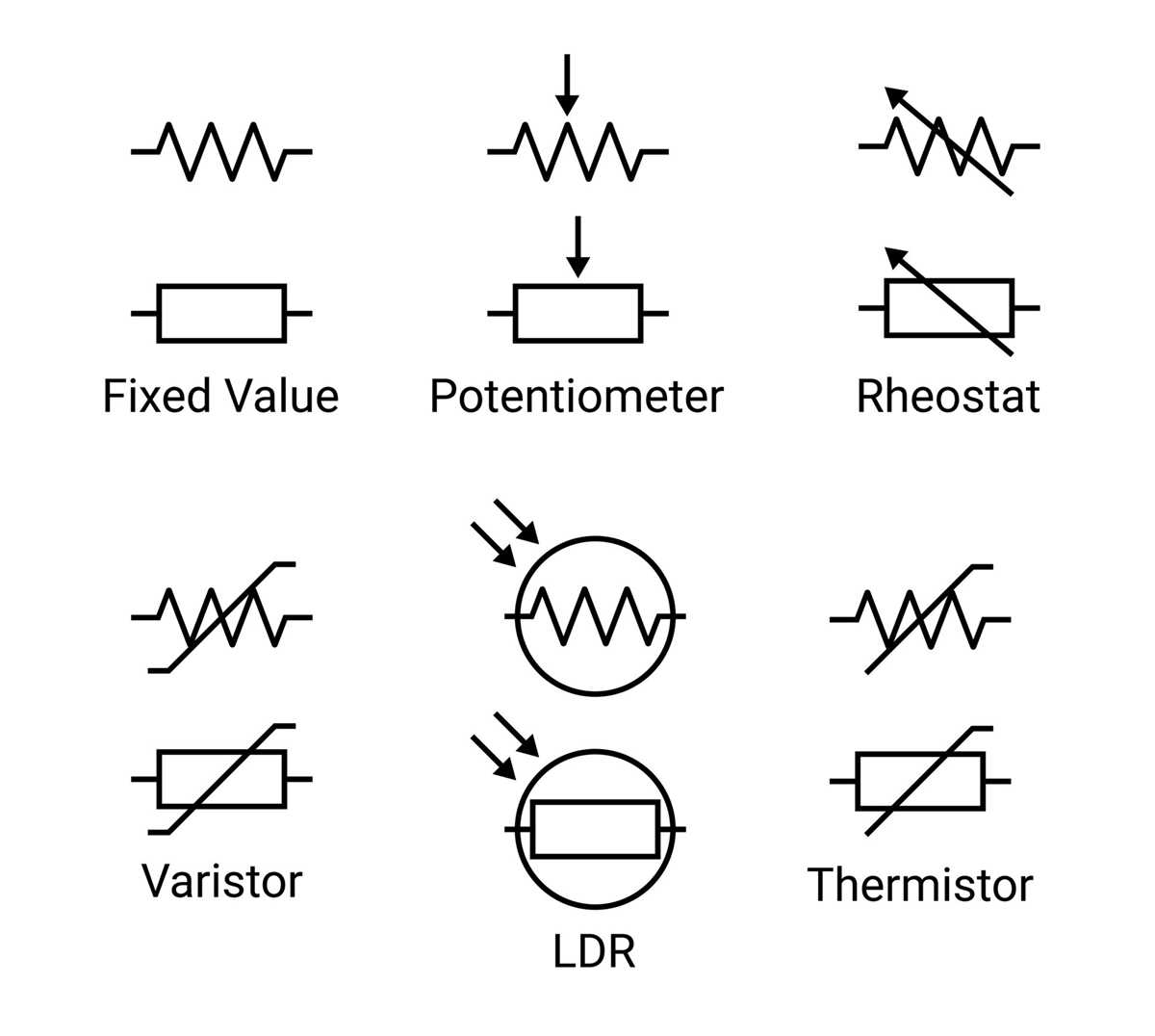

Begin with resistors–marked as R followed by numerals (e.g., R1). Labels often include wattage in parentheses, like R5 (4W), indicating power rating. Variable resistors carry P prefixes (P2) or Pot for potentiometers. German conventions frequently append tolerance codes: 2R2 5% means 2.2 ohms at ±5%.
Capacitors use C designations. Polarized electrolytics show voltage ratings (C8 25V). Film capacitors omit polarity but include dielectric type–MKS for metallized polyester, FKP for polypropylene. German notation often specifies capacitance in microfarads directly: C10 10µF. Non-polarized types may add frequency characteristics (C15 1nF X7R).
Switches and relays are labeled S or K. Pushbuttons append function: S1 EIN (on), S2 AUS (off). Relay coils use K followed by contact numbers (K3/1-2 for coil, K3/3-4 for normally open). German schematics depict contacts with inverted logic–Öffner (normally closed) and Schließer (normally open) appear distinctly. Rotary switches include pole positions (S4 6P).
Transistors follow T notation. BJTs specify type–T1 BC547B–while MOSFETs use V (V1 IRFZ44N). Darlingtons add D (T2 BD679). German documents often include pin assignments directly on symbols: emitter (E), basis (B), kollektor (C). IGBT modules combine V with current ratings (V3 100A).
Fuses carry F labels, typically annotated with amperage and speed (F1 5A träg for slow-blow). Circuit breakers use Q–Q1 16A C denotes a type C trip curve. Overload relays append thermal settings (K2/TH 6A). German standards mandate separating protective devices from functional switches–look for FI (RCD) prefixes.
Transformers use Tr or L. Primary/secondary voltages appear in brackets (Tr1 (230V/12V)). Toroidal cores specify dimensions (L2 Ø30x15mm). Chokes and inductors differentiate windings: Dr for chokes, Sp for coils. German schematics often label winding directions–punktiert (dotted) marks phase alignment.
Integrated circuits use IC or U. Microcontrollers append family codes (U1 ATmega328). Logic gates separate into G blocks (G1 74HC00). Power regulators include voltage outputs (U3 LM7805 5V). German documents frequently cross-reference ICs to DIN sheets–check for additional D suffixes.
Terminal blocks are numbered X followed by contacts (X1:1-3). Plug connectors use P–P2 9-pol denotes 9-pin. German schematics distinguish screw terminals (SK) from spring-loaded (FK). Ground symbols separate functional (⏚) from protective (PE) earths–verify labels against system architecture.
Decoding Key Shorthand in Technical Blueprints from German Manufacturers
Begin with VDE 0113 standards–most abbreviations align with these regulations. Common electrical components follow predictable patterns: K for relays (Kontakt), Q for circuit breakers (Schalter), and M for motors (Motor). Mechanical parts often use P for pumps (Pumpe), F for filters (Filter), and V for valves (Ventil). Cross-reference with DKE documentation for industry-specific variants.
Sensor and actuator labels split into functional groups:
B– sensors (B for Beobachter, e.g.,BGfor pressure (Druck),BTfor temperature)Y– actuators (Y for Stellglied, e.g.,YVfor control valves,YLfor solenoids)S– switches (Schalter), often paired with position indicators (SQfor Grenzschalter)
Troubleshooting Ambiguous Tags
When encountering HS or LS, check the adjacent symbols–these denote Hauptschalter (main switches) or Lastschalter (load switches), but context varies. For hydraulic/pneumatic systems, HD (Hochdruck) or ND (Niederdruck) clarify pressure ranges. Keep a multilingual reference chart (e.g., PE = protective earth, N = neutral) to avoid misinterpreting safety-critical annotations.
DIN 30600 and EN 60617-2 standardize graphic symbols; prioritize these over legacy plant-specific codes. For example, ⏚ universally denotes grounding, while ~ marks AC connections. Off-standard abbreviations (e.g., MM for Mischmotor or RF for Rückfluss) warrant verification via OEM manuals–most manufacturers include a legend in external documents.
Decoding Flow Direction and Signal Paths in Technical Blueprints
Trace signal pathways in circuit layouts by following arrow symbols or dashed lines–German documentation often marks current flow with arrows between components, while dashed lines indicate control signals. Start at the power source and move toward loads, noting branching points where multiple paths converge. Use a multimeter in continuity mode to verify suspected connections if physical testing is possible.
Common pitfalls include misidentifying ground returns: look for triangular symbols or thick lines at the lower edge of the layout, not thin traces. Noise-sensitive paths (e.g., analog feedback) usually run parallel to shielded cables or twist together–check for annotations like “abgeschirmt” or “Twisted Pair” near such segments. If a path splits, prioritize thicker lines as primary conductors; thin lines often carry auxiliary data or low-power signals.
Key Symbols for Identifying Path Types
| Symbol | Path Type | Typical Components |
|---|---|---|
| → (solid arrow) | Power flow | Transformers, rectifiers, relays |
| —-→ (dashed arrow) | Control/signal | PLC inputs, sensors, actuators |
| ⚡ (zigzag) | High-voltage/ground | Earth connections, surge protectors |
| ≈ (sine wave) | AC circuit | Motors, frequency drives, capacitors |
Cross-reference horizontal ladder layouts with vertical line diagrams–German standards frequently split power (upper) and control (lower) paths into separate sections. Label colors matter: red thick lines typically signify live voltage, blue for neutral, and black/green for protective earth. Jumpers or bridges between segments are drawn as small loops; count them to avoid overlooking parallel connections.
Avoid assuming linear progression–fuse symbols, denoted by a rectangle with diagonal line, may split or redirect power. Check for relay coils (rectangle with diagonal arrow) that toggle between normally open (NO) and closed (NC) contacts. Digital interfaces (e.g., Profibus) show as dotted rectangles with pin numbers; match these to terminal blocks labeled “X” followed by ascending digits (e.g., “X1: 1-12”).
Anomalies like ghost paths appear when unused components are dimmed–look for light-gray traces or parentheses around labels (e.g., “(R3)”). Always verify path continuity against component datasheets; a resistor marked “1k” but drawn as a single line might represent a jumper wire in disguise.
