Mastering Circuit Diagrams A Step-by-Step Interpretation Guide

Begin by isolating each symbol on the page. Resistors appear as zigzag lines, capacitors as parallel lines, and power sources as intersecting circles with polarity markers. Trace connections methodically–follow every line from origin to termination without skipping intermediary nodes. Use a highlighter to mark pathways for complex layouts; this prevents overlooking hidden junctions.

Group functional blocks before analyzing individual components. Power regulation sections cluster near inputs, signal processing blocks sit between sensors and outputs, and grounding zones often occupy lower regions. Label these zones mentally: “input stage,” “amplification,” “output stage.” This segmentation reduces cognitive load when verifying paths.

Verify voltage domains early. AC sources show sine waves; DC sources display straight lines with +/- indicators. Cross-check polarities against expected current flow–incorrect orientation inverts operational behavior. For integrated circuits, pin numbering runs counterclockwise from the top-left dot; confirm datasheet alignment before proceeding.

Measure before assuming. A multimeter confirms continuity where lines overlap visually–what resembles a single trace might actually fork beneath solder mask. Test resistance values between nodes; unexpected shorts or opens reveal layout errors without schematic revision.

Annotate conventions. European standards flip resistor/capacitor symbols compared to ANSI. Open-collector outputs omit pull-up resistors; totem-pole designs include them by default. Note these differences to avoid misinterpreting control logic.

Simplify sub-circuits. Replace transistor arrays with equivalent blocks showing input/output behavior only. Treat shift registers as sequential black boxes with clock/data inputs rather than tracing every gate. This abstraction prioritizes function over granular details.

Practice reversal. Sketch a working module from memory, then compare against the original. Identify discrepancies–missing feedback loops or incorrect ground connections often surface during reconstruction.

Decoding Electrical Schematics: A Practical Approach

Begin by isolating power sources–batteries, AC mains, or voltage regulators. Label their values directly on the drawing to avoid cross-referencing errors. A 5V line behaves differently than a 12V rail, so clarity here prevents misconnections.

Trace signal paths sequentially. Inputs enter from the left, outputs exit right. Ground symbols cluster at the bottom; use this convention to orient yourself instantly. Components like resistors or LEDs placed vertically signal a return path to ground.

Recognize standardized symbols instantly: capacitors as parallel lines, transistors as angled arrows, ICs as rectangles with numbered pins. Manufacturers often deviate slightly–verify datasheets for proprietary variations.

Color-code lines for clarity. Red for power, black for ground, blue for signals. Use a dry-erase marker on printed schematics to highlight critical loops; this physical act reinforces memory.

Measure voltages at test points before assembling. A multimeter reveals open circuits (infinite resistance) or shorts (near-zero resistance). Disconnect power first–active probing risks damaging logic gates.

Break complex drawings into functional blocks. A microcontroller’s support circuitry (crystal oscillators, pull-up resistors) deserves its own subsection. Annotate each block’s purpose in the margin.

Check polarity on polarized components. Diodes, electrolytic caps, and ICs have pin 1 marked–usually via a notch or dot. Reversing these components leads to immediate failure.

Simulate the schematic using software like LTspice before prototyping. Virtual testing catches design flaws without risking hardware–observe voltage drops, transient responses, and stability under load.

Decoding Schematic Symbols: A Practical Guide

Begin by memorizing core graphical notations: a straight horizontal line represents a conductor, while a break in that line with two small perpendicular bars denotes a connector. Resistors appear as zigzag lines (US/EU) or rectangles (IEC), always labeled with their resistance value in ohms (Ω) next to them. Capacitors split into two types–polarized (one curved line) and non-polarized (two parallel lines)–with values marked in farads (F) or microfarads (µF).

Transistors show three terminals: emitter (arrow), base (middle), and collector. The arrow’s direction indicates NPN (outward) or PNP (inward) configurations; verify pinouts against datasheets, as physical layouts rarely match schematics. Integrated circuits use rectangular blocks with numbered pins arranged either clockwise (starting at pin 1) or counterclockwise; count pins from the top-left dot or notch to avoid confusion.

Switches display as two dots connected by a movable line: SPST (single line), SPDT (Y-shaped), or DPDT (parallel lines). Diodes feature a triangle pointing to a vertical line, with the triangle’s tip marking the anode; LEDs add two small arrows to indicate light emission. Power sources include batteries (parallel lines of unequal length), DC (straight line with +/–), and AC (sine wave inside a circle).

Ground symbols vary by context: a downward triangle for signal ground, three descending lines for chassis ground, and a symbol resembling an inverted T with perpendicular lines for earth ground. Inductors appear as coiled loops; toroidal types add a circle around the loops. Labels like “C1” (capacitor), “R2” (resistor), or “Q3” (transistor) follow sequential numbering–checking for gaps helps spot missing components in complex layouts.

Cross-reference unfamiliar symbols with IEEE Std 315 or manufacturer schematics. Annotate ambiguous notations directly on prints: a diode’s cathode might lack the typical band mark, or a MOSFET’s body diode could be implied rather than drawn. Compare symbols across projects–Euro schematics often swap zigzag resistors for rectangles, while Japanese schematics use unique notations for jumpers (small circles). Keep a reference sheet nearby for rapid verification.

Mapping Charge Paths Through Schematic Symbols

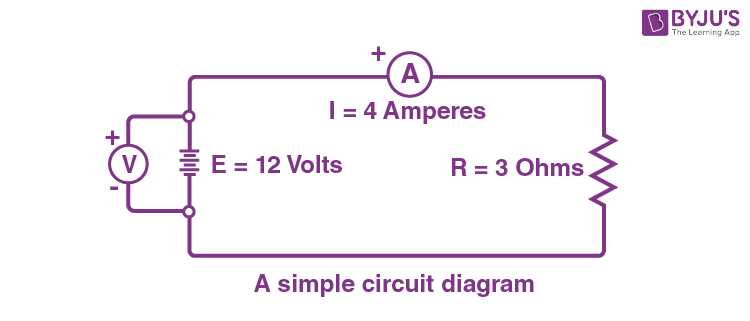

Identify the power source first–battery, generator, or regulated supply–and note its positive and negative terminals. Mark these points clearly; they define the start and return paths for electrons. Follow the boldest or thickest lines outward from the positive terminal, as these typically represent primary conductors like buses or power rails.

Break complex layouts into segments using these rules:

• Locate switching elements (transistors, relays) and treat each position as a separate branch.
• Highlight resistors, capacitors, and inductors; each alters current magnitude or phase.
• Trace junctions where paths split–use highlighters or numbered tags to avoid crossing lines.

Verify continuity by checking that every path reconnects to the negative terminal or designated ground symbol.

Examine passive components’ orientation. Resistor values often appear beside their symbol; calculate voltage drops using Ohm’s law (V = I × R) if currents are unknown. Capacitors store charge; polarity markers indicate direction of electron flow during charging and discharging phases. Inductors resist sudden changes; note their winding direction for magnetic field analysis.

Observe control devices–logic gates, microcontrollers–by treating their output terminals as secondary sources. Map these signal paths separately, noting high and low states (typically 5V, 3.3V, or 0V) as they toggle connected loads. Use a multimeter’s continuity mode to confirm physical connections match schematic representation.

Finalize tracing by cross-referencing each path against a reference list:

1. Power sources → primary paths → loads.
2. Signal sources → control paths → driven components.
3. Return paths → ground or common node.

Record current estimations (milliamps for signals, amps for power) to detect inconsistencies like unintended shorts or open loops. Repeat traces until predicted and measured values align within 5% tolerance.

Decoding Component Labels and Values

Begin by identifying resistors marked with R followed by a number (e.g., R5) and a value in ohms (Ω), kilohms (kΩ), or megohms (MΩ). Values like 4.7k or 220 denote 4,700Ω and 220Ω respectively–prefixes matter. For capacitors, C labels pair with microfarads (µF), picofarads (pF), or nanofarads (nF); 100n equals 100 nanofarads, while 22p means 22 picofarads. Inductors use L and henries (H), millihenries (mH), or microhenries (µH), where 100uH stands for 100 microhenries.

Common Prefixes and Their Multipliers

Prefix	Symbol	Multiplier	Example
Pico	p	10-12	10pF = 10 × 10-12 F
Nano	n	10-9	47nF = 47 × 10-9 F
Micro	µ	10-6	100µF = 100 × 10-6 F
Milli	m	10-3	10mH = 10 × 10-3 H
Kilo	k	103	1kΩ = 1 × 103 Ω
Mega	M	106	1MΩ = 1 × 106 Ω

Tolerances appear as percentages (±5%, ±10%) or as letter codes: J (5%), K (10%), M (20%). Diodes and transistors follow unique notation–D for diodes (e.g., D1), Q for transistors (e.g., Q3)–while ICs use U or IC (e.g., U2). Voltage ratings for capacitors appear after the value (16V, 25V), indicating maximum operational limits. Power ratings for resistors may replace or supplement value markings (e.g., 1/4W for quarter-watt).

Spotting Series vs. Parallel Links Instantly

Trace the current path visually: single routes branching at junctions scream parallel, while unbroken chains–one component feeding directly into the next–signal series. Follow the flow from power source to ground; parallel paths diverge then merge, while series push sequentially without splits. Mark every fork: if two resistors share both ends, they’re parallel; if one’s tail connects to the next’s head, they’re chained. Measure voltage drops–uniform across multiple elements hints at parallel, staggered values point to series.

Check for shared nodes. Parallel components attach to identical start and end points, creating loops that split amperage. Series links string together, forcing identical current through each segment. If components stack vertically or horizontally with no branching, they’re series. If lines split and rejoin, draw hypothetical current arrows; intersecting paths confirm parallel.
