Understanding Series vs Parallel Circuits with Practical Wiring Diagrams

For low-voltage lighting setups requiring uniform brightness, arrange components in a single continuous loop–batteries linked cathode-to-anode with bulbs following the same path. This configuration distributes equal current through every element, but failure in one point breaks the entire chain. Measure voltage drop across each segment with a multimeter to confirm consistent values; discrepancies above 0.2V signal resistance issues.

Switch to a branched design when redundancy is critical or devices demand independent control. Connect loads directly across the power source with dedicated leads–each path draws full voltage while sharing total current. Calculate maximum branch current by summing individual loads; exceed this value by 20% when sizing conductors to prevent overheating. Use 14 AWG copper wire for currents under 15A, upgrading to 12 AWG for higher demands.

To troubleshoot sequential loops, isolate each joint with a voltmeter–readings should drop sequentially from source to end. In branched setups, verify zero continuity between separate paths to prevent unintended shorting. Always fuse each branch separately; a 1A fuse suffices for LED clusters, while motors require slow-blow types sized at 125% of operating current.

For hybrid designs, combine both approaches: split heavy loads into parallel branches while chaining low-power sensors in sequence. Maintain a 1:4 maximum current ratio between sequential and branched sections to balance voltage drops. Document every connection with precise wire gauges and polarity using a labeled schematic–skipping this step invites maintenance chaos.

Sequential vs. Interconnected Circuit Arrangements: Practical Guidelines

Always label each component in your schematic with unique identifiers–resistors as R1, R2, etc., capacitors as C1, C2. This prevents confusion when troubleshooting or modifying the layout later.

For single-path configurations, calculate total resistance by summing individual values: R_total = R1 + R2 + R3. Voltage divides across components proportionally to their resistance, so measure drops accurately with a multimeter.

In multi-branch setups, apply Ohm’s law per branch. Total current splits inversely to resistance; a 10Ω path carries double the amps of a 20Ω parallel route. Verify with Kirchhoff’s current law at junctions.

Use color-coded wires: red for power, black for ground, yellow for signals. This reduces errors during assembly and speeds up fault diagnosis. For high-current paths, gauge 12 AWG or thicker prevents overheating.

Common Pitfalls to Avoid

Never mix voltage sources in a chain. Connecting batteries of unequal voltage creates imbalance, leading to premature discharge or damage. Always match source voltages in branching circuits to prevent circulating currents.

Check continuity with a multimeter before powering up. A single faulty connection in a sequence disrupts the entire flow. For branch networks, ensure all paths complete circuits–open branches divert current unpredictably.

Solder joints must be smooth, shiny, and free of flux residue. Cold joints cause intermittent failures, especially under vibration. Reinforce high-stress points with strain relief (e.g., cable ties or clamps).

Test under load. A circuit functioning at idle may fail under demand. Use a dummy load to simulate real-world conditions–measure temperature rise, current stability, and voltage drops at critical nodes.

Key Techniques for Distinguishing Sequential from Simultaneous Circuit Layouts

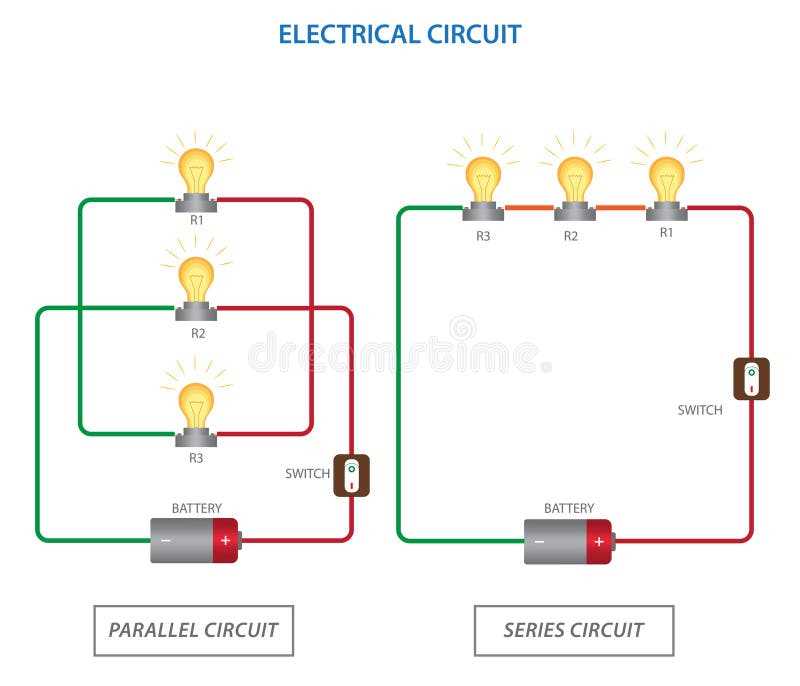

Trace the current path to spot the defining trait: components placed end-to-end form a single route where charge flows through each part consecutively. Break this route, and the entire flow halts. Look for uninterrupted chains of resistors, bulbs, or switches connected in a straight line–no branches exist between them.

Scan for nodes where three or more connections meet. These junctions reveal simultaneous configurations. Observe how multiple parts attach to shared voltage points; each component operates independently, so disconnecting one leaves the others unaffected. Fuses in household distribution boxes often showcase this pattern.

Compare voltage drops across components. In consecutive setups, the sum of individual drops equals the source voltage. Measure 3V across a resistor and 2V across an LED–the total is 5V, matching the battery. Simultaneous layouts show identical drops across each branch, regardless of resistance values or part quantities.

Count loops in the schematic. Consecutive arrangements contain a solitary path, while simultaneous designs introduce additional closed loops–each branch forms its own loop. Use Kirchhoff’s voltage law to verify: voltage around any loop must sum to zero.

• Examine power sources–single-path circuits share one battery; multi-path versions may split across several independent cells.
• Check labeling conventions–schematics often mark node voltages at junctions (e.g., V_a, V_b) in multi-path layouts.
• Look for ground symbols–consecutive setups typically show a single return point, while simultaneous circuits have multiple returns.

Identify control elements like transistors or relays. In single-path layouts, these devices act as switches controlling the entire chain. In multi-path designs, each branch may incorporate its own switching mechanism, enabling selective activation.

Diagnostic Steps Using Measurement Tools

Set a multimeter to continuity mode. Probe two points in a suspected consecutive chain–an unbroken beep confirms a direct link. For multi-path structures, silence between branches indicates separation. Switch to voltage mode to confirm drops across parts align with expected behaviors for either configuration.

Use an oscilloscope to visualize waveforms. Consecutive configurations show identical signals across all parts, delayed only by propagation. Multi-path layouts display diverse waveforms–each branch may exhibit unique amplitude, frequency, or phase characteristics.

1. Locate the main power rail–Single-path circuits attach all components directly to it.
2. Find intermediate junctions–Multi-path circuits introduce secondary rails or buses.
3. Map return paths–Ground symbols converge in single-path; diverge in multi-path.

Common Pitfalls in Schematic Interpretation

Avoid mistaking series strings within parallel branches for pure consecutive layouts. Complex boards often combine both–decoupling capacitors on IC power pins sit in simultaneous pairs despite appearing linear. Always follow the current, not just visual symmetry.

Watch for hidden paths in printed circuit boards. Traces beneath components or vias connecting layers can create unintended simultaneous routes. Desolder suspicious parts or use a PCB trace analyzer to reveal obscured connections.

How to Sketch a Sequential LED Connection Layout

Gather these components before starting: a power source (e.g., 9V battery), resistors sized for your LEDs’ voltage drop, the LEDs themselves, and conductive wire. Ensure each LED’s forward voltage matches or slightly exceeds the total divided by the count–otherwise, brightness imbalance will occur.

Calculate the resistor value first. Use R = (Vsource – Vtotal LED) / I, where Vtotal LED equals the sum of each LED’s forward drop (e.g., 2.1V per LED × 3 LEDs = 6.3V). Current (I) should stay under 20mA per diode to prevent overheating. Overlook this, and resistors will burn.

Lay out components linearly on paper. Start at the battery’s positive terminal, draw a straight path to the first resistor, continue to the initial LED’s anode, then connect its cathode to the next LED’s anode. Repeat until all diodes are chained, finishing at the battery’s negative terminal. Keep paths short to minimize voltage sag.

Follow strict polarity: align every LED’s anode (longer leg) toward the power source, cathodes (shorter leg) toward ground. Misplacing a single diode breaks the circuit. Mark each LED’s orientation on the sketch with “A” and “C” to avoid confusion during assembly.

Critical Mistakes to Avoid

• Omitting resistors–LEDs will fry instantly.
• Mixing different diode types–forward voltages must match.
• Skipping a continuity test–one faulty link disables all downstream LEDs.
• Bending legs too sharply–this weakens solder joints.

After sketching, verify math: sum each diode’s forward drop, subtract from source voltage, then divide by resistor value; result must equal planned current. Example: (9V – 6.3V) ÷ 330Ω ≈ 8mA. If mismatch exceeds 2mA, recalculate resistor size.

Finalizing the Layout

1. Label each component with exact values (e.g., “LED1 – 2.1V,” “R – 330Ω”).
2. Add arrows showing electron flow from positive to negative.
3. Annotate expected voltage at key nodes (e.g., “6.3V after 3rd LED”).
4. Transfer sketch to a breadboard for physical testing before soldering.

Voltage and Current Calculations in Branched Electrical Connections via Schematic Layouts

Begin by identifying the voltage across each branch in a multi-path configuration–it remains uniform throughout. Measure the potential difference at the source terminals; this value replicates across every separate path regardless of load resistance. For example, a 12V supply connected to three branches will deliver 12V to each resistor or device in those paths, simplifying initial calculations.

Current Division Principles

Apply Kirchhoff’s Current Law to determine the flow distribution. Sum the current entering a junction, then split it proportionally based on impedance values. A branch with lower resistance draws more current. If two resistors–10Ω and 20Ω–are connected to a 12V source, the 10Ω path carries twice the current of the 20Ω path. Use Ohm’s Law (I = V/R) for each branch, then verify total current equals the source output.

Trace the physical paths on the schematic to avoid calculation errors. Mark each branch’s resistance, then compute individual currents. Label critical nodes–these serve as checkpoints. For complex networks, break calculations into smaller segments, solving for one branch at a time before aggregating results. This method prevents oversight in mixed configurations with varying impedances.

Practical Verification Steps

Use a multimeter to validate theoretical values. Probe each branch’s current while the circuit operates under load. Discrepancies often reveal overlooked parasitic resistance (e.g., wire losses, contact points). Adjust calculations if measured values deviate by more than 5%; this indicates either faulty components or incorrect assumptions in the schematic. For transient loads, employ an oscilloscope to capture dynamic behavior.

Convert schematic resistance values into real-world tolerances. Standard resistors (±5%, ±10%) affect current distribution. A 1kΩ resistor with ±10% tolerance could range from 900Ω to 1.1kΩ–recalculate currents accordingly. High-precision applications may require trimming, but for most purposes, nominal values suffice. Always cross-reference component datasheets for exact specifications.
