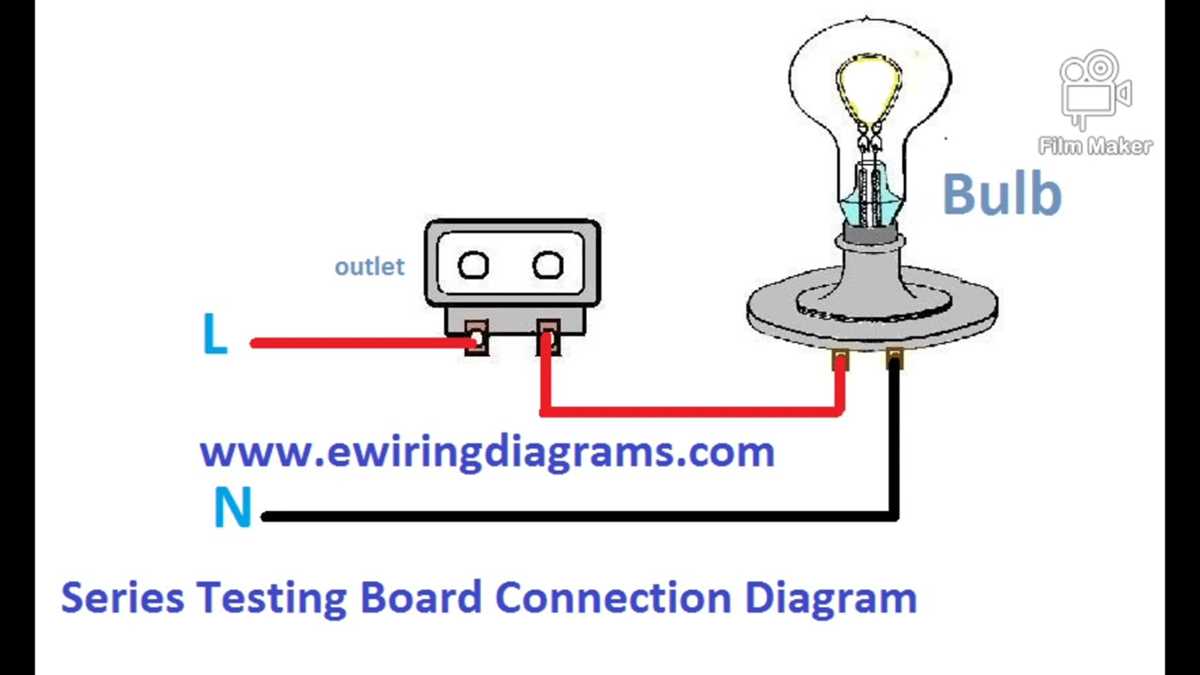

Step-by-Step Guide to Building a Test Lamp Circuit from Scratch
Start by selecting a 12V incandescent bulb or LED with a 220Ω current-limiting resistor for low-power checks. Avoid direct mains connection–use an isolated 9V battery or a step-down transformer rated for 500mA minimum. For AC verification, integrate a bridge rectifier (1N4007 diodes) followed by a 10µF capacitor to smooth fluctuations. Label all nodes: input, ground, load, and test point.
Trace wiring with 22 AWG solid-core copper for durability. Twist paired wires to reduce noise in sensitive setups. Secure connections with soldered joints–avoid crimping for permanent installations. Use a flyback diode (1N4004) if driving inductive loads (e.g., relays), positioned 1cm from the coil to prevent voltage spikes. Verify polarity with a multimeter before powering up.
For fault detection, insert a push-button switch in series with the power feed. A shunt resistor (1Ω, 1W) enables current measurement without disrupting flow. Test continuity with a buzzer module (5V piezoelectric)–audible feedback eliminates reliance on visual inspection. Shield exposed traces with heat-shrink tubing or electrical tape to prevent short circuits.
Store schematics as PDF vector files for scalable printing. Include a bill of materials listing exact component values, tolerances (±5% for resistors), and manufacturer part numbers (e.g., Vishay CRCW0805100RFKEA). Add revision notes–date, changes, and reasons–to track iterations. For complex layouts, segment into sub-circuits: power, control, output.
Building a Simple Diagnostic Probe: Key Components and Wiring
Use a 12V LED indicator as the primary signal source–its low current draw prevents false readings in low-power lines. Pair it with a 1N4007 diode to protect against reverse polarity when probing live terminals. Wire the diode in series before the LED, anode to the probe tip, cathode to the LED’s positive leg. For ground reference, attach a 16 AWG copper wire directly to the chassis or negative bus; avoid relying on painted or coated surfaces to prevent intermittent contacts.
Select resistors based on target voltage ranges: 1kΩ for 12V systems, 2.2kΩ for 24V, and 4.7kΩ for 48V+ networks. Bypass resistors when checking high-impedance signals like sensor outputs–use the LED alone to detect faint voltage drops. Avoid carbon-film resistors in high-heat environments; opt for metal-oxide types with a 1W rating to handle transient spikes without failing. Keep leads short to minimize parasitic capacitance, which can distort readings in fast-switching circuits.
Avoid solderless breadboards for permanent installations–vibration and corrosion degrade connections over time. Crimp heat-shrink terminals onto wire ends instead, ensuring insulation extends past the joint to prevent shorting. For automotive diagnostics, add an inline fuse holder with a 1A fuse to guard against accidental shorts to power rails. Test the probe on a known live source (e.g., ignition switch output) before each use; a dim or flickering LED indicates weak connections or insufficient current path.
Document probe readings by photographing the LED state alongside the circuit point–even brief voltage fluctuations can reveal intermittent faults. Store the tool in a dry, static-free container; moisture seeping into wire strands causes false continuity. When modifying the schematic for AC detection, replace the diode with a bridge rectifier and add a 0.1μF ceramic capacitor to smooth ripple. Label all components clearly; a mislabeled resistor value can lead to destructive overcurrent during diagnosis.
Key Elements for a Diagnostic Light Assembly
Start with a 12V incandescent bulb rated between 21W–35W–avoid LEDs or halogen alternatives for low-voltage fault tracing, as filament types respond reliably to minor voltage drops. Pair it with heavy-gauge wire (minimum 18 AWG, preferably 14 AWG) to prevent resistance losses that skew readings; silicone-jacketed copper strands endure heat cycles better than PVC variants. A momentary push-button switch (normally open) lets you pulse power without holding, reducing accidental short-circuit risks; opt for a flanged metal housing to shield contacts from grease or moisture in workshop environments.
Ground connection integrity dictates accuracy–use a clamp-style crocodile clip (nickel-plated jaws, 10A minimum rating) to attach directly to chassis points, bypassing corroded threads or painted surfaces. For live-side probing, select insulated probes with 4mm banana plugs and retractable 12mm shafts; uncoated steel tips corrode quickly, so gold-plated or hardened alloy versions last longer under repeated use. Include a slow-blow 5A fuse in-line with the positive lead to protect against unexpected shorts–standard automotive blade fuses fit most inline holders, but miniature glass fuses work for compact builds.
Add a bi-directional polarity indicator (a dual-color LED module with 2.2kΩ resistors) in parallel to the bulb–this confirms correct wiring orientation without additional tools. For extended reach, coil 1m of extra wire on a lightweight plastic spool (avoid metal-reinforced cables as they introduce inductive interference). Label connections with heat-shrink tubing printed in contrasting colors (red for +12V, black for ground) to prevent miswirings during rapid diagnostics; UV-resistant tubing withstands engine bay exposure.
How to Assemble a 12V Diagnostic Probe from Scratch
Begin by soldering a 12V LED indicator (20mA forward current) to a 1-meter length of 18 AWG stranded copper wire. Strip 5mm of insulation from both ends, ensuring the positive lead aligns with the LED’s anode (longer leg). Crimp a 5A blade fuse holder to the opposite end of the wire, then connect a ring terminal sized for M5 bolts–this prevents short circuits when probing live terminals. Verify polarity with a multimeter before proceeding; reverse connections will damage the LED.
Attach the assembled probe to a 12V power source (car battery or bench supply) by clamping the ring terminal to the positive post. Ground the negative wire to the chassis using an alligator clip, ensuring a clean metal contact to avoid false negatives. Test the setup by touching the free wire end to a known live 12V point–bright, steady illumination confirms functionality. For intermittent voltage detection, add a 220Ω resistor in series to extend LED lifespan during prolonged testing.
For troubleshooting, carry a spare fuse (3A-5A) and a roll of heat-shrink tubing (6mm diameter). Shield wire junctions with tubing to prevent fraying; pre-cut pieces at 15mm lengths. Store the probe coiled in a 10×15cm plastic case with foam inserts to avoid kinks. When diagnosing ignition systems, probe coil outputs or relays–but never exceed the LED’s 2.1V forward voltage without the series resistor, or risk burnout.
Avoiding Pitfalls in Probe Indicator Assembly
Skipping polarity verification ranks as the most frequent error. Components like LEDs or neon bulbs demand strict adherence to voltage direction–reverse connection often destroys them instantly. Use a multimeter to confirm positive and negative terminals before soldering. For AC-fed setups, ensure the probe points match the neutral and live wires to prevent false readings or damage. Mark cables with colored tape: red for live, black for neutral, green for ground.
Component Rating Mismatches
The table below outlines tolerances for critical parts–exceeding these values risks failure:
| Element | Max Voltage (V) | Max Current (mA) | Min Resistance (kΩ) |
|---|---|---|---|
| LED | 3.3 | 20 | N/A |
| Resistor | 250 | 250 | 1 |
| Neon Bulb | 90 | 5 | N/A |
Always select resistors with power ratings exceeding the circuit’s anticipated load by at least 50%. A 1/4W resistor suffices for most probe designs, but upgrade to 1/2W if handling voltages above 120V. For bulbs, choose gas-filled types with ignition voltages below 70V to avoid erratic behavior.
Improper Wiring Techniques
Loose connections generate heat, leading to melted insulation or intermittent faults. Crimp terminals properly–tug wires to ensure firm grip. Twist-strand copper wires decay faster under vibration; opt for solid core in stationary units. Shield exposed leads with heat-shrink tubing; electrical tape degrades over time. For high-current paths, double up on solder joints–single points act as failure bottlenecks.
Diagnosing Vehicle Electrical Problems with a Probe Indicator
Connect the probe’s ground clamp to a clean metal surface on the vehicle’s chassis, then touch the prod to the component’s terminal while the system is active. A faint glow at the tip confirms power reaches the point, while no illumination signals an open wire, blown fuse, or faulty relay. Always begin at the fuse box–probe both sides of each fuse slot; a dead side pinpoints the exact fuse that needs replacement. If the indicator lights dimly, suspect corroded terminals, loose connections, or a weak battery.
Use these steps for systematic checks:
- Headlight circuit: Clip to the negative battery post, probe each headlight socket terminal with the switch on. Full brightness at the socket rules out wiring issues; no glow directs you to the harness or switch.
- Ignition coil: Touch the positive coil terminal while cranking the engine. Steady glow verifies the ignition circuit is intact; flickering suggests a failing ignition module or intermittent ground.
- Fuel pump relay: Locate the relay socket, probe the ignition-switched and battery-sourced pins. If both show power but the pump doesn’t run, the relay contacts are welded shut or the pump motor is seized.
Advanced Troubleshooting with Voltage Drop
Switch the indicator to high-impedance mode, clip to a known good ground, and probe both ends of a suspect cable. A voltage reading above 0.2V across a length under 5 feet reveals excessive resistance–clean terminals, replace the cable, or tighten connections. For sensors, probe the signal wire with the key on; a steady 5V reference confirms the ECU is supplying power, while erratic readings suggest a faulty sensor or grounded signal wire.
- Throttle position sensor: Probe the 5V reference, signal, and ground wires. Voltage should rise smoothly from 0.5V to 4.5V as you open the throttle; jumps or drops indicate worn contacts or a defective sensor.
- Alternator output: With the engine running, clip to the battery negative, probe the alternator’s B+ terminal. A reading below 13.8V means the stator or rectifier diodes are failing; no voltage points to a broken field wire or failed voltage regulator.
- Starter solenoid: Crank the engine, probe the small control terminal. No glow means the ignition switch isn’t sending power; a weak glow suggests a faulty solenoid or corroded battery cables.
