Step-by-Step Guide to Converting Schematic Diagrams into Functional Layouts

Begin by isolating each net in the circuit representation. Group components connected to the same signal early–use distinct layers for power rails, ground planes, and critical traces to prevent interference. Prioritize decoupling capacitors near IC power pins, placing them within 3mm of the pin to suppress noise effectively.

Convert schematic symbols into footprints precisely. Verify pin assignments against datasheets–mismatches cause silent failures. For resistors and capacitors, use 0603 or 0402 packages unless space constraints demand 0201, which requires stencil apertures ≤ 60% of pad size for reliable soldering.

Route high-speed signals first. Keep differential pairs ≤ 10cm in length with ≤ 25μm skew between lanes. Maintain 100Ω ±10% impedance for USB 2.0 traces, using 0.2mm track width and 0.127mm clearance. Avoid 90° bends–use 45° miters or arcs to minimize reflections.

Allocate ground planes beneath analog circuitry to reduce crosstalk. Split planes only if unavoidable–use bridges or ferrite beads to isolate noisy sections. For mixed-signal boards, separate analog and digital grounds at the power source, joining them only at the power regulator.

Test each connection before finalizing. Export netlists to IPC-2581 or ODB++ for fabrication; these formats preserve layer stackup and via definitions. Check gerber files in a viewer–inspect drill hits, solder mask openings, and silkscreen alignment against original footprints.

Translating Circuit Designs into Physical Boards

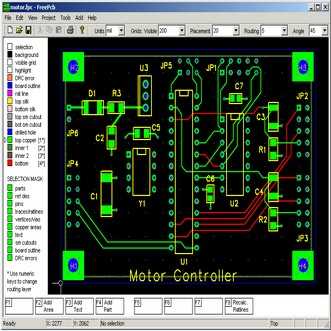

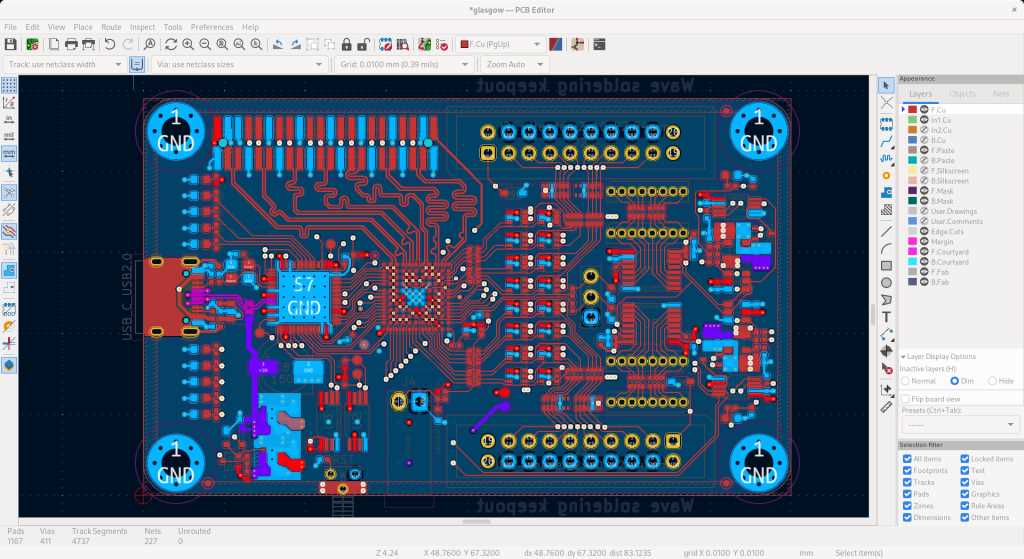

Begin by arranging components on the PCB editor in the same logical sequence as the circuit’s signal flow. Prioritize high-speed traces–clock lines, differential pairs, and power rails–placing them first to minimize noise and ensure stable operation. Group related elements: decoupling capacitors near IC power pins, pull-up resistors adjacent to open-drain outputs, and series termination resistors inline with high-frequency nets. Maintain consistent spacing: 0.254 mm (10 mil) clearance for low-voltage signals, doubling it for high-voltage sections.

Assign net classes based on function. Define separate rules for power (wide traces, 1 oz copper), signals (0.15–0.3 mm width), and ground planes (solid fills). Use polygon pours for ground to reduce impedance; split them only where absolutely necessary, such as under sensitive analog sections. Verify trace widths with a calculator: 1 oz copper supports 1 A per 0.4 mm width at 20°C temperature rise. Adjust for ambient conditions if necessary.

Route critical nets manually. For differential pairs, match lengths within 0.1 mm and maintain 100 Ω impedance (set in editor rules). Avoid sharp corners–use 45° angles or arcs–to prevent reflections. For multi-layer boards, dedicate inner layers to power/ground planes, reserving outer layers for signals. Stackup matters: signal-ground-signal-power reduces crosstalk more than signal-power-ground-signal.

Label all components with reference designators identical to the schematic. Place text on silkscreen clearly, avoiding pads and vias. Include polarity markers for diodes, electrolytic capacitors, and ICs, even if redundant; redundancy prevents assembly errors. Add test points to key nets–power rails, reset lines, and communication buses–for debugging. Use through-hole test points for hands-off probing under oscilloscopes.

Run design rule checks (DRC) iteratively. Flag violations immediately: clearance errors, unrouted nets, and overlap warnings. Ignore false positives–like silkcreen over pads–but resolve real conflicts. Generate Gerber files for each layer: copper, soldermask, silkscreen, drill, and outline. Include an aperture list (.apt) and drill map (.drl) for manufacturing. Verify layer polarity: layer 1 is top copper, layer *n* is bottom, with inner layers numbered sequentially.

Simulate high-speed nets with tools like HyperLynx or Signal Integrity in Altium. Export a SPICE netlist from the schematic, then model trace impedance, coupling, and termination effects. Correct ringing by adding series resistors (22–100 Ω) or RC snubbers. For power integrity, check DC drop with the PCB editor’s thermal analyzer–voltage should remain within 5% of nominal at all points.

Generate fabrication notes directly in the Gerber outline layer. Specify board thickness (1.6 mm default, 0.8 mm for flex), copper weight (1 oz standard), and finish (ENIG for gold pads, HASL for cost-sensitive designs). Note drill tolerances: ±0.05 mm for vias, ±0.02 mm for precision holes. Include a readme file listing stackup, material (FR-4, Rogers for RF), and any special requirements like blind/buried vias.

Order prototypes from a supplier with known good DRC compatibility. Upload Gerbers, drill files, and fabrication notes. Request electrical test (E-test) for boards above 100 traces; it catches 99% of short/open defects. Inspect first articles under a microscope–check for soldermask bridges, via tenting, and silkscreen misalignment. Finalize the design only after confirming physical functionality matches the schematic’s intent.

Decoding Schematic Symbols and Wiring Logic

Start by grouping symbols into functional blocks: power sources, passive components, active ICs, and connectors. Each block typically clusters physically near its counterparts, reducing trace interference. Identify ground references first–they anchor shift-sensitive circuits like oscillators or ADCs.

Resistors appear as rectangles or zigzags. Note value units–kΩ denotes kilo-ohms, MΩ megohms. Capacitors split into polarized (curved line + sign) and non-polarized (parallel lines), marked nF, pF, µF. Inductors resemble coiled springs or filled arcs; toroids include concentric circles.

ICs display pinouts numerically. Cross-reference datasheets–never assume sequential order. Pin 1 often features a dot, notch, or silkscreen notation. Active devices like MOSFETs or transistors depict three-terminal symbols: gate/source/drain or emitter/collector/base, oriented per flow direction.

Trace connections methodically. Solid lines mark direct routes; dashed imply hidden or crossover paths. Dots at intersections confirm intentional joints; missing dots signal passing overlaps. Power rails typically run horizontally across top and bottom edges, minimizing noise coupling into sensitive nets.

Bypass capacitors demand placement within millimeters of IC power pins. Locate decoupling paths–parallel routes splitting rail currents–directly beneath components for impedance control. Ferrite beads, shown as loops with internal gaps, block high-frequency interference without DC resistance.

Switches and jumpers reveal mechanical intent. Slide switches split traces cleanly; tactile buttons often bridge momentarily open contacts. Jumpers toggle configurations–respect designated footprints to avoid accidental shorts under alternative layouts.

Cross-check footprints against part numbers. Package variants–SOIC, QFN, DIP–dictate pad dimensions and pitch spacing. Confirm pad-to-silkscreen alignments; misaligned layers risk tombstoning or solder bridges during reflow.

Selecting the Optimal Grid and Scale for PCB Design

Begin with a 0.1 mm base grid for most two-layer boards under 100 cm². Adjust to 0.05 mm for dense SMD components like 0201 resistors or BGA packages below 0.5 mm pitch. Verification grids–typically 0.5 mm or 1 mm–help detect spacing violations in prototypes without cluttering the workspace.

High-speed designs demand tighter alignment: 0.025 mm increments for impedance-critical traces (e.g., DDR3/4, PCIe lanes). Use a secondary 0.1 mm grid to route adjacent signal lines while maintaining consistent spacing. For power planes, 2 mm grids accelerate copper pour placement, though vias should snap to the finer primary grid.

Common Grid Configurations by Board Density

Component Density	Primary Grid (mm)	Verification Grid (mm)	Trace Width (min)	Clearance (min)
Low (through-hole, DIP)	0.5	1.0	0.25	0.2
Medium (SMD 0805, QFP)	0.1	0.5	0.15	0.12
High (0201, BGA <0.5mm)	0.05	0.2	0.1	0.08
Ultra-high (wafer-scale, <0.4mm pitch)	0.025	0.1	0.075	0.05

Scale directly impacts manufacturability. Panelize 1:1 for prototyping but shrink to 90-95% for high-volume production, compensating for fab tolerance drift. RF circuits (24 GHz) require exact 1:1 dimensions–even 2% deviation skews impedance by ±3Ω. Export Gerbers at 1:1 regardless of working scale to avoid Gerber-to-fab misinterpretation.

Flex PCBs impose unique constraints: adopt 0.2 mm grids for dynamic bending zones, reducing to 0.1 mm near rigid-flex interfaces. Pair with 0.5 oz copper to prevent cracking during repeated flex cycles. Static flex boards permit 0.5 mm grids but enforce 0.2 mm minimum trace width to avoid stress concentrations.

Automated tools default to metric grids–switch to imperial only when collaborating with legacy fab houses (e.g., 2.54 mil tracks). Mixed units introduce rounding errors; stick to one system per project. For microcontrollers with 0.65 mm pin pitch, snap pads to a 0.0325 mm grid to center placement, halving alignment errors.

Thermal considerations override grid preferences. Heatsinks with 3 mm fins demand 1 mm clearance grids for adjacent components. CPU sockets on server motherboards mandate 0.2 mm grids for VRM circuitry, even if signal traces use 0.1 mm. Prioritize thermal pads over signal integrity when spacing drops below 0.12 mm.

Component Arrangement Prioritizing Signal Paths and Power Needs

Position high-frequency elements first–clock drivers, oscillators, and analog front-ends–at the PCB’s geometric center to minimize trace lengths. Keep decoupling capacitors within 2 mm of their IC power pins, prioritizing 0402 or 0201 packages for sub-100 MHz signals, and 1206 or 1210 for >500 MHz where inductance tolerance is critical. For differential pairs, maintain

Group power-hungry components–DC-DC converters, linear regulators, high-current drivers–near the board’s power input or designated power plane splits. Separate ground returns for analog and digital domains at the star point, typically the main bulk capacitor or chassis connection. For mixed-signal designs, place ADCs/DACs on the analog side but ensure their digital interfaces cross the split via a single controlled impedance bridge, never daisy-chained.

Critical nets demand isolation: route crystal traces as pseudo-coaxial lines with ground stitching vias every 3–5 mm, avoiding crossovers with switching nodes. For DDR memory, maintain byte-lane symmetry; each data group should be length-matched to the clock within ±2.5 mm, with termination resistors placed 48 V) require 8 mil clearance to adjacent copper; use teardrops for pad-to-trace transitions to prevent mechanical stress fractures.

• Label all high-current paths (>1 A) with copper weight (2 oz minimum) and thermal vias (0.3 mm diameter, 0.8 mm pitch) for heat dissipation.
• Route I2C/SPI away from switching regulators; keep these traces
• Place ESD protection (TVS diodes, Zeners) directly at connector pins, not mid-trace, with no stubs.
• For RF layouts, position antennas >λ/20 away from noisy components; use grounded co-planar waveguides for impedance-controlled traces.

Thermal management dictates placement: orient high-power MOSFETs perpendicular to airflow (if present), with the drain pad facing a heatsink or thermal via array. For BGA packages, ensure escape routing uses blind/buried vias if pitch

Grounding Hierarchy

Implement a three-tier ground system: chassis (earth), power (isolated returns), and signal (localized for each functional block). Connect digital ground planes to the chassis at one point only–typically near the power entry module–to prevent ground loops. For sensitive analog sections, use a solid ground plane underneath with no splits, but break it cleanly at the boundary to digital. AGND and DGND should tie together at a single via near the ADC, with no other connections elsewhere.

1. For motor drivers, separate power ground from logic ground; connect at the terminal block only.
2. USB connectors require shell-to-chassis ground at both ends, plus a ferrite bead on VBUS if noise is detected.
3. HDMI/DisplayPort layouts need shielded differential pairs; route clocks centrally, data lanes symmetrically.
4. In high-speed designs (>3 GHz), use buildup layers with low-loss dielectric (e.g., Rogers 4350B) for critical traces.
