Complete HP G62 Laptop Motherboard Schematic Diagram and Circuit Analysis Guide
Locate the DA00P6MB6E0 or 6050A2315801-MB-A02 reference files–these contain pin assignments for the Intel HM55 chipset, integrated VRM controllers, and Broadcom BCM5764M Ethernet PHy. Trace power rails from the Maxim MAX8734 buck regulator down to the PU6 inductor near the SODIMM slots; confirm continuity with a 20V DC input test.
Avoid relying on third-party “repair manuals” sold online–most omit the Winbond WPCE775L embedded controller firmware mapping. Instead, cross-reference the HP 510238-001 schematics released under the SP50783 support package; it details the LVDS connector (CN301) and the 30-pin inverter interface for the 15.6″ LED backlight.
Solder a 10kΩ pull-up resistor to GPIO3 on the EC if the system refuses to POST–this often resolves undetected battery errors without replacing the entire southbridge assembly. Use a thermal gun to monitor the RT8206 MOSFET array near the CPU socket; temperatures above 85°C indicate failing capacitors (C112, C113) on the 3.3V standby rail.
For troubleshooting Wi-Fi dropout, probe U44 (AR9285 chipset) pins 22-24–these connect to the half-mini PCIe slot; a SST 25VF016B SPI flash chip at U25; corrupt sectors often manifest as fan spin without video.
HP Pavilion Component Layout Blueprint: Hands-On Reference
Locate the primary voltage regulator module near the CPU socket labeled ISL6237 or ADP2108–these ICs control core power delivery. Probe pins 1-4 for 5V standby and 9-12 for VCC enablers. Failure here manifests as intermittent boot loops or sudden shutdowns under load.
Trace the BIOS chip (typically Winbond 25Q32 or MXIC MX25L32) situated adjacent to the RAM slots. Use a CH341A programmer with clip for firmware recovery if the system hangs at POST code 0x00 or displays beep errors. Ensure 3.3V rail stability before flashing.
Critical power rails to verify:
- +5V_ALW (always-on line) – feeds southbridge and BIOS
- +3V_LAN – crucial for Ethernet and USB resume states
- +1.5V_DDR – powers memory modules directly
- +1.1V_GFX – supplies discrete graphics adapter
Measure these at L24, C132, Q41, and D18 test points respectively.
Examine the EC (embedded controller) circuit based on KB930 or SB940 chip. Check for 32.768kHz crystal oscillation at Y1–absence indicates EC failure, leading to keyboard unresponsiveness or fan control issues. Replace Y1 with a 12.5pF load crystal if missing.
The PCH (Platform Controller Hub) typically runs on +1.05V generated by a TPS51116 or RT8206 regulator. Test output at L7, L8, and L9 coils. A short here causes black screens with fan spin but no display signal. Isolate by removing peripheral ICs one at a time.
Common failure points with symptoms:
- Cracked solder joints on GPU BGA – artifacting, distorted video output
- Blown fuse F1 (3A) – no power led, no response
- Faulty charging IC (BQ24765) – battery not detected, slow charge
- Damaged card reader IC (GL811) – USB ports not recognizing devices
For audio issues, focus on the ALC269 codec. Verify 5VDC at L30 and 3.3VA at C333. If headphone jack produces crackling but internal speakers work, replace the jack or caps C310/C311. If no audio at all, reflash the codec firmware via Linux HDAVerbs.
To troubleshoot overheating, check the thermal diode readings in HWMonitor. If CPU temps spike rapidly under 10% load, clean the heatsink fins or reapply Arctic MX-6. If readings show 25°C idle but fan screams, recalibrate the EC temperature thresholds by shorting pin 7 of the EC to ground momentarily during boot.

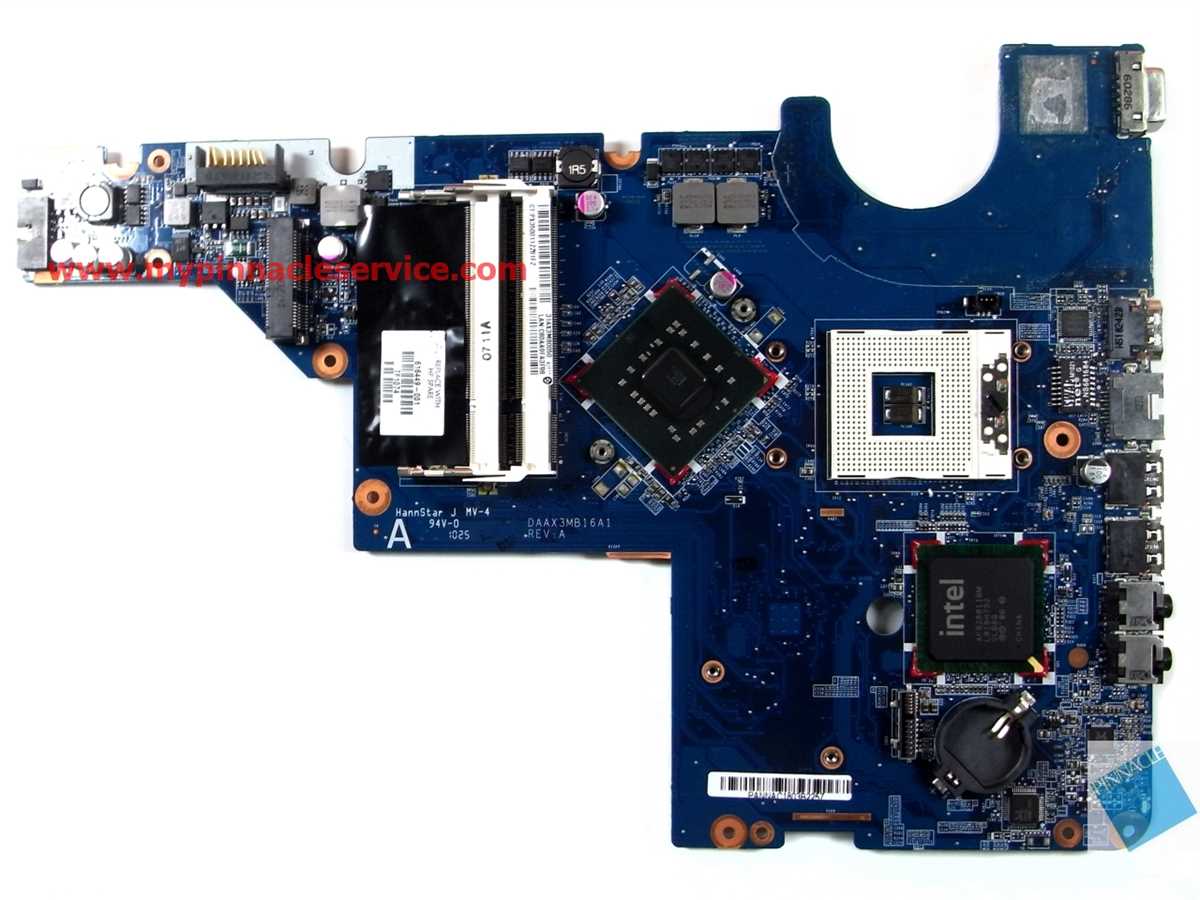

Locating Key Components on the HP G62 Board Layout
Start by identifying the BIOS chip, typically near the top-right corner adjacent to the RAM slots–look for a small 8-pin SOIC (e.g., Winbond 25Q32BV or similar). This location simplifies firmware updates and troubleshooting since it sits away from high-heat zones like the CPU socket.
Trace the CPU power delivery circuits along the left edge of the PCB. The main MOSFETs (e.g., AO4407 or similar dual N-channels) cluster near the 4-pin ATX connector, which supplies 12V. Check for burnt traces here if experiencing power-on failures–this zone handles the bulk of thermal stress.
Critical Connector Pinouts
- DC jack input: Bottom-left quadrant, marked “JDC” or “P1.” Verify continuity between the center pin (+18.5V) and the outer shield (ground) before diagnosing charging issues.
- LVDS connector (display): Upper-left corner, labeled “LVDS” or “CN4.” Pin 1 is ground; pins 2-13 carry panel data. A loose connection here causes backlight or image failures.
- SATA port: Mid-right area, near the chipset. The first pin (closest to the chipset) is ground; pin 7 supplies 3.3V to the drive. Sudden ejects often trace back to cracked solder joints here.
The chipset (Intel HM55 or similar) dominates the center of the board beneath the CPU socket. Its BGA pads require precise reflow if exhibiting USB or SATA dropouts–use a thermal camera to verify uniform heating during repairs.
For video output repairs, locate the GPU VRAM chips around the dedicated graphics processor (upper-left quadrant). These BGAs (e.g., Elpida EDW1104BBBG) fail under thermal cycling; test with a multimeter in diode mode across VCC and ground pins to detect shorts.
Check the keyboard controller near the touchpad connector (bottom-center). The ENE KB930 or similar IC interfaces with the membrane flex cable. If keys repeat or fail, resolder this IC first before replacing the entire keyboard assembly.
- Measure RAM power rails by probing the inductors near the DDR3 slots. Healthy rails read ~1.5V; fluctuations indicate a failing VRM or corrupt SPD data.
- Test the CMOS battery holder (lower-right corner) with a multimeter–replace if voltage drops below 2.5V to prevent BIOS resets.
- Inspect the fan header (upper-right) for broken connector pins or corroded traces, common causes of overheating shutdowns.
Hidden test points (e.g., “TP15,” “TP22”) are scattered across the underside near the audio codec. Use the board’s service manual schematics to match these points to specific rails–useful for diagnosing no-power scenarios without full disassembly.

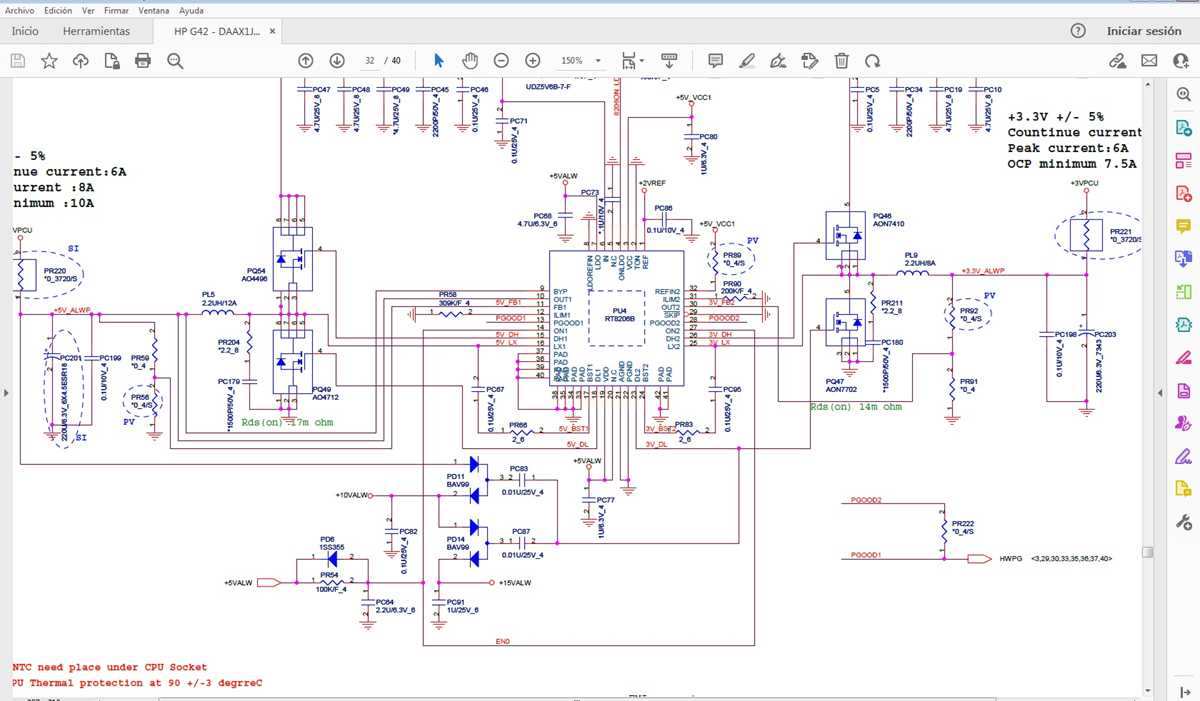

Step-by-Step Tracing of Power Delivery Circuits in PCB Blueprints
Locate the main power input connector–typically marked as VIN, DC_IN, or +19V–on the circuit layout. Trace its path through the fuse (if present, often a PPTC or polyfuse) to the first switching regulator, usually a buck converter IC like *TPS51218* or *ISL6237*. Verify the IC’s datasheet pinout: VIN (input), SW (switch node), FB (feedback), and EN (enable). Check for series resistors (≥1Ω) or inductors (1-10µH) between the input and the IC’s VIN pin to confirm current-limiting components.
Identify the feedback loop by following the FB pin of the regulator. It connects to a voltage divider network, typically resistors R1 (50-200kΩ) and R2 (10-50kΩ) arranged in series between the output and ground. Measure the expected output voltage using the formula:
VOUT = VREF × (1 + R1/R2).
For a *TPS51218*, the reference voltage (VREF) is 0.6V. If the output deviates (±5%), inspect the feedback resistors for drift or the output capacitors (COUT, usually 10-47µF ceramic or electrolytic) for ESR degradation.
Critical Checkpoints in Power Rail Tracing
| Component | Expected Value | Failure Symptoms |
|---|---|---|
| Input Capacitor (CIN) | 22-100µF, 25V+ X5R/X7R | Voltage droop under load, audible whine |
| Boost Diode (DBOOST) | Schottky, 20-40V, ≥1A | Regulator fails to start, overheating |
| Gate Driver Resistors | 1-10Ω (series MOSFET gates) | MOSFET ringing, excessive heat |
| Bypass Capacitors (VCC) | 0.1-1µF, 16V+, X5R | IC instability, erratic enable behavior |
Probe the SW node with an oscilloscope: it should exhibit clean, periodic pulses at the regulator’s switching frequency (200-600kHz). Irregular waveforms–ringing, overshoot, or duty-cycle distortion–indicate issues with the output inductor (L, 1-10µH) or MOSFETs. For synchronous buck converters, check both high-side (Q1) and low-side (Q2) MOSFETs for open/short circuits using a multimeter in diode mode. Replace any MOSFET with a forward voltage drop >0.5V or
Key Weak Zones in Portable Computing Hardware Blueprints
Trace power delivery pathways starting from the DC jack. Faults here often manifest as intermittent charging or sudden shutdowns under load. Probe capacitors near the input–bulging or leaking components indicate failure. Replace with identical values to restore stability.
Examine the voltage regulator modules (VRMs) adjacent to the CPU socket. Overheating discolors nearby solder joints, leading to unstable performance. Thermal paste degradation exacerbates this; reapply high-quality compound if resistance exceeds 4°C/W.
Check northbridge or PCH cooling mechanisms. Many designs lack active cooling here, causing throttling under load. Install a small heatsink if surface temperature exceeds 85°C during idle. Ensure thermal pads make firm contact–gaps increase thermal resistance.
Inspect RAM slot retention clips. Broken latches prevent proper contact, causing no-boot scenarios. Clean oxidation from pins using isopropyl alcohol (>90% concentration) and a soft brush. Verify slot alignment before reseating modules.
Review BIOS chip connections. Corrosion on pins triggers POST failures. Heat the chip with a rework station to 200°C, then gently lift and reseat using tweezers. Flash updated firmware if available to rule out corruption.
Analyze fan header circuits. Non-spinning fans signal either a dead motor or failed controller IC. Test with a multimeter–expect ~5V at the header. Bypass damaged traces with 30AWG wire if continuity is lost.
Probe GPU power rails. Artifacting or crashes stem from weak VRAM capacitors. Replace swollen 25V capacitors with 105°C-rated equivalents. Monitor ripple voltage–values above 50mV indicate impending failure.
Verify battery charging IC operation. Faults here prevent proper charge cycles. Check adjacent fuses; blown 1A surface-mount units are common. Replace with identical amperage–alternatives risk overcurrent damage to the system board.
