Complete Guide to Infrared Transmitter and Receiver Circuit Designs

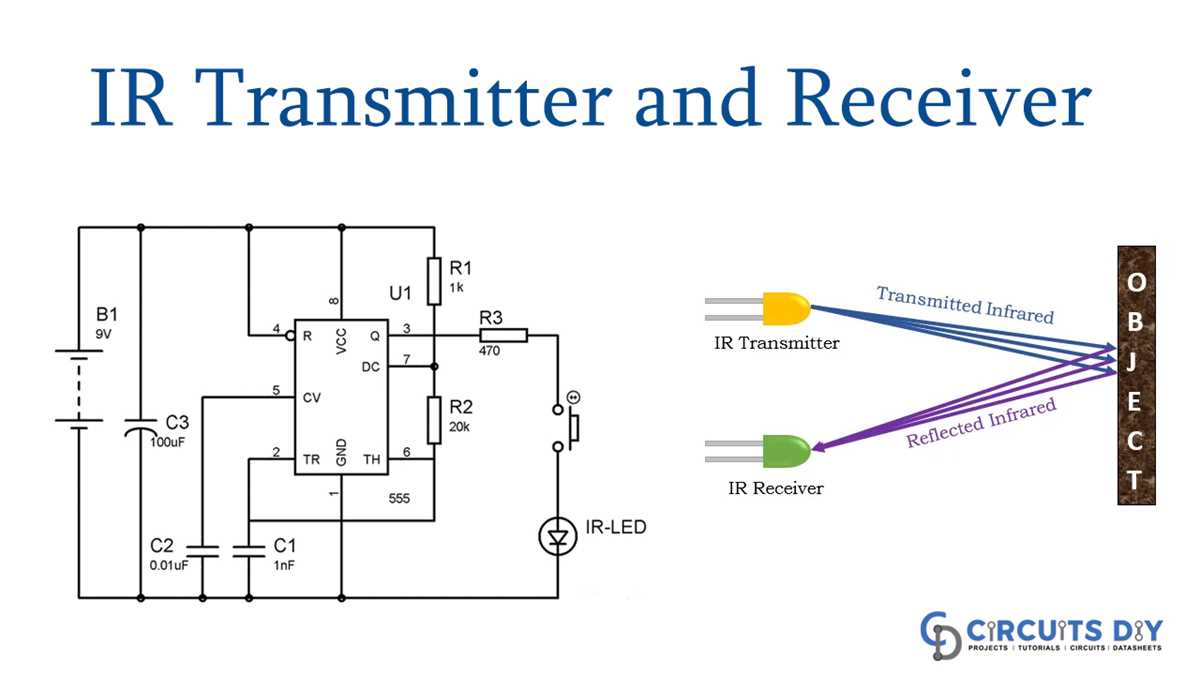

Start with a basic LED-based emitter at 940nm for maximum compatibility. Pair a TSAL6200 with a 220Ω resistor to limit current–this prevents thermal runaway while maintaining 30-50mA pulse performance. Use a 555 timer IC in astable mode to generate 38kHz modulation; adjust R1/R2/C1 values to fine-tune frequency (±500 Hz tolerance ensures reliable detection). Ground the timer’s Vcc with a 10µF decoupling capacitor to suppress noise spikes.
For the photodiode sensor, prioritize Vishay TSOP38238–its built-in preamp filters ambient light and demodulates signals automatically. Connect the sensor’s output to a Schmitt trigger (74HC14) to clean up pulse edges before feeding into microcontrollers. Add a 10kΩ pull-up resistor to the output if interfacing with TTL logic. Always position emitter and sensor 5-15mm apart; wider gaps degrade signal strength exponentially.
Avoid single-battery power for emitter circuits. Use two 1N4007 diodes to drop voltage from 5V to ~3.4V–this extends LED lifespan while avoiding overcurrent damage. For long-range systems (>3m), substitute the TSAL6200 with a SFH4200 and boost current to 100mA via a BD139 transistor driven by the 555 timer. Test modulation pulses with an oscilloscope; deviations above 2% in duty cycle will cause false detections.
Isolate the sensor’s ground from noisy components. A 100nF capacitor across the photodiode’s power pins eliminates spikes from motor drivers or relays. For battery-powered setups, add a LP2950 voltage regulator to maintain stable 5V–sensor ICs fail unpredictably below 4.75V. Always prototype on perfboard before PCB etching; IR paths require precise alignment tolerances (±2°).
Optical Signal Emitter and Detector Wiring Blueprints
For a basic NIR (near-field) emitter setup, pair a 940nm LED with a 220Ω current-limiting resistor to ensure consistent performance at 10-20mA forward current. Use a 555 timer in astable mode or an MCU’s PWM output to modulate the signal at 38kHz for noise resilience. Ground the resistor directly to a shared return path to minimize interference. Verify voltage drop across the LED with a DMM–ideal readings fall between 1.1V and 1.3V.
Detectors like the TSOP38238 or VS1838B require a 2.7V–5.5V supply, bypassed with a 10µF electrolytic and 0.1µF ceramic capacitor at the power pins to suppress high-frequency transients. Connect the output through a 4.7kΩ pull-up resistor to VCC; this ensures clean logic-high transitions when no signal is present. Avoid long (>20cm) unshielded traces between the sensor and MCU to prevent false triggering from ambient EMI.
For bidirectional setups, isolate emitter/detector pairs with an opaque barrier (e.g., 1mm thick black ABS) drilled at precise 5mm spacing. Overlap detection bands by tuning emitter wavelength ±20nm from the sensor’s peak (e.g., 950nm LED with a 930nm detector) to improve range without saturation. Test modulation schemes beyond 38kHz–40kHz reduces cross-talk in congested environments, but verify sensor datasheets for supported frequencies.
Power optimization involves adding a 1MΩ resistor between the detector’s output and VCC to bleed residual charge during sleep modes, cutting standby current to 8m), drive emitters in parallel with matched resistors, but add a 1N4007 diode in series to each to prevent reverse currents from thermal runaway. Log signal strength via an MCU’s ADC by tapping the detector’s output through a 10kΩ resistor–raw readings below 0.8V indicate weak coupling, necessitating realignment or increased drive current.
Core Elements of a Basic Near-Field Optical Emitter Setup
Select a 940 nm LED for optimal performance in short-range wireless communication. Ensure the emitter’s forward voltage spans 1.2–1.5 V with a minimal current draw of 20 mA. Pair it with a BC547 NPN transistor to amplify output; the transistor’s gain (hFE) should exceed 100 to maintain signal integrity. A 38 kHz carrier frequency reduces ambient interference, requiring a timing capacitor of 100 nF paired with a 1.5 kΩ resistor for precise modulation.
- LED: Forward current 20–30 mA; wavelength 940 nm
- Transistor: BC547; hFE ≥ 100
- Modulation: 38 kHz via astable multivibrator (e.g., 555 timer)
- Resistor: 1.5 kΩ (base), 220 Ω (current limiter)
- Capacitor: 100 nF (timing), 10 µF (decoupling)
Stabilize the supply with a 10 µF electrolytic capacitor across the power rails to suppress voltage spikes. Use a 1N4007 diode to protect against reverse polarity incidents. For extended range, replace the standard LED with a high-efficiency model (e.g., Vishay TSAL6400, 100 mW/sr radiant intensity at 100 mA). Test modulation accuracy using an oscilloscope–pulse width should not deviate more than 5% from the target 38 kHz waveform.
Step-by-Step Wiring of an Optical Sensing Unit
Begin by connecting the sensor’s VCC pin to a 3.3V or 5V power supply–check the datasheet for voltage limits. For noise reduction, solder a 10μF electrolytic capacitor between VCC and GND, placing it as close to the module as possible. Link the GND pin directly to the ground rail of your microcontroller or power source. Use stranded 22-26 AWG wire for flexibility, avoiding solid core near moving parts. If the module includes a built-in resistor for the signal line, proceed to the next step; otherwise, add a 4.7kΩ pull-up resistor between the output pin and VCC.
Signal Integration and Validation

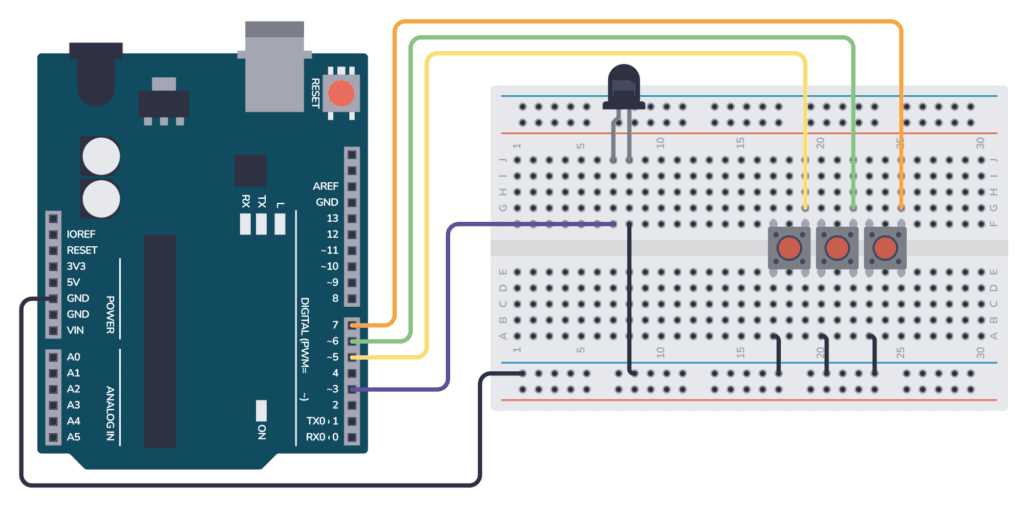

Connect the output pin to a digital input on your control board–Arduino’s D2 or ESP32’s GPIO4 work reliably. Upload a basic sketch that reads the pin state at 1kHz, printing raw values to the serial monitor. Shield the sensor from ambient light using non-reflective black tubing or electrical tape, leaving only the target path open. Test with a remote by pressing buttons from 1-3 meters away; valid pulses should register as distinct LOW intervals. If interference persists, swap the pull-up resistor for 1kΩ and ensure no other devices share the power rail.
Selecting Passive Components for Robust Optical Communication Links
For optimal pulse integrity, use 1% tolerance resistors in series with LEDs to limit current. A 220Ω resistor prevents thermal runaway in GaAs emitters when powered at 5V, maintaining consistent radiant intensity over 10,000 hours. Carbon film types withstand voltage spikes better than wirewound alternatives in high-speed switching applications.
Photodetectors require a load resistor between 47kΩ and 1MΩ to balance response time and noise suppression. Lower values increase bandwidth but amplify thermal noise; higher values improve sensitivity but slow rise times. Bypass this resistor with a 0.1µF ceramic capacitor to filter high-frequency transients, placing components within 10mm of the sensor’s pins.
Coupling capacitors on output stages should exceed 10µF to preserve low-frequency signal components. Electrolytic types risk microphonic effects; choose tantalum or polymer capacitors rated at 16V or higher to avoid voltage-induced distortion. Match capacitor ESR to the resistor’s impedance for minimal phase shift at cutoff frequencies below 20Hz.
For RC timing networks, select polyester film capacitors paired with metal film resistors. A 10kΩ resistor and 10nF capacitor create a 16µs time constant stable across -20°C to +85°C. Avoid ceramic capacitors here; their non-linear capacitance under bias voltage introduces jitter in pulse-width modulation.
In voltage regulator feedback loops, use 10kΩ resistors to establish stable bias points. Pair with 1µF X7R ceramic capacitors for decoupling, ensuring proper placement on the PCB layer closest to the reference pin. Temperature drift remains under 50ppm/°C with this configuration.
Transient protection networks benefit from varistors, but for cost-sensitive designs, 1kΩ resistors in series with 1nF capacitors form effective snubber networks. These attenuate ringing above 5MHz while adding less than 10ns delay to edge transitions. Avoid placing these near high-impedance nodes to prevent parasitic coupling.
When designing filters for noise rejection, use resistor values between 1kΩ and 10kΩ with capacitor values under 1µF. A second-order Sallen-Key topology with 10kΩ resistors and 470pF capacitors achieves a 3kHz cutoff with 40dB/octave rolloff, suitable for AM demodulation. Keep lead lengths under 2mm for consistent performance at frequencies above 1MHz.
Common Troubleshooting Issues in Optoelectronic Signal Paths
Check orientation of IR LEDs first–reversed polarity cuts emission entirely. Most emitters with a flat side or notch indicate the cathode; if uncertain, verify the datasheet. A multimeter in diode mode should show ~1.2 V forward drop when probed correctly. Swap suspect emitters for known-good parts if voltage is absent.
Excessive ambient light saturates photodiodes, drowning modulated signals. Shield the detector with a narrow-bandpass filter matched to the LED wavelength–typically 940 nm or 850 nm. If filters are unavailable, wrap the assembly in matt-black heat-shrink tubing, leaving only a pin-hole aperture aligned with the optical axis.
Verify modulation frequency compatibility; mismatch between encoder and decoder ICs corrupts data streams. Standard protocols like NEC, Sony, or RC-5 operate at 36 kHz, 38 kHz, or 40 kHz. Use an oscilloscope to probe the emitter’s current-limiting resistor–spikes should appear at the carrier rate. If absent, check oscillator pins for correct capacitor values–common pitfalls include wrong ceramic capacitance or omitted pull-up resistors on enable pins.
| Carrier Frequency | Encoder IC Examples | Capacitor (Typical) | Resistor (Typical) |
|---|---|---|---|
| 36 kHz | HT12E, PT2262 | 10 nF | 47 kΩ |
| 38 kHz | TSOP1738, VS1838B | 330 pF | None (internal) |
| 40 kHz | NE555, 74HC04 | 2.2 nF | 22 kΩ |
Thermal drift shifts emitter wavelength; high-current pulses overheat dies, altering output. Reduce duty cycle below 25 % and add a heat-spreader–a small copper pad soldered to the cathode tab–or swap to a higher-power emitter with integrated thermal protection.
Parasitic capacitance on signal traces causes phase jitter. Route traces over uninterrupted ground planes; keep lengths under 10 cm for >30 kHz signals. If layouts are inflexible, add a 20 pF decoupling capacitor between signal and ground at the detector’s input pin.
Detector saturation occurs when emitter current exceeds receiver sensitivity range. Attenuate the signal with a neutral-density filter or move the LED farther away; measure received power with a calibrated photodiode–aim for 5–20 µW/cm² at the detector window. Alternately, re-calibrate current-limiting resistors to target 20–50 mA emitter drive.
Oscilloscope grounding loops induce false ringing. Connect probes via a 1× attenuator and use a differential probe if available. Probe the anode side of the photodiode while keeping the scope’s earth clip directly on the circuit’s ground reference plane to eliminate ground bounce artifacts.
Code misalignment frustrates debugging; ensure preamble, address, and command bits match between encoder and decoder. Count pulses on the oscilloscope–NEC protocol uses a 9 ms high, 4.5 ms low preamble, followed by 8 bits address and 8 bits inverted command. If preambles match but decoding fails, suspect data corruption from electromagnetic interference–relocate wires away from switching regulators or add ferrite beads on power lines.
