Complete Inverter Wiring Diagram Guide for Home and Industrial Use
Before installing a DC-to-AC conversion unit, verify the input voltage matches the battery bank output–most standard setups require 12V, 24V, or 48V. Use 4 AWG copper cables for systems exceeding 1,000W to prevent voltage drop, especially over distances greater than 1.5 meters. For 2,000W+ models, upgrade to 2 AWG or thicker to maintain efficiency. Label all connections clearly: red for positive (+), black for negative (–), and blue or green for grounding.
Position the converter unit in a well-ventilated area, away from moisture or direct sunlight. Heat dissipation is critical–ensure a minimum clearance of 10 cm on all sides. Mount the unit vertically for optimal airflow if manufacturer guidelines permit. Connect the battery first, then the load, and finally the AC output to avoid backfeeding. Use a 50A fuse or circuit breaker between the battery and the unit to protect against short circuits.
For grid-tie applications, integrate a transfer switch to isolate the system during maintenance or power outages. Use a dedicated 20A breaker for the AC output if the unit draws more than 1,500W. Ground the system separately from the battery bank, connecting the chassis to an 8-foot copper rod buried at least 0.5 meters deep. Test resistance with a multimeter–values should not exceed 5 ohms. For off-grid setups, pair the unit with a charge controller if solar panels are involved; mismatched voltages can damage both components.
Avoid daisy-chaining multiple devices to a single conversion unit–distribute loads evenly across separate circuits. Use surge protectors rated for twice the unit’s peak wattage. For 120V systems, confirm wiring polarity before connecting receptacles to prevent reverse voltage. In 240V setups, split the output across two hot wires (L1 and L2) with a neutral and ground; use a double-pole breaker for safety. Check torque specifications for terminal connections–typically 3.5–4 Nm for most units–to prevent overheating.
Monitor performance with a voltmeter during initial testing. Input voltage should remain within ±1V of the battery bank’s nominal rating during operation. If flickering occurs, check for loose connections or undersized cables. For mobile applications (e.g., RVs), secure all wiring with conduit or zip ties to avoid vibrations loosening contacts. Update firmware on smart models annually to ensure compatibility with battery management systems.
Connecting Power Conversion Systems: A Practical Guide
Begin by securing a direct current (DC) source with a voltage rating matching the converter’s input specifications–typically 12V, 24V, or 48V for smaller units. Use cables with a cross-section of at least 10 mm² for a 50A load to prevent voltage drop over distances exceeding 3 meters. Label each conductor at both ends to simplify troubleshooting.
Ground the negative terminal of the DC source to the chassis or a dedicated earth point using a 6 AWG copper wire, ensuring minimal resistance below 0.1 ohms. Avoid daisy-chaining grounds; each component should connect directly to a common ground busbar.
AC Output Configuration
For single-phase systems, route L and N conductors through a 20A circuit breaker before connecting to the output terminals. Stranded copper wire rated for 75°C is mandatory for currents above 15A. For three-phase setups, verify phase rotation with a multimeter–incorrect sequencing can damage motors.
Isolate the neutral conductor from the ground at the output, adhering to local electrical codes. Use a residual current device (RCD) rated at 30mA for human safety, especially in wet environments. Terminal blocks should withstand 125% of the maximum steady-state current to handle transient spikes.

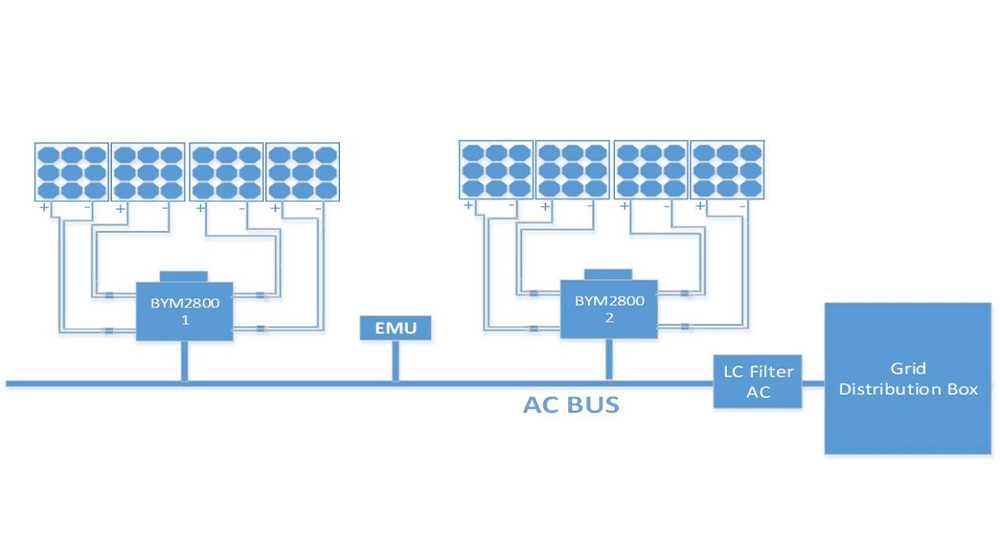

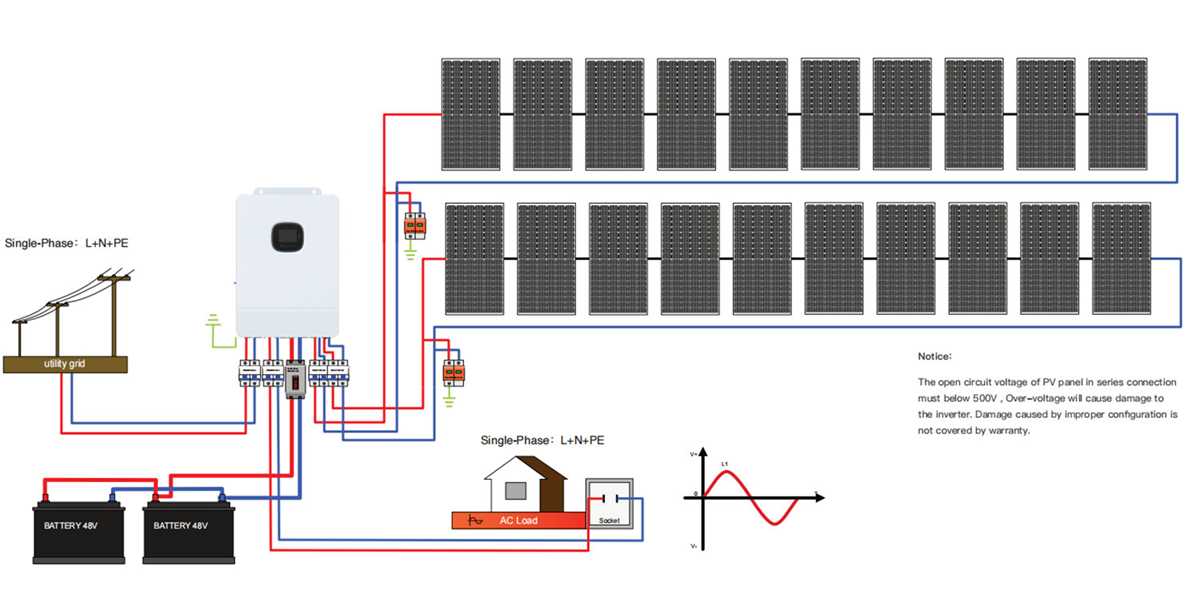

When integrating solar arrays or battery banks, install a charge controller between the power source and conversion unit. Select controllers with MPPT for efficiency gains of 10-30% compared to PWM. Fuse each array string separately with DC-rated fuses sized at 1.5x the short-circuit current of the panels.
Signal and Control Lines
For remote monitoring, use shielded twisted pair (STP) Cat5e cable for RS-485 communication, grounding the shield at a single point to prevent ground loops. Keep signal wires at least 30 cm away from high-current conductors to avoid electromagnetic interference. Terminate communication lines with 120-ohm resistors if the bus length exceeds 20 meters.
For generator start/stop signals, employ 24V relays with contacts rated for 10A inductive loads. Suppress voltage spikes with varistors or flyback diodes across relay coils. Test all connections with a megohmmeter at 500V to ensure insulation resistance exceeds 1 megaohm before energizing the system.
Critical Elements in Power Conversion Schematics
Begin by identifying the DC input section–label voltage ratings clearly, ensuring they match battery specifications. Misalignment here causes premature component failure or fire hazards. For a 12V system, use 20A fuses within 15cm of the battery terminal; for 24V/48V, scale fuse amperage proportionally. Verify cable gauge: 6 AWG handles 50A at 3m, while 2 AWG sustains 100A over the same distance without voltage drop exceeding 3%. Polarization marks must contrast sharply–engrave “+” and “-” on heatsinks near terminals.
Switching transistors demand thermal paste application: Arctic MX-6 for TO-247 packages, spread evenly at 0.2mm thickness. Mount IGBTs/MOSFETs to heatsinks with torque values between 0.4-0.6Nm; over-tightening cracks solder joints. Snubber circuits parallel to switches: 10Ω resistors paired with 0.1µF X2 capacitors absorb voltage spikes above 50V–omit this, and expect microsecond component degradation. Gate drivers require isolated power domains; communicate via optocouplers like HCPL-3120, with creepage distances ≥5mm for 600V isolation.
Signal Path Integrity
PWM controllers need low-noise power planes: segregate analog ground from digital ground, connecting them at a single star point near the microcontroller. For STM32-based boards, use 10µF tantalum capacitors on VDD pins; ceramic caps fail under high-frequency ripple. Clock traces ≥2.54mm wide reduce EMI–meander over 90° turns to maintain impedance. Feedback loops from output to controller must include RC filters: 1kΩ resistor + 1µF capacitor cut noise below 20kHz, critical for waveform stability.
Output filters rank among the most overlooked elements. LC configurations–20µH inductors toroidal, paired with 470µF low-ESR capacitors–smooth THD below 5%. For 3kW systems, split inductors into two 10µH cores to prevent saturation; wind with 14 AWG wire, bifilar for reduced proximity effect. Neutral and ground bonding occurs at the service panel only–never within the conversion unit. Insulation resistance testing between AC output and chassis must exceed 1MΩ at 500V DC; failure indicates compromised transformer winding or moisture ingress.
Protection devices require strategic placement. Install varistors rated at 1.5× peak AC voltage across input/output; MOV failure mode must be open-circuit to prevent arcing. Current sensors (ACS712 for 20A) demand 1mm copper pours beneath traces to minimize thermal drift. Overcurrent trips should trigger within 20ms–opt for resettable PPTC fuses at 125% of rated load. Final step: thermal switches rated 85°C, mounted on both primary and secondary windings; these isolate power if core temperatures surpass limits, preventing catastrophic transformer meltdown.
Step-by-Step Guide to Linking Your Power Converter to Energy Storage
Select cables rated for 125% of the maximum continuous current draw. For a 2000W unit at 24V, this requires 6 AWG copper wires or 4 AWG for longer runs exceeding 3 meters. Strip 1 cm of insulation, twist strands tightly, and crimp with ring terminals sized for your battery posts–M8 for most deep-cycle models. Apply dielectric grease to terminals before securing to prevent corrosion from electrolyte exposure.
Attach the positive terminal to the converter’s red input first, then connect the negative to the black input in a dedicated fused disconnect rated 1.25x the system’s amperage. Confirm polarity with a multimeter set to DC voltage: readings above 25V (for 24V setups) indicate correct pairing. Avoid paralleling multiple batteries without a balancing current shunt–imbalance degrades cells unevenly within months.
Install a 30A DC circuit breaker within 15 cm of the battery’s positive terminal. This interrupts shorts instantly, unlike fuses which may degrade over time. For lithium storage, integrate a battery management system between the cells and converter to monitor under/overvoltage cutoffs–skipping this step risks thermal runaway at 60°C. Test load handling with a resistive heater before permanent mounting: voltage sag below 22V at 80% SOC signals undersized cable or degraded cells.
Common Pitfalls in Power Conversion Installation and Prevention
Undersizing the conductor cross-section is the most frequent error leading to overheating. Copper cables for DC inputs must match the device’s continuous current rating–never rely on peak values. For example, a 3000W unit drawing 130A at 24V demands 35mm² wires; anything thinner risks voltage drop and fire hazards.
Omitting dedicated fuses or circuit breakers at both battery terminals and appliance side triggers catastrophic failure during short circuits. Position high-rupture capacity fuses within 30cm of the battery; standard automotive fuses melt too slowly. Use the table below to select fuse ratings:
| Device Power (W) | Battery Voltage (V) | Recommended Fuse (A) |
|---|---|---|
| 1000 | 12 | 100 |
| 2000 | 24 | 100 |
| 3000 | 48 | 60 |
Grounding loops occur when AC and DC grounds connect at multiple points, causing hum in audio systems or erratic device behavior. Isolate AC neutral from DC negative at the conversion unit; bond grounds only at the battery bank. Measure voltage between AC neutral and DC negative–any reading above 0.5V indicates a loop.
Incorrect Polarity Protection
Most units lack internal reverse-polarity protection. Crossing positive and negative wires destroys internal MOSFETs instantly. Verify connections with a multimeter before powering up: DC input should read +12V/+24V/+48V relative to chassis ground. Mark battery terminals permanently with red/black heat-shrink tubing.
Overlooking electromagnetic interference suppression generates noise in sensitive electronics. Route DC input cables away from AC output lines; twist pairs if separation exceeds 10cm. Ferrite choke cores on both DC and AC sides reduce conducted emissions–snap-on cores must have at least 3 turns of cable to be effective.
Disregarding ambient temperature ratings shortens component lifespan. Units rated for 40°C fail prematurely in 50°C environments. Calculate derating: every 10°C above 40°C reduces continuous capacity by 20%. Use forced-air cooling or select a unit with higher temperature tolerance; aluminum extrusions increase heat dissipation by 30%.
