Complete IoT Home Automation Wiring Guide with Circuit Layout Examples

Build your wireless node network around an ESP32 microcontroller paired with a 433 MHz RF transmitter-receiver pair. This combination delivers a 250-meter line-of-sight range at 10 dBm output power–ideal for medium-sized properties. Configure power management early: use a 3.7V LiPo battery with a TP4056 charging module to prevent voltage drops below 3.0V, which degrade relay performance. Avoid 2.4 GHz Wi-Fi interference by assigning static IP addresses to nodes and segmenting them into VLANs using a managed switch like the TP-Link TL-SG108E.

Integrate a two-relay module (Songle SRD-05VDC-SL-C) for mains-voltage devices, ensuring optical isolation between low-voltage control and 230V AC lines. Use ULN2003 Darlington arrays for motorized blinds or garage doors, limiting current draw to 500 mA per channel. For temperature and humidity sensing, deploy DHT22 sensors at a minimum 2-meter spacing to avoid localized microclimate readings. Calibrate analog inputs by adding a 10-bit ADC (MCP3008) for precise soil moisture detection in irrigation systems.

Secure communication with AES-128 encryption on ESP-NOW protocol–transmit payloads in 64-byte packets every 300 ms to balance latency and bandwidth. For edge computing, program ESP32 with ArduinoIDE using EEPROM emulation to store device states during power failures. Test failover by simulating brownouts with a programmable DC power supply (e.g., Rigol DP832). Document your wiring schema in Fritzing with layer separation for power, data, and ground traces–keep high-current paths at least 2 mm apart to prevent arc flash.

Deploy a central hub (Raspberry Pi 4) running Node-RED for rule-based automation, but offload sensor fusion to Edge Impulse for anomaly detection. Use MQTT broker Mosquitto over TLS on port 8883, with QoS=1 for critical alerts like water leaks. For persistent storage, mount a Samsung T7 SSD via USB 3.0–format in ext4 for faster metadata handling. Configure redundancy with RAID 1 using mdadm to mirror sensor logs. Validate your system’s EMI tolerance by operating a microwave oven at full power 1 meter from nodes; reroute antennas if packet loss exceeds 3%.

Smart Residential Control System Blueprint

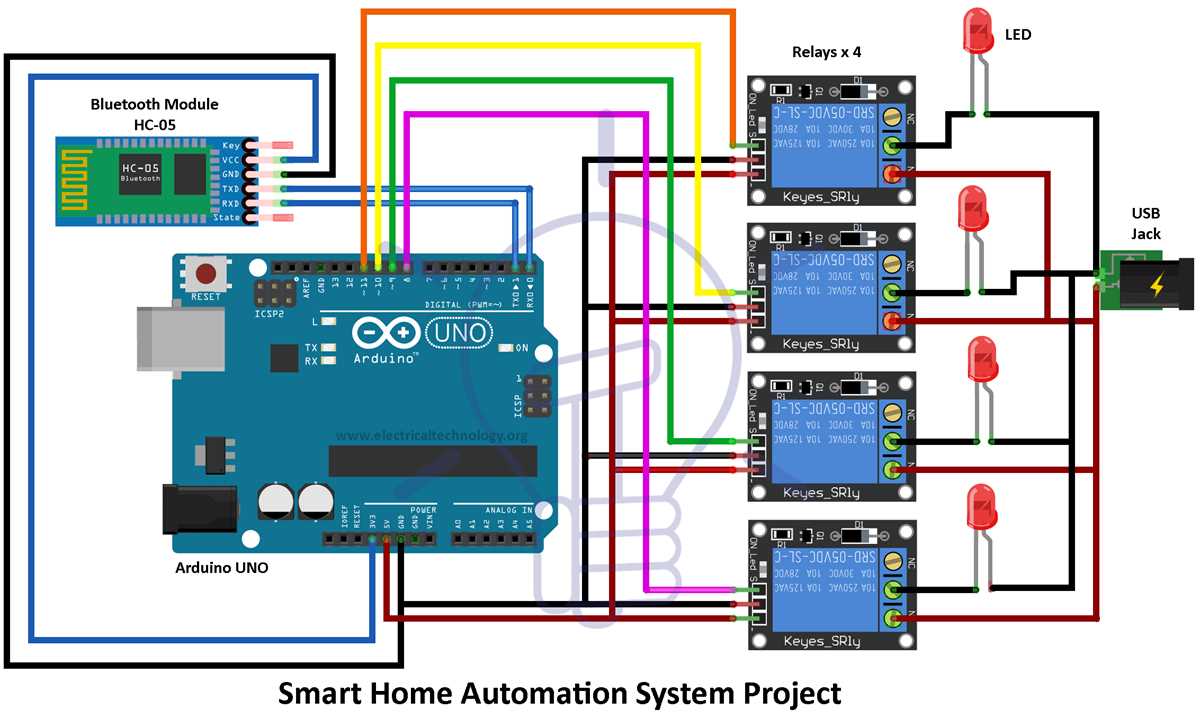

Select a microcontroller with built-in Wi-Fi, like the ESP8266 or ESP32, for seamless wireless integration. These modules eliminate the need for additional connectivity hardware, reducing both cost and assembly time. Pair it with a 5V relay module–opt for one with at least four channels to handle standard appliances such as lights, fans, or outlets. Ensure the relay’s maximum current rating exceeds the load requirements of your devices by 20-30% to prevent overheating.

Use a breadboard for prototyping before finalizing the permanent setup. Connect the microcontroller’s GPIOs to the relay inputs, and attach the appliances’ live wires to the relay outputs. Incorporate a 1N4007 diode across each relay coil to protect the circuit from voltage spikes. For power, a 5V USB adapter or a regulated buck converter (input 7-24V, output 5V) will suffice, but avoid cheap adapters–fluctuations can damage components.

Network and Security Considerations

Configure the ESP module to connect to a 2.4GHz Wi-Fi network, as most consumer routers still rely on this band. During setup, disable default credentials for the firmware–replace them with a unique, 16+ character passphrase. Use HTTPS for device communication and enable MQTT over TLS if interacting with cloud platforms. For local control, implement a password-protected web server on the microcontroller; avoid exposing raw GPIOs via unencrypted protocols.

Add a failsafe mechanism: program the system to revert to a predefined state (e.g., all relays off) if the Wi-Fi connection drops for more than 30 seconds. Store configuration data in the microcontroller’s EEPROM or flash memory to persist settings across reboots. For critical loads, integrate a manual override switch–place it upstream of the relay to bypass the automated system entirely if needed.

Soldering and Enclosure Best Practices

Once testing is complete, transfer the circuit to a perfboard or custom PCB. Use 22-24 AWG solid-core wire for signal traces and thicker (18 AWG) stranded wire for high-current paths. Apply heat-shrink tubing or electrical tape to all solder joints, especially near relay terminals, to prevent short circuits. Mount the board inside a non-conductive enclosure with ventilation holes–relays generate heat under load. Position the setup away from moisture or direct sunlight to prolong component lifespan.

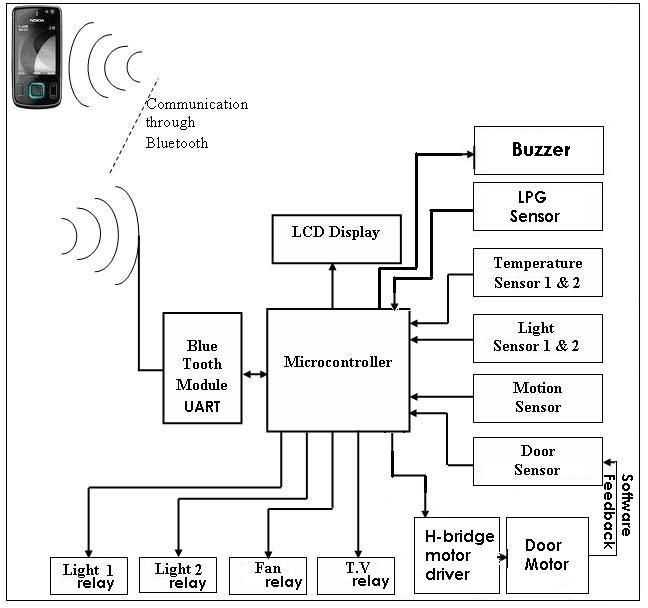

Core Elements for Smart Residential Electrical Integration

Start with a microcontroller board like the ESP32 or Raspberry Pi Pico W–both offer dual-band Wi-Fi, Bluetooth Low Energy, and sufficient GPIO pins to handle multiple sensors and actuators simultaneously. The ESP32’s 30-pin variant supports 18 ADC channels, ideal for interfacing with analog components without external multiplexers. Prioritize boards with deep-sleep capabilities; the ESP32 consumes as little as 5 µA in this mode, extending battery life for wireless nodes to years.

Select relays rated for your load: solid-state types handle up to 2 A at 250 VAC silently and without wear, while electromechanical variants suit higher currents but emit audible clicks and degrade over roughly 100,000 cycles. For inductive loads, add a flyback diode or snubber circuit to prevent voltage spikes from damaging the relay coil. Choose opto-isolated relays to segregate low-voltage logic from mains power, reducing risk of ground loops.

• Current sensors: ACS712 (±20 A) or INA219 (±3.2 A) for real-time power monitoring.
• Environmental sensors: BME280 (temperature, humidity, barometric pressure) or SGP30 (air quality).
• Motion detectors: PIR HC-SR501 for occupancy or microwave RCWL-0516 for through-wall detection.
• Light intensity: BH1750 for 1–65,535 lux measurement with 16-bit resolution.

Power supply must match load demands: a 5 V/2 A USB adapter suffices for basic setups, but switch to a buck converter (e.g., LM2596) outputting 3.3 V for ESP32 to minimize heat. For battery-powered nodes, employ a lithium-polymer charger (MCP73831) and a 18650 cell with built-in protection circuit. Add a fuse inline–fast-acting 500 mA for 12 VDC lines–and a varistor across mains inputs to clamp transient surges above 275 V.

Wiring choices affect longevity: use 0.5 mm² stranded copper for 5 A loads, 1 mm² for 10 A; silicone insulation withstands bending and temperatures up to 200 °C. Crimp ferrules on multi-strand ends before screw terminals to prevent fraying and oxidation. Group signal and power cables separately; maintain 10 cm separation between 230 VAC and low-voltage lines to avoid induced noise. Daisy-chain power buses with 16 AWG twisted pair for high-current paths, splicing with Wago 221 connectors for quick, tool-free maintenance.

Network security hinges on hardware: flash ESP32 with secure bootloader and encrypted flash using esp-idf tools. Disable OTA updates until first successful local authentication. Use TLS 1.3 for MQTT connections; the ESP32’s crypto engine offloads AES-256 computations, keeping latency below 10 ms. Embed a hardware security module (ATECC608A) for private key storage, preventing extraction even after reverse-engineering the PCB.

Step-by-Step Assembly of an ESP8266/NodeMCU Control Board

Select a solderless breadboard with at least 830 tie points for prototyping. The ESP8266 module requires stable power; use an external 3.3V power source rated for 500mA or higher. Avoid USB power from a computer–fluctuations can reset the device unexpectedly. Connect the ground (GND) first to prevent static damage.

Mount the NodeMCU board onto the breadboard, ensuring the pins align without bending. Use male-to-female jumper wires for clean connections to sensors or relays–direct soldering complicates debugging. For example, attach a 5V relay module to GPIO5 (D1) via a 220Ω resistor to limit current. Check datasheet values: ESP8266 GPIOs tolerate 12mA max, and exceeding risks permanent damage.

Flash the firmware before wiring peripherals. Use Arduino IDE with the Generic ESP8266 Module board selected. Upload a basic Wi-Fi test sketch to verify connectivity–failure here indicates faulty power or incorrect baud rate (set to 115200). If serial output stalls, double-check USB-to-UART chip compatibility (e.g., CH340G or CP2102).

Testing and Troubleshooting

After assembly, measure voltage at the 3.3V pin with a multimeter–readings below 3.1V suggest insufficient power. For relay actuation, confirm the control pin toggles between 0V and 3.3V using a logic analyzer. If relays don’t trigger, bypass the module and test directly with a 3V coin cell against the relay’s coil spec. Add a flyback diode (1N4007) across inductive loads (e.g., motors) to protect the GPIO.

Fix intermittent disconnects by adding a 0.1μF ceramic capacitor between EN and GND pins. For Wi-Fi instability, reduce the TX power via WiFi.setOutputPower(10) (value in dBm, max 20.5). Use the ESP.getVcc() function to monitor voltage drops during operation–consistent values below 3.2V indicate a weak power supply. Log errors to serial for post-deployment debugging.

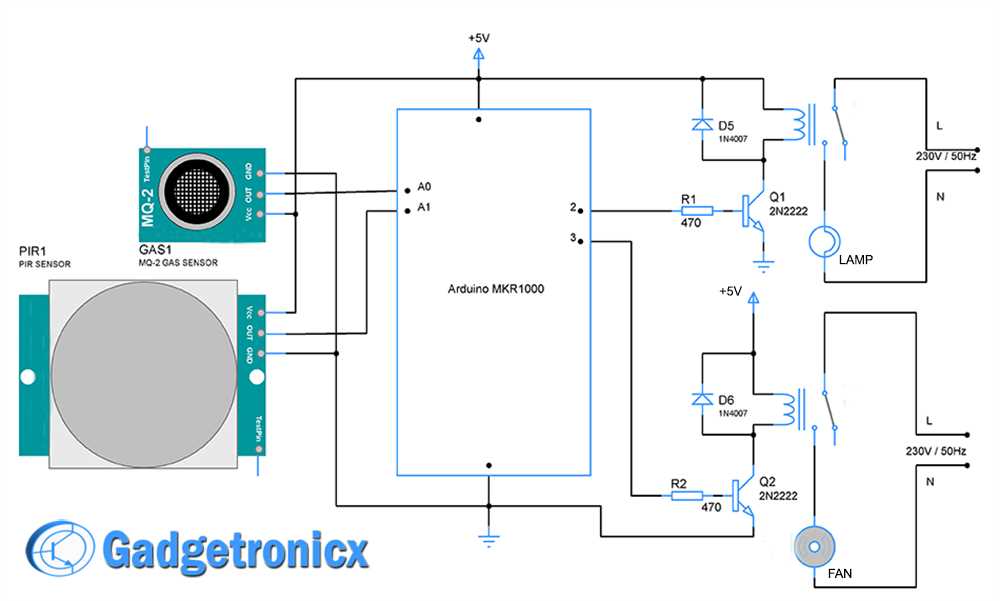

Configuring Relay Modules for Safe High-Voltage Appliance Switching

Select relays rated for at least 125% of the target load’s current draw. For a 10A appliance, use a 12A or 15A relay. Verify the relay’s contact material–silver alloy or silver cadmium oxide resists arcing better than copper. Mount the relay on a non-conductive surface, ensuring no metal parts contact the enclosure. Use spade connectors crimped with insulated ferrules to prevent wire fraying under mechanical stress.

Connect the control side to a logic-level microcontroller with an optocoupler to isolate low-voltage signals from mains power. Use a 220Ω resistor in series with the relay coil to limit current; omit this only if the microcontroller datasheet explicitly permits direct drive. For AC loads, add a flyback diode (1N4007) reverse-biased across the coil to suppress inductive voltage spikes. DC loads require a snubber circuit (0.1µF capacitor + 100Ω resistor) across relay contacts to quench arcs.

Critical Wiring Practices

• Strip wires to 6mm of exposed length; longer strands increase short-circuit risk.
• Twist power wires (live, neutral) together before insertion into terminals to minimize electromagnetic interference.
• Use heat-shrink tubing to insulate soldered joints–avoid electrical tape, which degrades under thermal cycling.
• Separate low-voltage and high-voltage traces by at least 8mm on PCBs or use physical barriers to prevent creepage.
• Label both ends of every wire with heat-resistant sleeves (e.g., Tyco Electronics part #172100-1).

Test the relay’s pull-in and drop-out voltages with a bench power supply before integrating it with the control system. A 5V relay should energize between 3.5V–4.5V and release below 2V. If hysteresis is too narrow, add a 1kΩ resistor in parallel with the coil to adjust sensitivity. For inductive loads (motors, compressors), oversize the relay by 2x the rated current–startup surges can exceed 6x steady-state amperage.

Fault Protection Measures

1. Fuse the live wire immediately upstream of the relay with a slow-blow fuse sized to 1.5x the relay’s rating.
2. Install a thermal cutoff (KSD9700, 80°C) between the relay and load to disconnect if the relay welds shut.
3. Use a double-break relay (e.g., Omron G7L) for loads >5A to distribute arcing across two contact sets.
4. Add an RC snubber (0.01µF + 10Ω) across relay outputs if switching capacitive or inductive devices.
5. Ground the relay’s metal enclosure via a 2.2kΩ resistor to avoid static charge buildup.

Enclose the entire assembly in a IP65-rated polycarbonate box with captive screws (e.g., Panduit PN FPHCC4). Seal cable entries with PG glands (e.g., Lapp Kabel 53010) to prevent moisture ingress. For outdoor use, apply dielectric grease (Dow Corning 4) to all terminals and tighten screw terminals to 0.8Nm torque–over-tightening damages threads, while under-tightening causes resistance heating.
