Complete Wiring Guide for JVC KW-M560BT Car Stereo Installation

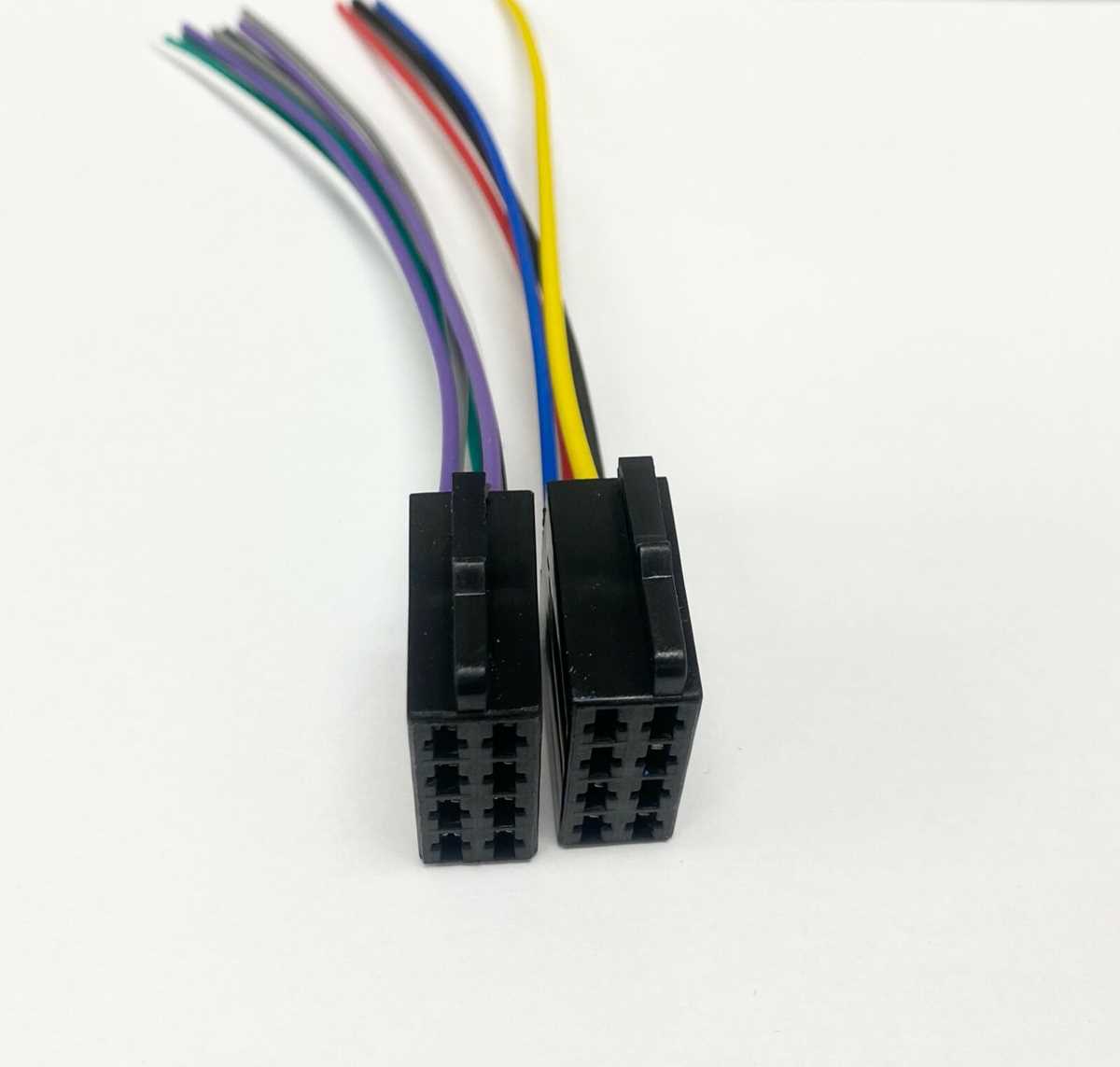

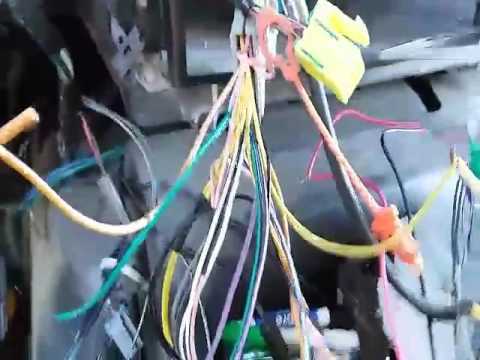

Begin by locating the ISO wiring harness included with your head unit. Pinout assignments follow standard aftermarket color codes: yellow (12V constant), red (switched ignition), black (ground), and paired speaker wires–usually white (front left +), white/black (front left –), gray (front right +), and gray/black (front right –). Verify these against your vehicle’s factory harness before splicing to avoid reversed polarity or short circuits.
For amplified systems, the blue/white remote turn-on wire must connect to the amplifier’s trigger input–failure here silences the entire setup. Use a test light or multimeter to confirm the switched 12V signal appears when the key is in the ACC position. If the vehicle lacks a dedicated remote output, tap into the fuse box at an ignition-controlled circuit like the radio or accessory fuse, but never the cigarette lighter.
Grounding demands a bare-metal chassis connection near the installation site, sanded clean of paint or corrosion. A #10 or larger gauge wire bolted directly to a screw hole or grounding point on the vehicle’s frame prevents noise, hum, or intermittent operation. Avoid daisy-chaining grounds through seats, trim, or other components–this introduces resistance and potential interference.
When integrating steering wheel controls, an adapter module (e.g., PAC RP4-GM11 or Axxess ASWC-1) decodes OEM button signals. Match the module’s wiring instructions with the head unit’s orange/white (illumination) and purple (DATA bus) wires. For vehicles with CAN bus, additional resistors or specific harnesses may be required to mimic the factory radio’s communication protocol.
Subwoofer integration requires a low-pass filter set between 80–120 Hz at the amplifier, with the RCA preamp outputs fed from the head unit’s subwoofer preouts (usually brown or purple). If the amplifier lacks phase adjustment, experiment with reversing the subwoofer’s +/- speaker wires to align bass timing with front speakers. Power ratings must not exceed 80% of both the head unit’s and amplifier’s continuous RMS output to prevent thermal shutdown.
Installation Blueprint for KW-M560BT Media Receiver
Connect the yellow (B+) power lead directly to a 10A fuse within 30 cm of the car battery–bypassing ignition switches avoids voltage drops that trigger resets. For the red (ACC) wire, splice into the vehicle’s accessory circuit (not cigar lighter) using a 15A fuse tap; locate this via multimeter probing for 12V during key-on states. Ground the black (GND) to bare metal near the unit’s mount point, ensuring a torque of 10 Nm or more–loose grounds cause audio pops at high volumes. The blue/white (remote turn-on) feeds amplifiers; link it to a maximum of 300mA load to prevent damage to the unit’s internal relay. Use 18-gauge OFC copper for signal paths (purple/green/white/gray speaker wires) and 16-gauge for power to handle 20W RMS per channel without distortion.
Color-Coded Terminal Breakdown
Front left (+): Gray | Front left (-): Gray/black | Front right (+): White | Front right (-): White/black | Rear left (+): Green | Rear left (-): Green/black | Rear right (+): Purple | Rear right (-): Purple/black–stray strands from these connections introduce crosstalk; twist strands tightly and solder with 60/40 rosin-core solder before crimping. For steering wheel control retention, pair the Orange/White lead to a compatible ASWC-1 adapter; programMode 1 detects resistance values within 3 seconds if the adapter’s power input aligns with the red (ACC) wire. Verify all connections with a continuity tester before powering up–reversing B+ and ACC wires erases presets and requires a full reset via the hidden Service Mode (hold Source + FM while powering on).
Locating Power and Ground Terminals for Your Car Audio Head Unit
Begin by tracing the thickest red cable from the harness–this is the constant 12V power lead, designed to maintain memory functions like presets and clock settings. Attach it directly to the battery’s positive terminal or an ignition-switched source with a 10A fuse within 18 inches of the connection point. For ground, identify the black or brown cable of equal gauge; secure it to a bare metal chassis point within 12 inches of the unit, ensuring no paint, rust, or oxidation interferes. Use a crimp connector with heat shrink tubing and torque the bolt to at least 8 ft-lbs to prevent voltage drops.
Verify connections with a multimeter: constant power should read 12-14V regardless of ignition state, while ground must show 0V with the negative probe on the chassis. If readings fluctuate, strip additional wire length, sand the chassis contact point, or relocate the ground to a factory grounding bolt near the fuse box. Avoid daisy-chaining grounds to other accessories–dedicate a separate path for this unit to eliminate noise.

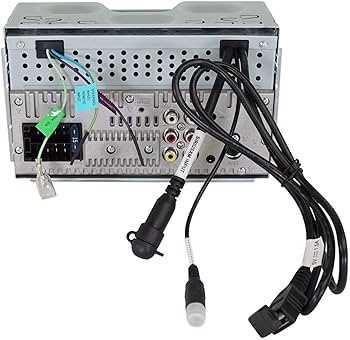

Step-by-Step Speaker Connection Guide for the KW-M560BT Head Unit
Begin by identifying the four-channel output terminals on the rear of the multimedia receiver. Each terminal pair corresponds to a specific audio channel: front left, front right, rear left, and rear right. The positive (+) and negative (−) markers adjacent to each terminal must match precisely with the speaker cables to prevent phase cancellation or damage to the system.
Use a multimeter to verify the polarity of speaker wires before connecting them. Set the device to DC voltage mode and probe the wires while playing a test tone through the system. A positive reading confirms correct polarity; reverse the wires if the measurement shows negative voltage. This step eliminates猜疑 about wire orientation and ensures optimal sound reproduction.
| Terminal Label | Channel Assignment | Wire Color (Standard) |
|---|---|---|
| FL+ | Front Left Positive | White |
| FL− | Front Left Negative | White/Black |
| FR+ | Front Right Positive | Gray |
| FR− | Front Right Negative | Gray/Black |
| RL+ | Rear Left Positive | Green |
| RL− | Rear Left Negative | Green/Black |
| RR+ | Rear Right Positive | Purple |
| RR− | Rear Right Negative | Purple/Black |
Strip no more than 5mm of insulation from each wire end using a dedicated wire stripper. Excess exposed copper can cause shorts, while insufficient stripping leads to weak connections. Twist the strands tightly to prevent fraying, and insert them fully into the terminal clamps to ensure a secure fit. Tighten the screws firmly but avoid overtightening, which can strip the threads.
Route cables through the vehicle’s existing wiring harness or conduit to minimize interference from power lines or aftermarket components. Keep low-level signal cables (RCA, antenna) at least 15cm away from speaker wires to prevent electromagnetic interference. For systems with amplifiers, cross the power and ground wires at a 90-degree angle to further reduce noise induction.
Label each wire at both the head unit and speaker ends with adhesive tags or heat-shrink tubing to simplify future troubleshooting. Use a consistent naming convention (e.g., “FL+” for front left positive) to avoid confusion. This practice is particularly critical in vehicles with complex audio setups or multiple subwoofers.
Test each channel individually after securing all connections. Play a frequency-specific tone (e.g., 1kHz) and verify that sound emanates from the correct speaker. Check for distortion, imbalance, or absence of signal, which may indicate reversed polarity, loose terminals, or damaged wires. Adjust crossover settings on the head unit if the soundstage lacks clarity or bass response is uneven.
Secure all terminal covers and reinstall the dashboard trim panels once testing is complete. Double-check that no wires are pinched between metal surfaces or trim edges, as this can lead to intermittent failures. Reconnect the vehicle’s battery negative terminal and verify system functionality with a full-range audio source to confirm proper integration.
Connecting Parking Brake and Reverse Signal Leads Properly
First, locate the vehicle’s parking brake switch wire – typically a solid blue or blue-striped conductor in most modern harnesses. Verify its function by probing with a multimeter: voltage should read 12V when the brake is engaged and drop to 0V when released. Splice this directly into the head unit’s designated input (usually marked “BRAKE” or “PKB”) using a soldered connection, then insulate with heat-shrink tubing rather than electrical tape to prevent moisture ingress over time.
For the reverse signal, identify the backup light circuit – often a purple or purple-striped cable on the car side. Confirm with the multimeter again: voltage should be 12V only when the transmission is in reverse. Route this line to the stereo’s “REV” or “REVERSE” input, ensuring no intermediate splices or relays weaken the signal. If the vehicle uses a CAN bus for gear detection, bypass the comfort module and tap into the hardwired backup light feed instead – factory modules may introduce latency.
Common pitfalls include misidentifying switched ignition wires as parking brake leads, which will cause the system to demand e-brake engagement before video playback. Another frequent error is neglecting to ground both the parking brake and reverse circuits properly – they require a dedicated, low-resistance earth separate from the main chassis ground to prevent interference. Use 16-gauge wire for these connections to handle potential current spikes without voltage drop.
To validate proper operation:
- Engage the parking brake – video functionality should unlock without additional prompts;
- Shift into reverse – the rear-view camera feed must appear instantly, not after a delay;
- Check for erratic behavior (e.g., false gear detection) by toggling lights – if present, recheck grounds and reflow solder joints;
- Test while driving – no warning messages should interrupt playback when the parking brake is released while stationary.
Failure modes include:
- Reverse signal feed triggering intermittent camera activation – indicating a poor ground or voltage leakage from nearby circuits;
- Parking brake detection failing intermittently – often caused by oxidized switch contacts (clean with contact spray);
- Overheating at the splice point – suggesting insufficient gauge wire for the current draw;
- System locking video until reboot – typically due to incorrect CAN bus integration, requiring a bypass.
Address each systematically before securing all connections under loom or corrugated conduit to prevent chafing against sharp edges.
