Understanding Refrigeration System Schematic Components and Functionality
Begin by identifying the four critical stages of any thermal transfer setup: compression, condensation, expansion, and evaporation. Position the compressor on the left side of your layout–this is the starting point where vaporized coolant is pressurized to initiate the cycle. Use copper tubing (1/4″ OD) for the suction line connecting the evaporator coil to the compressor inlet, ensuring minimal pressure drop with a maximum bend radius of 3x tube diameter to prevent kinks.
Connect the discharge line from the compressor to the condenser coil using 3/8″ OD copper pipe, maintaining a slight upward slope (1/4″ per foot) to facilitate oil return. For air-cooled condensers, space fins at 12-14 fins per inch–a denser configuration improves heat dissipation but increases fan load. Include a liquid receiver tank immediately downstream of the condenser, sized at 1.5x the total coolant charge to accommodate thermal expansion.
Place the thermal expansion valve (TXV) between the condenser outlet and the evaporator inlet. Select orifice size based on 2-4°F subcooling–oversized valves cause hunting, undersized ones restrict flow. For capillary tube systems, calculate length by balancing refrigerant velocity (3-6 ft/sec) against required pressure drop, typically 5-10 feet of 0.032″ ID tubing for 1/2-ton capacity. Route the liquid line through a filter-drier to remove moisture–install with a downward flow to prevent oil entrapment.
Position the evaporator coil in the target space, using aluminum fins spaced 8-10 per inch for low-temperature applications (-20°F to 0°F) or 14-16 fins per inch for medium-temperature (35°F to 45°F). Connect the suction line with a trap at the coil outlet to ensure oil return–slope the line 1/8″ per foot back to the compressor. For hermetic systems, include a crankcase heater to prevent coolant migration during off-cycles; size at 2-5 watts per HP.
Label all lines with color-coded sleeves: red (high-pressure vapor), blue (low-pressure vapor), yellow (liquid coolant), and green (oil return). Add shut-off valves at both ends of each line for servicing, and include a pressure relief valve set to 20-25% above maximum discharge pressure. For ammonia-based setups, use steel piping only–copper corrodes within weeks.
Verify component efficiency with these baseline metrics: compressor volumetric efficiency (>70%), condenser saturation temperature (15-25°F above ambient), evaporator superheat (8-12°F), and liquid line subcooling (4-6°F). Deviations indicate restrictions, incorrect sizing, or non-condensable gases–purge the system if compressor amperage exceeds 110% of rated load. For variable-speed drives, set minimum RPM at 50% of maximum to prevent lubrication starvation.
Visual Blueprint of Cooling Cycles

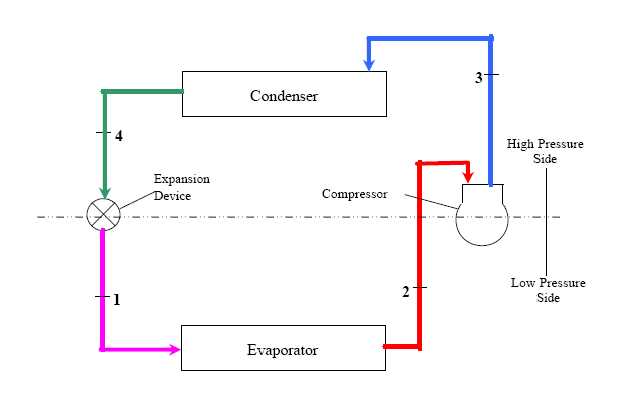

Start by labeling the four core components on your flow chart: compressor, condenser coil, expansion valve, and evaporator. Place the compressor at the bottom-left – it must show suction lines from the evaporator (low-pressure vapor) and discharge lines to the condenser (high-pressure vapor). Use arrowheads scaled to pressure differences (e.g., thick arrows for 200 psi, thin for 50 psi) to indicate flow direction. The condenser coil should sit at the top-right, angled downward to mimic heat rejection, with liquid refrigerant exiting at its base. Insert the expansion valve on the right edge of the chart, bridging liquid from condenser to evaporator inlet; mark its inlet pressure (180 psi) and outlet pressure (60 psi) as numeric callouts. The evaporator occupies the bottom-right quadrant, drawn as a horizontal loop with upward arrows depicting heat absorption and vapor rise.
- Color-code phases: blue for vapor (compressor inlet/outlet), red for high-temperature vapor (condenser inlet), orange for sub-cooled liquid (condenser outlet), green for low-pressure liquid-vapor mix (evaporator inlet).
- Add isotherms: 120°F at condenser midpoint, 40°F at evaporator midpoint.
- Include pressure gauges beside compressor suction/discharge ports (gauge format: “P_s = 50 psi”, “P_d = 200 psi”).
- Draw electrical controls: thermostat symbol at compressor start relay, red triangle for over-temperature cutout at condenser fan motor.
- Label refrigerant type (e.g., R-134a) in a bottom-left legend, noting saturation pressure at 40°F (45 psi).
Critical Parts and Standardized Glyphs in Cooling Cycle Blueprints
Always begin by identifying the compressor glyph–a circular or oval shape with inward arrows–placed at the cycle’s high-pressure side. This symbol denotes mechanical work converting low-pressure vapor into high-pressure gas, raising temperature and pressure simultaneously. Confirm the arrow direction aligns with flow: inlet at the bottom, outlet at the top right for most industrial layouts. Deviations suggest drafting errors.
Evaporators appear as wavy or zigzag lines enclosed in a rectangle, sometimes with multiple passes. Count the passes: single-wave indicates direct expansion, double or triple waves signal flooded or forced-convection types. Verify thermal contact points–glyphs should touch refrigerant lines without overlap, showing proper heat exchange interface.
| Component | Glyph Shape | Pressure Zone | Temperature Shift |
|---|---|---|---|
| Compressor | Oval with inward arrows | Low → High | Rises 30–50°C |
| Condenser | Coil inside rectangle | High | Drops 20–40°C |
| Metering Device | Circle with diagonal line | High → Low | Drops 5–15°C |
| Evaporator | Wavy rectangle | Low | Rises 5–10°C |
Condensers use coiled or serpentine lines within a bounding box–horizontal loops indicate air-cooled units, vertical stacks signal water-cooled variants. Check fin density glyphs: sparse coils denote low-efficiency, dense coils with cross-hatches represent microchannel condensers. Ensure the coil terminates at a receiver symbol–a small horizontal cylinder–marking liquid refrigerant storage.
Metering devices are circles bisected by a diagonal or vertical line; capillary tubes show single lines with diameter annotations, thermostatic expansion valves add a temperature bulb glyph adjacent. Verify line connections: inlet must join condenser outlet, outlet must align with evaporator inlet–misalignment causes pressure imbalance.
Use color-coding consistently: red for high-pressure lines, blue for low-pressure, black for suction lines. Digital drafts often invert this–confirm against P&ID standards. Absorption chillers introduce dashed lines for secondary fluids; glyphs for generators and absorbers resemble heater coils with additional solution pathways.
Auxiliary parts include sight glasses–circles with horizontal or vertical sight lines–and dryers, shown as small cylinders with molecular sieve notation. Filter driers merge both glyphs in a single cylinder with dashed sieve filling. Check orientation: inlet arrows must point upward, preventing moisture accumulation.
Electrical controls integrate push-button symbols (small circles with parallel lines) and relay coils (rectangles with coil notation). Thermostats appear as bulbs connected by dashed sensor lines to actuators. Ensure these link mechanically–not just visually–to refrigerant flow glyphs, or cycle regulation fails.
Inspect line junctions: T-joints indicate branch circuits, crosses mark cross-connections; both must show clear direction arrows. Missing arrows on T-joints often lead to misread pressure zones during troubleshooting. Always label pressure and temperature values at critical points–ambient references alone are insufficient.
Tracing Coolant Pathway in a Technical Blueprint
Identify the compressor first–it’s the starting point marked by high-pressure discharge lines. Look for labels like “HP” or “Discharge” near a sealed unit, often depicted with thicker lines or arrows pointing away. Note the direction: vapor flows out under pressure, usually upward or to the right in most layouts.
Follow the condenser coils, where heat rejection occurs. These appear as serpentine or finned tubes; the coolant transitions from gas to liquid here. Check for color coding–red for high-pressure hot gas, blue for condensed liquid–or dashed lines indicating phase change. Temperature notations (e.g., “80°F to 100°F”) confirm the cooling process.
Tracking Expansion and Evaporation
Locate the metering device: a capillary tube, thermostatic expansion valve, or orifice. It shrinks line thickness–high-pressure liquid enters, low-pressure fluid exits. This is where pressure drops abruptly; titles like “TXV” or “Expansion Valve” are common. Downstream, the evaporator shows thin, low-pressure lines with frost or coil symbols, absorbing heat as the coolant vaporizes.
Reconnect to the compressor’s suction side–thin return lines labeled “Low-Pressure” or “Suction” close the loop. Verify flow continuity: no breaks in lines, no dead ends. Cross-reference with PSI/bar values (e.g., “15-30 PSI”) to ensure correct pressure zones. If labels are absent, trace arrows or gradient fills showing progression from hot to cold stages.
How to Identify Heat Exchangers and Their Role in the Cooling Circuit
Locate the condenser and evaporator first–these are the primary heat exchangers in any thermal cycle. The condenser, typically positioned at the high-pressure side, appears as a coiled or finned assembly with refrigerant lines entering and exiting at opposite ends. Check for labels like “liquid receiver” nearby; this indicates the condenser’s outlet. The evaporator, found on the low-pressure side, often resembles a compact, radiator-like unit with larger surface area fins to maximize heat absorption. Use a thermal camera or infrared thermometer: the condenser’s exterior should read 10–15°C above ambient, while the evaporator remains 5–10°C below the target space temperature.
Key Visual and Functional Markers
Trace the piping between components. Heat exchangers always connect to two distinct fluid streams–the refrigerant and the medium being cooled or rejecting heat (air, water, or brine). In air-based units, the evaporator will have a fan blowing across its fins; condensers may use forced-air or water-cooled designs. Look for expansion valves or capillary tubes directly upstream of the evaporator; these regulate flow and pressure drop, a defining trait of heat exchange zones. For shell-and-tube or plate exchangers, inspect for bolted flanges or welded joints–these house liquid-to-liquid transfers in secondary circuits.
Measure temperature differentials to confirm functionality. A properly operating condenser should show a 5–8°C drop between inlet (hot gas) and outlet (liquid refrigerant). Evaporators, conversely, must maintain a 3–6°C rise from inlet to outlet when absorbing heat. If readings diverge, suspect fouling, incorrect charge, or failed valves–common issues requiring immediate isolation of the heat exchanger. For water-cooled units, verify flow rates: 0.03–0.05 L/s per kW of cooling capacity ensures optimal heat rejection without scaling.
Identify auxiliary exchangers like subcoolers or desuperheaters by their position in the cycle. Subcoolers sit downstream of the condenser, often as a separate coil or double-pipe assembly, reducing refrigerant temperature below saturation to prevent flash gas. Desuperheaters, found in heat recovery setups, extract compressor discharge heat for reheating or domestic hot water. These components are optional but improve efficiency by 10–15% when included. Label all exchangers with their type and role during troubleshooting–for example, “Air-Cooled Condenser (30 kW)” or “Plate Evaporator (Brine Loop)”–to streamline diagnostics and maintenance records.
During layout planning, place condensers downwind of evaporators to prevent recirculated heat. Keep air-cooled exchangers at least 0.5 m from walls or obstructions for unimpeded airflow; liquid-cooled types require unobstructed access to utility water sources. For refrigerants like R-410A or CO2, ensure exchangers use compatible materials (copper for R-410A, stainless steel for CO2) and pressure ratings exceeding 1.5× the maximum operating pressure. In parallel circuits, balance flow using manifolds and check valves to prevent short-cycling between exchangers, which degrades performance.
