How to Create and Interpret Your Kitchen Layout Blueprint

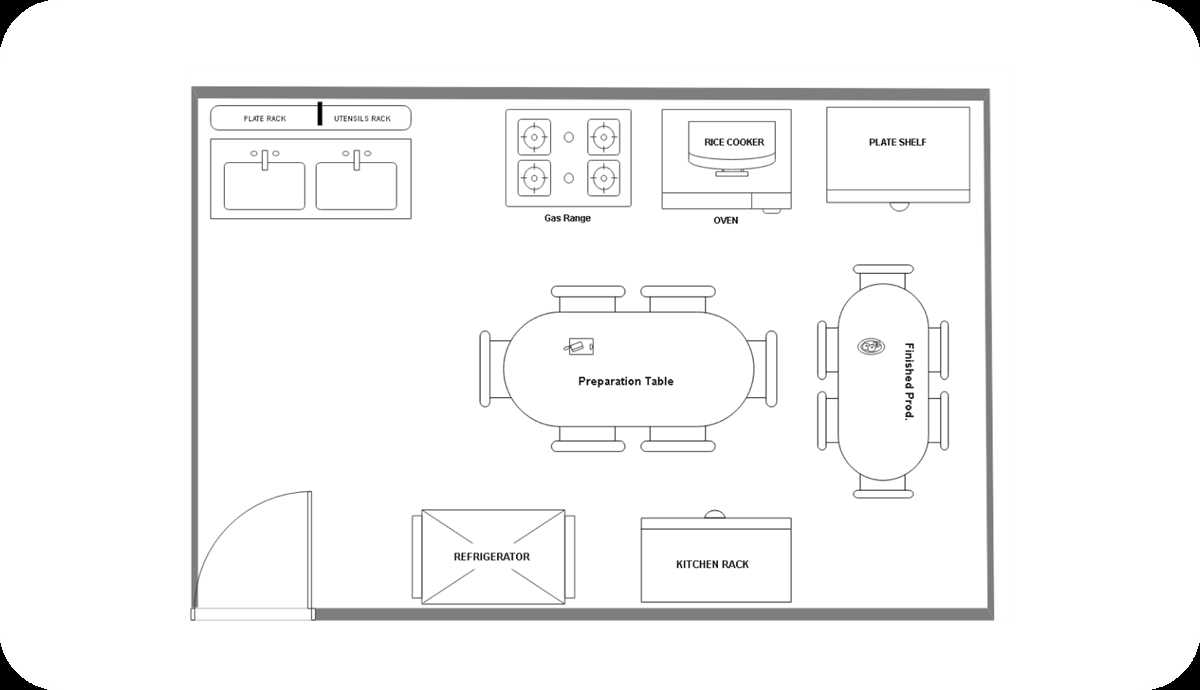

Begin by plotting the primary work zones along a triangular axis: storage, preparation, and cooking. Position refrigeration units, dry goods shelves, and pantry access within 1.2 meters of the prep surface to minimize movement. Locate the sink at the apex of this triangle–no further than 1.5 meters from both the stove and primary cutting area–to ensure seamless workflow during cleanup and ingredient rinsing.

Allocate a minimum of 90 centimeters along countertops for uninterrupted food assembly. Install pull-out cutting boards or slide-out trays beneath countertops to maximize vertical space without sacrificing accessibility. Upper cabinets should hang no higher than 45 centimeters above countertops; deeper shelves (30+ cm) accommodate bulky appliances, while shallow shelves (15 cm) store oils, spices, and utensils. Use glass-front inserts only for frequently used items to expedite retrieval.

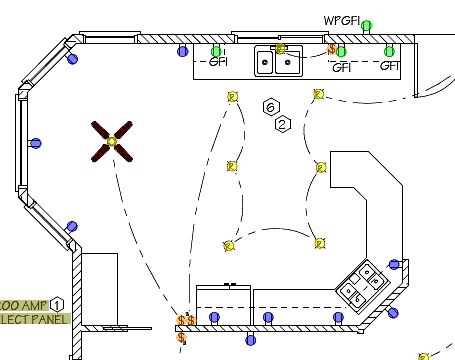

Plan electrical and plumbing outlets at 60-centimeter intervals along the backsplash. Dedicate one circuit (20-amp) solely to high-wattage appliances–microwave, blender, toaster oven–positioned adjacent to prep zones. Conceal plumbing pipes in false drawer fronts behind dishwasher or sink cabinetry; ensure 5 centimeters of clearance around pipes for insulation. Mark power outlets in red for dedicated circuits and reserve one USB-enabled outlet near phone charging stations if workspace doubles for meal planning.

Group lighting into three tiers: ambient (recessed LED cans, 3000K color temperature), task (undercabinet strips, 800 lumens per linear meter), and accent (pendant fixtures over islands, dimmable). Position task lighting directly above work surfaces–never behind the user–to eliminate shadows. Install occupancy sensors in pantries and walk-in storage to reduce energy waste without manual intervention.

For ventilation, mount a hood with a capture velocity of at least 150 CFM per linear meter of stove width, extending coverage 7.5 centimeters beyond front burners. Place ductwork vertically when possible; horizontal runs should slope upward at a 2-degree angle to prevent condensation buildup. Include a fire suppression port above electric cooktops, even if local code exempts them–retrofit costs are negligible compared to smoke damage.

Reserve a 60-x-60-centimeter “landing zone” beside the refrigerator for temporary staging. Integrate soft-close hinges on cabinet doors adjacent to heavy traffic areas to reduce noise and wear. Use drawer dividers with adjustable partitions for knives and gadgets; store cutting tools in horizontal slots to prevent blade dulling and improve visibility. Label clear containers with a label maker–handwritten tags degrade under humidity.

Designing a Functional Culinary Workspace Blueprint

Start by mapping the three core activity zones–storage, preparation, and cooking–using a 45×45 cm grid for precision. Allocate 30% of total space to refrigeration and dry goods, positioning them within 1.2 meters of the primary sink to minimize cross-contamination during ingredient retrieval. Mark electrical outlets at 90 cm intervals, ensuring at least two dedicated circuits for high-wattage appliances like double ovens (3.6 kW) or induction cooktops (7.2 kW).

Label countertop edges with thickness measurements: 38 mm for quartz (heat-resistant up to 160°C) or 25 mm for laminate (prone to delamination above 120°C). Specify clearance zones–minimum 90 cm in front of appliances, 105 cm in high-traffic areas–and annotate them in contrasting colors (e.g., #FF5733 for caution, #33FF57 for safe pathways). Include a legend for material codes: SS304 for sinks, A36 steel for shelving, and tempered glass (minimum 6 mm) for backsplashes.

Incorporate a plumbing isometric view with pipe diameters: 15 mm for supply lines, 32 mm for waste (vented at 1.5 m intervals). Note slope requirements: 2% gradient for drains, 0.5% for water lines to prevent airlocks. Indicate shutoff valves (1/4-turn ball type) behind accessible panels, with labels in 12 pt bold sans-serif font, 1.2 m above floor level for visibility.

Assign task lighting zones using foot-candle targets: 70 fc for countertops (4000K LED strips), 50 fc for prep areas (adjustable track heads), 20 fc for ambient lighting (dimmable downlights). Specify Kelvin temperatures–avoid mixing warm (2700K) and cool (5000K) within 1.5 m to prevent visual fatigue. Include a load calculation: 1.2W/sq ft for general illumination, 2.5W/sq ft for focal points like islands.

Detail ventilation paths with CFM ratings: 400 CFM for standard ranges, 600 CFM for downdraft systems. Map ductwork runs: rigid aluminum (6″ diameter) with

Annotate appliance cutouts with exact tolerances: ±1 mm for built-in units (e.g., 75.5 cm for a 76 cm refrigerator cavity). Mark seismic anchors for wall-mounted equipment (minimum 12 mm toggle bolts, spaced 61 cm apart). For touchpoints (faucets, handles), use corrosion-resistant finishes: powder-coated fluoropolymer (30-year warranty) or PVD brass (lifetime warranty).

Embed a color-coded wire routing diagram: red for 240V lines, black for 120V, green for ground (minimum 12 AWG). Indicate conduit pathways (3/4″ EMT) buried ≥18″ deep for outdoor runs, with pull boxes every 30 m for maintenance access. Add a QR link to manufacturer specs for custom elements–grab bar load ratings (250 lbs), glass shelf thickness (8 mm tempered), or drawer slide extensions (100% for soft-close dampers).

Critical Elements for Your Culinary Space Blueprint

Begin by marking plumbing lines with precise measurements–specify cold, hot, and waste pipes within 1/4-inch tolerance. Indicate shutoff valve locations, preferably near sinks and appliances, to enable quick isolation during maintenance. Include vent stack routing, ensuring vertical alignment with drainage to prevent pressure imbalances that cause slow drainage or gurgling.

Outline appliance footprints with exact dimensions, accounting for door swing clearance–minimum 36 inches for refrigerators, 30 inches for ovens, and 24 inches for microwaves. Specify electrical load requirements: dedicated 20-amp circuits for refrigeration/freezers, 30-amp for ovens, and GFCI protection for outlets within 6 feet of sinks. Label gas line entry points if applicable, noting pipe diameter (typically 1/2-inch for residential hookups).

Task-Specific Work Zones

• Prep Area: Allocate 15 sq. ft. minimum adjacent to the sink, ensuring 18-inch counter space on at least one side. Include under-counter lighting or a pull-down task fixture if overhead cabinets obstruct natural light.
• Cooking Zone: Position the range/cooktop 24-36 inches from the prep area. Allow 3-inch clearance on sides and rear for ventilation models wider than 30 inches. Mark exhaust duct routing–rigid metal ducts with fewer bends maximize airflow efficiency.
• Cleanup Station: Center the sink in a 36-inch-wide run, with 24 inches on the primary prep side. Specify garbage disposal placement (avoid corners) and compost bin locations if integrated into cabinetry.

Document storage compartments by type: base, wall, and tall units. Note shelving depth (12-24 inches) and height adjustability (standard 3-inch increments). For pantry units, specify roll-out trays or pull-out shelves for items stored below counter level. Include toe-kick drawers for seldom-used items, ensuring 3 inches of clearance for safe installation.

Indicate flooring transitions–waterproof membrane under appliances, slip-resistant tile (0.6+ COF rating) near sinks, and consistent material thresholds to avoid tripping hazards. Ceiling plans should denote exhaust fans (minimum 100 CFM for bathrooms opening into food areas), recessed light placement (avoiding obstruction by upper cabinets), and soffits if concealing ductwork or plumbing.

1. Verify all door openings against appliance dimensions–subtract 1/2 inch from total unit width for clearance.
2. Confirm counter overhangs: 1.5 inches for support brackets, 10-12 inches for seating areas with knee space compliance.
3. Audit utility access: panel clearances (30×36 inches per NEC), shutoff valves within 3 feet of fixtures, and removable cabinetry for shutoffs behind appliances.

Standard Measurements for Appliances and Workspaces

Refrigerators require a minimum clearance of 1 inch (2.5 cm) on each side for ventilation, while counter-depth models need 24–30 inches (61–76 cm) of depth, including door swing. Built-in units demand 36-inch (91 cm) width for seamless integration, with 34.5-inch (87.6 cm) height to align with standard cabinetry. Bottom-freezer designs add 2–4 inches (5–10 cm) to overall height.

Cooking Surfaces and Ventilation

• Gas ranges: 30–36 inches (76–91 cm) width, 24–26 inches (61–66 cm) depth. Allow 30 inches (76 cm) of overhead space for safety.
• Induction cooktops: 2–3 inches (5–7.5 cm) front/rear clearance for wiring; 36-inch (91 cm) width for professional models.
• Range hoods: 6-inch (15 cm) wider than the cooking surface, mounted 24–30 inches (61–76 cm) above burners. Island installations require 36-inch (91 cm) height for optimal airflow.

Wall ovens need 24-inch (61 cm) depth for single units, 27 inches (68.5 cm) for double stacked. Leave 3 inches (7.5 cm) of lateral space for heat dissipation. Microwave positioning should follow 3-inch (7.5 cm) clearance on sides and top, with 15–18 inches (38–46 cm) above countertops for ergonomic access.

Sink basins require 8–10 inches (20–25 cm) front-to-back depth, with 22-inch (56 cm) minimum width for double bowls. Faucet reach should extend 8–12 inches (20–30 cm) to cover both basins. Undermount models need 1.5-inch (3.8 cm) lip spacing for proper drainage.

1. Countertop edges: 1.5-inch (3.8 cm) overhang for seated tasks; 24-inch (61 cm) depth standard, 25–26 inches (63.5–66 cm) for baking stations.
2. Walkway clearance: 36 inches (91 cm) for single cook, 42–48 inches (107–122 cm) for multiple users. Islands with seating demand 48 inches (122 cm) clearance on all sides.
3. Toe kick: 3.5–4 inches (9–10 cm) height, 3 inches (7.5 cm) depth for cabinetry; drawer fronts should extend 0.5 inches (1.3 cm) beyond face frames.

Dishwashers need 24-inch (61 cm) width for standard models, 18-inch (46 cm) for compact. Leave 2–3 inches (5–7.5 cm) of open space behind for plumbing access. ADA-compliant units require 32-inch (81 cm) front clearance for door swing.

Appliance Niches and Storage

• Wine coolers: 14–15 inches (35.5–38 cm) width for 24-bottle units; 23-inch (58.4 cm) for dual-zone models.
• Pull-out pantries: 9–12 inches (23–30 cm) width, 24 inches (61 cm) depth. Full-extension slides add 2 inches (5 cm) to overall depth.
• Wall cabinets: 12-inch (30.5 cm) depth standard, 15–18 inches (38–46 cm) for upper storage. Leave 18 inches (46 cm) between countertop and upper cabinets for task lighting.

Electrical outlets should be spaced 48 inches (122 cm) apart along walls, 24 inches (61 cm) from corners. GFCI protection requires 6-foot (1.8 m) proximity to sinks. Receptacles for refrigerators must be 6 inches (15 cm) above floor level, with 36-inch (91 cm) height for countertop circuits. Gas lines need 3-inch (7.5 cm) clearance for shut-off valves.
