How to Build a DIY Home Thermostat Circuit Step-by-Step Guide

Start with a 24V AC transformer–primary power for most residential heating and cooling systems. Wire the secondary side to a fused disconnect rated for 3A to prevent overloads. Connect one transformer lead to the common terminal (C) on the control board and the other to the R terminal, ensuring a stable voltage reference for proper operation.

Use 18-gauge solid copper wire for all low-voltage connections, avoiding stranded wire to reduce signal interference. Splice wires with lever-nut connectors or crimp terminals–never twist-and-tape junctions, as corrosion will disrupt signals within months. Label every wire at both ends with heat-shrink tubing marked “R,” “W,” “Y,” “G,” or “C” to eliminate troubleshooting errors.

Place a NO (normally open) relay between the R and W terminals to handle high-power heat strips or auxiliary stages–most stock boards max out at 1.5A, insufficient for electric furnaces. Add a flyback diode across relay coils rated for 100V reverse voltage to absorb inductive spikes from solenoid valves and compressor delays.

Mount temperature sensors away from heat sources, direct sunlight, or drafts–ideal locations include interior walls at 1.5 meters (5 feet) height, spaced 0.3 meters (1 foot) from doors. Avoid basements; cold spots skew readings by ±3°C (±5°F). Use 10k NTC thermistors for analog inputs, pairing them with a 10-bit ADC to achieve 0.1°C (0.2°F) resolution.

Integrate a cycle delay timer between Y and compressor contacts to enforce a minimum off-time of 5 minutes, preventing short-cycling damage. For multi-stage systems, stack differential thermostats–set first-stage delta at 0.5°C (1°F), second-stage at 1.1°C (2°F) to prioritize energy efficiency over rapid response.

Test continuity with a multimeter in Ω mode before energizing–resistance below 1Ω confirms intact wiring. Measure voltage between R and C after power-up: expect 24–28V AC. If voltage sags, inspect transformer tap settings–North American models often default to 120V/24V, but European units may require 230V/24V jumpers.

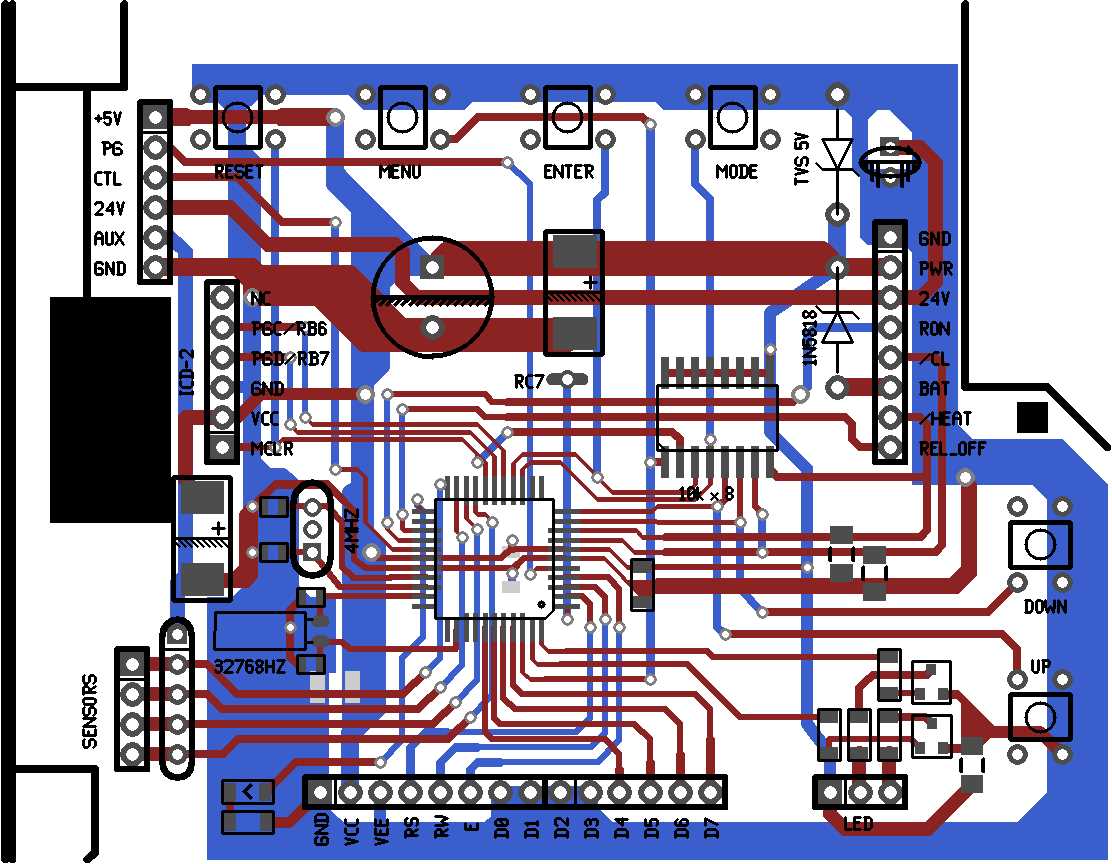

Building an Electronic Climate Controller: Key Circuit Layouts

Start by connecting a DS18B20 temperature sensor to a microcontroller via a 1-Wire interface. Use a 4.7KΩ pull-up resistor between the data line and VCC (3.3V or 5V) to ensure signal integrity. Place the sensor on a twisted pair cable, no longer than 5 meters, to minimize interference. The microcontroller’s digital pin should read the sensor’s 64-bit ROM address first–this avoids conflicts in multi-sensor setups.

Power the circuit with a LM7805 voltage regulator if using a 12V supply; heat dissipation is critical–mount the regulator on a small heatsink. For battery-powered units, opt for a TP4056 charging module with under-voltage protection to prevent deep discharge. Add a Schottky diode (1N5817) on the input to block reverse current during power fluctuations. A 100μF electrolytic capacitor across the input and output stabilizes voltage spikes.

For relay control, use a 2N2222 transistor or PC817 optocoupler to isolate the low-voltage logic from the 240V AC load. The relay coil should draw no more than 50mA–exceeding this risks microcontroller damage. Add a flyback diode (1N4007) across the relay coil to suppress voltage spikes when the relay switches off. Test the relay contacts with a multimeter in continuity mode before connecting high-voltage wires.

Implement hysteresis to prevent rapid cycling: set the heating trigger 2°C above the cooling threshold (e.g., heat at 19°C, cool at 21°C). Store this threshold in EEPROM or non-volatile memory to retain settings after power loss. Use a rotary encoder with push-button for user input; debounce the signal in software with a 50ms delay to avoid false triggers. Display feedback on a 16×2 LCD (HD44780 compatible) or OLED (SSD1306) for real-time status.

For wireless communication, integrate an ESP8266 (Wi-Fi) or HC-05 (Bluetooth) module. Configure the ESP8266 in station mode to connect to a local network; use MQTT for lightweight messaging. Flash firmware via OTA updates to avoid physical access. Secure the connection with WPA2 encryption and disable default credentials–change the chip’s AT command password to a 16+ character string.

Add backup power with a supercapacitor (1F, 5.5V) or 18650 Li-ion battery for brownout protection. The supercapacitor charges through a TP4056 module but requires a low-dropout regulator (e.g., ME6211) to maintain voltage during discharge. For outdoor units, enclose the circuit in a polycarbonate IP65-rated box–drill a 5mm drainage hole at the bottom to prevent condensation buildup.

Key Parts for Building a Climate Control Unit

Start with a temperature sensor like the DS18B20 or LM35. The DS18B20 offers digital output with ±0.5°C accuracy between -10°C and +85°C, while the LM35 provides analog readings at 10mV/°C without calibration. Choose based on your microcontroller’s input type–digital or ADC.

Include a microcontroller as the brain; Arduino Nano or ESP8266 are cost-effective options. The Nano runs at 16MHz with 32KB flash, sufficient for basic logic, while the ESP8266 adds Wi-Fi for remote adjustments. For power efficiency, opt for an ATtiny85 if size is critical–it consumes ~2μA in sleep mode.

Power the circuit with a 5V regulated supply. Use an LM7805 linear regulator if sourcing from a 9V battery or a buck converter (e.g., MP2307) for 12V inputs to improve efficiency. Calculate current draw: sensors (~1mA), relay coil (~70mA), and MCU (~20mA) total ~100mA; ensure your regulator handles at least 200mA.

Switching and Display Elements

A relay module (e.g., SRD-05VDC-SL-C) is essential for toggling heating/cooling systems. Pick a 5V coil variant with contacts rated for your appliance’s voltage (e.g., 10A/250VAC for HVAC systems). For quieter operation, replace the relay with a TRIAC (e.g., MOC3041) paired with an optocoupler to isolate low-voltage logic from mains power.

• Optional user interface: Add a 16×2 LCD (HD44780) or OLED (SSD1306). The LCD draws ~2mA, while the OLED (I²C) uses ~10mA but offers better contrast. For minimalism, replace the display with a single RGB LED–blink patterns can denote modes (e.g., red for heating, blue for cooling).
• Calibration: Include a trimpot (10kΩ) to fine-tune sensor readings if using analog inputs. Software-based offsets work for digital sensors like the DS18B20.

Secure connections with 0.1μF ceramic capacitors across power rails near the MCU and relay to suppress noise. For long sensor wires (>1m), use twisted pairs with a pull-up resistor (4.7kΩ) for the DS18B20’s 1-Wire interface. Avoid breadboards for permanent setups–solder components to perfboard or design a custom PCB with 1mm traces for 1A+ current paths.

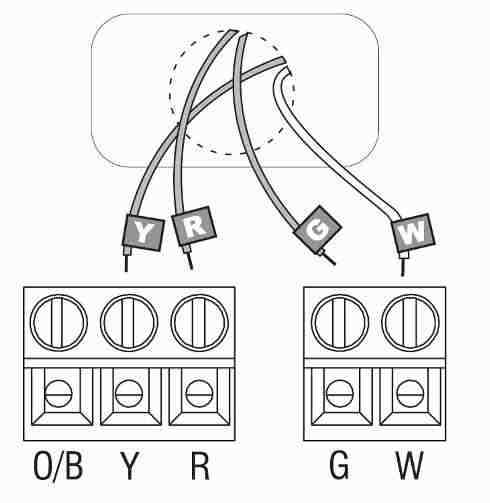

Step-by-Step Wiring Guide for a 24V Climate Control Switch

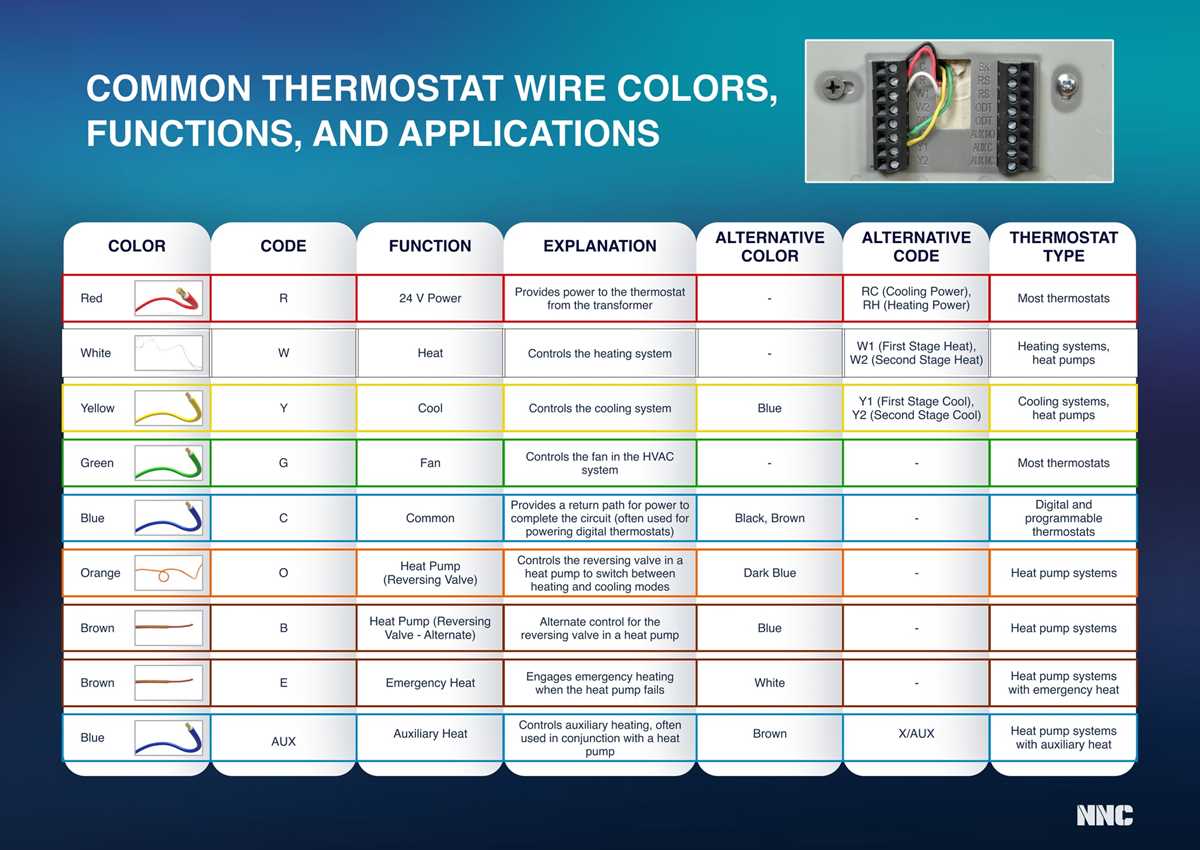

Turn off power at the circuit breaker before handling any wires–exposing live 24V circuits risks shorts or equipment damage. Label each wire with masking tape: Rh (red-heated power), Rc (red-cooled power), W (white-heat call), Y (yellow-cool call), G (green-fan), and C (common-blue). If your HVAC lacks separate Rh/Rc, join them with a jumper wire.

Strip 1/4 inch of insulation from each wire end using wire strippers, then twist strands clockwise to prevent fraying. Insert Rh into the corresponding terminal on the control unit–most models mark it clearly–then tighten the screw securely. Repeat for Rc (if separate), W, Y, G, and C, ensuring no bare wire extends beyond the terminal clamp.

Connect the C wire last; it completes the 24V circuit to power the display and sensors. Check polarity on the HVAC transformer–mismatched connections will prevent normal operation. For heat pumps, an O/B (orange) wire may require connection to a separate port; verify your equipment manual for exact terminal designations.

Mount the control unit onto the wall plate using the provided screws, aligning it so wires don’t pinch under the base. Restore power and observe the display–if blank, recheck C and Rh/Rc connections. A blinking screen typically signals a wiring error; power down and verify terminal tightness before retesting.

Configure basic settings via the button interface: set heat/cool modes, temperature swing (recommended ±1°F), and fan operation (auto/on). For smart models, connect to Wi-Fi at 2.4GHz only–5GHz bands are incompatible. Avoid placing the unit near drafts, direct sunlight, or heat sources, as these skew readings by 3-5°F.

Test functionality by adjusting setpoints 5°F above and below ambient. Listen for relay clicks within 30 seconds–the HVAC should activate without hesitation. If cooling calls produce heat (or vice versa), swap W and Y wires at the control unit terminals and retest. Keep a multimeter nearby to confirm 24V between R and C during active calls.

Wiring a Climate Controller to Gas Heating Systems or Heat Pumps

Shut off power to the heating unit at the circuit breaker before touching any wires. Use a non-contact voltage tester to verify all leads are dead–this prevents shocks or short circuits during installation.

Terminal Label	Gas Furnace Connection	Heat Pump Connection
R or Rh	24V power from furnace	24V power from outdoor unit
W	Heating relay	Not used (aux heat if present)
Y	Cooling request (if dual system)	Compressor contactor
G	Blower fan	Fan relay
C	Common ground	Common ground
O/B	–	Reversing valve (heating/cooling)

Match each wire color to its corresponding terminal by consulting the unit’s manual–colors vary by manufacturer. Gas furnaces typically require R, W, and often C connections, while heat pumps add O/B for valve control.

For gas systems, route the W wire directly to the furnace’s control board. If the unit has a separate cooling function, connect the Y wire to the AC’s contactor. Heat pumps demand an O/B wire spliced into the reversing valve solenoid; omit this step only if the system lacks cooling capability.

Secure all connections with wire nuts and wrap each joint tightly with electrical tape. Loose contacts cause intermittent failures or safety shutdowns. Label each wire at both ends to avoid miswiring during future maintenance.

Restore power and set the controller to call for heat. Observe the furnace’s ignition sequence–glow coils should activate within 30 seconds, followed by burner ignition. For heat pumps, listen for the outdoor unit’s compressor hum; absence of sound indicates a wiring error at Y or O/B.

Finalize with a system test: cycle between heating and cooling modes while checking for correct blower speeds. If the unit fails to start, recheck the C wire connection–many smart controllers demand a continuous power return to operate.
