Step-by-Step Guide to Outdoor Lighting Circuit Connections and Installation

Install a master transformer with a 12-volt capacity rating at least 20% higher than the combined wattage of all connected fixtures. A 300-watt transformer suffices for most residential setups, but commercial installations often require 600-watt or larger units to prevent voltage drop across extended runs. Use direct burial-rated cables (minimum 12-gauge) for paths under 50 feet; opt for 10-gauge cables when distances exceed this threshold to maintain consistent brightness at fixture terminals.

Position low-voltage junction hubs no more than 12 feet apart along cable routes to simplify troubleshooting and facilitate future expansions. Each hub should contain a solderless twist-on connector rated for outdoor use, protected by a waterproof silicone-filled housing. Route main cables in shallow trenches (6 inches deep) lined with PVC conduit near trees or high-traffic areas to prevent accidental damage from landscaping tools.

Group fixtures into three distinct zones based on their illumination intensity requirements: accent (1-3 watts per fixture), pathway (4-7 watts), and flood (10+ watts). Dedicate one circuit to each zone originating from the transformer, using multistrand copper wire with a jacket rated for -40°C to +60°C temperature fluctuations. Install inline blade fuses (3 amp for accent zones, 7 amp for pathways) at the transformer output to isolate faults without affecting adjacent circuits.

Verify each fixture’s connection with a voltmeter before finalizing placement. Target a voltage reading between 11.5 and 12.5 volts at the farthest fixture; readings below 10.8 volts indicate excessive resistance requiring thicker gauge cables or shorter run lengths. Label every cable at both ends with heat-shrink tubing tags marked in UV-resistant ink to streamline maintenance.

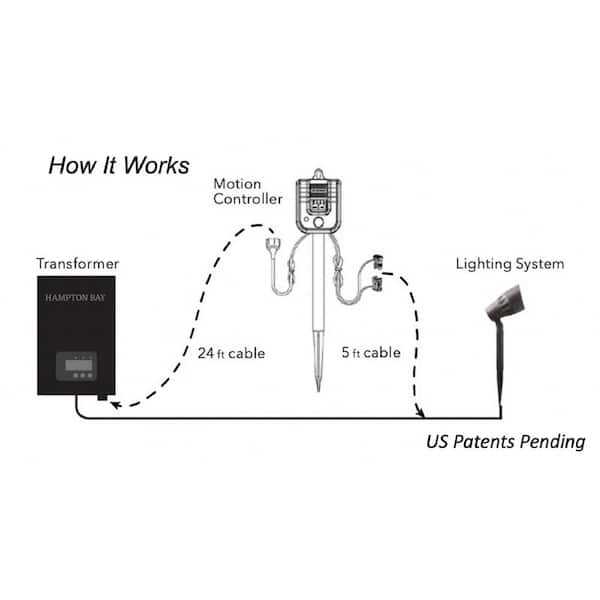

For timers and sensors, wire a separate 120-volt circuit with GFCI protection if integrating photocells or smart controllers. Use dry location-rated connectors inside weatherproof enclosures with IP66 seals when transitioning between low-voltage and line-voltage components. Test all connections under simulated rain conditions by spraying the setup with a 100 PSI garden hose for 5 minutes at a 3-foot distance to confirm waterproofing.

Illuminating Outdoor Spaces: Electrical Layout Essentials

Start with a 12V or 24V low-voltage transformer rated at least 20% higher than your total fixture wattage. For a 400W system, choose a 500W transformer to prevent overheating. Mount the transformer within 10 feet of a GFCI-protected outlet, securing it to a non-combustible surface like concrete or metal at least 12 inches above ground level.

• Use AWG 12 gauge wire for runs under 100 feet.
• Switch to AWG 10 gauge for distances between 100-200 feet.
• Avoid connecting more than 100W per wire run to maintain voltage stability.

Dig trenches at least 6 inches deep for burial, or 12 inches if crossing driveways. Line the bottom with 2 inches of sand before laying wire to prevent damage from rocks or shifting soil. Separate power and data cables by at least 12 inches to minimize interference if integrating smart controls.

Connect fixtures using waterproof gel-filled twist-on wire nuts or silicone-sealed lever connectors. Match the connector’s gauge range to your wire size–for AWG 12-14 wire, use yellow-coded connectors. Apply dielectric grease to all connections before sealing to prevent corrosion.

1. Install the transformer first, ensuring it’s powered off before wiring.
2. Run the main cable from the transformer to the first fixture, leaving 6-inch leads at each connection point.
3. Branch out secondary runs using T-taps or splitters, keeping total wattage per run under 150W.
4. Test voltage at the farthest fixture–acceptable drop is under 10% (e.g., 10.8V for a 12V system).

Group fixtures by type and voltage requirements. Halogen path markers may need thicker wire (AWG 10) compared to LED deck lights (AWG 14). Use separate circuits for high-load areas like tree uplights (up to 50W each) and accent strips (5-10W per foot).

Label every wire run at the transformer and at 20-foot intervals with UV-resistant tags. Note the circuit purpose (e.g., “Front Steps – 35W”) and wire gauge. Store spare wire in a sealed conduit alongside the main run for future repairs. Avoid coiling excess wire at the transformer–this can create a heat trap and degrade performance.

For multi-zone setups, use a transformer with multiple taps (e.g., 12V, 13V, 14V) to fine-tune brightness in different areas. Connect a timer or photocell rated for the transformer’s wattage–never exceed the timer’s maximum load. For smart systems, pair Zigbee or Wi-Fi controllers with a surge protector (

How to Choose the Right Cable Size for Garden Illumination Systems

For 12V or 24V outdoor fixture setups, use 12-gauge copper cables for runs up to 50 feet with a total load under 150W. Longer distances or higher wattage require thicker conductors–10-gauge handles 100 feet at 200W, while 8-gauge supports 150-foot stretches with 300W loads without exceeding a 5% voltage drop. Strand count matters: opt for 19-strand cables in high-flex areas (e.g., burial under walkways) to prevent breakage from soil settling or foot traffic.

Calculate exact needs by multiplying fixture wattage, adding 20% for future expansion, then cross-reference with voltage drop tables. Aluminum cables are 30% cheaper but need two sizes thicker to match copper conductivity–corrosion-resistant coatings add longevity in wet climates. Direct burial cables with UV-resistant jackets last 15+ years; avoid staples or sharp bends to prevent insulation damage.

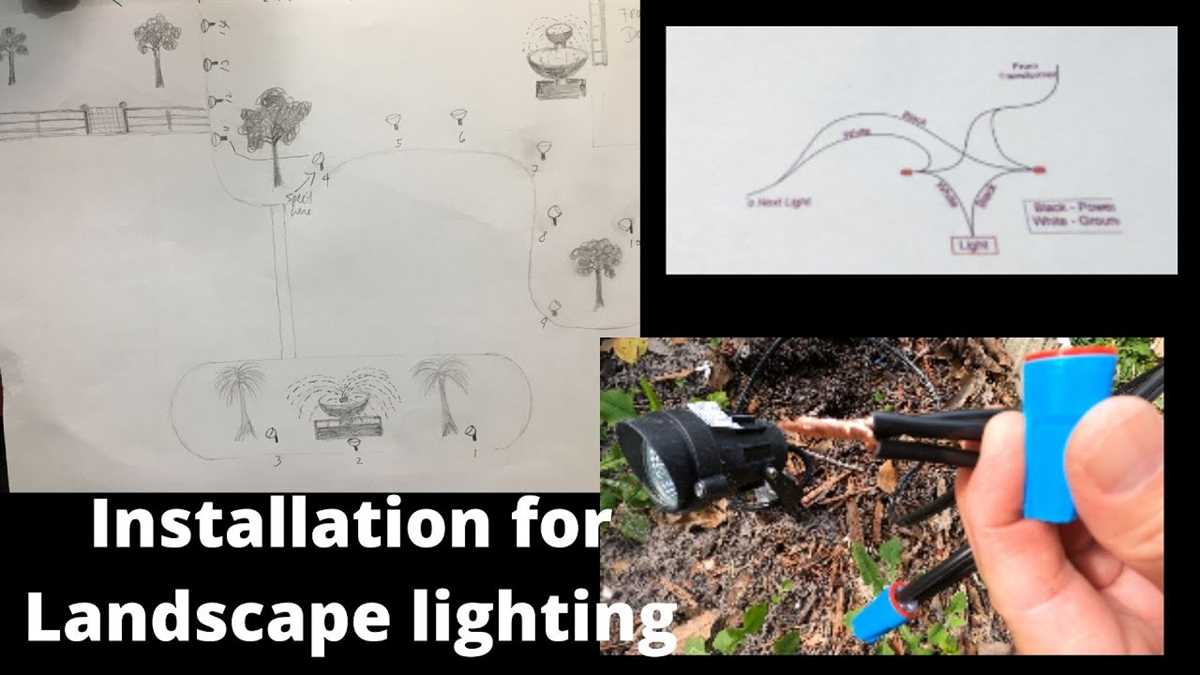

Step-by-Step Guide to Mapping Your Outdoor Illumination Network

Begin by sketching a scaled outline of the property on graph paper or digital drafting software. Mark fixed elements–paths, trees, architectural features, and water sources–using precise measurements (e.g., 1/4 inch = 1 foot). Label each zone with voltage requirements: low-voltage fixtures (12V) near stairs or decks, line-voltage (120V) for large focal points like driveways, and hybrid systems for transition areas. Indicate transformer locations by calculating total wattage: sum the bulb ratings (e.g., 20W + 35W + 15W = 70W) and add a 10% buffer for voltage drop over length. Use colored pencils to differentiate circuits–red for primary runs, blue for secondary branches–to avoid overlap.

Optimizing Cable Runs and Fixture Placement

Measure distances between fixtures and group devices within 100 feet of a transformer to minimize power loss. For runs exceeding 100 feet, use 12-gauge wire for 12V circuits or 10-gauge for 120V to reduce resistance. Place junction boxes at intersections to split currents; bury them 18 inches deep (or 6 inches with conduit) per NEC guidelines. Position uplights 6–12 inches from tree trunks and path markers 8–12 inches from walkway edges, angling adjustable heads to avoid glare. Document wire lengths on the plan: e.g., “Transformer A to Spotlight 1: 45 ft, #12 AWG, PVC conduit.”

Test the layout by simulating nighttime conditions. Trace routes with a tape measure to confirm distances, then flag potential obstacles (roots, utility lines) using a stud finder for buried cables. Label each fixture on the plan with its purpose (e.g., “S1: 20W LED, 3000K, accent boulder”) and cross-reference with a parts list. For multi-circuit systems, use a spreadsheet to track amp draws: divide total wattage by voltage (70W / 12V = 5.8A). Validate the design by checking local codes–some jurisdictions require GFI protection for outdoor outlets or specific junction box types (e.g., weatherproof, UL-listed).

Critical Errors in Outdoor Illumination Installation

Overloading circuits ranks as the most frequent blunder in garden illumination projects. Calculations must account for voltage drop across extended runs–every 10 meters of 12AWG cable loses approximately 1.2V at 12V input. Use Ohm’s Law (V=IR) to verify total amperage before selecting transformers; underestimating by even 10% can cause flickering or premature failure. Install a multimeter to confirm voltage at the farthest fixture, ensuring readings stay within ±5% of the rated output. Split large setups into multiple circuits with dedicated transformers for zones exceeding 40W total load.

Neglecting waterproofing specifications guarantees corrosion or short circuits within months. Connectors marked IP68 withstand submersion, while IP44 suffices only for above-ground use–never mix ratings. Apply dielectric grease to all metal junctions, including ground screws, and wrap connections with self-fusing silicone tape for secondary sealing. Buried lines require direct burial-rated cable (UF-B) at 18″ depth minimum; standard NM-B will degrade when exposed to moisture. Inspect seals annually, especially after heavy rain or freeze-thaw cycles.

Grounding Pitfalls That Compromise Safety

• Using copper-clad steel rods instead of pure copper grounding rods reduces conductivity by 30%; corrosive soil accelerates deterioration.
• Connecting multiple ground wires to a single rod without separation invites stray currents; space rods 6 feet apart per NEC 250.53.
• Omitting GFCI protection for transformers near water features violates UL 1838 standards–test trip times bi-monthly with a plug-in tester.
• Aluminum wire for grounding is prone to oxidation; use only copper or tinned copper, crimping with a hex die tool, never twist-and-tape.

Improper fixture spacing wastes energy and creates glare. For 12V LED path markers, maintain 4-6 feet between units to avoid hotspots; accent uplights require 8-10 feet separation for uniform coverage. Angle spotlights downward at 30° max to prevent light trespass onto neighboring properties, adhering to dark-sky compliance guidelines. Measure lumen output per fixture–most 3W LEDs emit 250-300 lumens; exceeding 400 lumens in residential zones often violates local ordinances. Test layouts at dusk before final burial; soil composition affects diffusion, making adjustments necessary in sandy or clay-heavy areas.
