Understanding LCD Screen Circuit Construction and Wiring Schematics

Begin with a 3.3V or 5V regulated power supply feeding the backlight inverter–most monochrome panels require 10–20 mA, while color modules need 50–150 mA per LED string. Verify polarization on the input terminals; reversing polarity will damage the driver IC immediately. Attach a 10kΩ pull-up resistor between the enable pin and VCC for stable initialization–omitting this risks erratic flickering during startup sequences.

Use an 8-bit parallel interface for controllers like the HD44780, limiting wire runs to 20 cm to prevent signal degradation. For SPI/I2C setups, solder a 4.7kΩ pull-up on both SDA and SCL lines if the host microcontroller lacks internal resistors. Ground the contrast pin (Vo) through a 10kΩ potentiometer–adjusting voltage between 0–1.5V fine-tunes pixel visibility across temperature variations.

Mount decoupling capacitors–0.1µF ceramic for high-frequency noise and 10µF electrolytic for low-frequency stability–within 5 mm of the power pins. Neglecting this causes random character corruption at refresh rates above 60 Hz. Route digital signals away from switching regulators to avoid induced artifacts along the 50-pin connector.

For passive matrix OLEDs, implement a current-limiting resistor (typically 150Ω) on each column driver to prevent overdrive–exceeding 25 mA accelerates organic layer degradation. Active matrix TFTs add a gate driver IC like the ILI9341; connect its reset pin to the MCU’s hardware reset line for synchronized wake-from-sleep sequences.

Understanding Display Panel Electrical Layouts

Begin by identifying the controller IC–most commonly a Sitronix ST7789V, Ilitek ILI9341, or Solomon Systech SSD1306 for monochrome variants. Pin mappings differ: the ST7789V uses 24 pins for 320×240 panels, while the SSD1306 limits to 16 for 128×64. Verify pin labels against the datasheet–MOSI, SCK, and CS often appear as SDI, SCL, and C/S.

Power delivery requires careful attention: TFT matrices need 3.3V for logic and 5–15V for backlight LEDs. Use a switching regulator (e.g., TPS61040) for efficiency; linear regulators waste heat. Calculate current draw–backlight strings typically pull 20–80mA per LED cluster, totaling 120–400mA for full brightness. Capacitors (10µF ceramic) must sit close to VCC and GND to prevent voltage drops during refresh cycles.

Interface wiring varies by protocol. SPI demands 4–6 wires (clock, data in/out, chip select, reset, data/command), while parallel mode (8080 or 6800) needs 8–16 data lines plus control signals. Mismatches cause garbled output–use a logic analyzer to confirm signal integrity if corruption appears. For Arduino-based setups, wire D/C to any GPIO (e.g., pin 9), RST to pin 8, and CS to pin 10 to maintain compatibility with libraries like Adafruit_GFX.

Protocol	Wires Required	Max Speed (MHz)	Typical Use Case
SPI	4–6	10–50	Low-cost microcontrollers
I2C	2	0.4–3.4	Pin-constrained designs
8080 Parallel	10+	20–100	High-speed color panels

Decoupling capacitors must match the display’s refresh rate. For 60Hz panels, 0.1µF ceramics suffice; 100Hz+ displays require 1µF or larger. Place them within 2cm of the VCC pin–long traces introduce noise, causing flicker. Resistive touch overlays add complexity: XPT2046 touch controllers need separate SPI connections, with Y+ and X- requiring 10kΩ pull-down resistors to avoid false presses.

Backlight dimming uses PWM. Dedicate a timer-capable pin (e.g., Arduino’s pin 3 or 5) and limit frequency to 1–5kHz–higher speeds risk audible whine. Calculate duty cycle: 50% equals ~1.65V for a 3.3V panel. For RGB panels, separate PWM channels for red, green, and blue enable true-color mixing. Note that some panels (e.g., ILI9341) invert PWM logic–verify with an oscilloscope if the backlight stays off.

Ground loops cause ghosting or flicker. Route all grounds to a single star point near the microcontroller’s ground pin. For noisy environments (e.g., motors nearby), add a 10Ω resistor in series with the backlight GND and bypass capacitors (0.01µF) at the panel’s GND pin. If persistent noise appears, isolate the display’s GND from the logic GND using a ferrite bead (e.g., BLM21PG221SN1L).

For embedded Linux (Raspberry Pi, BeagleBone), use the fbtft kernel module. Load it via modprobe fbtft_device name=fb_ili9341 gpios=reset:25,dc:24. Overclocking the SPI bus to 40–60MHz improves frame rates but risks signal integrity–ensure cables are short (

Core Elements of a Visual Display Controller Assembly

Start by sourcing a graphics processor with at least 128MB dedicated memory for smooth rendering–integrated solutions like the STMicroelectronics STM32F4 series handle 800×480 resolutions efficiently while consuming under 200mA at peak load. Pair it with a low-voltage differential signaling (LVDS) transmitter (TI DS90C387A) to prevent signal degradation over ribbon cables longer than 15cm; alternate with a MIPI-DSI bridge (Renesas RAA278000) for mobile-grade panels.

Select power regulators with dual outputs: a 3.3V switching converter for logic (TPS62743) and a 10V boost converter (LT1934) for backlight drivers–add a 22μF tantalum capacitor at each regulator’s output to suppress ripple below 20mVpp. Avoid linear regulators for backlight circuits; they dissipate 1.5W+ in 5-inch panels, causing thermal throttling.

Use glass-substrate connectors (Hirose DF12) with 0.5mm pitch for mainboard integration–ensure pin contact resistance stays under 30mΩ to prevent flickering. For smaller assemblies, opt for board-to-board connectors (JST BM20B) with gold-plated contacts resisting 5,000 mating cycles. Verify connector polarity with a multimeter before soldering; reversed connections damage pixel drivers irreparably.

Embed ESD protection diodes (Littlefuse SP1003) on all I/O lines–position them within 3mm of the connector to clamp transient voltages exceeding ±10kV. Add series resistors (22Ω) on data lines to limit current surges; without them, static discharge destroys TFT gate drivers in milliseconds. Test circuitry with a human-body-model ESD simulator at 8kV.

Choose thin-film transistor (TFT) drivers supporting dot inversion to eliminate vertical crosstalk–controllers like the Solomon Systech SSD2848 drive 10.1-inch 1280×800 panels at 60Hz with

Incorporate flexible printed circuit (FPC) traces with 0.1mm width for signal lines–use polyimide substrates (Dupont Kapton) for temperature resistance up to 260°C. Copper thickness should be 1oz to handle 300mA per trace without voltage drops; reinforce edges with nickel-gold plating to prevent oxidation in humid environments.

For backlighting, combine LED strings with a constant-current driver (PT4115) set to 18mA per LED–use binning-matched diodes (Cree XLamp XQ-E) to avoid luminance inconsistencies. Add a PWM dimming input (1kHz frequency) to prevent flicker; 100% modulation depth reduces LED lifespan by 40%. Mount LEDs on an aluminum-core PCB for thermal dissipation.

Include programmable logic (Microchip ATtiny45) to manage power sequencing–trigger the TFT driver 100ms after backlight activation to prevent image retention. Store calibration data in I²C EEPROM (24LC02B) with CRC checksums; corrupted data causes color shifts exceeding ΔE=3. Reflow solder profiles must peak at 245°C for 30s–exceeding this delaminates FPC bonds.

Step-by-Step Wiring Guide for Common Display Interfaces

Begin by identifying the pinout of your monochrome or color panel. Most 16-pin parallel modules follow a standard arrangement: VSS (GND), VDD (+5V), VO (contrast), RS (register select), R/W (read/write), E (enable), and data pins D0-D7. For 4-bit mode, ignore D0-D3 and use only D4-D7. Verify the datasheet–some modules (e.g., Nokia 5110) use SPI with SCLK, MOSI, and DC instead.

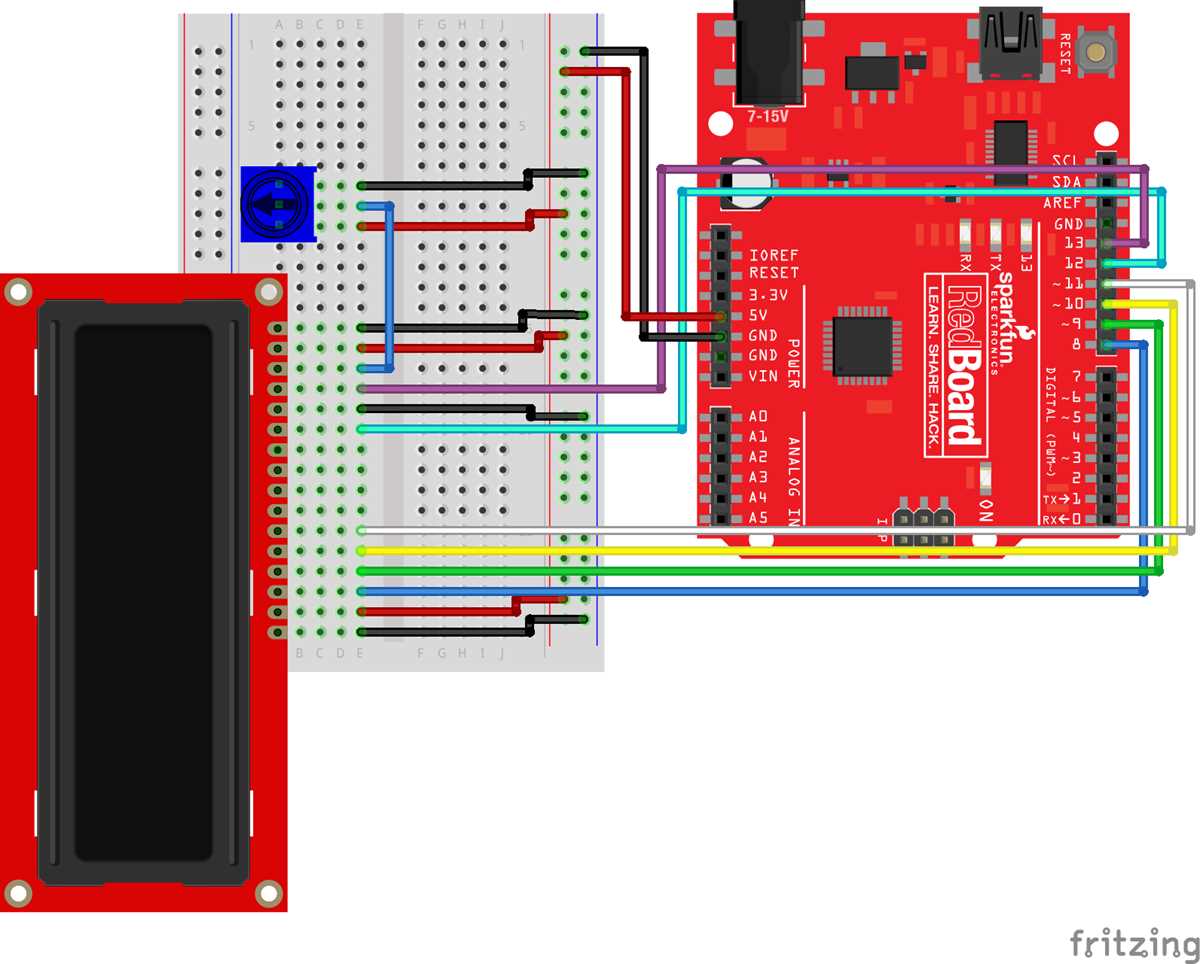

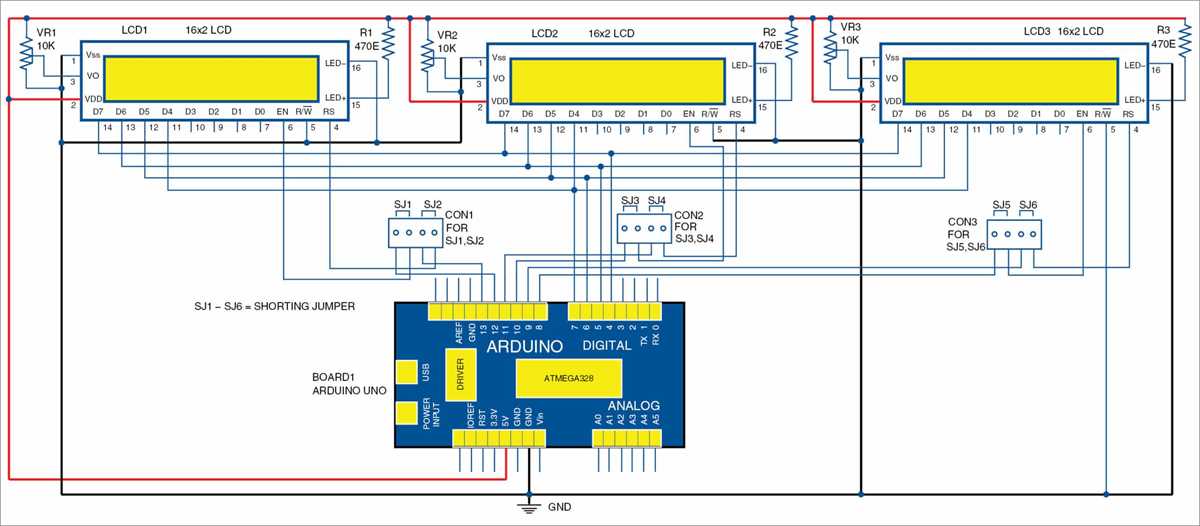

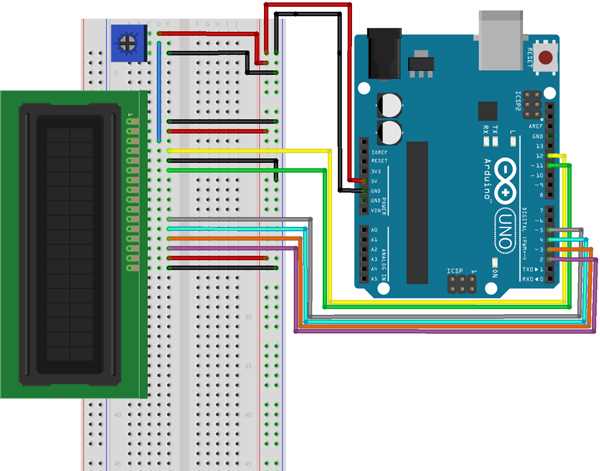

Parallel Interface Wiring

• Connect VSS to ground and VDD to a regulated 5V source. Use a 10kΩ potentiometer for VO to adjust contrast.
• Wire RS to a GPIO pin (e.g., Arduino D8) to toggle between command/data modes. Tie R/W to GND for write-only operation or to another GPIO for bidirectional control.
• Attach E to a separate GPIO (e.g., D9) to clock data. For 4-bit mode, link D4-D7 to sequential GPIOs (D4-D7). Leave D0-D3 unconnected.
• Add a 0.1µF decoupling capacitor between VDD and GND near the module to stabilize voltage spikes during transitions.

Serial (SPI/I2C) Interfaces

For SPI-driven panels (e.g., ST7735, ILI9341):

1. Connect SCLK to the microcontroller’s hardware SPI clock (e.g., Arduino SCK/D13).
2. Link MOSI to the MOSI pin (D11 on Arduino). Avoid bit-banging–use hardware SPI for speed.
3. Assign CS (chip select) to a GPIO (e.g., D10). Pull it LOW to activate the module.
4. Wire DC (data/command) to another GPIO (D9). Set LOW for commands, HIGH for pixel data.
5. For I2C panels, attach SDA and SCL to the corresponding microcontroller pins. Add 4.7kΩ pull-up resistors to VDD.

Initialize the interface with exact timing parameters from the datasheet. For SPI, set clock speed to 4–8 MHz; I2C typically runs at 100–400 kHz. Use libraries like Adafruit_GFX for predefined commands.

Test the connections incrementally. First, power the panel and check for backlight illumination (if present). Send a simple command (e.g., 0x01 for clear) via software. If the panel remains blank, verify:

• Power supply voltage (±0.2V tolerance)
• Contrast setting (VO voltage should be ~0.5V for 5V panels)
• Correct pin mapping–swap RS/E or check for shorted traces
• SPI/I2C clock polarity (CPOL/CPHA) if using custom drivers

For color TFTs, initialize the gamma curve early–incorrect settings distort colors or invert shades.
